EON515XT (停产)

Portable Self-Powered 15”, Two-Way, Bass-Reflex Design

EON515XT

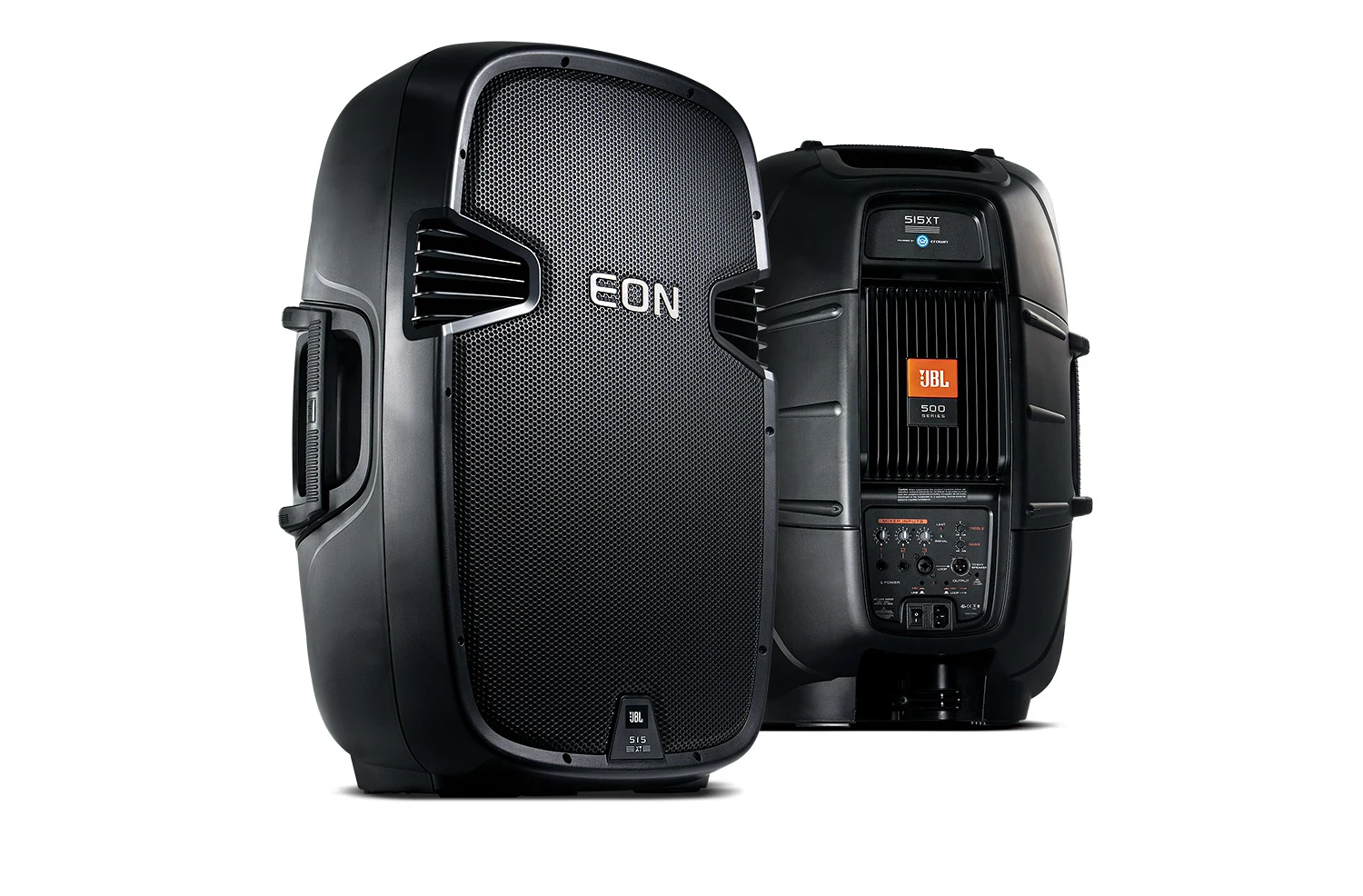

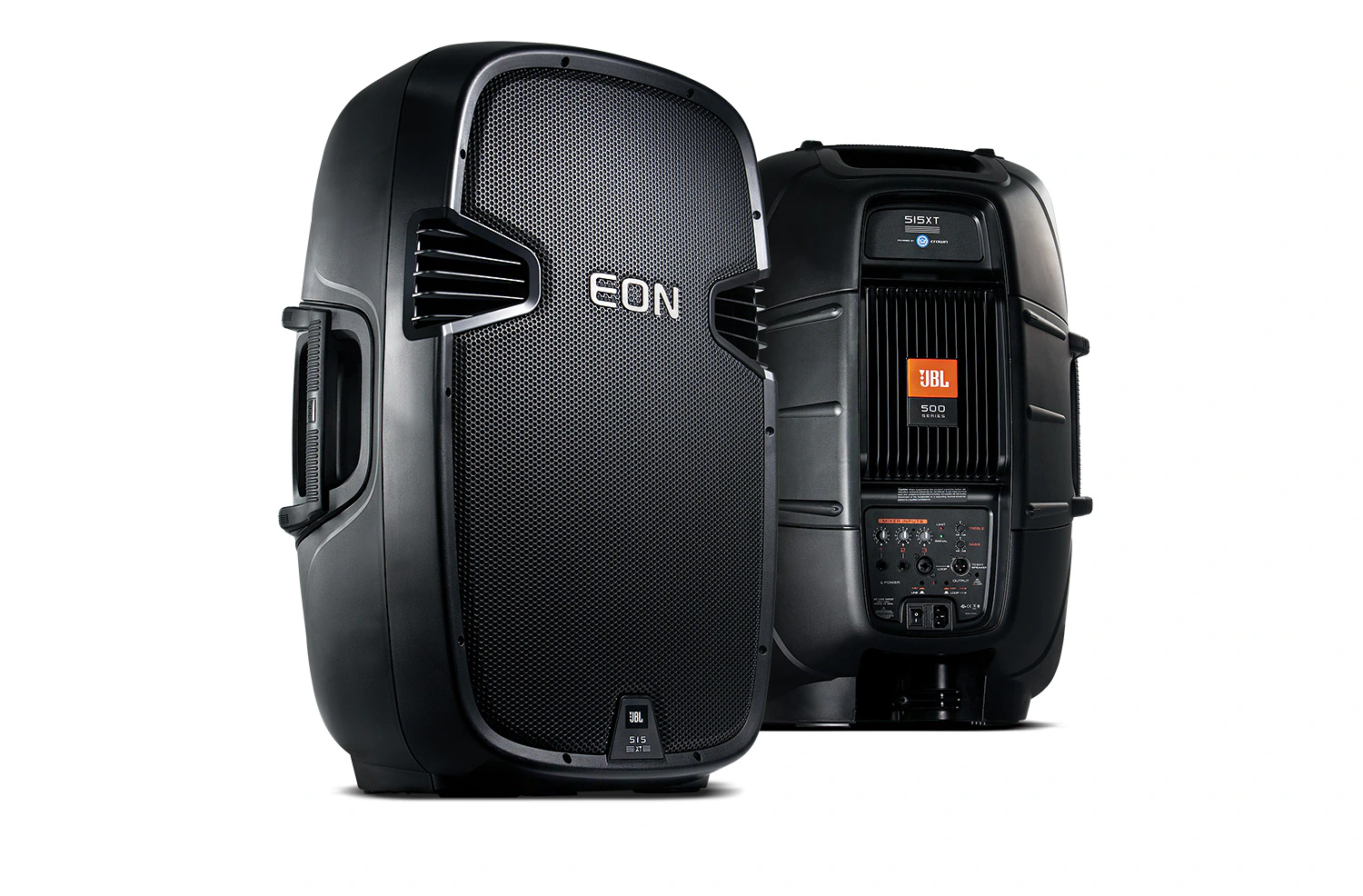

较大的图像

Portable Self-Powered 15”, Two-Way, Bass-Reflex Design

The EON 515XT was engineered for durability, high performance and ease of use. We’ve extended the reach of the current EON technology by improving input sensitivity, lowering the noise floor, adding user selectable EQ control and re-voicing the system for peak performance and enhanced audio precision. The intuitive onboard 3-channel mixer with adjustable EQ assures that you’re in control of the sound and the sturdy construction and superior ergonomic design will guarantee a lifetime of reliability and simplicity.



特点

  • Highly designed composite enclosures for durability, lightweight, and precise acoustic performance
  • True portability weighing only 14.8 kg (32.5 lb)
  • Multiple handles with comfort rubber grips for easy transport
  • Multi angle enclosure for main PA or floor monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Integrated M10 suspension points for easy fixed installation
  • 100º H x 60º V asymmetrical wave guide for uniform audience coverage
  • 1 5” Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
  • 1” throat diameter next generation JBL neodymium compression driver
  • Efficient Crown® Hybrid Class-D amplifier technology
  • 625 watt high-performance powered speaker system
  • Intuitive onboard 3-Channel Mixer
  • Line level and direct microphone input capability
  • User adjustable Bass and Treble controls
  • Unique Mix/Loop signal flow function for extended system application
  • Easy “Daisy-Chain” connections for extending the system

Applications

  • Live Sound Reinforcement for Speech and Vocals (Presenters, Singers or Entertainers, Teachers)
  • Music Playback for Entertainment, A/V and Institutional Venues (DJ’s, A/V rental companies, Houses of Worship, Nightclubs or Social organizations)
  • Amplification for Musical Instruments (Electronic Keyboards, Acoustic Guitars and Basses, Brass and Woodwinds, Percussion)
  • Floor Monitors for Live Sound Applications


下载

  Version Language Size Uploaded
Specifications
file type icon EON515XT Spec Sheet
updated: 10月22日
    1.4 MB 10月22日
Manuals
file type icon EON515XT German Users Guide
de updated: 10月22日
  de  7.1 MB 10月22日
Brochures
file type icon EON515XT Brochure
updated: 10月22日
    1.4 MB 10月22日
Compliances
file type icon EON515XT Declaration of Conformity
updated: 10月22日
    145.0 KB 10月22日
User Guides
file type icon EON515XT User's Guide
updated: 10月22日
    6.8 MB 10月22日
Images

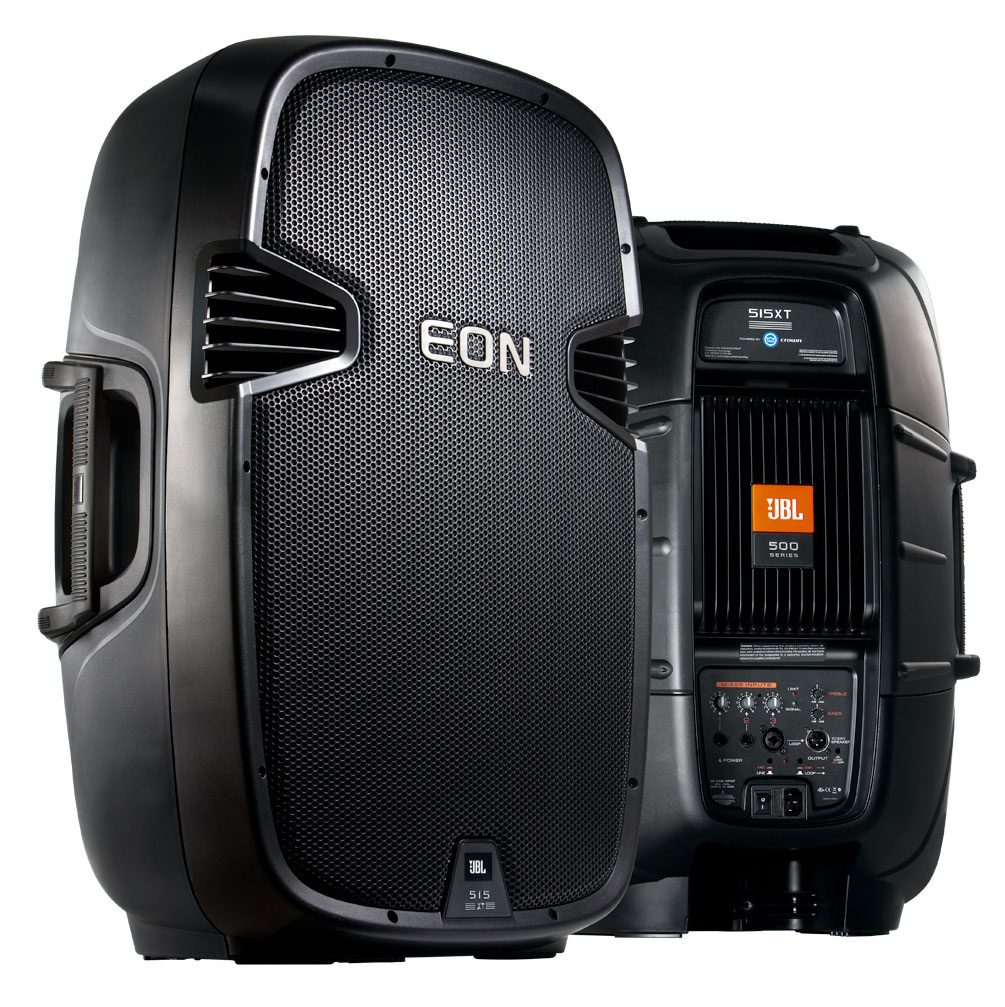

file type icon EON515XT Front-Back
updated: 10月22日
    220.1 KB 10月22日

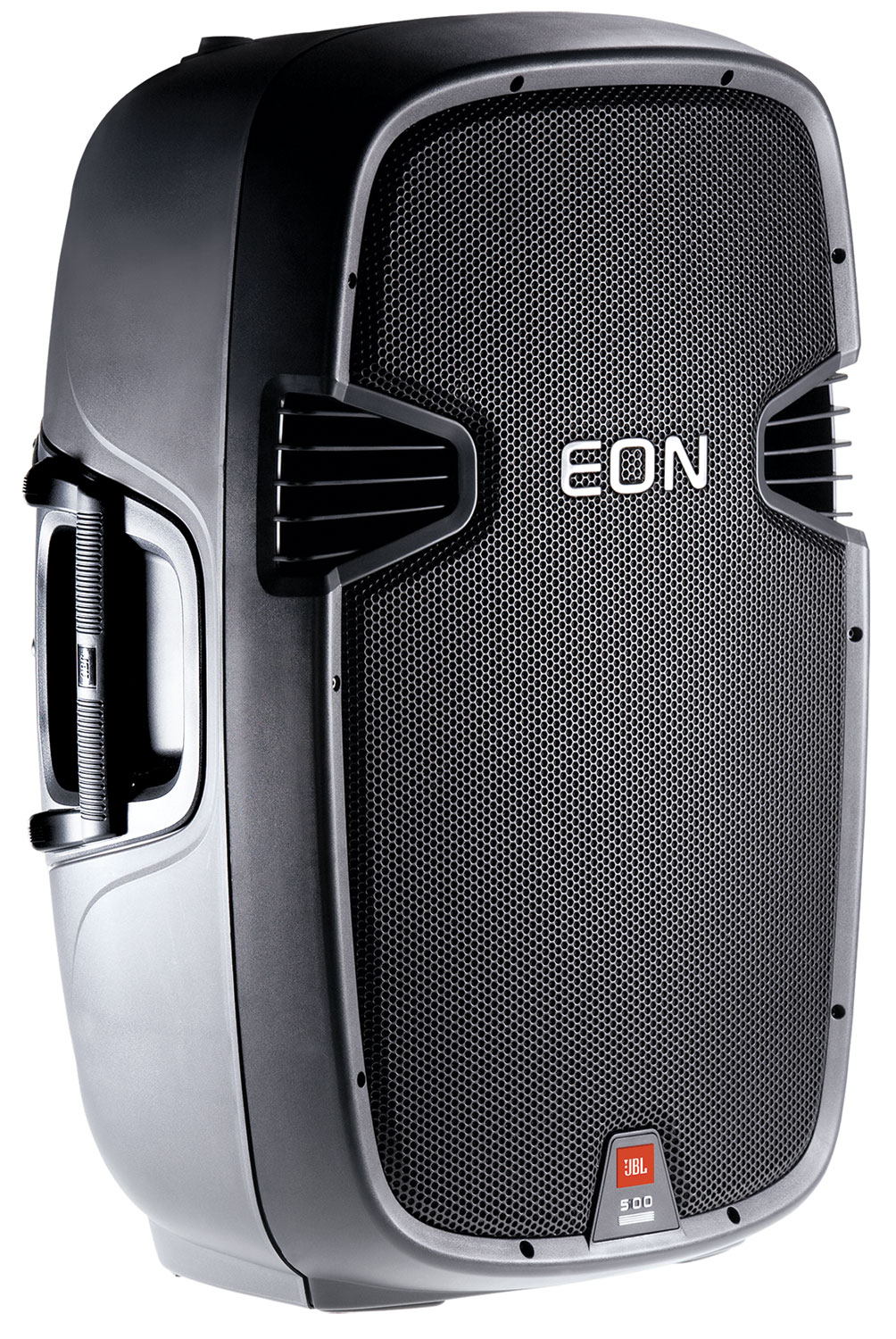

file type icon EON515XT Hi Res photo 1
updated: 10月22日
    449.6 KB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统额定功率 625 Watts (525 + 100)
频率范围 (-10dB) 39 Hz -20 kHz
尺寸(高 x 宽 x 厚) 673 mm x 406 mm x 368 mm (26.5” x 16” x 14.5”)
系统类型 Self powered 15”, two-way, bass-reflex
Maximum SPL Output 132 dB
Frequency Response (±3 dB) 42 Hz - 18 kHz
输入接口 2 x 1/4” TRS phone jacks balanced/unbalanced 1 x XLR / 1/4” TRS combo jack with XLR loop through

输入阻抗

14k ohms
Signal Indicators Limit: Red LED indicates limiter active conditionSignal: Green LED indicates signal presentMic: Indicates the MIC/LINE switch is in the “MIC” positionEQ: Individual Bass and Treble controls, center detent, 6 dB cut and boostBass +/- 6 dB (200 Hz turnover frequency)Treble +/- 6 dB (4 kHz turnover frequency)
麦克风输入增益 -Infinity to +40 dBu
Line Input Gain -Infinity to +4 dBu (+18 dBu maximum input level)
Limiter Yes
Amplifier Design Crown® Class-D
低频驱动单元 1 x JBL 265F-1 380 mm (15”) Differential Drive® integrated woofer with dual 2” voice coils
HF 驱动程序 1 x JBL 2414H 25.4 mm (1”) annular polymer diaphragm, neodymium compression driver
覆盖范围 100º H x 60º V nominal
分频点 1.7 kHz
材料 Polypropylene, multi-purpose main & monitor
Suspension / Mounting 36 mm pole socket with stabilizing screw, 5 x M10 suspension points
Handles One left/right side, one on top, with rubber grip
外观颜色 Black Granite
网罩 Powder coated perforated steel with acoustically transparent cloth backing
净重量 14.8 kg (32.5 lb)
