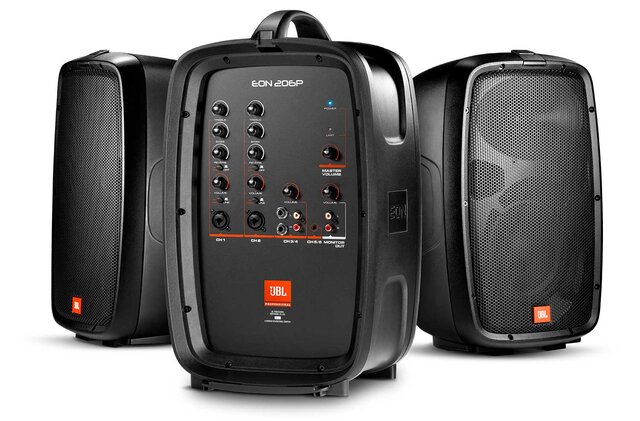

EON206P (停产)

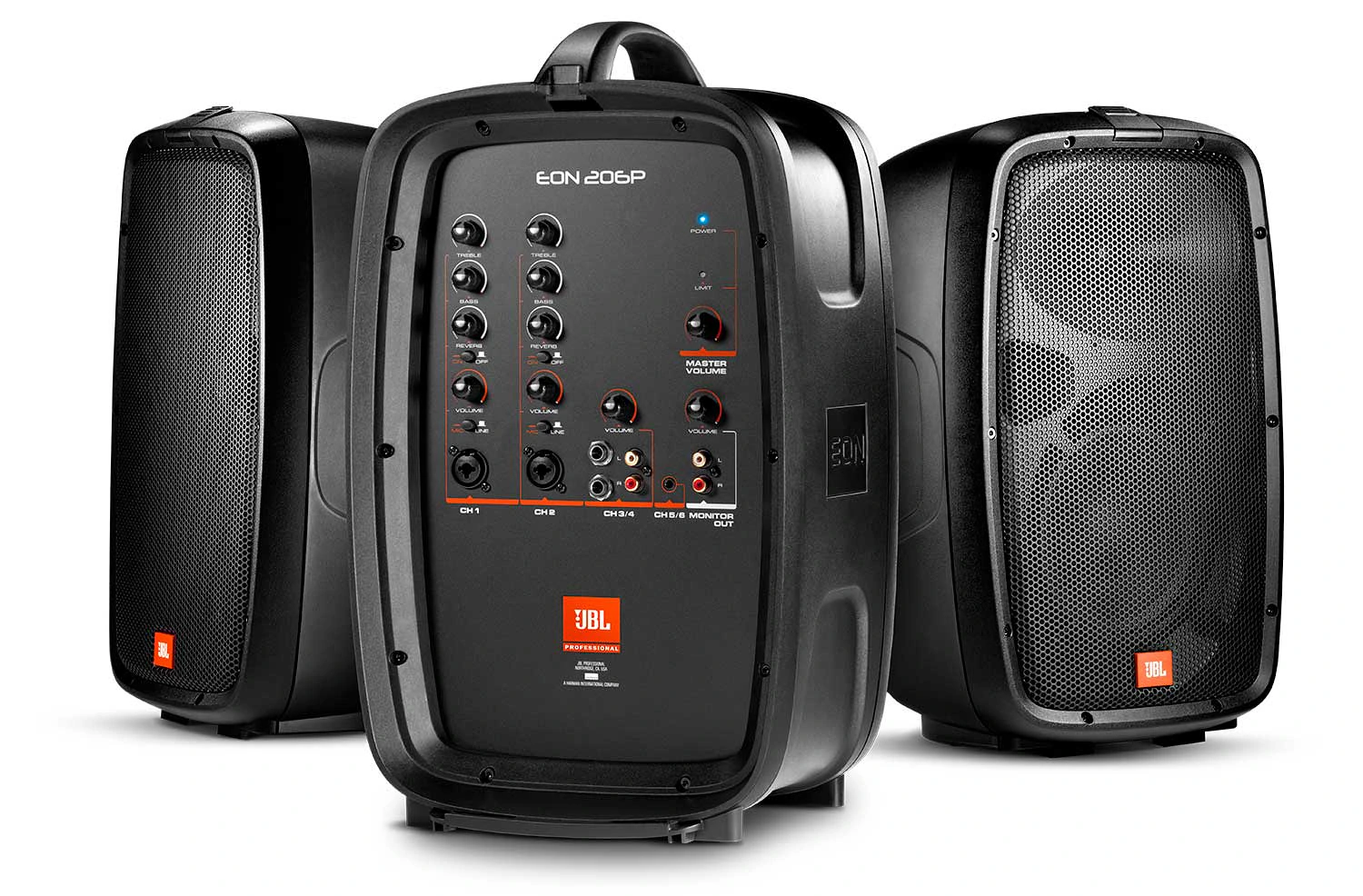

Portable 6.5” Two-Way system with detachable powered mixer

较大的图像

Professional Audio Made Simple

The EON206P is a self-contained, portable PA system featuring multiple input channels with individual tone controls, reverb and convenient sound output capabilities that allow the user to integrate the system into any number of audio environments. With its lightweight and ergonomic design, the EON206P is an easy to use, lightweight package with un-compromised sound quality. Whether you’re a musician, singer, DJ, teacher or anyone in need of a truly compact and portable system, the EON206P has all the features you need to deliver your message.
 CONTROL  PERFORMANCE  PORTABILITY
 Large volume control knobs for easy usage and high visibility even in dimly lit rooms. Mixer stands vertically for easier access.  Unparalleled audio quality in its class. JBL heritage loud speakers deliver their legendary sound. Ergonomic design makes the EON206P easy to carry, travel, setup and store.


Portable & Easy to Use

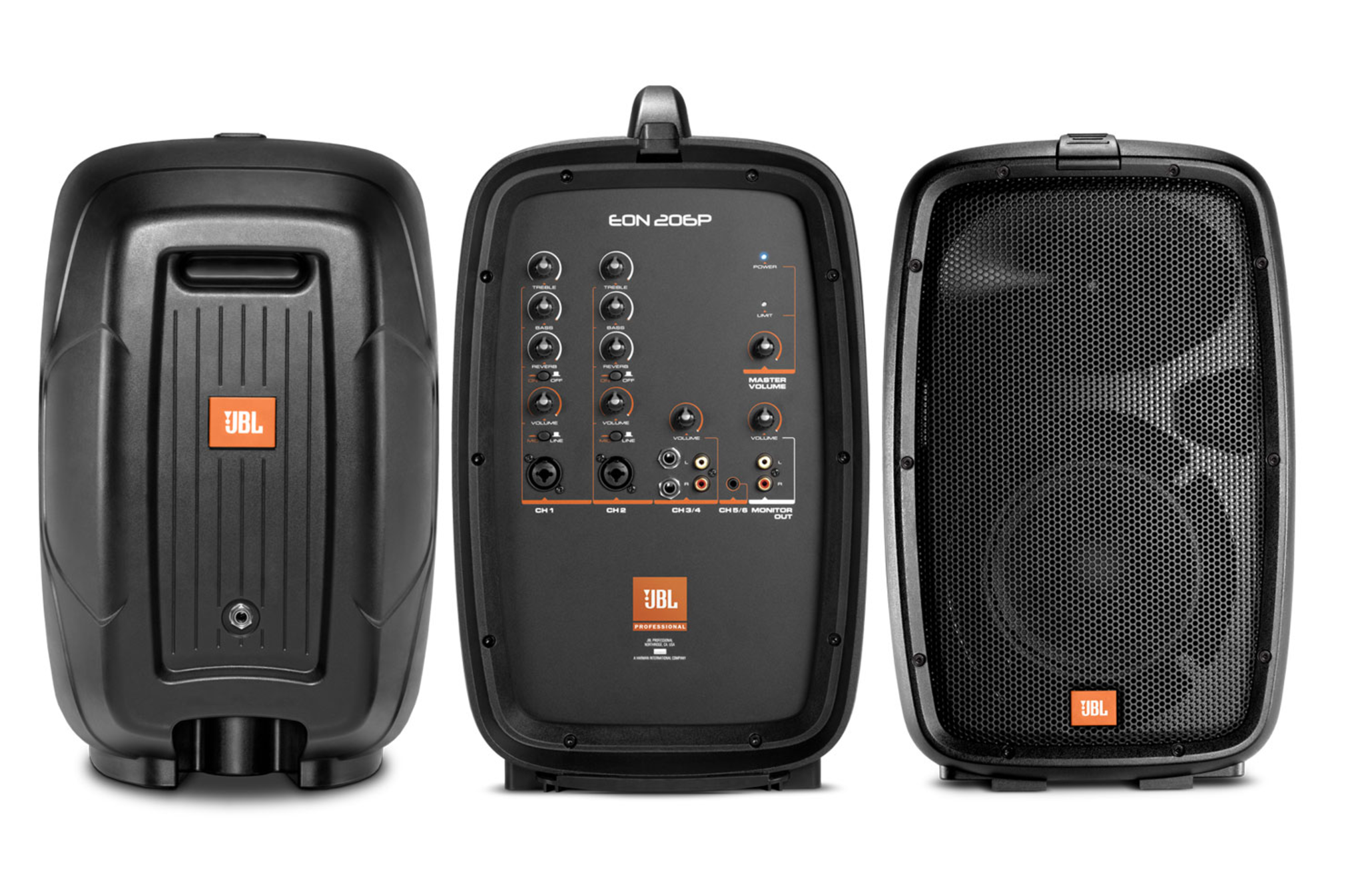

The EON206P is light enough to carry in one hand. The powered mixer panel and dual full ranged speakers, combine to form a convenient suitcase-like package. Complete with power and connection cables that go into their own storage space designed to neatly tuck them into when your done. Weighing in at only 25lbs, anyone can juggle an instrument and our personal p.a. system at the same time. Perfect for cafes, parties, churches, conferences, small groups and more.

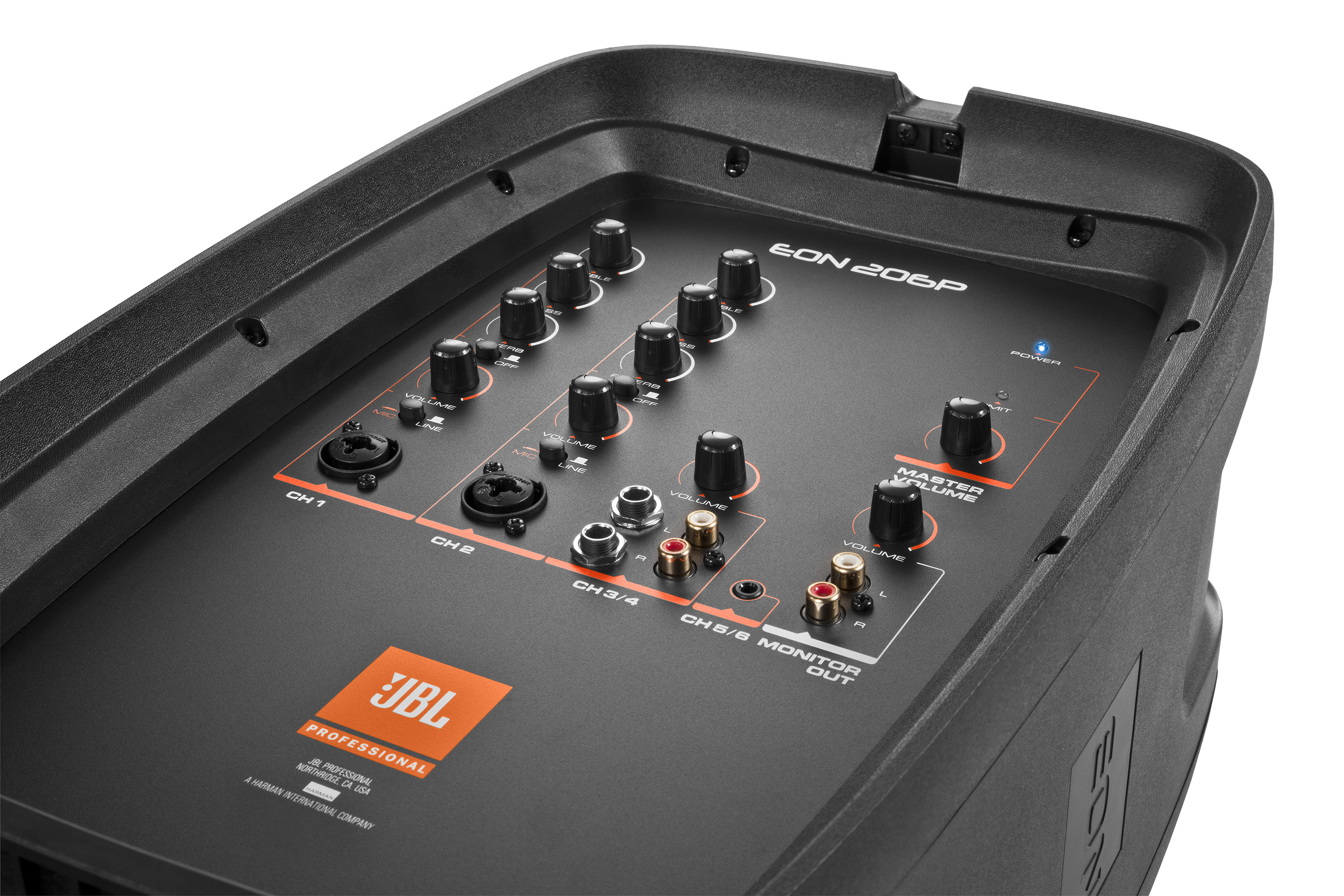

Powered Mixer Input Panel


The attached mixer has 6 inputs: 2 mono inputs comprised of a combination input connector, MIC/LINE selector, Treble and Bass controls, Reverb and channel volume controls. The 4 stereo inputs are where you can connect all of the microphones, musical instruments and external sound sources (like MP3 or CD players). The stereo inputs labeled “CH 3/4” offer the option of using RCA with a volume control. The input labeled “CH5/6” is a 3.5 mm stereo input of the type typically found on personal music players. The “Monitor Out” enables sourcing to recording devices, additional powered speakers or mixers via RCA connectors.


下载

  Version Language Size Uploaded
Data Sheets
EON206P Datasheet
updated: 7月17日
    1.8 MB 7月17日
Brochures
Portable Sound Full Line 2015 Catalog
updated: 8月20日
    2.5 MB 8月20日
Compliances
EON206P Declaration of Conformity
updated: 10月18日
    158.7 KB 10月18日
User Guides
EON206P UsersGuide
updated: 7月17日
    1.6 MB 7月17日
Images

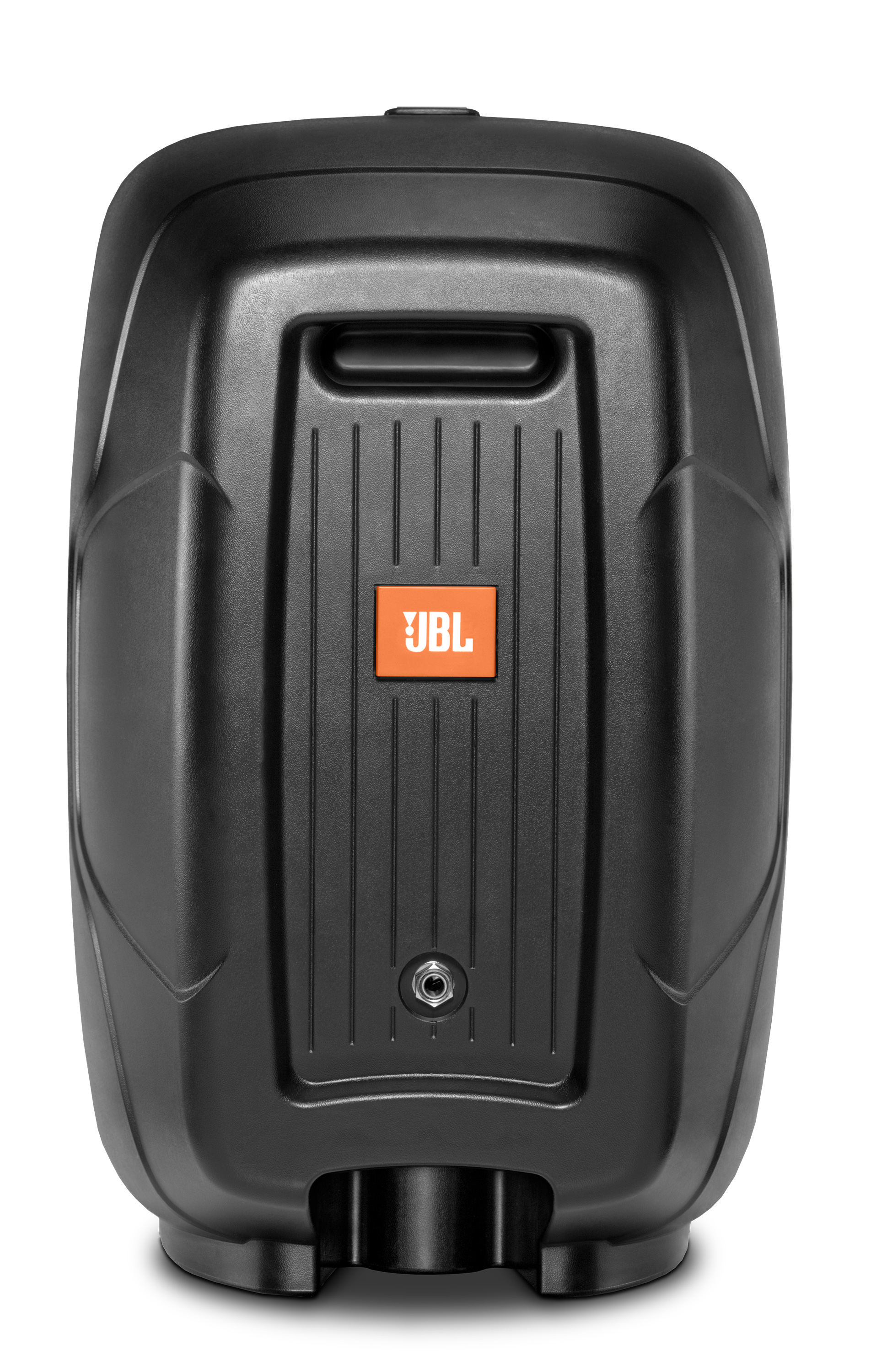

EON206P Back.jpg
updated: 7月17日
    1.2 MB 7月17日

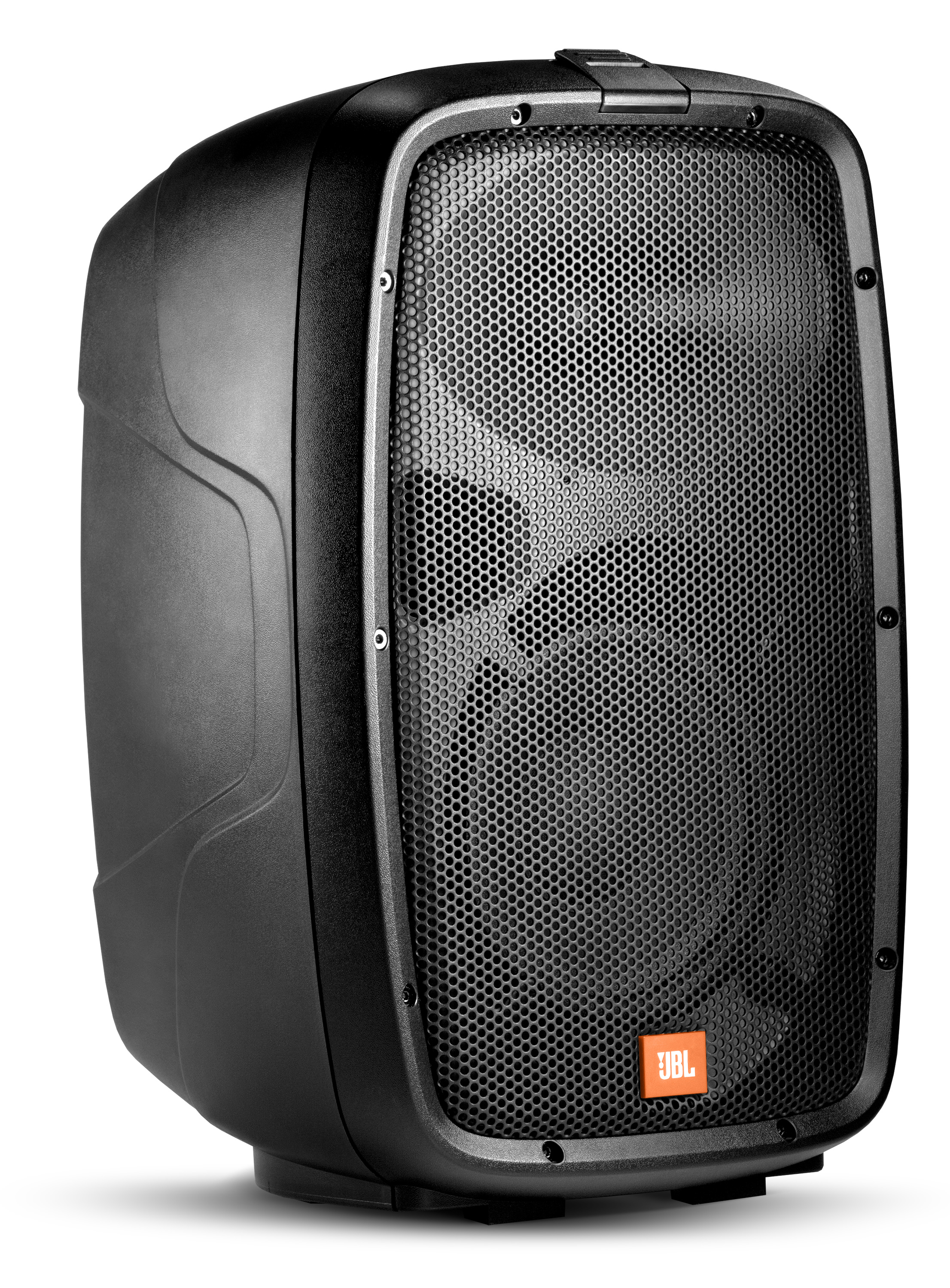

EON206P AngleRight 02.jpg
updated: 7月17日
    2.1 MB 7月17日
EON206P Detail 06.jpg
updated: 7月17日
    1.7 MB 7月17日

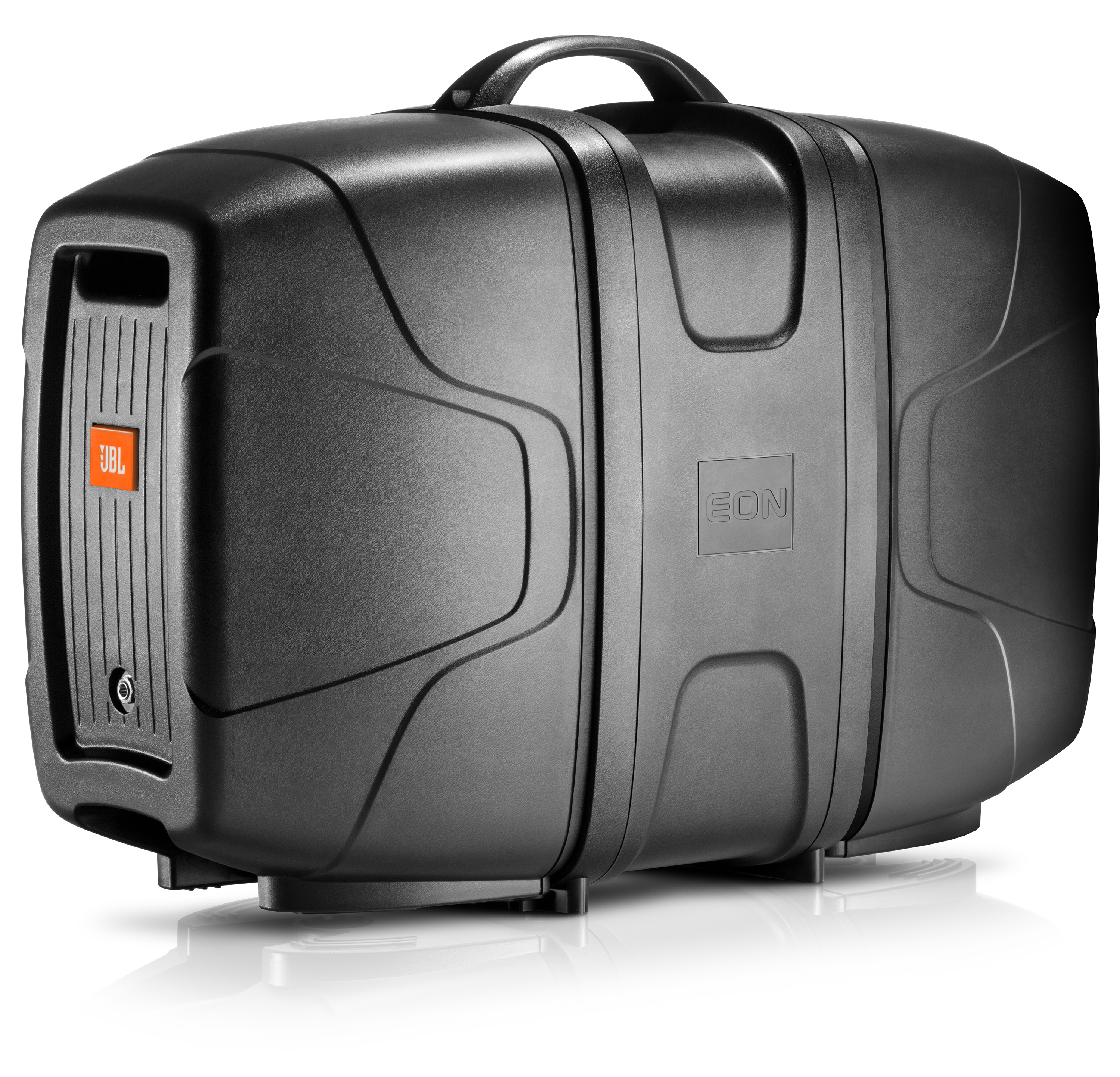

EON206P Angle.jpg
updated: 7月17日
    2.2 MB 7月17日

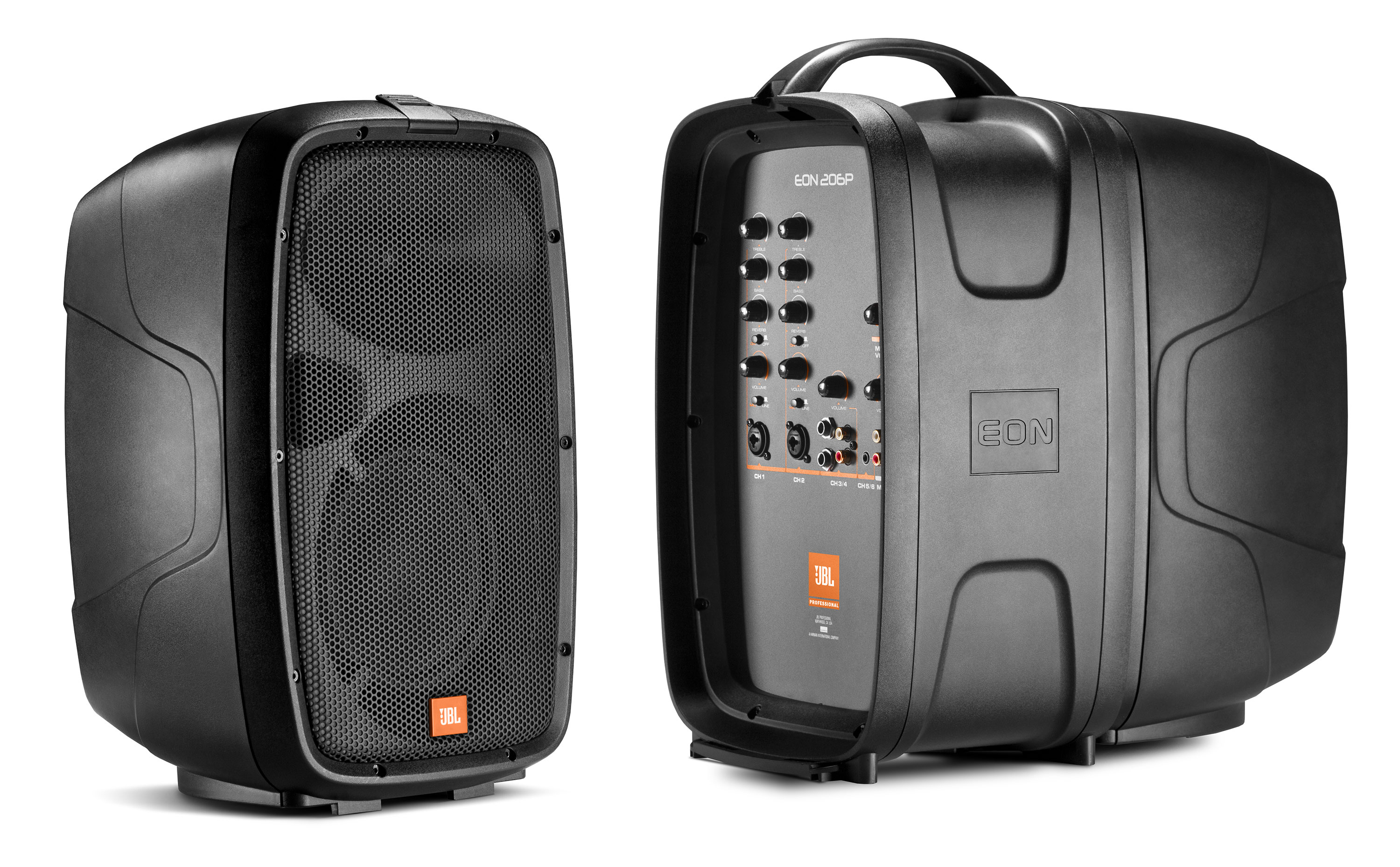

EON206P Hero Group 02.jpg
updated: 7月17日
    833.6 KB 7月17日

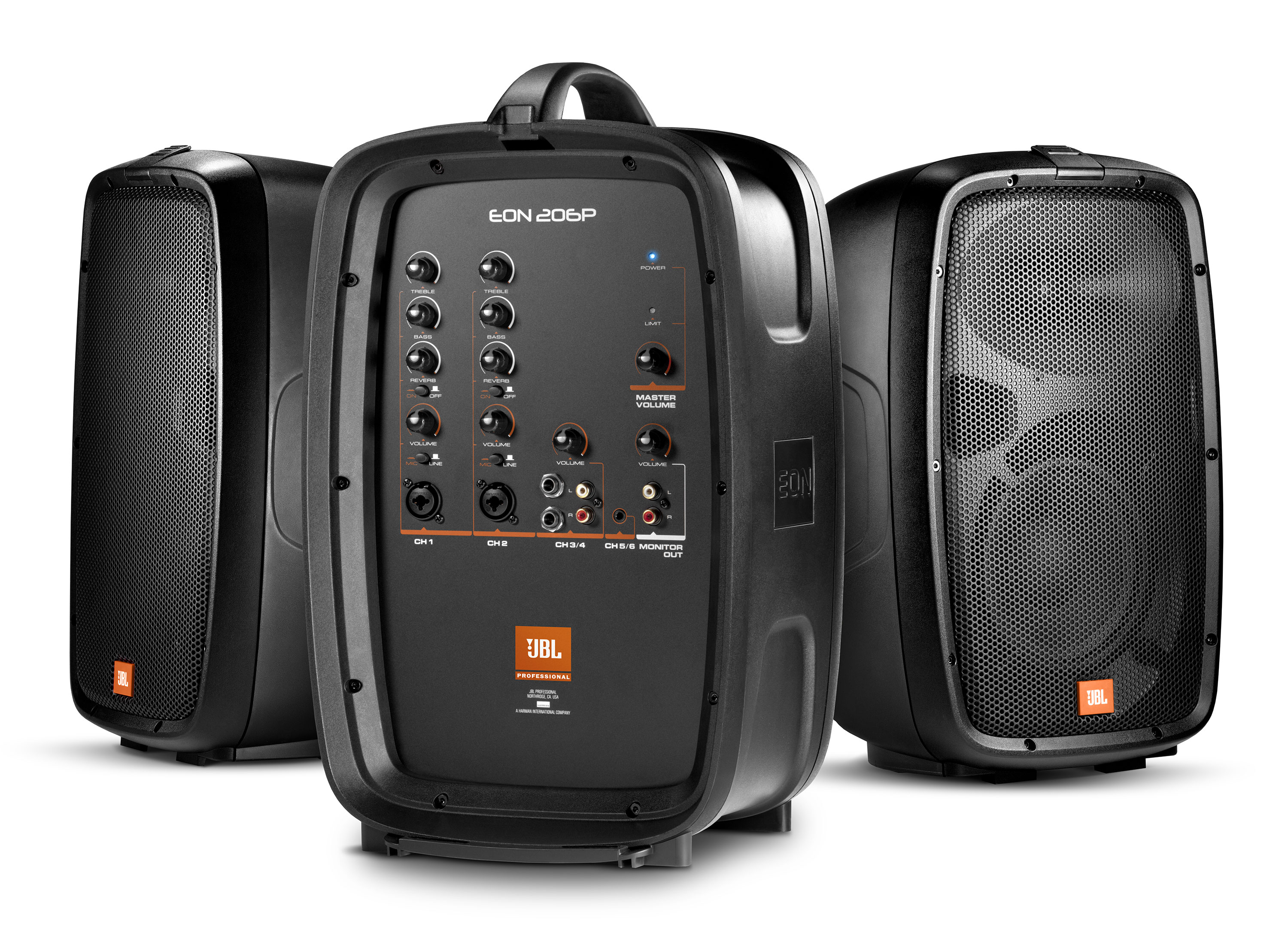

EON206P Hero Group.jpg
updated: 7月17日
    1.1 MB 7月17日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 2 Self powered 6.5”, two-way, bass-re?ex
Maximum SPL Output 113 dB
Frequency Response (-10dB) 64Hz – 22kHz
Frequency Response (±3 dB) 77Hz – 20kHz
覆盖范围 100° x 80°
Amp Design Class D
系统额定功率 160 W (2 X 80W)
AC Input 100-120 V, 220-240 V 50/60 Hz
Shipping Package(HxWxD) 530 x 705 x 340 mm
尺寸(高 x 宽 x 厚) 20.9” X 27.8” x 13.4”
净重量 11.38 kg (25 lbs)
Input Connector 6 inputs (2 Mono Mic/Line, 2 x Stereo)
通道 1-2 are XLR / 1/4” jack combo connectors XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack

输入阻抗

Ch 1-2 Combo: XLR 40 K Ohms Balanced Ch 1-2 Combo: TRS 40 K Ohms Balanced Ch 3-4: TRS 20 K Ohms Balanced Ch 3-4: RCA 5 K Ohms Unbalanced Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
Output Connector Monitor outputs: one pair of RCA jacks (stereo)
Signal Indicators Limit: Yellow LED indicates limiter active condition
EQ Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
System Limiter On Board DSP Limiting and Tuning
