EON 518S (停产)

Portable Self-Powered 18",Bass-Reflex Design

较大的图像

Portable Self-Powered 18", Bass-Reflex Design

The EON518S is an 18-inch, direct radiating, high performance powered compact subwoofer system. Designed to extend low frequency performance of any EON system. It also offers the convenience of an integrated crossover and stereo loop-thru capability. The EON518S is comprised of a 460 mm (18") Differential Drive® woofer driven by a 500 watt Class-D digital amplifier.



特点

  • 500 watt High-Performance Powered Subwoofer System
  • True portability weighing only 29.5 kg (65 lb)
  • Compact enclosure
  • Designed handles with comfort rubber grips for easy transport
  • 18" Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
  • Efficient Class-D digital amplifier technology
  • Stereo balanced loop-through outputs
  • Integrated and switchable High Pass Filter on loop-through outputs
  • Easy “daisy-chain” connections for extending the system
  • Polarity reverse selector
  • Integrated 36 mm pole mount socket for sub/satellite applications
  • Rugged DuraFlex™ finish

Applications

  • Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
  • Extending the low-frequency output performance of powered and non-powered full-range speaker systems.
  • Optimized for complete compatibility with EON® full-range speakers.


下载

  Version Language Size Uploaded
Specifications
EON518S Spec Sheet
updated: 7月16日
    827.3 KB 7月16日
Manuals
EON Application Guide
updated: 10月18日
    6.9 MB 10月18日
Brochures
EON500 Brochure
updated: 7月16日
    2.2 MB 7月16日
Compliances
EONG3 Series Declaration of Conformity
updated: 10月31日
    93.2 KB 10月31日
User Guides
EON518S User Guide [ENG]
updated: 7月16日
    10.0 MB 7月16日
EON518S User Guide [FRE]
updated: 7月16日
    10.1 MB 7月16日
EON518S User Guide [GERM]
updated: 7月16日
    10.1 MB 7月16日
EON518S User Guide [SPAN]
updated: 7月16日
    10.1 MB 7月16日
Images

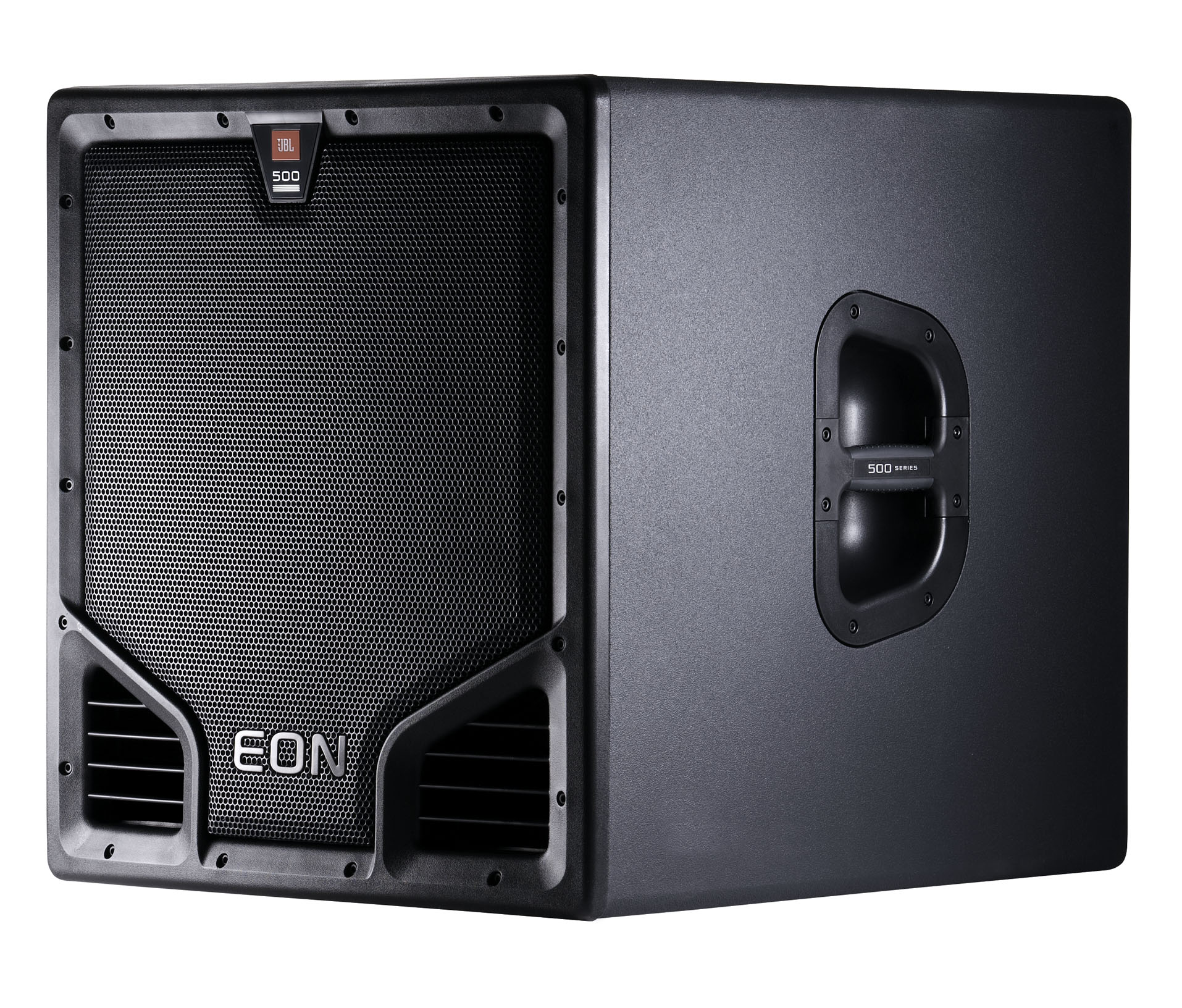

EON518S Front Angle
updated: 7月16日
    706.8 KB 7月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

系统额定功率 500 W continuous 1000 W peak
Frequency Response (-10dB) 36 Hz - 130 Hz
尺寸(高 x 宽 x 厚) 617 mm x 569 mm x 652 mm (24.3 in x 22.4 in x 25.7 in)
Frequency Response (±3 dB) 42 Hz - 100 Hz
Maximum SPL (1m) 129 dB
分频频率 120 Hz (HPF selectable on outputs)
