EON 510 (停产)

Portable Self-Powered 10", Two-Way, Bass-Reflex Design

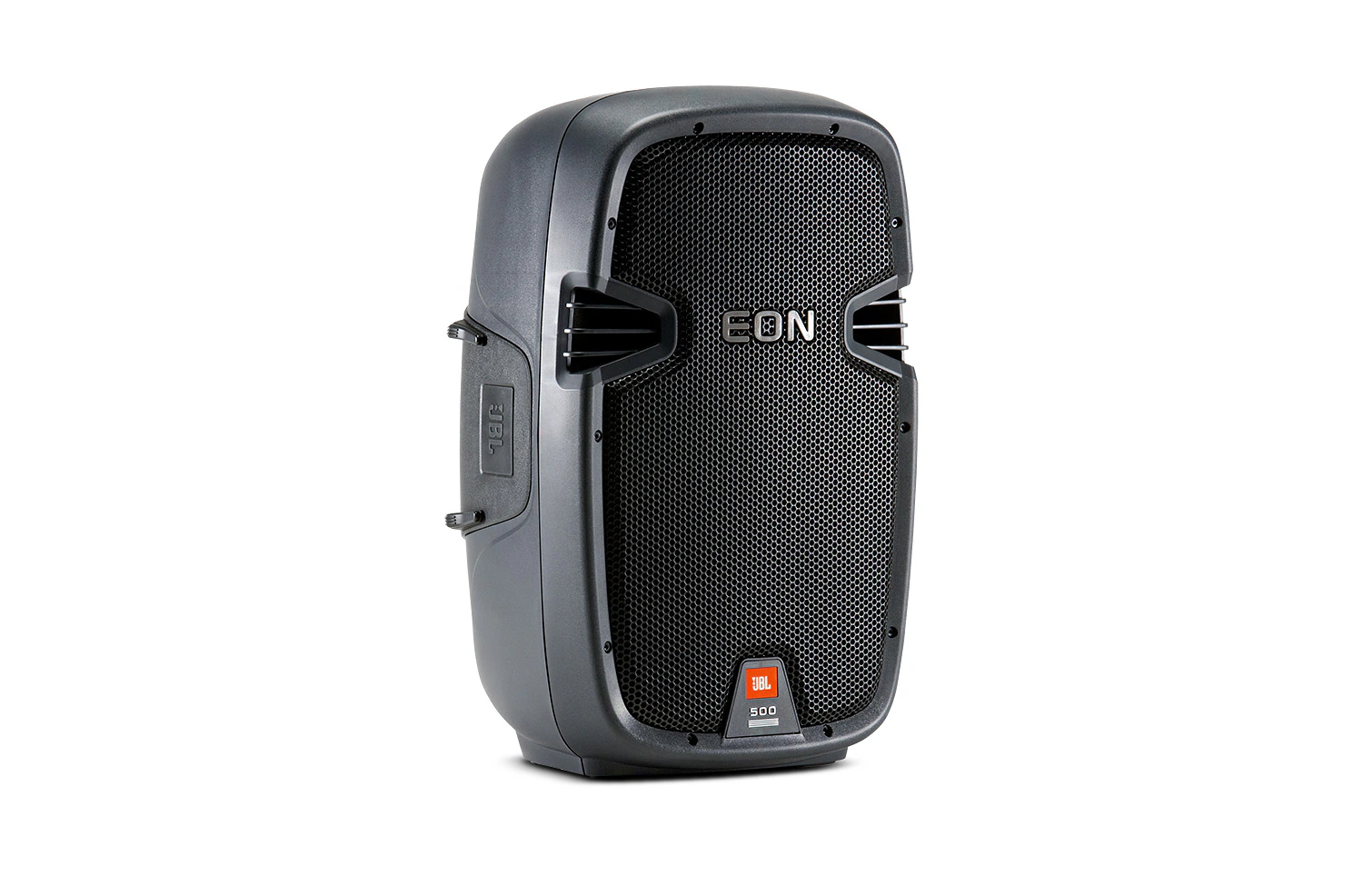

EON 510
较大的图像

Portable Self-Powered 10", Two-Way, Bass-Reflex Design

The EON510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The EON510 is comprised of a 254 mm (10 in) Differential Drive® woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and mixer functionality.



特点

  • 280 watt High-Performance Powered Speaker System
  • Ultra Light Weight and Extremely Compact
  • Soft touch top grip for easy handling.
  • 10" Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Class-D digital amplifier technology
  • Built-in 3 Channel Mixer
  • 100° H x 60° V asymmetrical waveguide for uniform audience coverage
  • Line level and direct microphone input capability
  • Selectable Pre-engineered EQ settings
  • Unique Mix/Loop signal flow function for extended system application
  • Easy “daisy-chain” connections for extending the system
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosures for durability, lightweight, and acoustic performance

Applications

  • Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
  • Amplification, mixing, and monitoring for electronic musical instruments.
  • Everywhere you need to be heard.


下载

  Version Language Size Uploaded
Specifications
file type icon EON510 Spec Sheet
updated: 10月22日
    472.9 KB 10月22日
Brochures
file type icon EON500 Brochure
updated: 10月22日
    2.2 MB 10月22日
Compliances
file type icon EONG3 Series Declaration of Conformity
updated: 10月31日
    93.2 KB 10月31日
User Guides
file type icon EON510 User Guide [ENG]
updated: 10月22日
    10.1 MB 10月22日
file type icon EON510 User Guide [FRE]
updated: 10月22日
    10.2 MB 10月22日
file type icon EON510 User Guide [GERM]
updated: 10月22日
    10.2 MB 10月22日
file type icon EON510 User Guide [SPAN]
updated: 10月22日
    10.2 MB 10月22日
Images

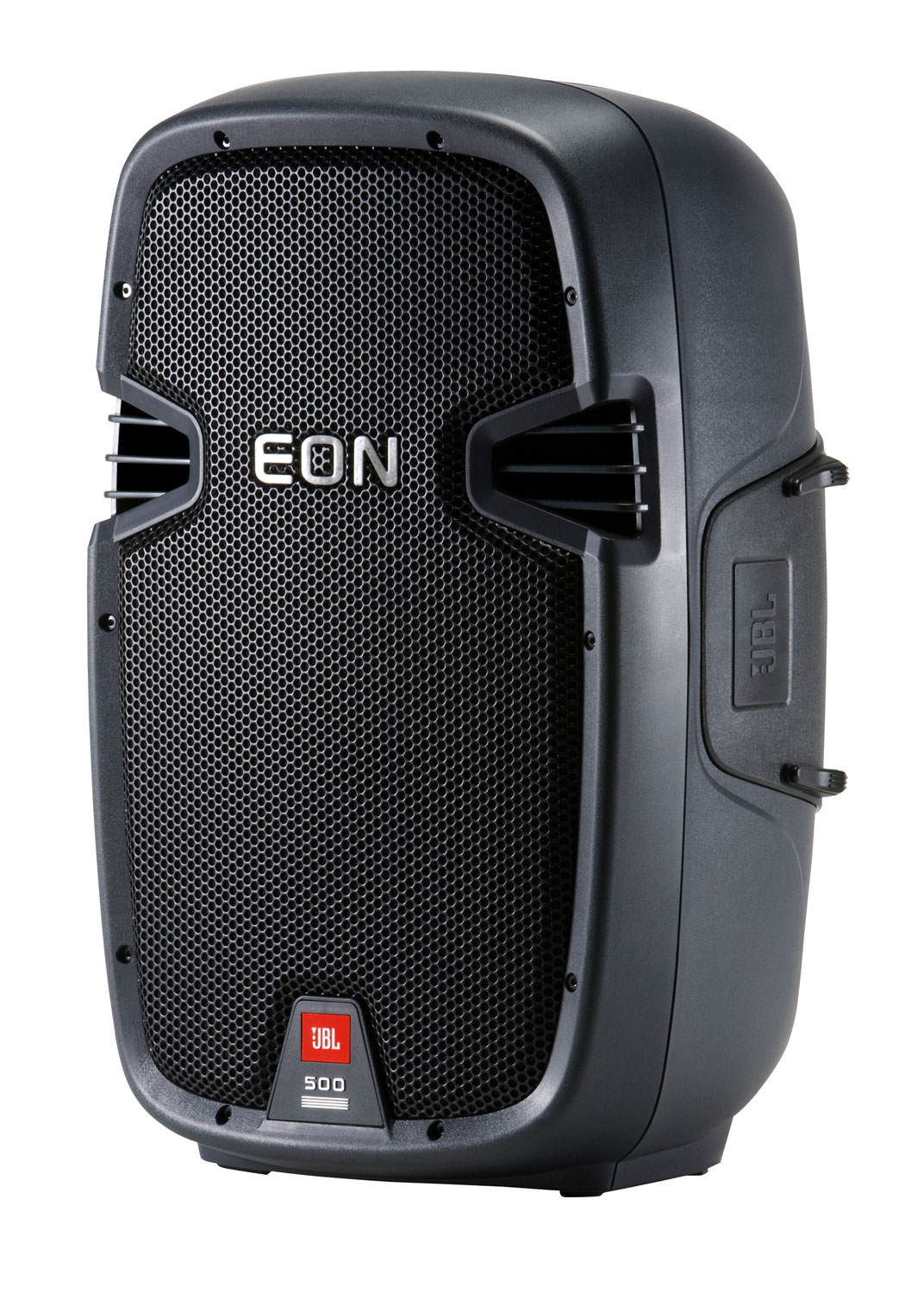

file type icon EON510 Front Angle
updated: 10月22日
    331.5 KB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统额定功率 280 W continuous 560 W peak
频率范围 (-10dB) 58 Hz - 18.5 kHz (EQ in ‘Flat’ position)
尺寸(高 x 宽 x 厚) 490 mm x 313 mm x 262 mm (19.3 in x 12.3 in x 10.3 in)
Frequency Response (±3 dB) 70 Hz - 17 kHz (EQ in ‘Flat’ position)
覆盖范围 100° H x 60° V nominal
Maximum SPL (1m) 121 dB
净重量 7.7 kg (17 lb)
