EON 315 (停产)

Portable Self-Powered15", Two-Way,Bass-Reflex Design

EON 315

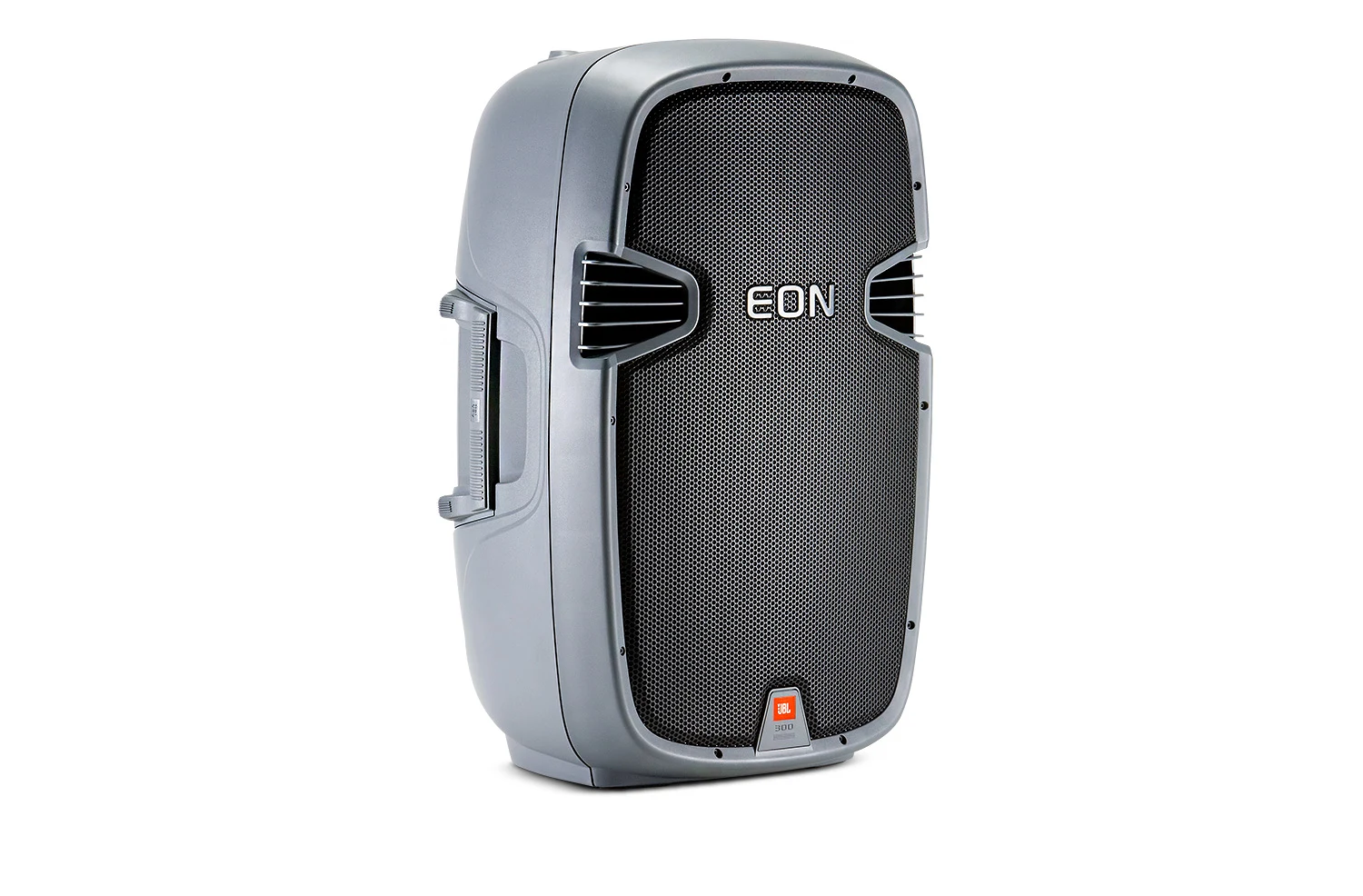

较大的图像

Portable Self-Powered 15", Two-Way, Bass-Reflex Design

The EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and system EQ functionality.



特点

  • 280 watt Powered Speaker System
  • Light Weight. True portability weighing only 15.9 kg (35 lb)
  • Multiple handles for easy transport
  • 15" JBL low-frequency driver
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Class-D digital amplifier technology
  • 100° H x 60° V asymmetrical wave guide for uniform audience coverage
  • Line level and direct microphone input capability
  • Selectable Pre-engineered EQ settings
  • Loop thru signal flow for extended system application and easy “daisy-chain” connections
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosures for durability, lightweight, and acoustic performance

Applications

  • Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
  • Amplification and monitoring for electronic musical instruments.
  • Everywhere you need to be heard.

The universal mounting capabilities make the EON305 perfect for live performers, fixed installations or commercial A/V rental companies. Whether you use the speaker on a tripod stand, mounted on a subwoofer with a pole, in the floor monitor position or in a fixed position suspended by the M10 points, you can count on superior and reliable performance.



下载

  Version Language Size Uploaded
Specifications
file type icon EON315 Spec Sheet
updated: 10月22日
    536.9 KB 10月22日
Manuals
file type icon EON Application Guide
updated: 10月22日
    6.9 MB 10月22日
Brochures
file type icon EON300 Brochure
updated: 10月22日
    2.1 MB 10月22日
Compliances
file type icon EONG3 Series Declaration of Conformity
updated: 10月31日
    93.2 KB 10月31日
User Guides
file type icon EON315 User Guide [ENG]
updated: 10月22日
    9.7 MB 10月22日
file type icon EON315 User Guide [FRE]
updated: 10月22日
    9.7 MB 10月22日
file type icon EON315 User Guide [GERM]
updated: 10月22日
    9.7 MB 10月22日
file type icon EON315 User Guide [SPAN]
updated: 10月22日
    10.6 MB 10月22日
Images

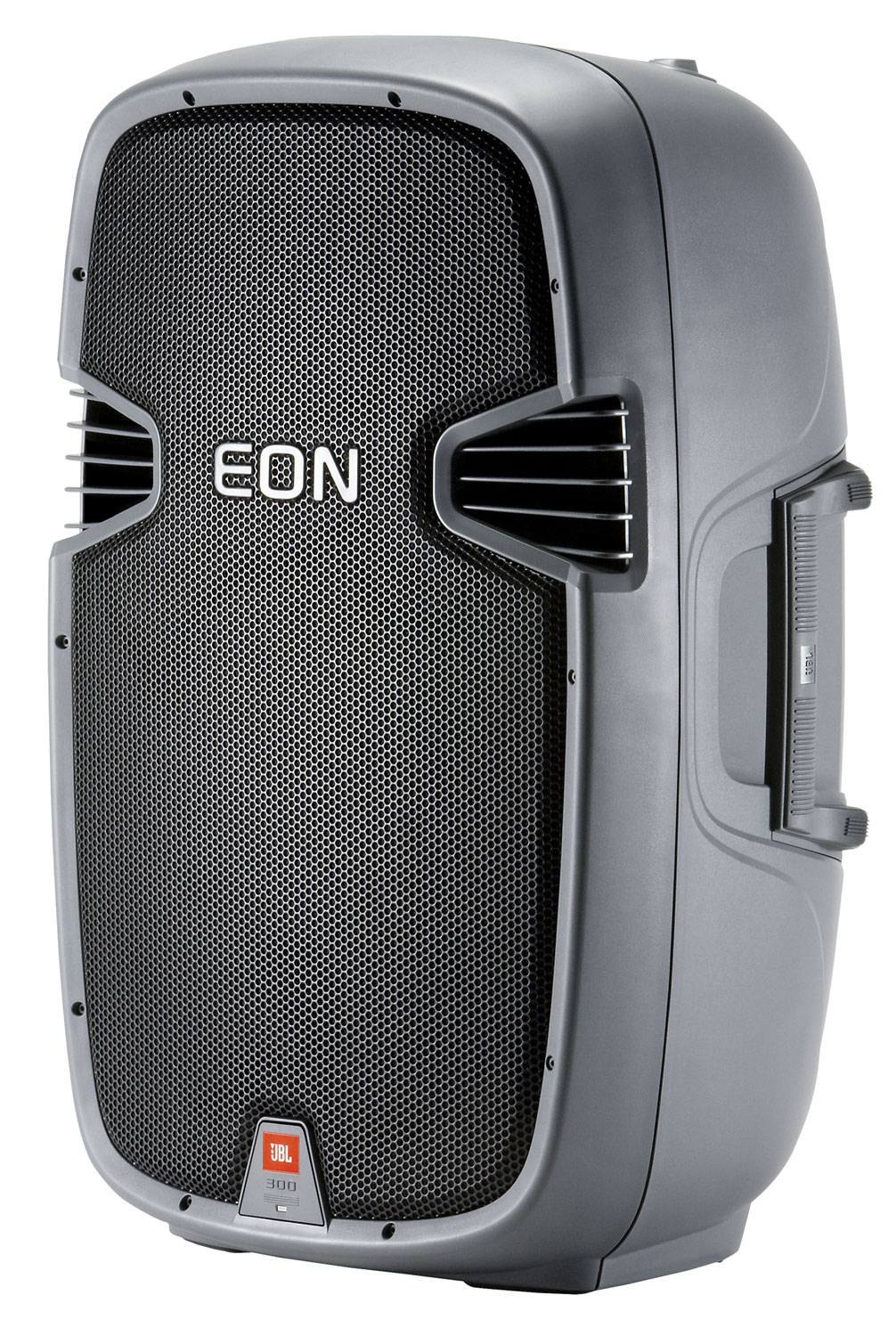

file type icon EON 315Front Angle
updated: 10月22日
    425.0 KB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统额定功率 280 W continuous560 W peak
频率范围 (-10dB) 38 Hz - 20 kHz (EQ in ‘Flat’ position)
尺寸(高 x 宽 x 厚) 685 mm x 438 mm x 366 mm(27 in x 17.3 in x 14.4 in)
Frequency Response (±3 dB) 50 Hz - 18 kHz (EQ in ‘Flat’ position)
覆盖范围 100° H x 60° V nominal
Maximum SPL (1m) 127 dB
净重量 15.9 kg (35 lb)
