EON 305 (停产)

Portable 15", Two-Way,Bass-Reflex Design

较大的图像

Portable 15", Two-Way, Bass-Reflex Design

The EON305 is a 15-inch, two-way, passive, portable speaker system. It is a light weight loudspeaker system capable of fullbandwidth reproduction at high levels. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. The system will handle 250 watts continuously and 1000 watts peak



特点

  • 250 watt Passive Speaker System, with a 500 watt program power and 1000 watt peak power rating
  • Light Weight, at only 15 kg (33 lbs) it is truly portable

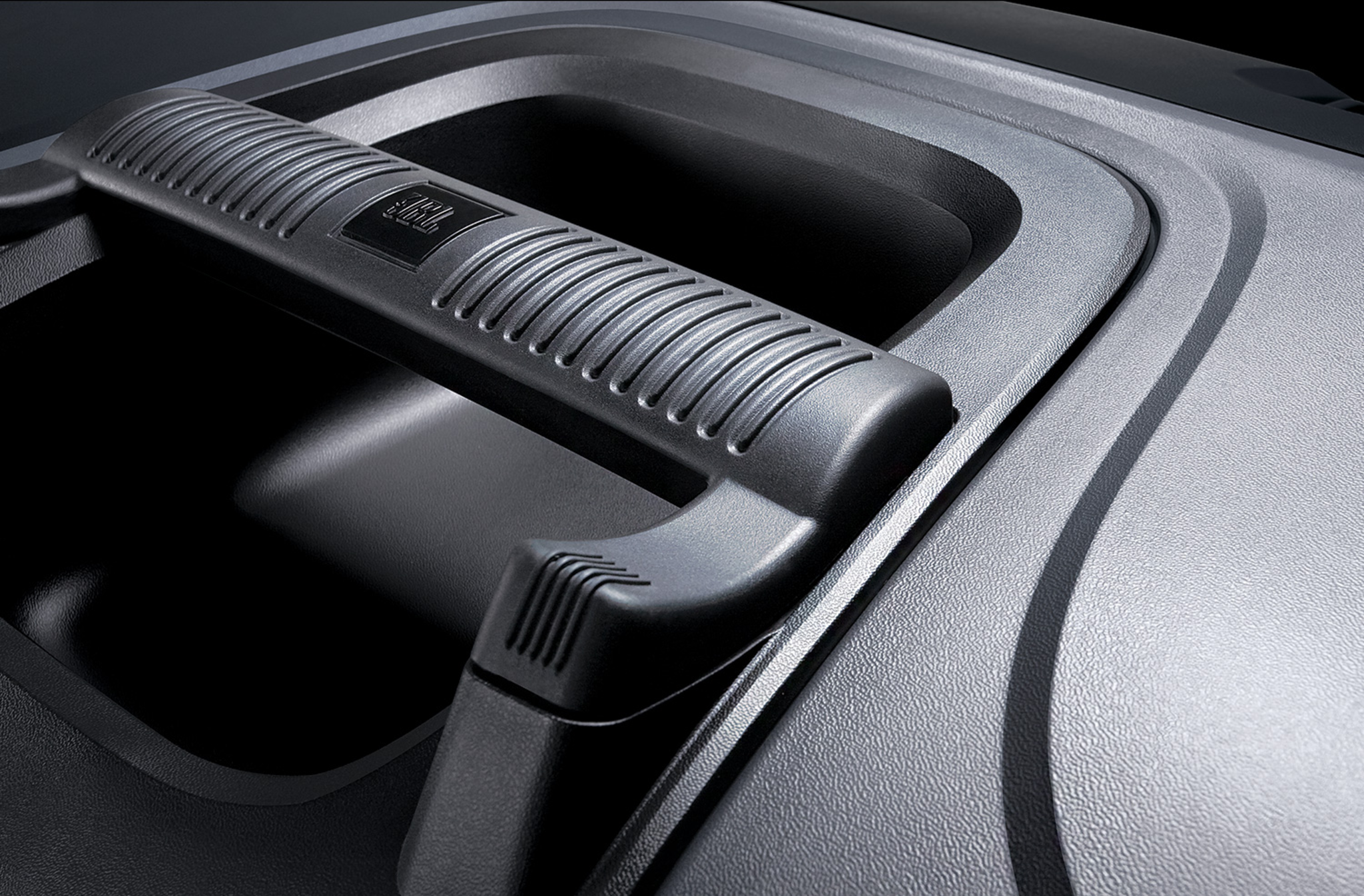

  • Multiple handles for easy transport
  • JBL 15" low-frequency driver with a 64mm (2 ½ in) diameter edge wound ribbon voice coil
  • 1" throat diameter next generation JBL neodymium compression driver.
  • 100° H x 60° V asymmetrical waveguide for uniform audience coverage
  • SonicGuard™ HF protection

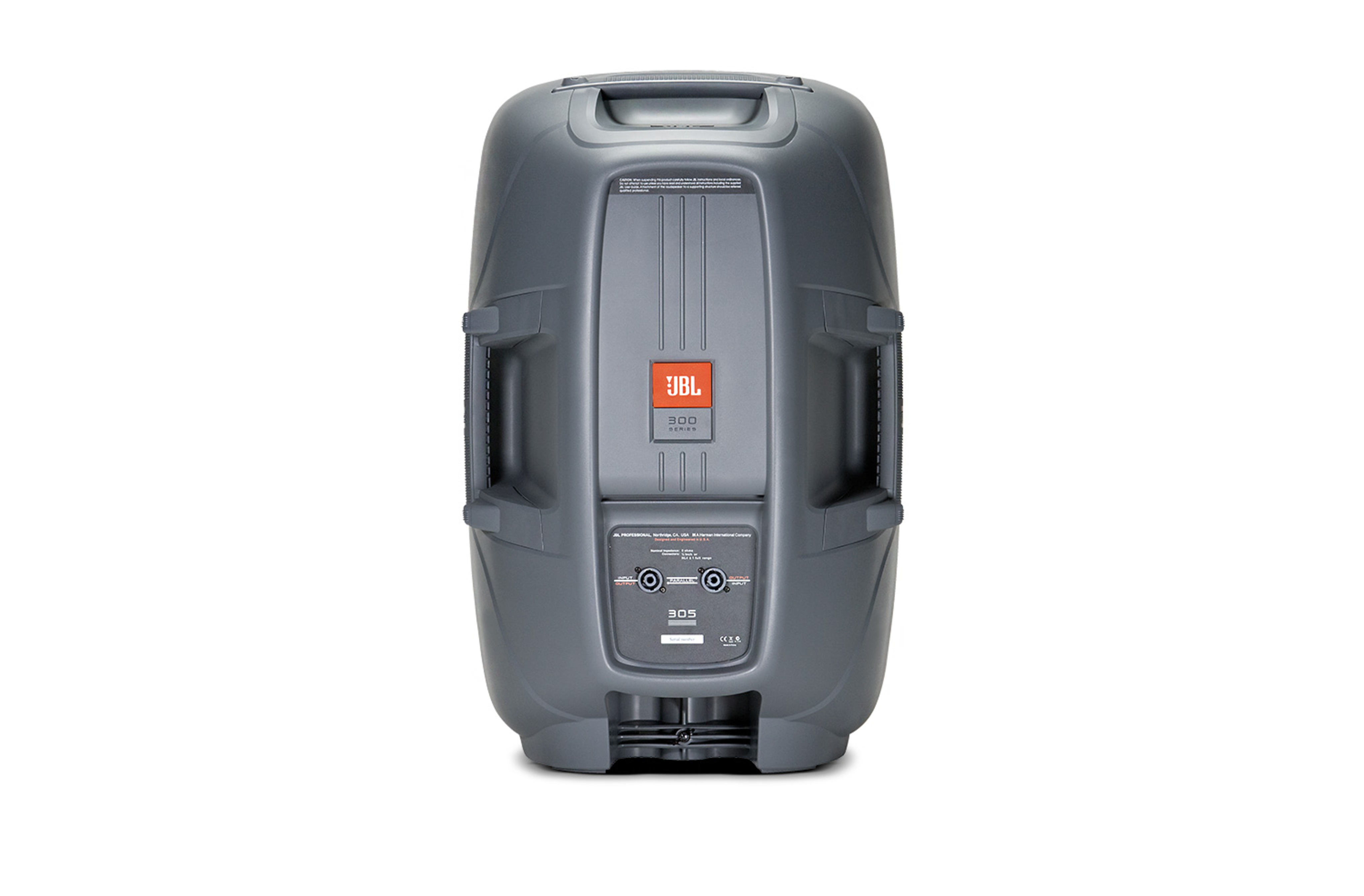

  • NL4 and ¼" input connectors
  • Loop thru signal flow for extended system application and easy “daisy-chain” connections
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosure for durability, lightweight, and acoustic performance

Applications

  • Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
  • Perfectly matched for powered-mixer systems.
  • Everywhere you need to be heard.

The universal mounting capabilities make the EON305 perfect for live performers, fixed installations or commercial A/V rental companies. Whether you use the speaker on a tripod stand, mounted on a subwoofer with a pole, in the floor monitor position or in a fixed position suspended by the M10 points, you can count on superior and reliable performance.



下载

  Version Language Size Uploaded
Specifications
EON305 Spec Sheet
updated: 7月16日
    480.2 KB 7月16日
Manuals
EON Application Guide
updated: 10月18日
    6.9 MB 10月18日
Brochures
EON300 Brochure
updated: 7月16日
    2.1 MB 7月16日
User Guides
EON305 User Guide [ENG]
updated: 7月16日
    8.5 MB 7月16日
EON305 User Guide [FRE]
updated: 7月16日
    8.5 MB 7月16日
EON305 User Guide [GERM]
updated: 7月16日
    8.5 MB 7月16日
EON305 User Guide [SPAN]
updated: 7月16日
    8.5 MB 7月16日
Images

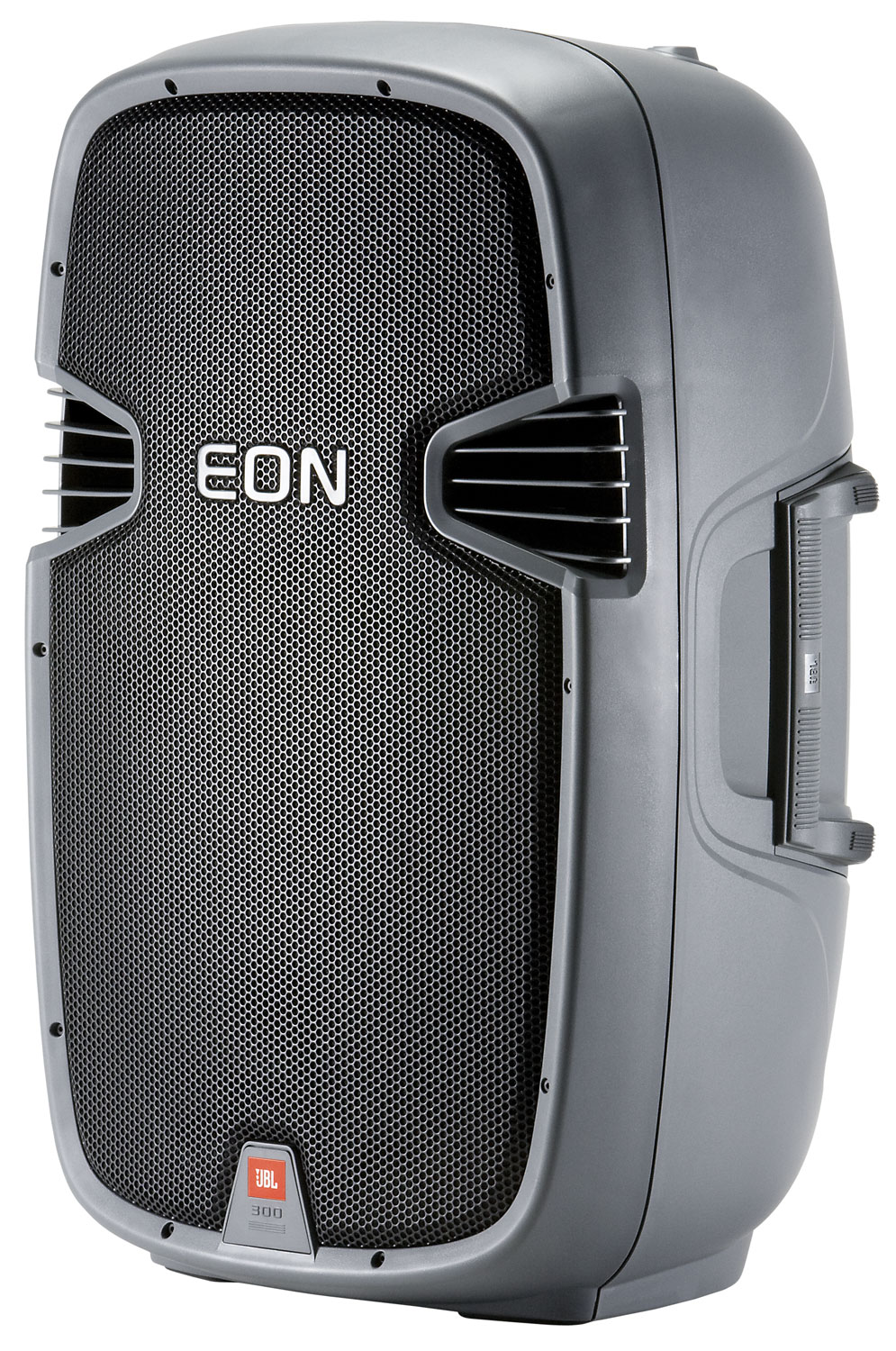

EON305 Front Angle
updated: 7月16日
    457.6 KB 7月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

系统额定功率 250 W continuous 500 W program, 1000 W peak
Frequency Response (-10dB) 38 Hz - 20 kHz
尺寸(高 x 宽 x 厚) 685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in)
覆盖范围 100° H x 60° V nominal
Maximum SPL (1m) 128 dB
净重量 15 kg (33 lb)
