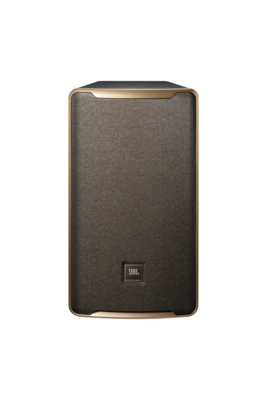

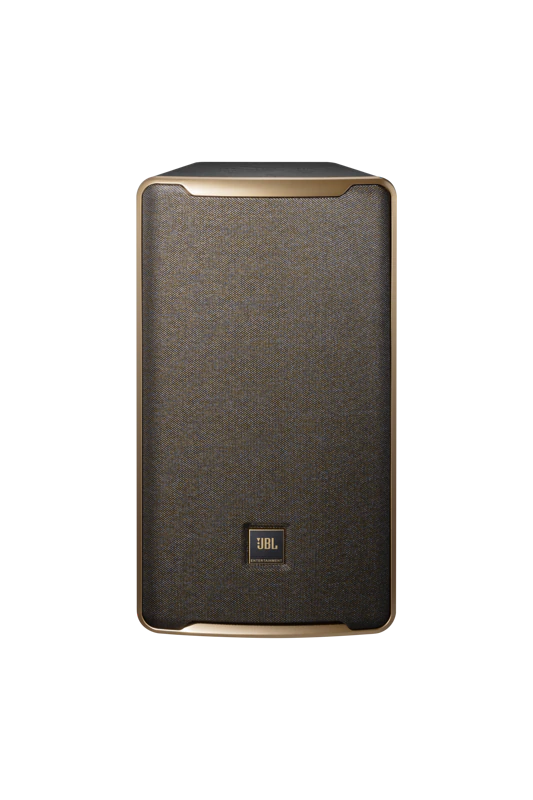

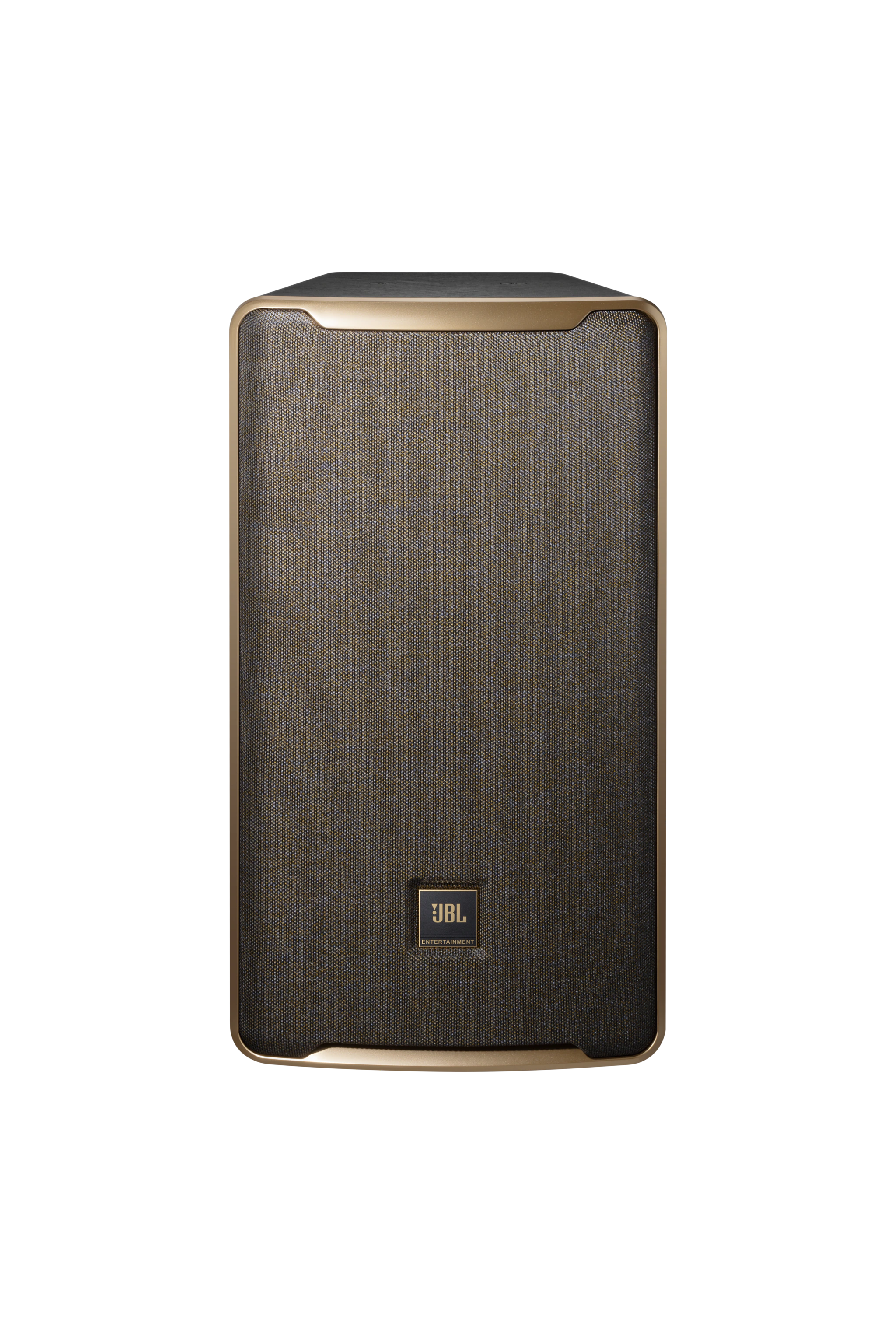

JBL D Plus 10英寸全频扬声器是一款功能强大、专为休闲KTV量身打造的解决方案。
基于JBL超过75年的标志性音响传承，D Plus是一款两分频、258毫米低频驱动单元的专业扬声器，专为娱乐和KTV应用而设计。除了卓越的音频性能外，D Plus还拥有精致、时尚和豪华的设计，可增添任何场所的魅力——从商业大厅、餐饮休闲区到企业接待空间、KTV包房及员工休闲娱乐区——将聆听、演唱和视觉娱乐融为一体。
创新设计与可靠性 凭借可拆卸的网罩和声学优化的滤音孔，D Plus即使在高强度工作状态下也能确保稳定的输出。D Plus秉承JBL毫不妥协的品质标准，经过严格测试以保证卓越的音响性能和长期耐用性，为任何场所提供可靠的运行保障。
本产品目前在中国及亚太地区销售。
| 大小 | |
|
|
1.1 MB |
|
|
1.0 MB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
| Model Name | JBL-D Plus 10-Inch Full-Range Speaker |
| 频率响应(±3 dB) | 88 Hz - 20 kHz Measurement conducted under full-space (4π) conditions. |
| Frequency Range (-10 dB) | 60 Hz - 22 kHz Measurement conducted under full-space (4π) conditions. |
| Coverage | 90° × 70° (H × V) |
| Power Rating (Continuous/Program/Peak) | 250 W / 500 W / 1000 W Testing conducted for 2 hours under pink noise with a crest factor of 6 dB, in accordance with IEC standards. |
| Maximum SPL (1m) | 118 dB continuous average (130 dB peak) Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor. |
| System Sensitivity (1w @ 1m) | 94 dB Measurement conducted under half-space (2π) conditions. |
| 标称阻抗 | 8 ohms |
| 低频驱动单元 | 1 x 10" (258 mm) woofer |
| Enclosure | High quality MDF |
| 外观颜色 | High quality PVC finish |
| 网罩 | Tri-color fabric |
| Input Connector | NL4 Speakon® in parallel with binding post |
| 尺寸（高 x 宽 x 厚） | 590 x 319 x 335 mm |
| 净重量 | 16.3 kg |
| HF 驱动程序 | JBL 2414H-C neodymium voice coil suppression driver |
