D Mini

双 6.5 英寸全频段扬声器

D Mini
较大的图像

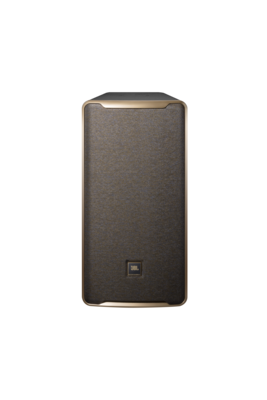

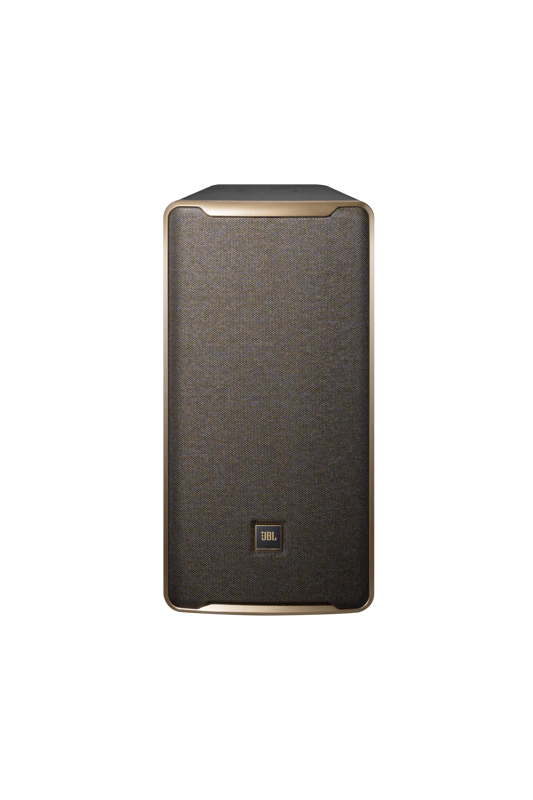

JBL D Mini 双6.5英寸全频扬声器是一款功能强大、专为休闲KTV设计的解决方案。

D Mini概述 D Mini以JBL超过75年的标志性音响设计为基础而构建。这是一款紧凑型双176毫米低频驱动器、二分频专业扬声器,专为娱乐和休闲KTV音响加强而设计。除了卓越的音频质量外,D Mini采用精致、时尚和豪华的外观设计,引人注目,无缝融入酒吧、餐厅酒吧、企业接待区、KTV房间和员工娱乐场所等各种商业空间——集听歌、唱歌和视觉娱乐元素于一体。卓越的音响性能 D Mini提供清晰透亮的高频和强劲有力的低频冲击,具有非凡的音色特征,满足专业音响环境的严苛要求。它采用两个精心调谐的176毫米低频驱动器和一个1英寸高频驱动器,提供明亮、细节丰富的声音,具有出色的扩散特性和高灵敏度。强大的磁力系统可承受高功率输出时产生的巨大加速度力。每个低频驱动器都配备内部消磁和散热铝制短路环,可最小化失真并降低功率压缩。

通过创新设计——采用可拆卸格栅和声学优化滤波口——D Mini确保即使在高强度工作时也能保持稳定输出。D Mini遵循JBL毫不妥协的质量标准,经过严格测试,确保卓越的音响性能和耐用性,为任何场所提供可靠的运作保障。

本产品目前在中国和亚太地区提供。

特点

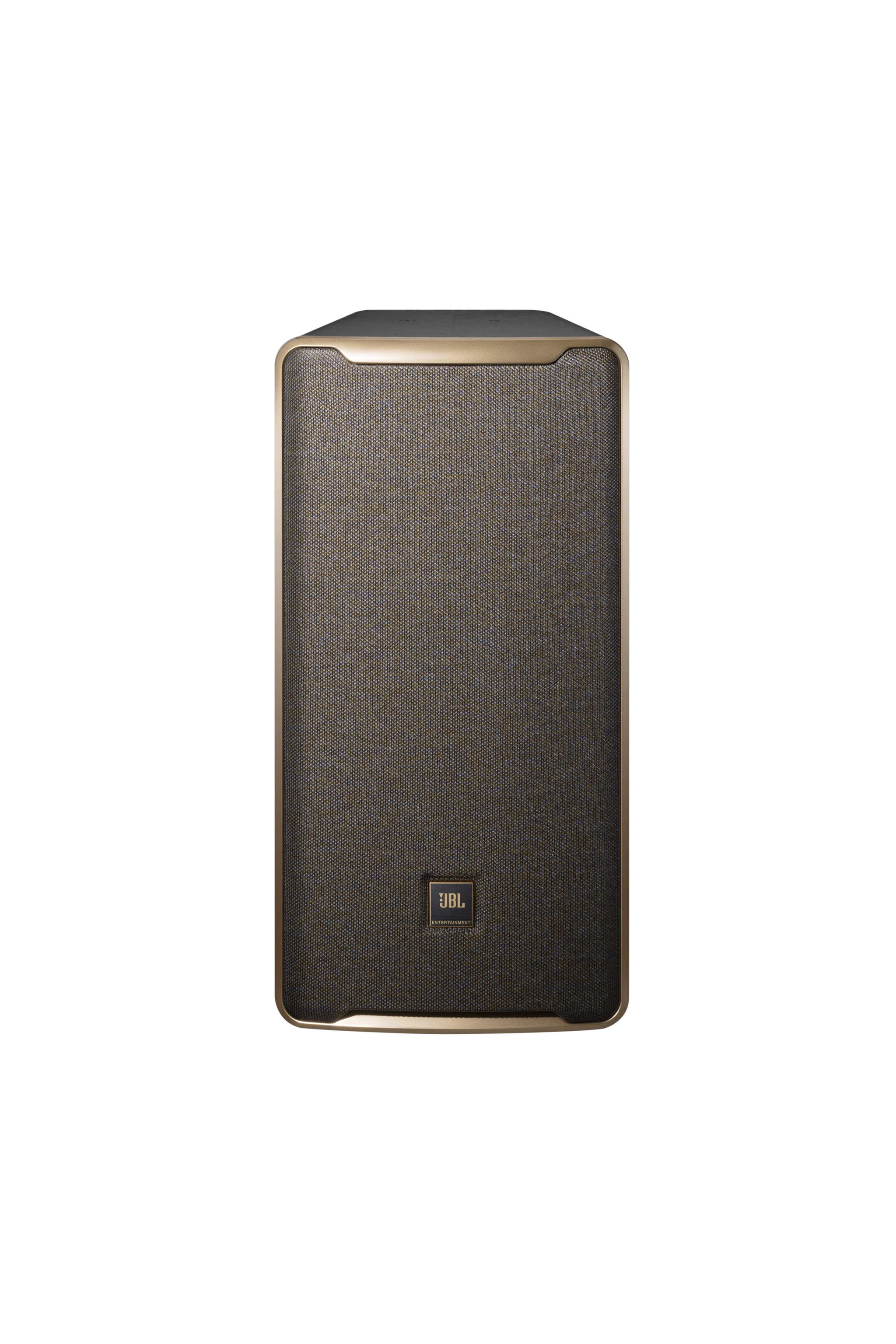

  • All-New ID Design Gold accents and a luxurious, understated grille convey a modern, stylish concept.
  • Tweeter overcurrent protection technology protects the high-frequency driver from excessive power, ensuring uninterrupted performance.
  • Flexible Installation Multi-purpose mounting points support both vertical and horizontal installation to meet different preferences.
  • Rotatable JBL Logo Keeps the brand logo correctly oriented for both horizontal and vertical setups.
  • High-Sensitivity Performance Features dual 176 mm low-frequency drivers and a 1-inch high-frequency driver, suitable for center, fill, or main reinforcement applications.
  • High Acoustic Transparency Grille aperture is precisely calculated to minimize sound reflection and attenuation, ensuring natural reproduction of both high and low frequencies.
  • Structural Strength and Durability Constructed with high-strength composite materials to balance protection and acoustic performance, preventing external impact or dust ingress. This technology optimizes grille hole size, arrangement, and material properties to achieve superior acoustic transparency, ensuring sound transmission without obstruction while maintaining an attractive and protective exterior.

下载

Spec Sheets
  语言 大小 上传日期
file type icon D Mini - Spec Sheet
zh 更新: 3月 2026
zh  586.5 KB 3月 2026
file type icon D Mini - Spec Sheet
en 更新: 3月 2026
en  506.6 KB 3月 2026

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Model Name JBL-D Mini dual 6.5-Inch Full-Range Speaker
频率响应(±3 dB) 88 Hz - 18 kHz
Measurement conducted under full-space (4π) conditions.
Frequency Range (-10 dB) 60 Hz - 20 kHz
Measurement conducted under full-space (4π) conditions.
Coverage 60° × 80° (H × V)
Power Rating (Continuous/Program/Peak) 200 W / 400 W / 800 W
Testing conducted for 2 hours under pink noise with a crest factor of 6 dB, in accordance with IEC standards.
Maximum SPL (1m) 113dB continuous average (125dB peak)
Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor.
System Sensitivity (1w @ 1m) 100 dB
Measurement conducted under half-space (2π) conditions.
标称阻抗 4 ohms
低频驱动单元 2 x 176 mm LF driver
Enclosure High quality MDF
外观颜色 High quality PVC finish
网罩 Tri-color fabric

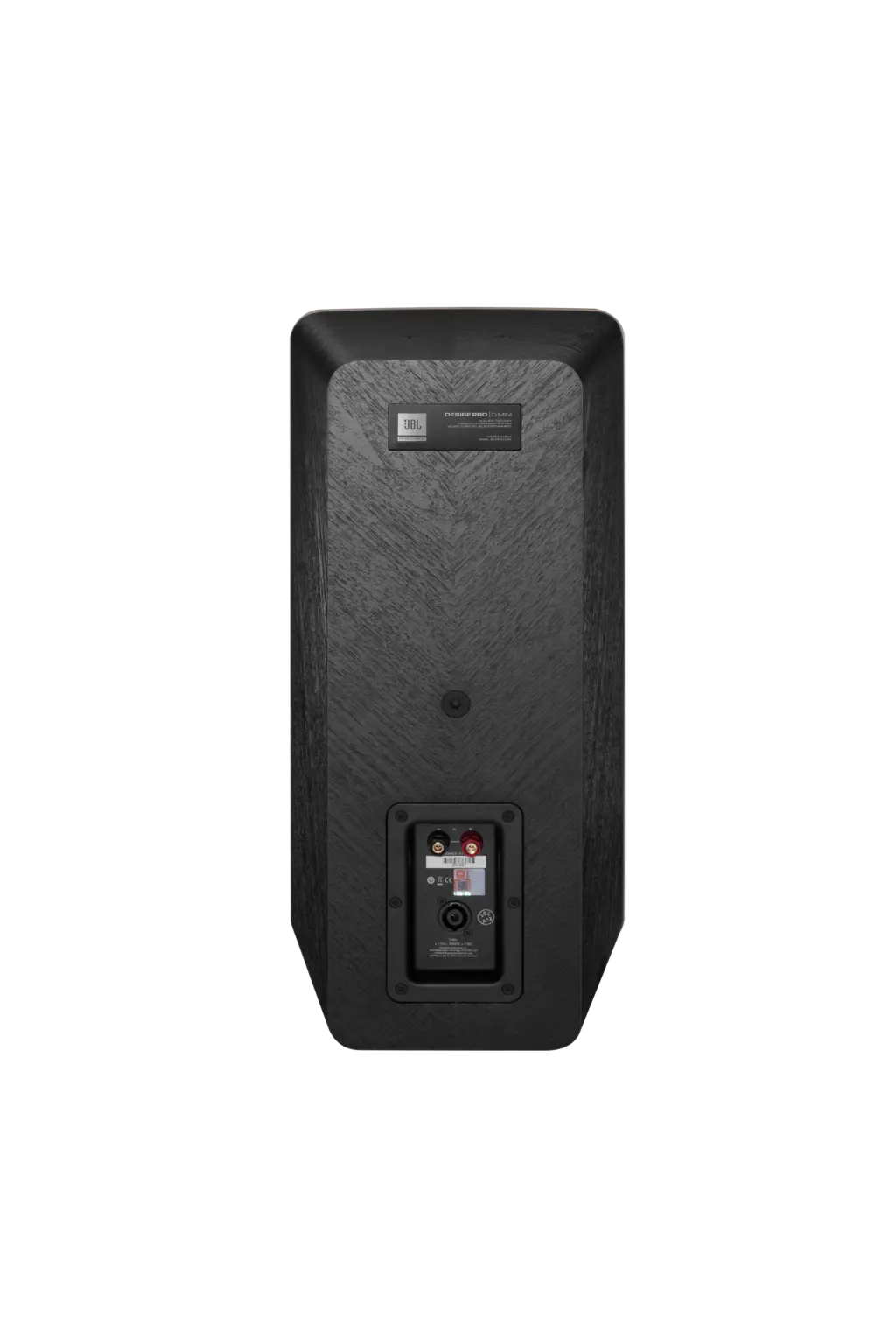

Input Connector NL4 Speakon® in parallel with binding post
尺寸(高 x 宽 x 厚) 516 x 258 x 286 mm
净重量 11.4 kg
