12" 2-way Full-Range Loudspeaker System


12” passive 2-way 600W full-range IP55 speaker and component of the JBL CV5000 Series Speaker System for install market. Can be wall-mounted or installed as floor monitor.

The CV5012M multifunctional full-range speaker system is equipped with a 3-inch-high frequency compression tweeter and a 12-inch low frequency woofer, which features lightweight and fast transient response. Cabinet finish is coated with JBL DuraFlexTM. The CV5012M can be adapted to varieties of fixed applications, to be used as wall-mounted full range speaker or as floor monitor. Recessed handles are included for easy carrying. An M10 fly point is included for suspended applications. Two Neutrik® speakONTM NL4 connectors provide input and loop-through connections, allowing different system configurations.

CV5012M low frequency response can be extended using CV5018S or CV5028S subwoofers. The CV5012M can also be wall-mounted and used vertically or horizontally. When the speaker is installed horizontally, the high frequency-horn can be rotated at a selectable angle of 90° x 60° or 60° x 90° to ensure the optimal coverage pattern.

Presently available in China only.


  • 90° x 60° or 60° x 90° to ensure optimal coverage pattern
  • 2432H 38mm (1.5 inch) compression driver for lower distortion
  • 12” customized low frequency driver for highly efficient electro-acoustic conversion
  • M10 hoisting points to support wall-mounted installations, vertically or horizontally

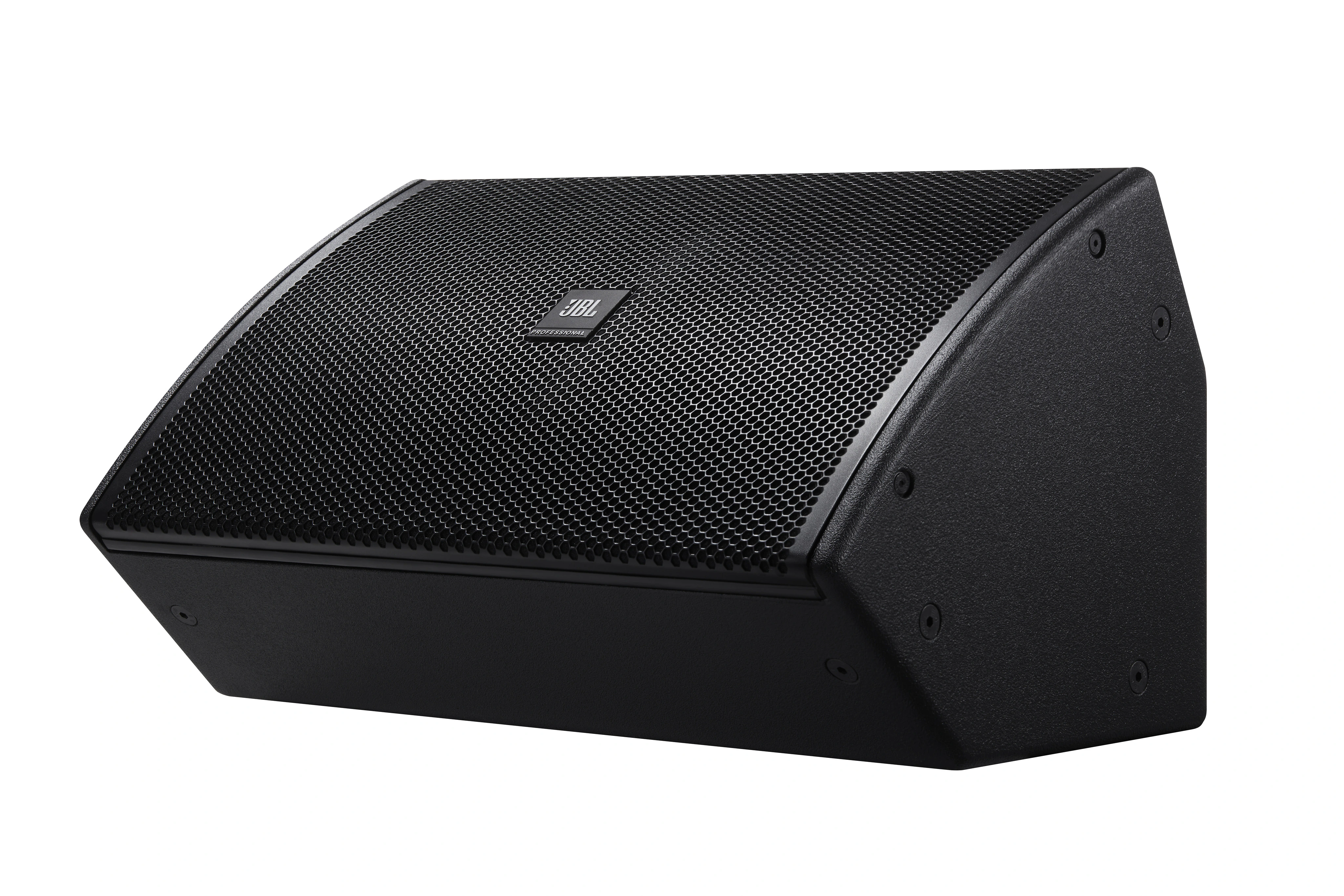

  • Support floor monitor and as main speaker applications.
  • IP55 - Waterproof connections to support complex indoor and outdoor installation environments, eliminating concern about electronic component damage, due to
  • moisture and rain.
  • JBL Black DuraFlexTM finish is included for a sleek appearance that cannot be scraped easily.
  • Features SonicGuardTM sound protection technology to protect the high frequency driver from power overload.
  • Rotatable horn at an angle of 90° x 60° and multiple selectable coverage angles
  • Rotatable JBL Professional logo, allowing the speaker to be installed vertically and horizontally, keeping the logo at a correct position.

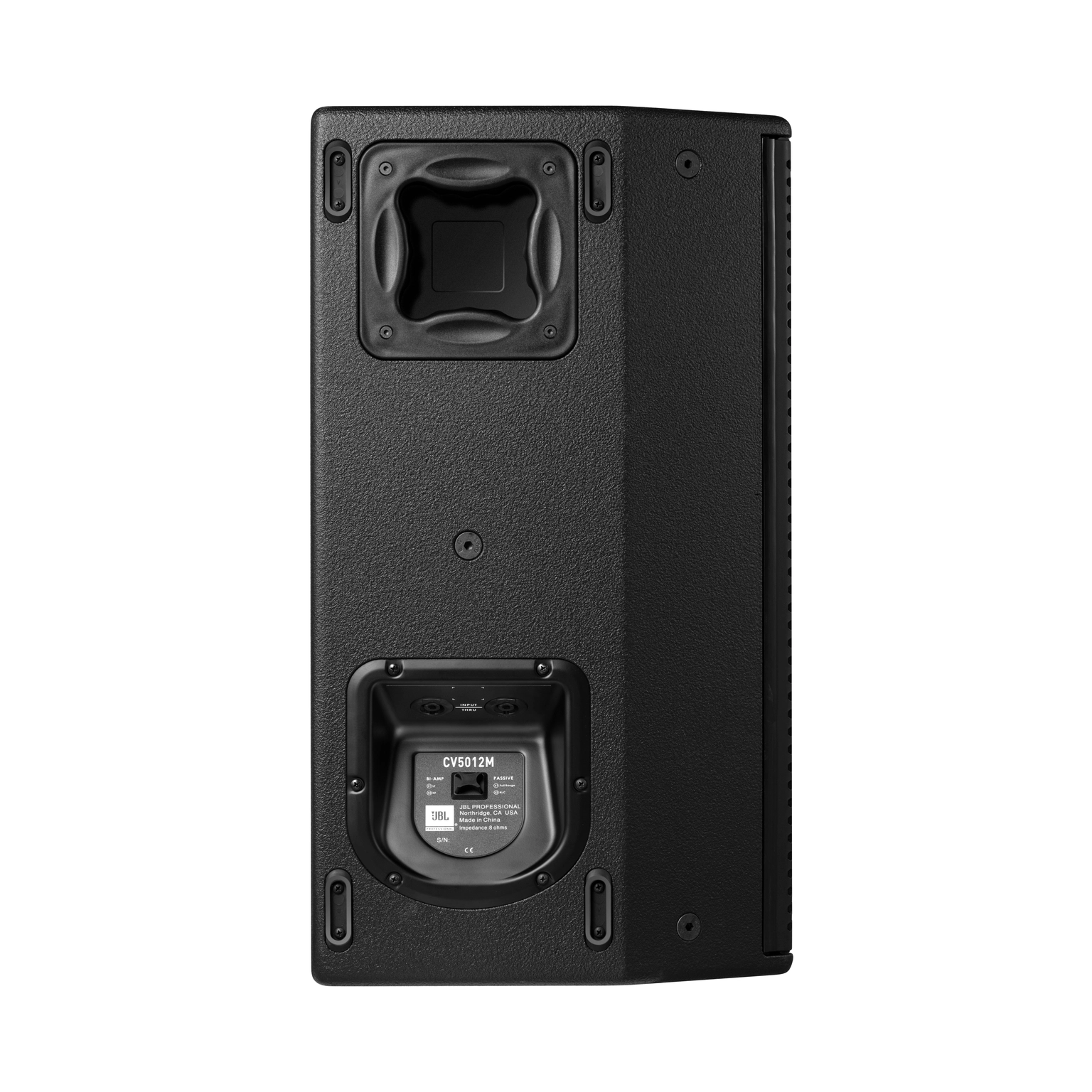

  • Back tilt design connection panel allows speaker against wall installation and prevents water from accumulating in the panel.


  Version Language Size Uploaded
EASE Files
file type icon CV5012M - EASE File
updated: 1月 2023
    1.7 MB 1月 2023
Spec Sheets
file type icon CV5012M Spec Sheet
zh updated: 8月 2023
  zh  834.6 KB 8月 2023
file type icon CV5012M Spec Sheet
en updated: 8月 2023
  en  1.5 MB 8月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 12" Two-way Full-Range Loudspeaker System
Frequency Range (-10 dB)¹ 52 Hz - 20k Hz
Frequency Range (±3 dB)¹ 85 Hz - 20k Hz
覆盖角度 90° x 60°
Rated Input Power³ 600W / 1200W / 2400W (Continuous / Music Signal / Peak)
额定阻抗 8 ohms
Sensitivity (1w@1m)¹ Sensitivity (1w@1m)1:97.5 dB
Maximum SPL¹ 125 dB continuous average (131 dB peak)
低频驱动单元 1x12" (304.8 mm) woofer with 3" (76.2 mm) voice coil
高频驱动单元 JBL 2432H-1, 38mm (1.5 inch) exit compression driver, with a 75 mm (3 inch) voice coil
Box Structure 15 mm birch plywood, fitted with a handle, and BlackDuraFlexTM finish for the appearance color
IP Rating⁴ IP55 (IEC 60529)
Rigging Top: 3 x M10 screws, Bottom: 3 x M10 screws,Back: 3 x M10 screws, Side: 2 x M10 screws
网罩 1.5 mm perforated iron mesh, attached with a waterproof grillinside
Input Connector 2 x NL4 Neutrik Speakon® in parallel for loop-thru (Selectable Bi-amp and Passive modes)
Pin Assignments Bi-amp low frequency: 1+, 1-, high frequency: 2+ 2-, Passive full range: 1+, 1-
尺寸(高 x 宽 x 厚) 630 mm x 394 mm x 345 mm
净重量 21.3 kg
Footnotes 1: Measured in a full space (4π) condition.
2: The maximum sound pressure level is calculated according to the rated power.
3: According to IEC standard, tested for 2 hours under pink noises with a crest factor of 6 dB.
4: The front is tilted down by 0 degree or more, to allow the cabinet to drain water. Suspension components are fully weatherproof, for use in indoor or outdoor conditions where humidity is nominally under 50%, and not local to bodies of corrosive materials. Unused speakON connectors must be sealed using silicone to protect against water and moisture. Please do not place the front of the speaker directly toward the direction of rain.
