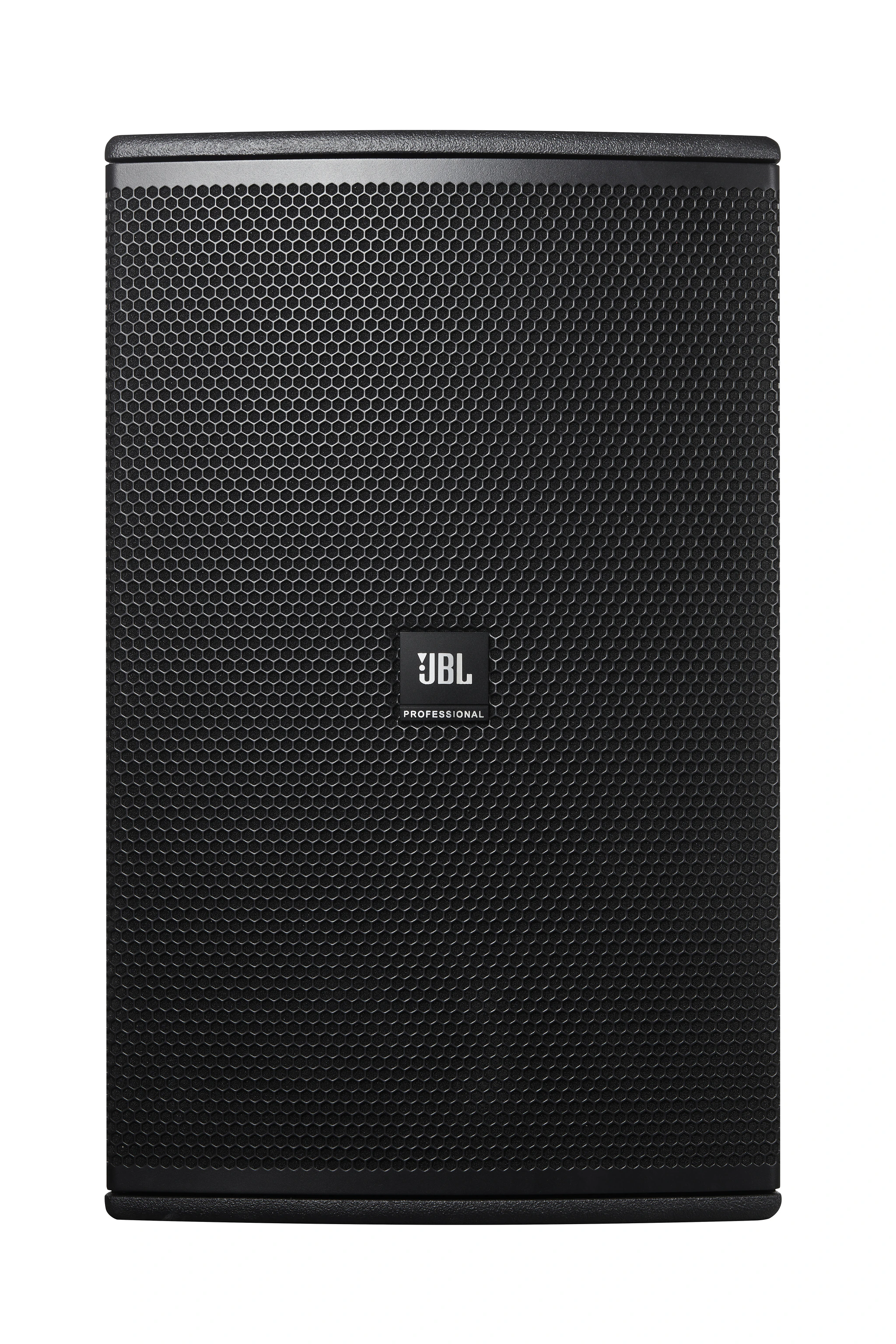

JBL Professional CV5012 64

较大的图像

For China Only

The CV5012 64 is full range point source main speaker that can be mounted horizontally and vertically. It is suitable for fixed point field installation. Cabinet finish is coated with JBL DuraFlexTM. The CV5012 64 is equipped with a 3-inch compression tweeter and a 12-inch high-power and large-dynamic woofer, providing stable high sound pressure output. The surface of the paper cone is evenly coated with waterproof glue, so that the speaker has invincible waterproof performance.

This speaker cabinet features 15 mm birch plywood to ensure solid sound. The top of the box is equipped with M10 hoisting points for mounted installation. Low frequency response can be extended by using CV5018S or CV5028S subwoofers. These speakers are ideal for indoor and outdoor medium-sized events or as a supplemental system for large-scale events or as a distributed sound reinforcement system.

特点

吊挂系统
CV5012 64顶部配有M10集成式安装吊点，支持水平和垂直安装。背面的安装吊点可用于固定或调整扬声器的投射距离。CV5012 64简化了吊挂系统，使用中安装简便、可靠。

防水性能
防水连接器消除了因潮湿和雨水导致电子元件受损的风险。

系统方案
CV5012 64为体育场、多功能厅、中小型剧院、主题公园等室内外应用场景提供高质量声学系统方案。凭借独特简洁的吊挂方案和流畅的箱体曲线，可实现精准的覆盖角度控制。

性能
CV5012 64配备3英寸高音单元和12英寸低音单元，是一款兼具高功率、宽动态范围和高声压级的扬声器。可旋转号角可调节至2个不同角度（90º x 60º和60º x 90º）。获专利的SonicGuard™技术可保护高频驱动单元免受功率过载导致的工作中断。CV5012 64声音特性强劲、高保真、瞬态响应快速。

下载

Spec Sheets

	版本	语言	大小	上传日期
CV5012 64 Spec Sheet 版本 B, 更新: 4月 2024	B		624.7 KB	4月 2024
CV5012 64 Spec Sheet 版本 B, 更新: 4月 2024	B		545.8 KB	4月 2024

EASE Files

	大小	上传日期
CV5012 64 - EASE File 更新: 1月 2023	1.7 MB	1月 2023

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

系统类型	12" Two-way Full-Range Loudspeaker System
Frequency Range (-10 dB)¹	46 Hz - 20k Hz
Frequency Range (±3 dB)¹	80 Hz - 20k Hz
覆盖角度	60° x 40°
Rated Input Power³	600W/1200W/2400W (Continuous/Music/Peak)
额定阻抗	8 ohms
Sensitivity (1w@1m)¹	98 dB
Maximum SPL¹	126 dB continuous average (138 dB peak)
单元
低频驱动单元	1x12" (304.8 mm) woofer with 3" (76.2 mm) voice coil
高频驱动单元	JBL 2432H-1, 38mm (1.5 inch) exit compression driver, with a 75 mm (3 inch) voice coil
Appearance
Box Structure	15 mm birch plywood, fitted with a handle, and BlackDuraFlexTM finish for the appearance color
IP Rating⁴	IP55 (IEC 60529)
Rigging	Top: 4 x M10 screws, Bottom: 4 x M10 screws,Back: 1 x M10 screws, Side: 4 x M10 screws
网罩	1.5 mm perforated iron mesh, attached with a waterproof grillinside
Input Connector	2 x NL4 Neutrik Speakon® in parallel for loop-thru (SelectableBi-amp and Passive modes)
Pin Assignments	Bi-amp low frequency: 1+, 1-, high frequency: 2+ 2-,Passive full range: 1+, 1-
尺寸（高 x 宽 x 厚）	630 mm x 394 mm x 429 mm
净重量	25 kg
Footnotes	1: Measured in a full space (4π) condition. 2: Measured in a full space (4π) condition. Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor. 3: According to IEC standard, tested for 2 hours under pink noises with a crest factor of 6 dB. 4: The front is tilted down by 0 degree or more, to allow the cabinet to drain water. Suspensioncomponents are fully weatherproof, for use in indoor or outdoor conditions where humidity is nominallyunder 50%, and not local to bodies of corrosive materials. Unused speakON connectors must be sealedusing silicone to protect against water and moisture. Please do not place the front of the speaker directlytoward the direction of rain. JBL continually engages in research related to product improvement. Some materials, production methods,and design refinements are introduced into existing products without notice as a routine expression ofthat philosophy. For this reason, any current JBL product may differ in some respect from its publisheddescription but will always equal or exceed the original design specifications unless otherwise stated.
