CV3025/66

Dual 15" 2-Way Loudspeaker System

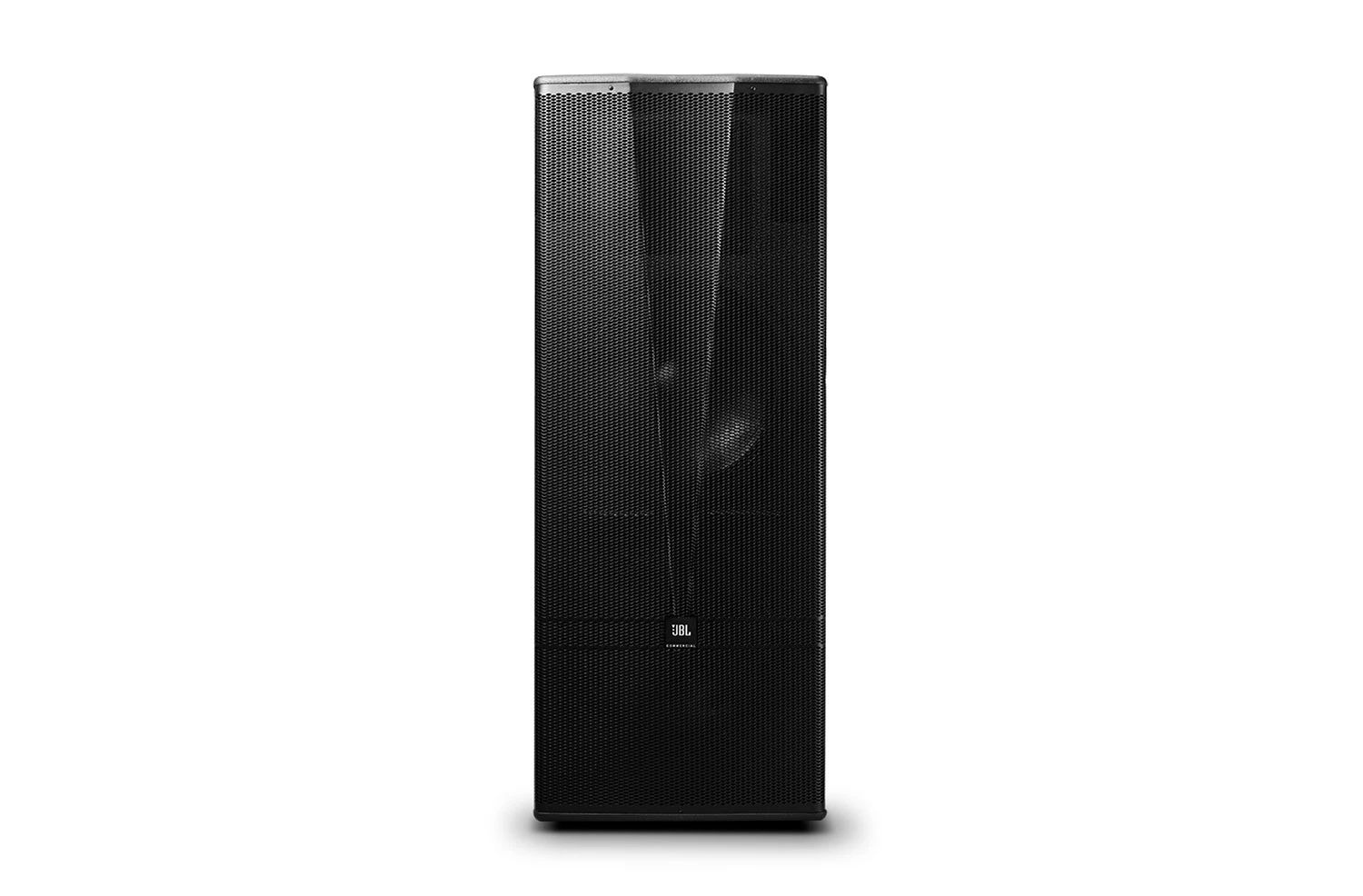

较大的图像

Dual 15" 2-Way Loudspeaker System

CV3025/66 is a dual 15” 2-way speaker system designed by JBL for commercial installed sound applications.

CV3025/66 uses a pair of 15” custom low frequency drivers and a JBL 2408H-1 high frequency compression driver and is capable of reproducing sound in high definition, low distortion and low power compression. A 60° × 60° horn is mounted to ensure even and balanced audience coverage in spaces of different sizes. For optimal frequency response and minimum cabinet resonance, CV3025/66 constructs its cabinet from quality ply-wood and positions transducers and components based on meticulous calculation and simulation, which on the other hand leads to light weight and compact footprint of the entire system.

CV3025/66 designs its cabinet to meet stringent suspension requirements. Multiple high-strength M10 threaded points make flying installation and orientation fine-tuning easy and convenient. Two integral handles are provided for easy transport and setup. A pair of NL4 Neutrik Speakon® connectors allow loop-through connection of multiple speakers. For increased wear-resistance and extended longevity, CV3025/66 finishes its cabinet by DuraFlexTM coating and protects internals from foreign objects with a grille made from high-strength steel.

In collaboration with else CV3000 Series sibling models, CV3025/66 targets to bring exceptional versatility, reliability and ease of use, and most importantly, stunning acoustic performance, to a variety of commercial applications, be it background music playback or events in small-to-large size restaurants or hotel ballrooms.

特点

  • 60° × 60° horn creates even coverage
  • Dual 15” customized low frequency drivers for highly efficient electro-acoustic conversion
  • JBL 2408H-1 high frequency compression driver for lower distortion
  • Enclosure constructed from quality plywood and finished in DuraFlexTM coating
  • Multiple M10 hardware for secure suspending installaion
  • Two integral handles for easy transport and setup
  • High-strength front grille protects the system from foreign objects
  • Rotatable JBL COMMERCIAL logo
  • For commercial installed sound applications, e.g. background music playback or events in restaurants or hotel ballrooms.

性能

Frequency Response (-10dB) 42 Hz – 20 kHz
Frequency Response (±3 dB) 65 Hz – 18 kHz
Coverage 60°×60°
系统额定功率 800 W / 1600 W / 3200 W (continous / music / peak)
Maximum SPL (1m) 130 dB continuous average (136 dB peak)
System Sensitivity (2.83V@1m) 101 dB
标称阻抗 4 Ω
低频驱动单元 2 × 15” woofer
HF 驱动程序 1 × 2408H-1
Enclosure Trapezoidal,15mm/18mm poplar plywood, fitted with handles
Suspension 13 (3@top, 3@buttom, 2@each side, 3@rear) × M10 threaded hardware
外观颜色 Black DuraFlexTM finish
网罩 Powder coated, 1.5 mm perforated steel
Input Connector 2 × NL4 Neutrik Speakon®
尺寸(高 x 宽 x 厚) 1243 mm × 484 mm × 520 mm (48.9 in × 19.1 in × 20.5 in)
净重量 44.3 kg (97.6 lbs)
