CV3015/99

15" 2-Way Loudspeaker System

较大的图像

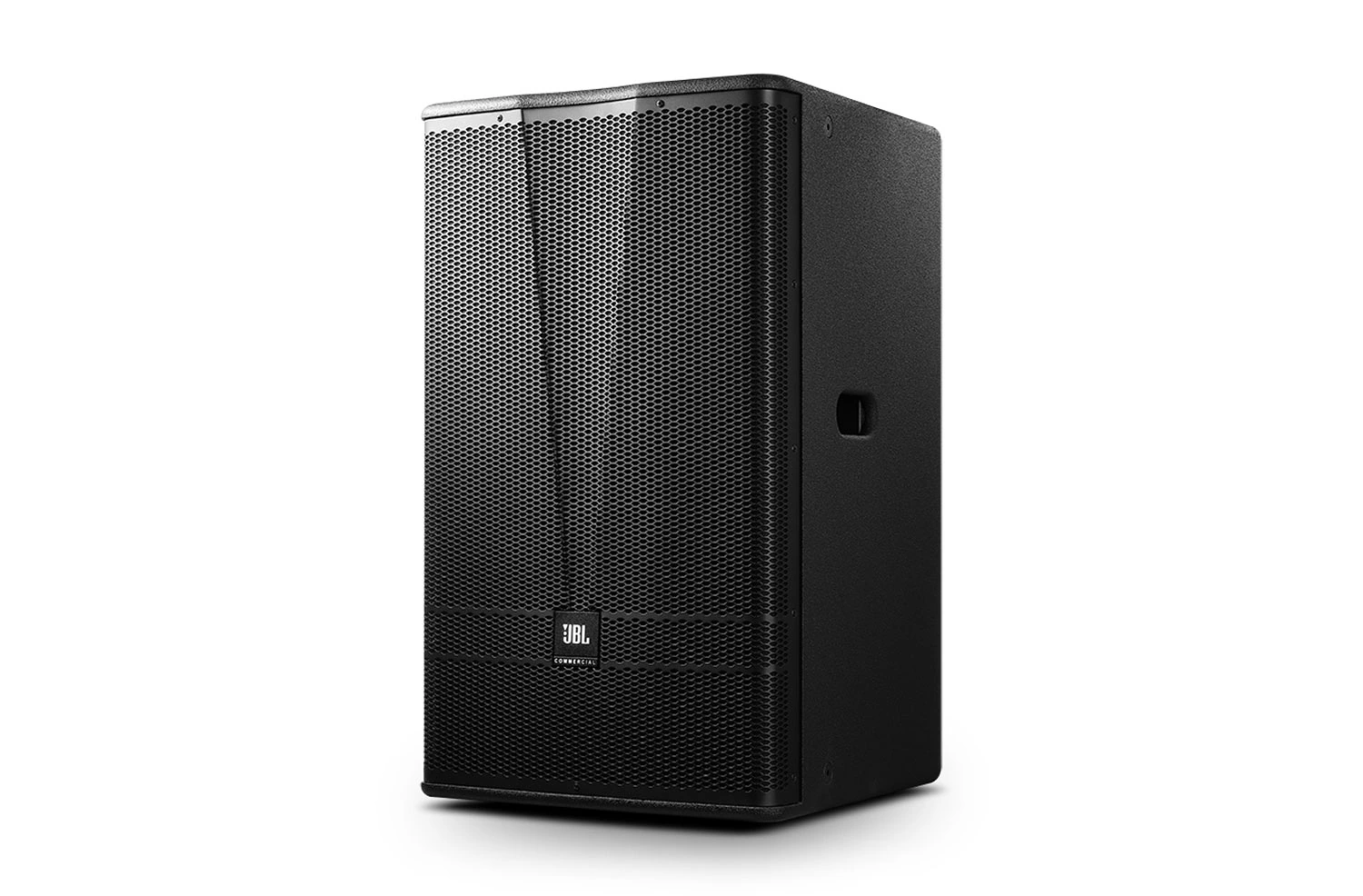

15" 2-Way Loudspeaker System

CV3015/99 is a 15” 2-way speaker system designed by JBL for commercial installed sound applications.

CV3015/99 uses a 15” custom low frequency driver and a JBL 2408-2 high frequency compression driver and is capable of reproducing sound in high definition, low distortion and low power compression. A 90° × 90° horn is mounted to ensure even and balanced audience coverage in spaces of different sizes. For optimal frequency response and minimum cabinet resonance, CV3015/99 constructs its cabinet from quality ply-wood and positions transducers and components based on meticulous calculation and simulation, which on the other hand leads to light weight and compact footprint of the entire system.

CV3015/99 designs its cabinet to meet different installation requirements. Multiple M10 threaded points and one 35 mm socket are available for either flying suspension or pole mounting. Two integral handles are provided for easy transport and setup. A pair of NL4 Neutrik Speakon® connectors allow loop-through connection of multiple speakers. For increased wear-resistance and extended longevity, CV3015/99 finishes its cabinet by DuraFlexTM coating and protects internals from foreign objects with a grille made from high-strength steel.

In collaboration with else CV3000 Series sibling models, CV3015/99 targets to bring exceptional versatility, reliability and ease of use, and most importantly, stunning acoustic performance, to a variety of commercial applications, be it background music playback or events in small-to-large size restaurants or hotel ballrooms.

特点

  • 90° × 90° horn creates even coverage
  • 15” customized low frequency driver for highly efficient electro-acoustic conversion
  • JBL 2408-2 high frequency compression driver for lower distortion
  • Enclosure constructed from 15 mm quality plywood and finished in DuraFlexTM coating
  • Multiple M10 suspension points and a 35 mm pole-mounting socket for flexible installation
  • Two integral handles for easy transport and setup
  • High-strength front grille protects the system from foreign objects
  • Rotatable JBL COMMERCIAL logo
  • For commercial installed sound applications, e.g. background music playback or events in restaurants or hotel ballrooms.
  • As main speaker for use with subwoofers.

下载

  Version Language Size Uploaded
Compliances
CV3000 Series Declaration of Conformity
updated: 10月31日
    271.6 KB 10月31日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 (-10dB) 45 Hz – 20 kHz
Frequency Response (±3 dB) 75 Hz – 20 kHz
Coverage 90°×90°
System Power Rating (IEC, 2 hrs) 400 W / 800 W / 1600 W (continuous / music / peak)
Maximum SPL (1m) 125 dB continuous average (131 dB peak)
System Sensitivity (2.83V@1m) 99 dB
标称阻抗 8 Ω
低频驱动单元 1 × 15” woofer, 3” voice coil
HF 驱动程序 1 × 2408-2, 1.5” voice coil, annular single diaphragm
Enclosure Trapezoidal with 20° side angles, 15mm poplar plywood, fitted with handles
Suspension 13 (3@top, 3@buttom, 2@each side, 3@rear) × M10 threaded hardware; 35mm OmniMount pole-mounting socket
外观颜色 Black DuraFlexTM finish
网罩 Powder coated, 1.5 mm perforated steel
Input Connector NL4 Neutrik Speakon® in parallel for loop-through
尺寸(高 x 宽 x 厚) 680 mm × 414.4 mm × 445 mm (26.8 in × 16.3 in × 17.5 in)
净重量 23.15 kg (51.0 lbs)
