CV3012M/99

12” 2-Way Stage Monitor

CV3012M/99
较大的图像

12” 2-Way Stage Monitor

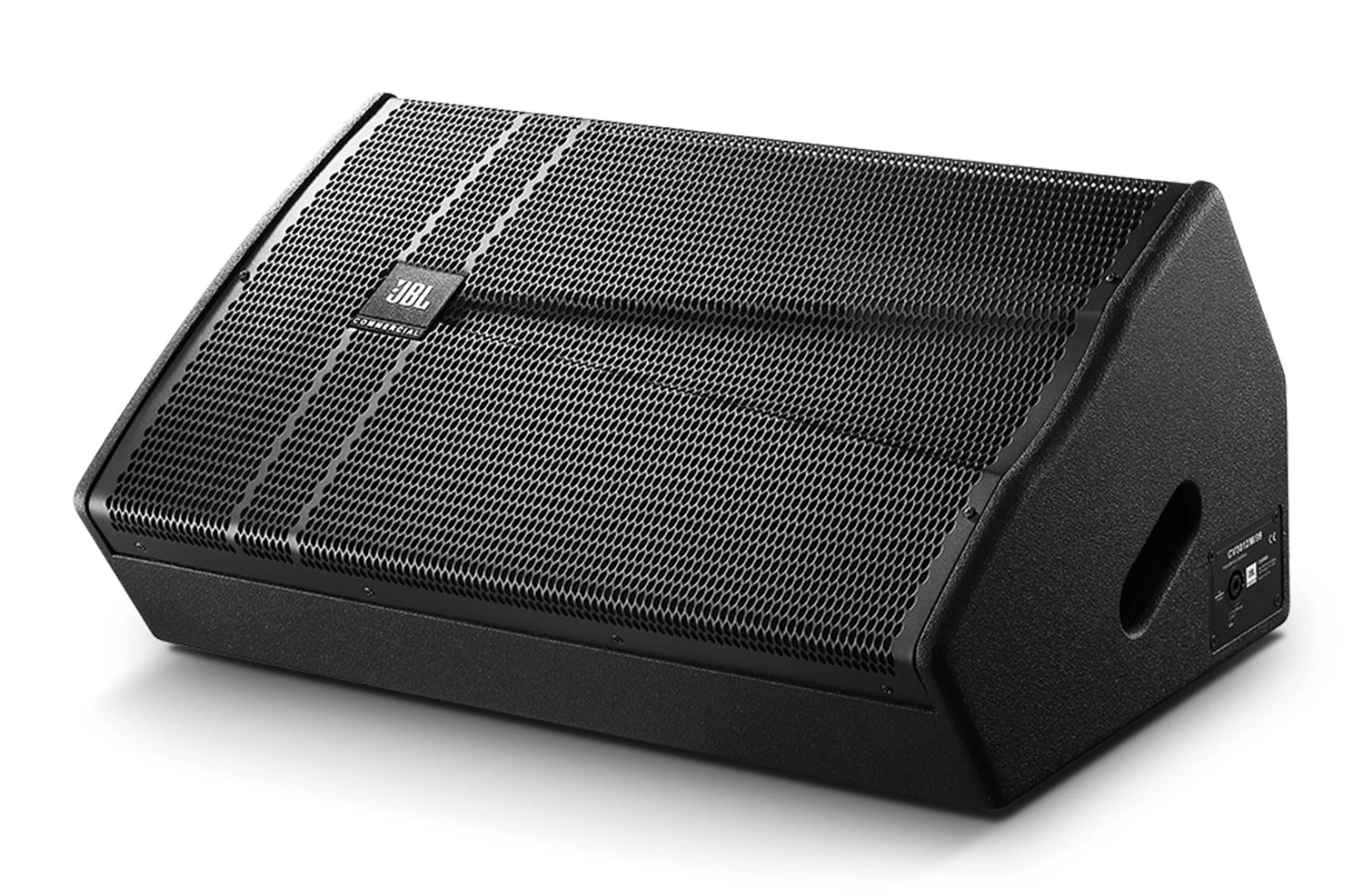

CV3012M/99 is a 12” 2-way stage monitor speaker designed by JBL for commercial installed sound applications.

CV3012M/99 uses a 12” custom low frequency driver and a JBL 2408-2 high frequency compression driver and is capable of reproducing sound in high definition, low distortion and low power compression. A 90° × 90° horn is mounted to ensure even and balanced coverage over stages of different sizes. For optimal frequency response and minimum cabinet resonance, CV3012M/99 constructs its cabinet from quality ply-wood and positions transducers and components based on meticulous calculation and simulation, which on the other hand leads to light weight and compact footprint of the entire system.

CV3012M/99 forms a 30° monitor angle while placed on the floor. Two integral handles are provided for easy transport and setup. A pair of NL4 Neutrik Speakon® connectors are side accessible and allow loop-through of multiple monitors on the stage. For increased wear-resistance and extended longevity, CV3012M/99 finishes its cabinet by DuraFlexTM coating and protects internals from foreign objects with a grille made from high-strength steel.

In collaboration with else CV3000 Series sibling models, CV3012M/99 targets to bring exceptional reliability and ease of use, and most importantly, stunning acoustic performance, to a variety of commercial applications, for instance, events in small-to-large size restaurants or hotel ballrooms.

Presently not available in Japan, Australia and New Zealand

特点

  • 90° × 90° horn creates even coverage
  • 30° monitor angle against the floor
  • 12” customized low frequency driver for highly efficient electro-acoustic conversion
  • BL 2408-2 high frequency compression driver for lower distortion
  • Enclosure constructed from 15 mm quality plywood and finished in DuraFlexTM coating
  • Two integral handles for easy transport and setup
  • High-strength front grille protects the system from foreign objects
  • Rotatable JBL COMMERCIAL logo
  • For stage monitoring in commercial installed sound applications.

下载

  Version Language Size Uploaded
Compliances
file type icon CV3000 Series Declaration of Conformity
updated: 10月 2019
    271.6 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 54 Hz – 20 kHz
Frequency Response (±3 dB) 85 Hz – 20 kHz
Coverage 90°×90°
System Power Rating (IEC, 2 hrs) 350 W / 700 W / 1400 W (continuous / music / peak)
Maximum SPL (1m) 123 dB continuous average (129 dB peak)
System Sensitivity (2.83V@1m) 97.5 dB
标称阻抗 8 Ω
低频驱动单元 1 × 12” woofer, 2.5” voice coil
HF 驱动程序 1 × 2408-2, 1.5” voice coil, annular single diaphragm
Enclosure Trapezoidal with 20° side angles, 15mm poplar plywood, fitted with handles; 30° monitor angle
外观颜色 Black DuraFlexTM finish
网罩 Powder coated, 1.5 mm perforated steel
Input Connector NL4 Neutrik Speakon® in parallel for loop-through
尺寸(高 x 宽 x 厚) 285.5 mm × 600 mm × 388 mm (11.2 in × 23.6 in × 15.3 in)
净重量 15.55 kg (34.3 lbs)
