18 Inch High-Power Passive Subwoofer


18 Inch High-Power Passive Subwoofer

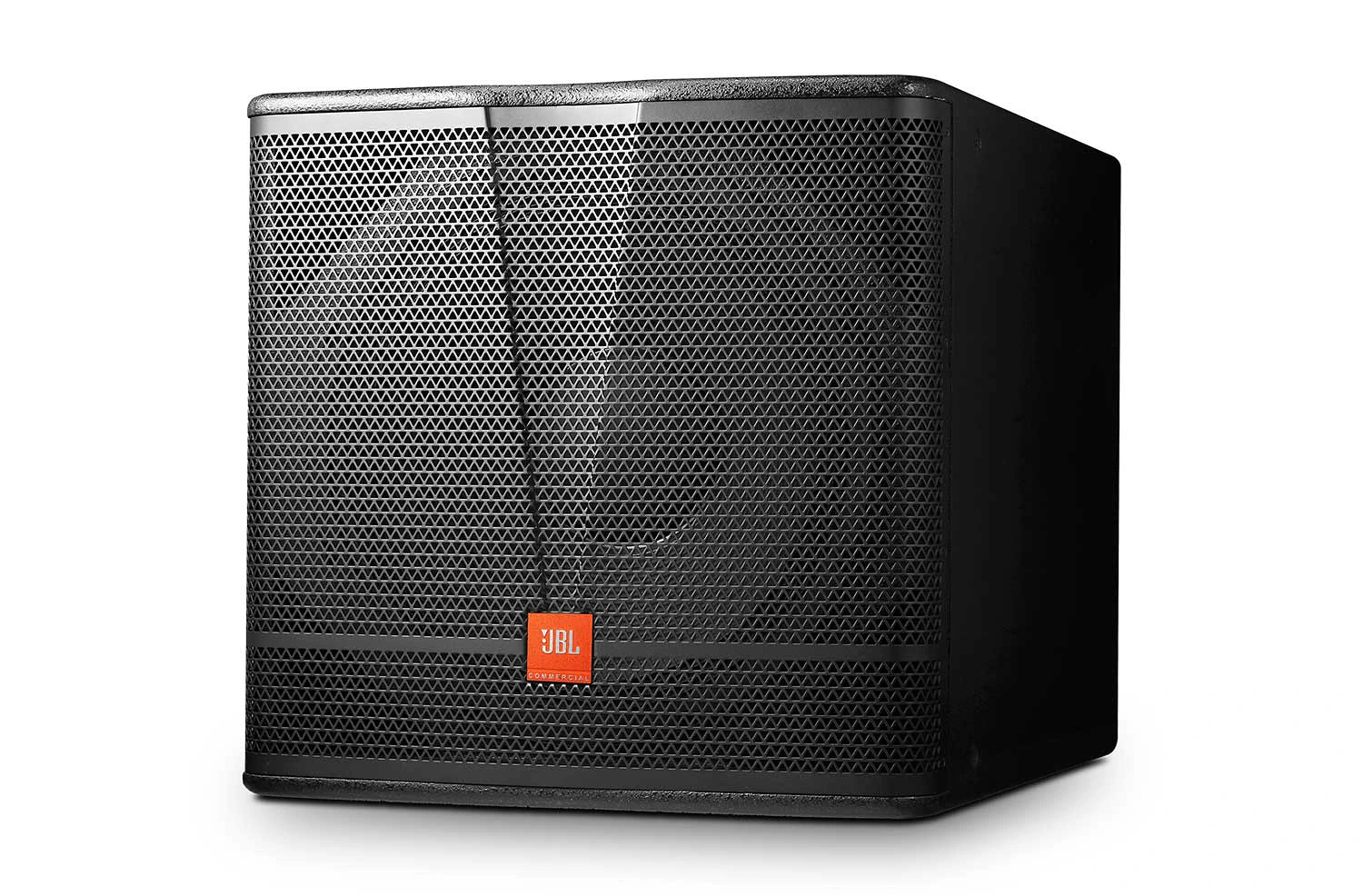

The CV18S is a compact, high-power subwoofer system containing a JBL long excursion 459 mm (18”) woofer in a front-loaded, vented enclosure.

Presently not available in Japan, Australia and New Zealand


  • 18” long excursion driver for extended low-frequency output
  • Large vent for reducing distortion
  • Low profile and compact design
  • Enclosure constructed of 18 mm plywood with rugged durable painting finish
  • Heavy duty powder-coated 1.5mm steel grille of elegant design for driver protection and sleek professional appearance
  • Suspension points ready for quick flying installation
  • White (-WH) color available upon request
  • Sound reinforcement for restaurants, canteens or dining halls, cafés, conference rooms, halls, school rooms, etc.


  Version Language Size Uploaded
file type icon JBL CV1000 Series EU Declaration of Conformity
updated: 10月 2019
    281.0 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 18″, bass-reflex
频率范围 (-10dB) 32 Hz – 250 Hz
Frequency Response (±3 dB) 40 Hz – 250 Hz
System Sensitivity (1w @ 1m) 96 dB
标称阻抗 8 Ω
Maximum SPL (1m) 123 dB continuous average (129 dB peak)
Power Rating (Continuous/Program/Peak) 500 W/1000 W/2000 W
低频驱动单元 1 × 18” woofer
Enclosure 18 mm plywood
Suspension 12 × M10 threaded suspension points
外观颜色 Textured paint, black. White (-WH) available upon request.
网罩 Powder coated 1.5mm perforated cold rolled steel
输入接口 Dual NL4MP Neutrik Speakon® in parallel for loop-through
尺寸(高 x 宽 x 厚) 542 mm × 561 mm × 720 mm (21.3 in × 22.0 in × 28.3 in)
净重量 34.4 kg (75.8 lbs)
