CV1652T

6.5 Inch 2-Way Full Range Loudspeaker System

较大的图像

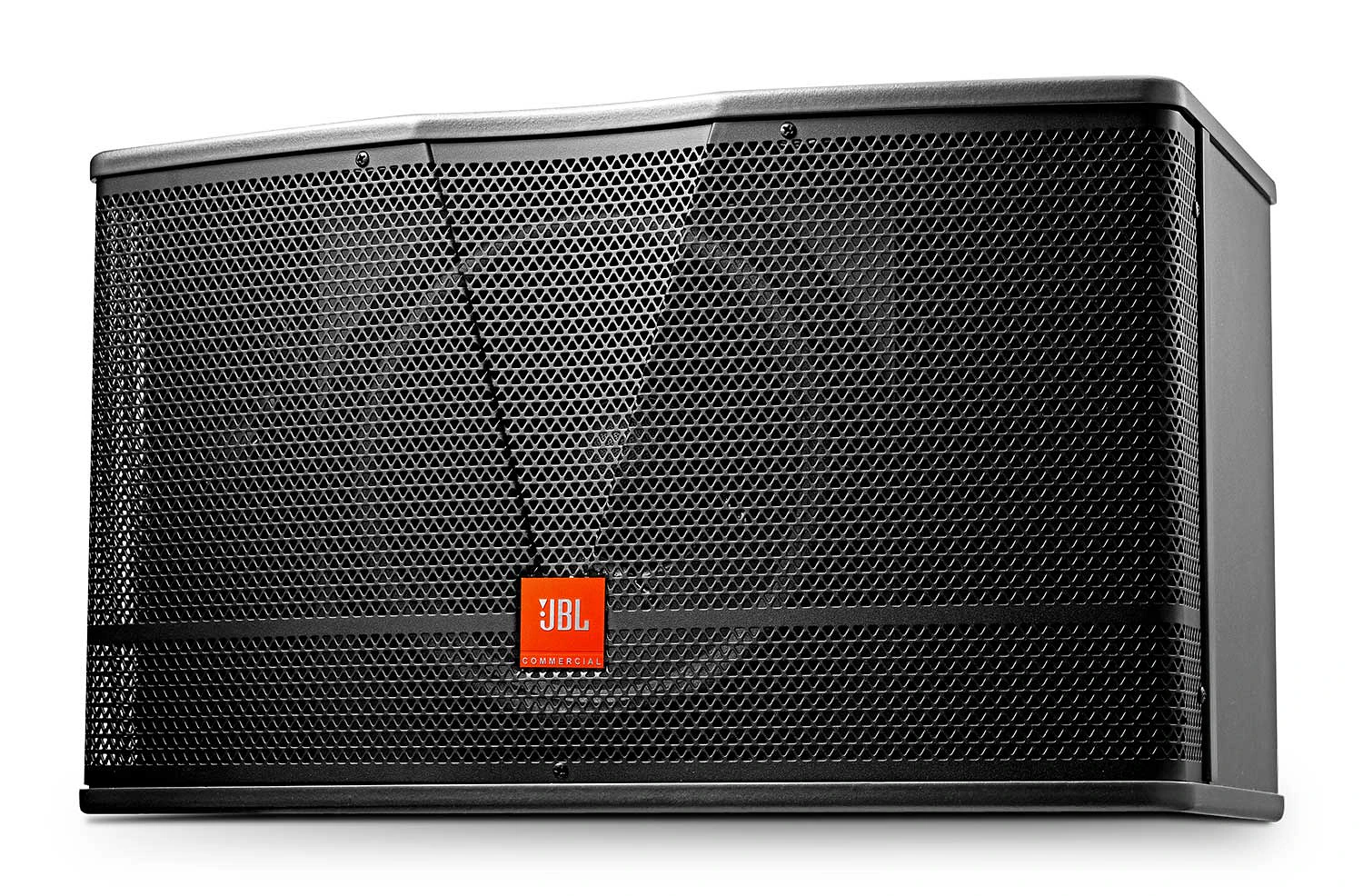

6.5 Inch 2-Way Full Range Loudspeaker System

CV1652T is a two-way full-range speaker designed for restaurants, conference rooms, music cafes, hotels, etc. Its especially wide coverage pattern (150°×120°) makes it a perfect choice for installations where the ceiling height is relatively limited.

特点

  • Specially designed 6.5” high performance woofer provides greater power handling and is fitted with demodulating aluminum ring for lower distortion and power compression
  • Two (2) 3” paper cone tweeters provide excellent high-frequency response and superb vocal reproduction
  • MDF (medium density fiberboard) enclosure with vinyl finish provides grand appearance and durability
  • Precisely designed crossover optimizes the frequency response and provides smooth and accurate music reproduction
  • Built-in high quality multi-tap 70V/100V transformer
  • 150°×120°coverage pattern for even and smooth response on and off axis
  • Ideal for installations with limited ceiling height
  • Rotatable JBL COMMERCIAL logo for easy coherence to your installation
  • White (-WH) color available upon request
  • Sound reinforcement for restaurants, conference rooms, hotels, cafes, halls, school rooms, etc.
  • High-performance satellite speaker for use with subwoofers.

下载

  Version Language Size Uploaded
Compliances
JBL CV1000 Series EU Declaration of Conformity
updated: 10月31日
    281.0 KB 10月31日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 6.5”,2-way,bass-reflex
Frequency Response (-10dB) 65 Hz – 18 kHz
Frequency Response (±3 dB) 75 Hz – 15 kHz
Sensitivity(1W@1m) 90 dB
标称阻抗 8Ω(at 8Ω tap setting)
Maximum SPL (1m) 112 dBcontinuous average (118 dB peak) (at 8Ωtap setting)
Power Rating (Continuous/Program/Peak) 150 W / 300 W / 600 W(at 8Ω tap setting)
Coverage 150°×120° (H × V)
变压器抽头 8 Ohms, 70V(7.5W/15W/30W/60W), 100V(15W/30W/60W)
Insert Loss <1.0 dB at any tap setting
低频驱动单元 1 × 6.5” woofer
HF 驱动程序 2 × 3” paper cone tweeter
Enclosure Trapezoid,12 mm MDF
Suspension 2 × M10 threaded suspension points
外观颜色 Vinyl laminated, black. White(-WH) available upon request.
网罩 Powder coated, 1.0 mm perforated steel

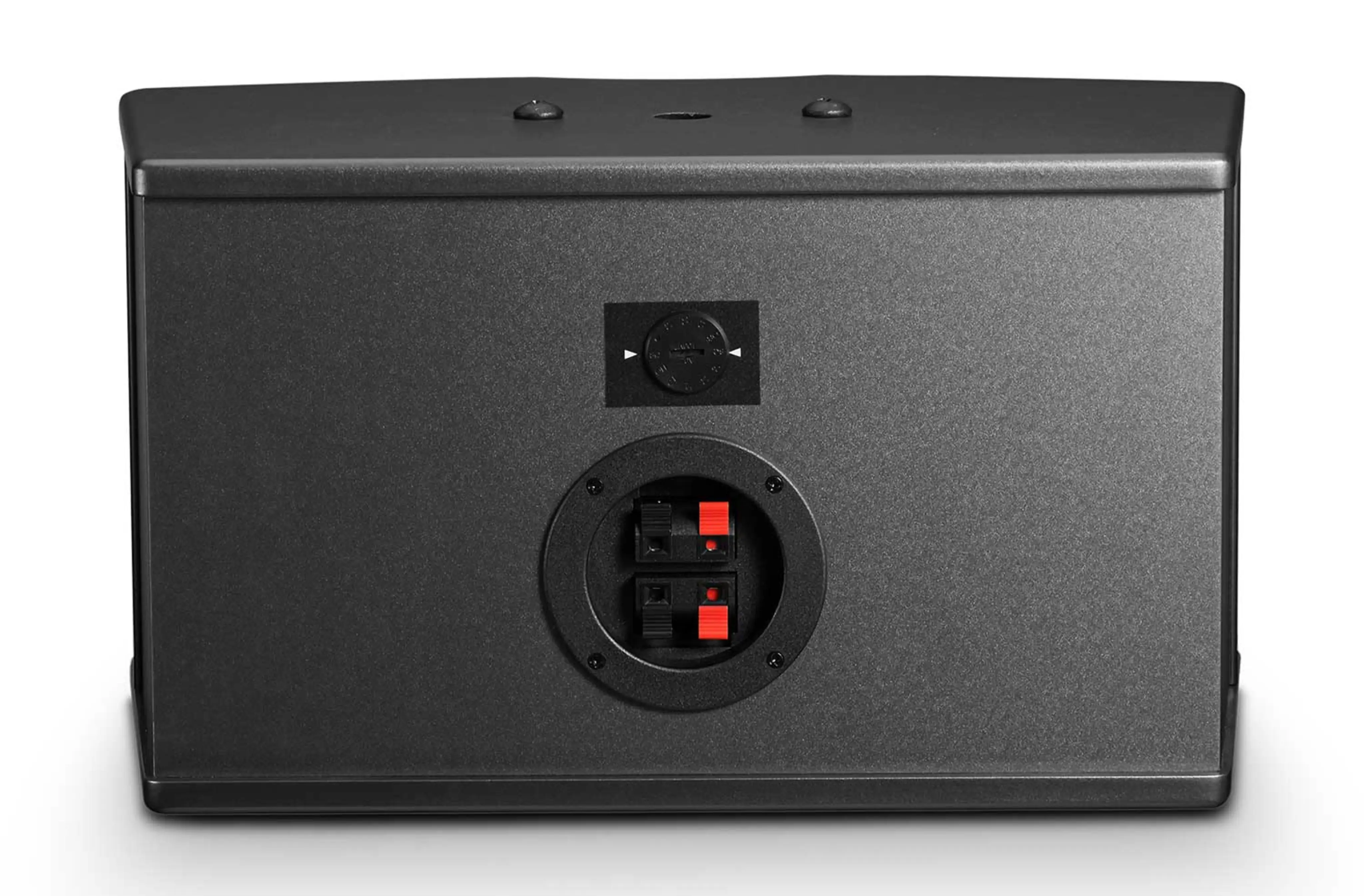

Input Connector Dual RED/BALCK connector in parallel for loop-through.
尺寸(高 x 宽 x 厚) 221 mm × 405.4 mm × 250 mm (8.7 in × 16.0 in × 9.8 in)
净重量 7.5 kg (16.5 lbs)
