CV1510 (Available in China Only)

Passive Surface-Mount Speaker

CV1510 (Available in China Only)

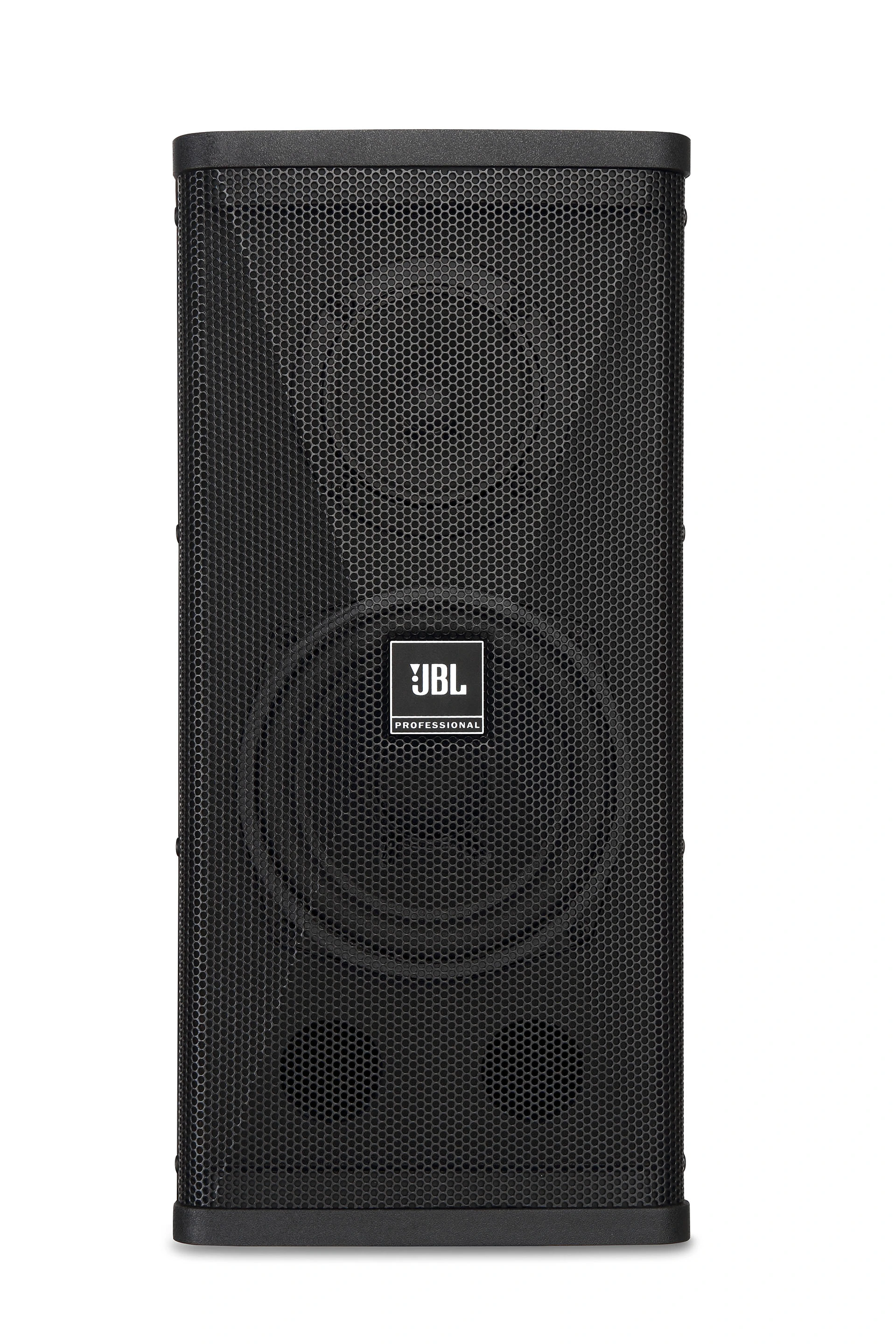

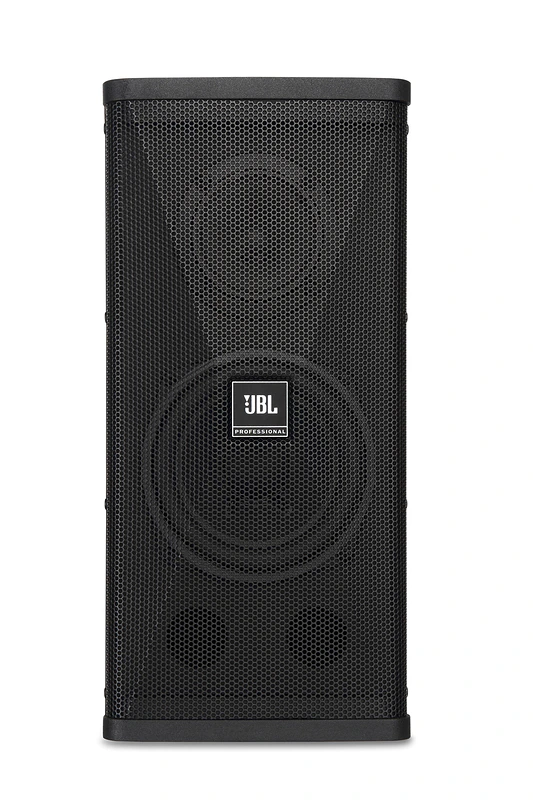

The JBL CV1510 surface-mount speaker, one of the newest models in JBL’s CV1000 Series of pro-grade speakers for installed sound, brings legendary JBL clarity to integrated audio presentation systems for classrooms, meeting spaces and other small-scale speaking environments.

The 2-way, 5.25-inch CV1510 is engineered to pair perfectly with JBL’s new AMP Series all-in-one A/V presentation systems—including integrated amplifiers and wireless handheld and hands-free/neckworn UHF microphones—to provide complete audio solutions. The AMP Series lets speakers communicate clearly without worrying about system operation, thanks to robust connectivity options, built-in effect presets and one-touch wireless sync.

Educators, corporate presenters and hospitality providers who require simple, integrated A/V presentation technologies can rely on the JBL CV1510 speaker to complete JBL’s AMP Series family of versatile, cost-conscious systems.

Premium JBL Sound
Draws from JBL’s legendary recording and touring technologies to deliver crystal-clear sound with depth and detail

Versatile Installation
Scalable to accommodate any small speaking environment; optimized for horizontal or vertical orientation; shallow footprint

Rugged Construction
Engineered to last, taking advantage of tour-tested JBL technologies to deliver peak performance over continuous use


  • Legendary JBL Professional driver technology
  • 3” cone HF driver, 5.25” uncompressed LF driver
  • Optimized for horizontal or vertical orientation
  • Shallow footprint pairs well with electronic presentation board
  • 104 dB max SPL (110 dB peak)
  • Frequency range: 60 Hz–19 kHz
  • Sensitivity: 86 dB
  • Binding-post inputs
  • 380 mm (H) × 179 mm (W) × 205 mm (D)
  • 4 adjustable mount angles optimize coverage for any space
  • Chassis features rounded edges to prevent impact injuries


  Version Language Size Uploaded
file type icon CV1510 Spec Sheet
updated: 7月 2020
    274.9 KB 7月 2020
