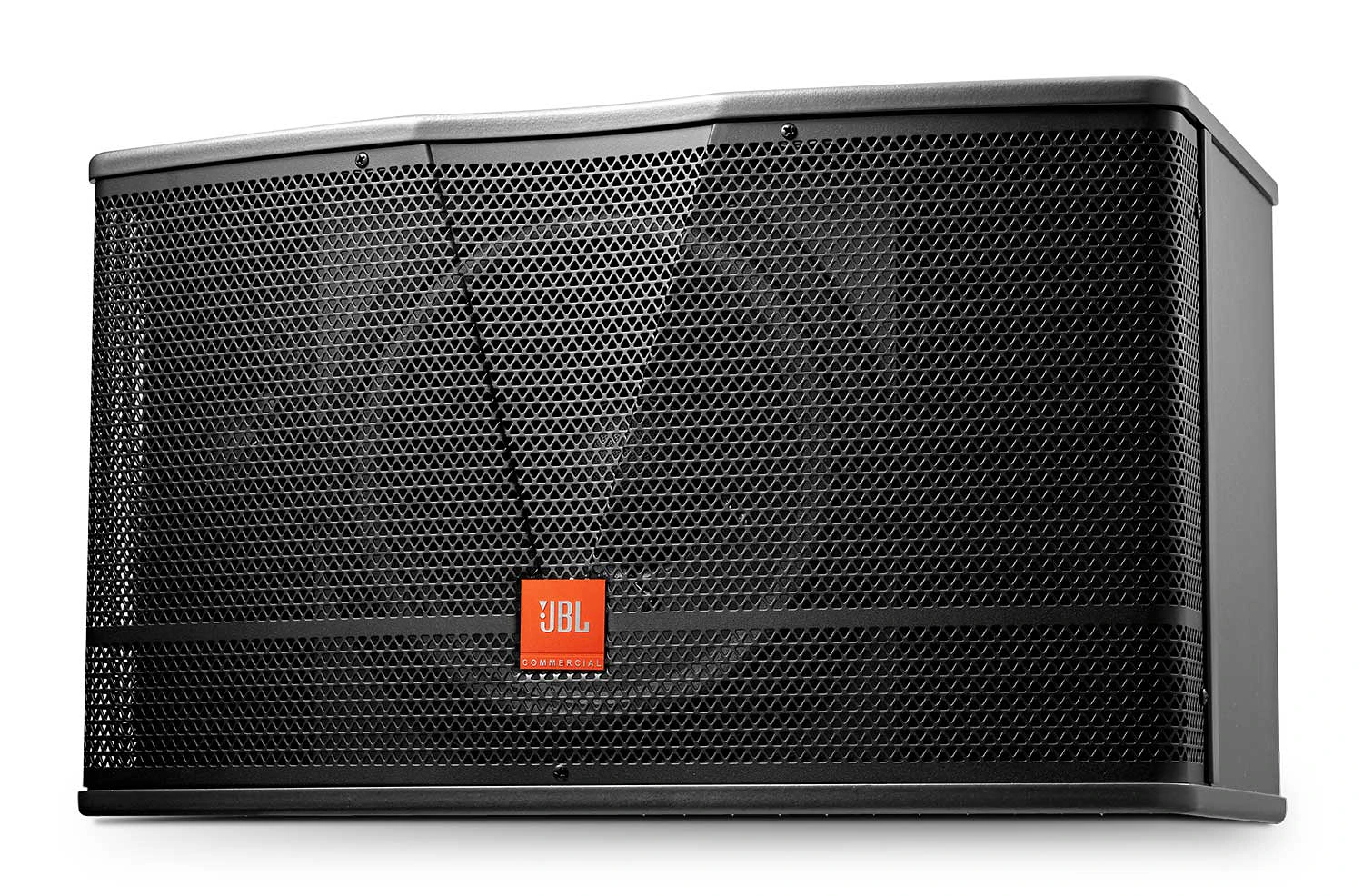

CV1252T

12 Inch 2-Way Full Range Loudspeaker System

CV1252T
较大的图像

12 Inch 2-Way Full Range Loudspeaker System

CV1252T is a two-way full-range speaker designed for restaurants, conference rooms, music cafes, hotels, etc. Its especially wide coverage pattern (150°×120°) makes it a perfect choice for installations where the ceiling height is relatively limited.

Presently not available in Japan, Australia and New Zealand

特点

  • Specially designed12” high performance woofer provides greater power handling and is fitted with demodulating aluminum ring for lower distortion and power compression
  • Two (2) 3” paper cone tweeters provide excellent high-frequency response and superb vocal reproduction
  • MDF (medium density fiberboard) enclosure with vinyl finish provides grand appearance and durability
  • Precisely designed crossover optimizes the frequency response and provides smooth and accurate music reproduction
  • Built-in high quality multi-tap 70V/100V transformer
  • 150°×120°coverage pattern for even and smooth response on and off axis
  • Ideal for installations with limited ceiling height
  • Rotatable JBL COMMERCIAL logo for easy coherence to your installation
  • White (-WH) color available upon request
  • Sound reinforcement for restaurants, conference rooms, hotels, cafes, halls, school rooms, etc.
  • High-performance satellite speaker for use with subwoofers.

下载

  Version Language Size Uploaded
Compliances
file type icon JBL CV1000 Series EU Declaration of Conformity
updated: 10月31日
    281.0 KB 10月31日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 12”, 2-way, bass-reflex
频率范围 (-10dB) 60 Hz – 18 kHz
Frequency Response (±3 dB) 70 Hz – 15 kHz
Sensitivity(1W@1m) 92 dB
标称阻抗 8Ω(at 8Ω tap setting)
Maximum SPL (1m) 117 dBcontinuous average (123 dB peak) (at 8Ωtap setting)
Power Rating (Continuous/Program/Peak) 300 W / 600 W / 1200 W(at 8Ω tap setting)
Coverage 150°×120° (H × V)
变压器抽头 8 Ohms, 70 V (20 W / 40 W / 80 W / 160 W), 100 V ( 40 W / 80 W / 160 W)
Insert Loss <1.0 dB at any tap setting
低频驱动单元 1 × 12” woofer
HF 驱动程序 2 × 3” paper cone tweeter
Enclosure Trapezoid,15 mm MDF
Suspension 2 × M10 threaded suspension points
外观颜色 Vinyl laminated, black. White(-WH) available upon request.
网罩 Powder coated, 1.0 mm perforated steel
Input Connector Dual RED/BALCK connector in parallel for loop-through.
尺寸(高 x 宽 x 厚) 352 mm × 586 mm × 350 mm (13.9 in × 23.1 in × 13.8 in)
净重量 17.4 kg (38.4 lbs)
