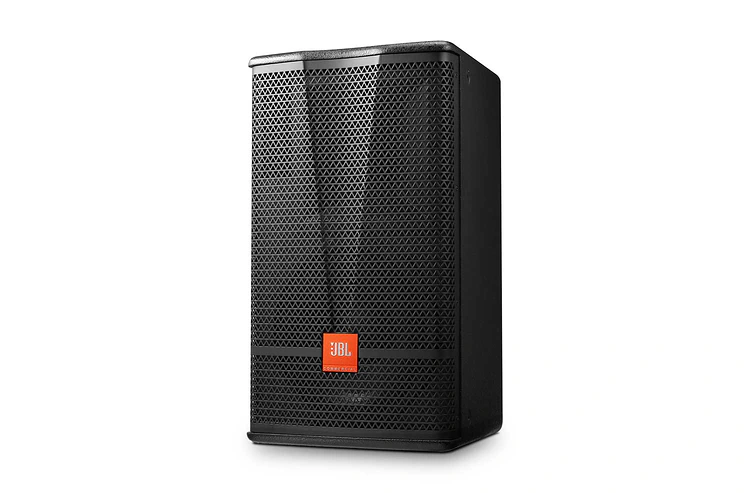

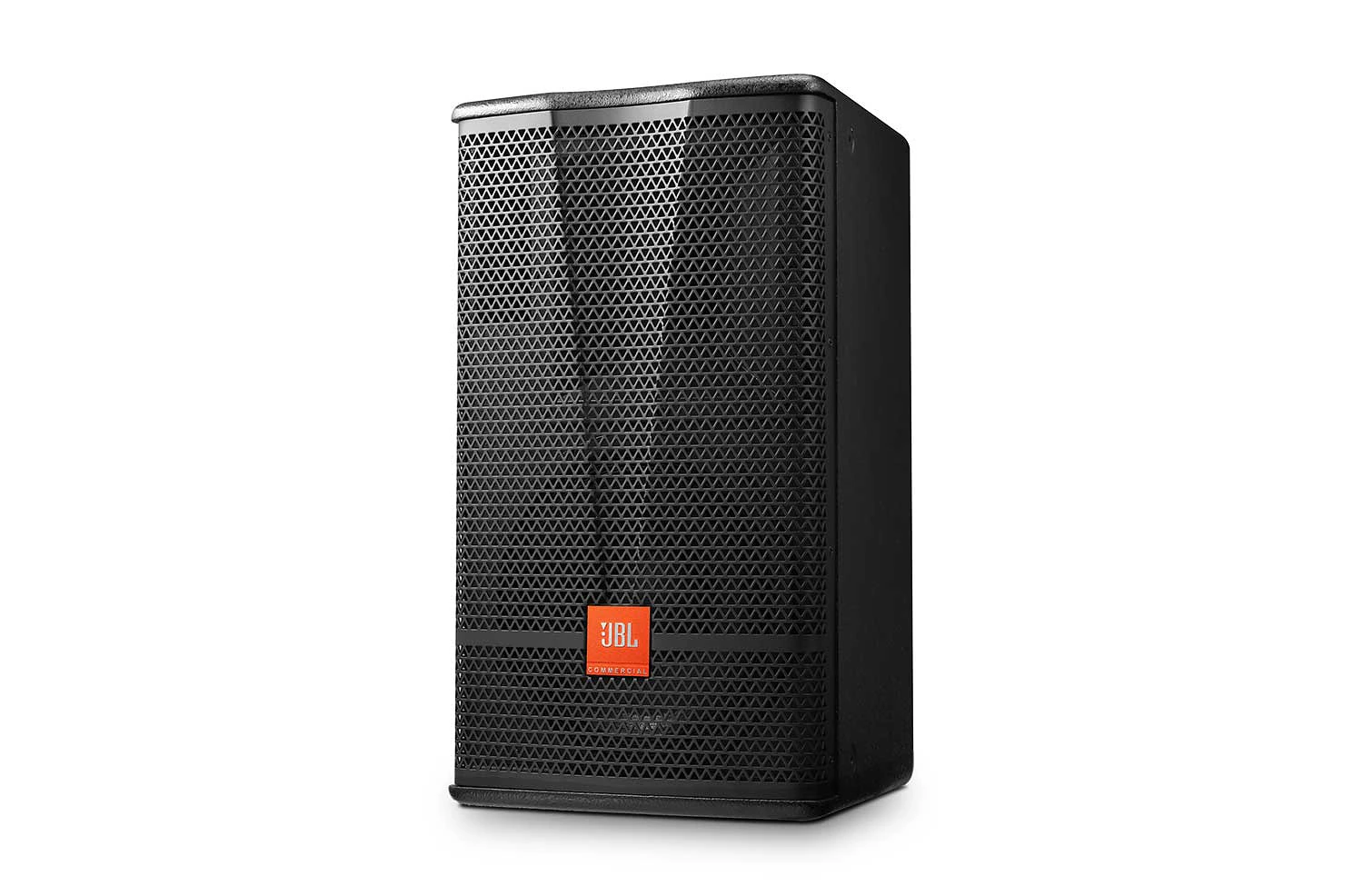

CV1070

10 Inch 2-Way Full Range Loudspeaker System

较大的图像

10 Inch 2-Way Full Range Loudspeaker System

The CV1070 is a premium and compact high-output full-range loudspeaker. The CV1070 uses a 254 mm (10 in) humidity protection woofer with optimal demodulating/cooling aluminum ring inside, which is high power, low distortion and low power compression, and a 2414H-C 25 mm (1 in) polymer diaphragm compression driver. 100° × 70° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

特点

  • 10” high efficiency woofer design
  • 1” polymer diaphragm compression driver
  • Enclosure constructed of 15 mm plywood with rugged durable finish
  • 100° × 70° coverage pattern for even and smooth response on and off axis
  • Heavy duty powder-coated 1.5mm steel grille of elegant design for driver protection and sleek professional appearance
  • Precision engineered crossover for optimal driver integration
  • Rotatable JBL COMMERCIAL logo for both horizontal and vertical applications
  • Ideal for installations with limited ceiling height
  • White (-WH) color available upon request
  • Sound reinforcement for restaurants, canteens or dining halls, cafés, conference rooms, halls, school rooms, etc.
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Compliances
    281.0 KB 10月31日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 10”, 2-way, bass-reflex
Frequency Response (-10dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 85 Hz – 18 kHz
System Sensitivity (1w @ 1m) 95 dB
标称阻抗 8 Ω
Maximum SPL (1m) 120 dB continuous average (126 dB peak)
Power Rating (Continuous/Program/Peak) 300 W/600 W/1200 W
Coverage 100° × 70° (H × V)
低频驱动单元 1 x 10” woofer
HF 驱动程序 1 x 2414H-C tweeter

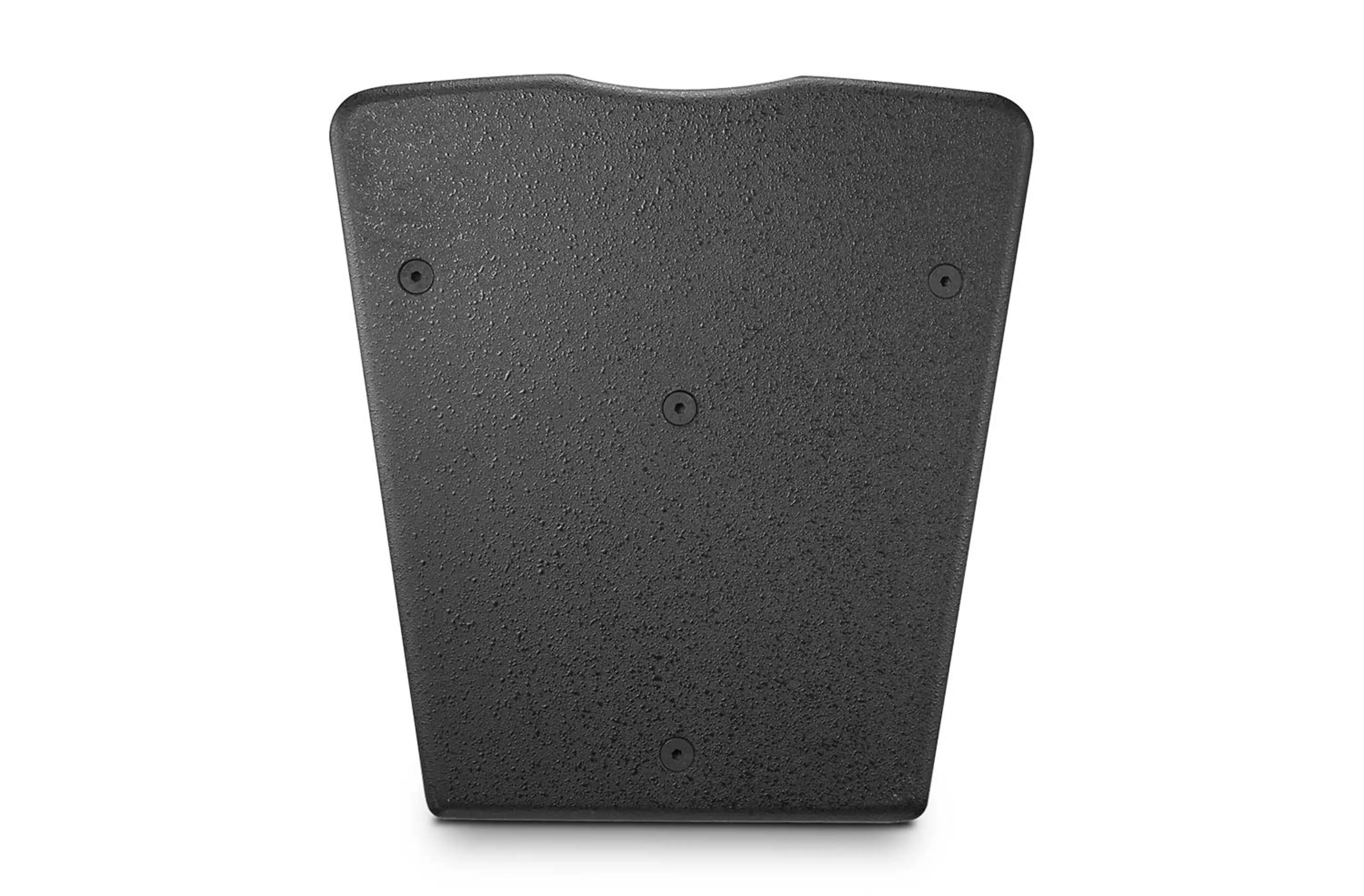

Enclosure Trapezoid, 15 mm plywood
Suspension 15 × M10 threaded suspension points
外观颜色 Textured paint, black. White (-WH) available upon request.
网罩 Powder coated 1.5mm perforated cold rolled steel

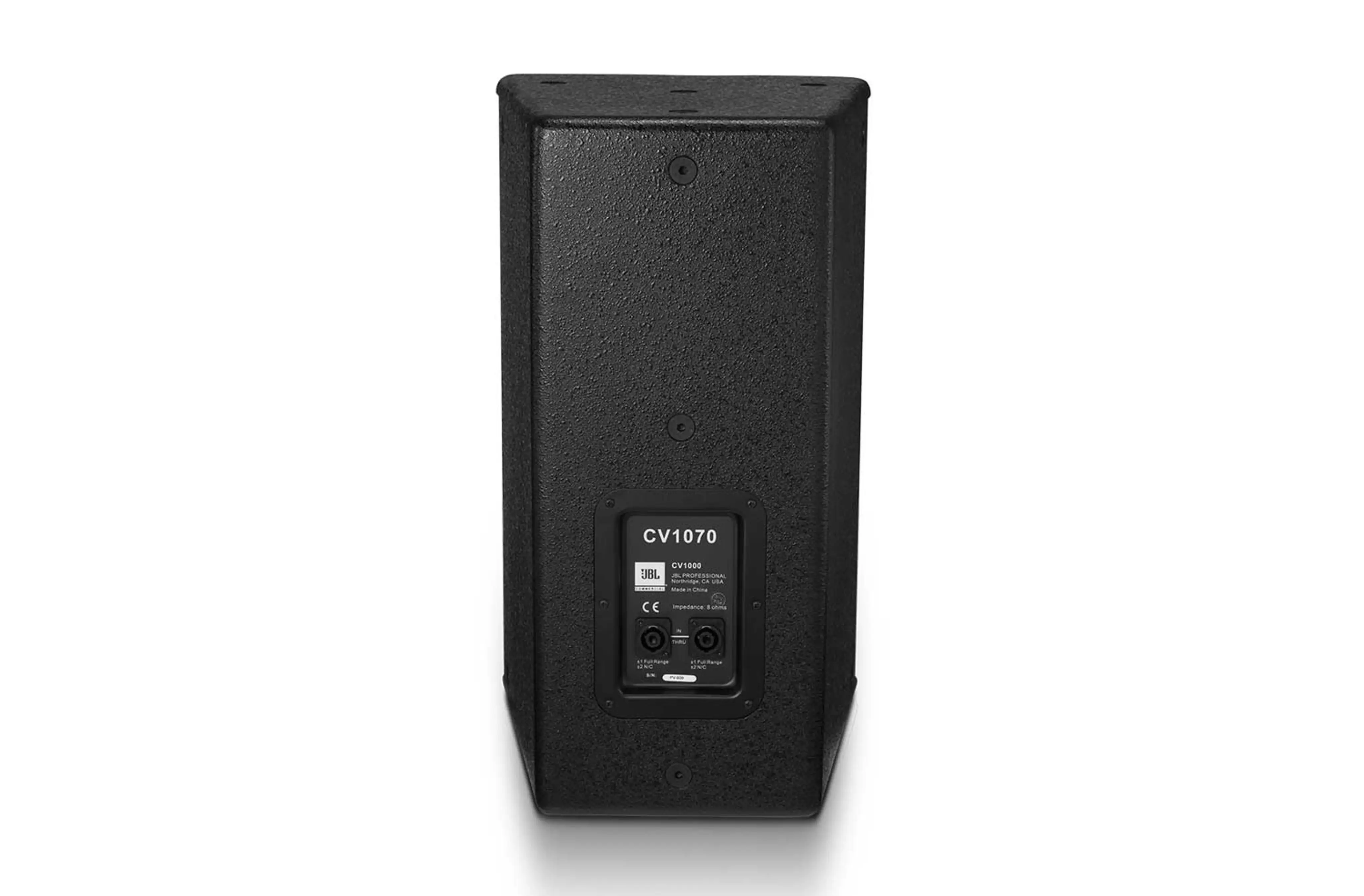

Input Connector Dual NL4MP Neutrik Speakon® in parallel for loop-through
尺寸(高 x 宽 x 厚) 535 mm × 310 mm × 329 mm (21.0 in × 12.2 in × 13.0 in)
净重量 13.5 kg (29.8 lbs)
