10 Inch 2-Way Full Range Loudspeaker System


10 Inch 2-Way Full Range Loudspeaker System

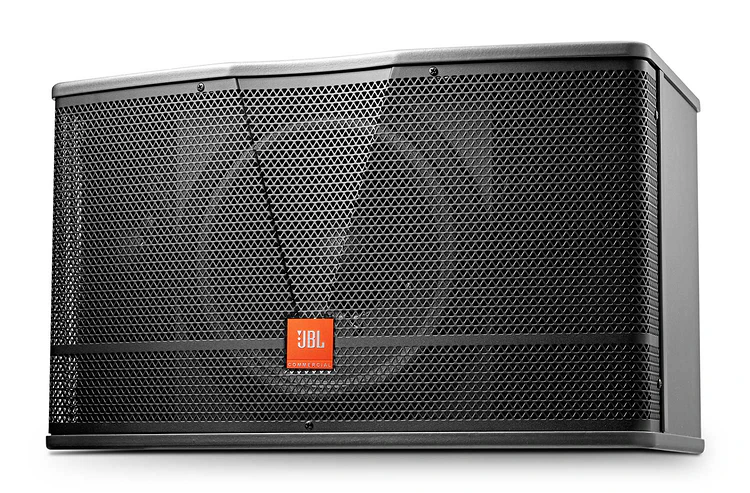

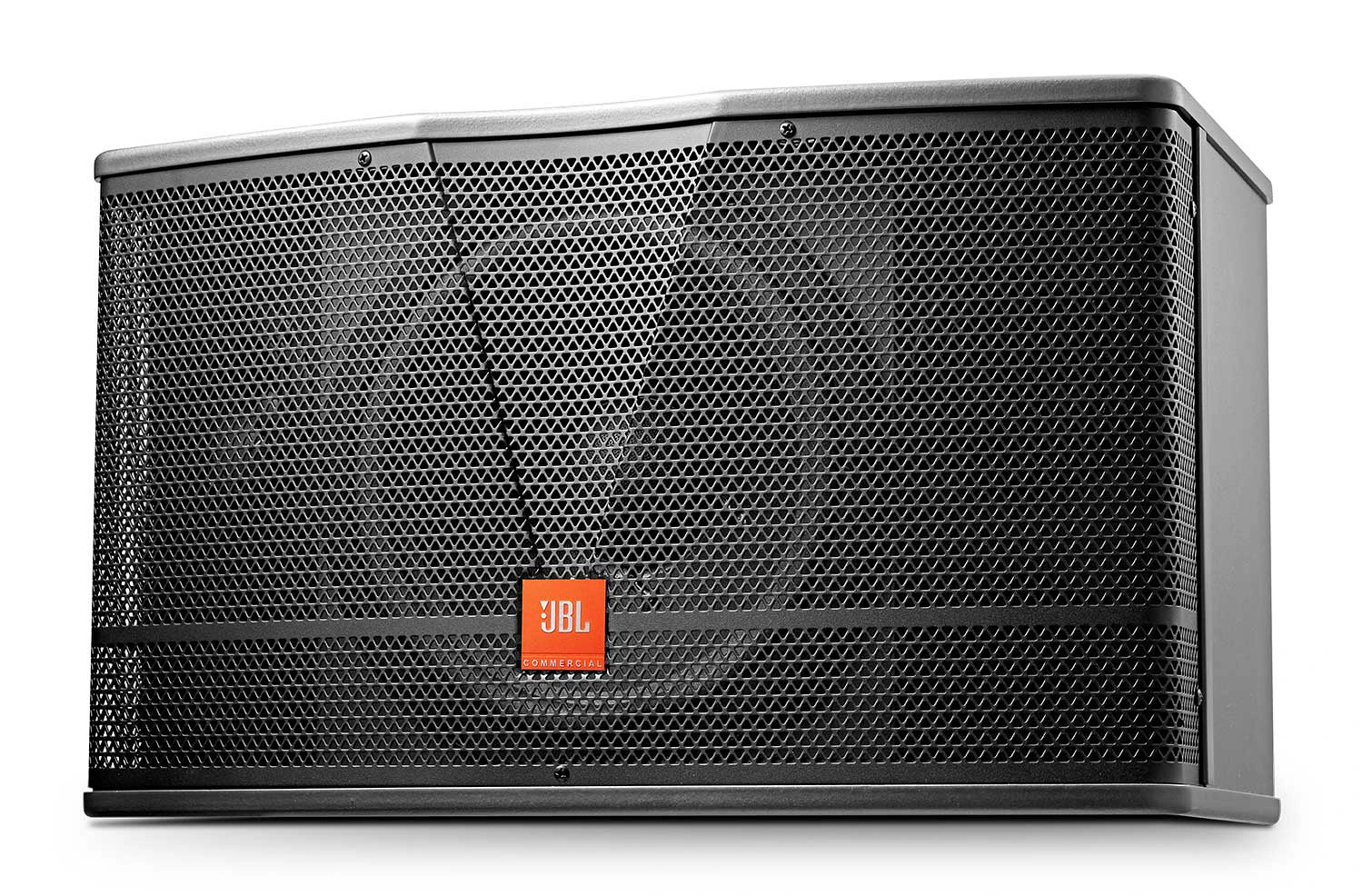

CV1052T is a two-way full-range speaker designed for restaurants, conference rooms, music cafes, hotels, etc. Its especially wide coverage pattern (150°×120°) makes it a perfect choice for installations where the ceiling height is relatively limited.

Presently not available in Japan, Australia and New Zealand


  • Specially designed 10” high performance woofer provides greater power handling and is fitted with demodulating aluminum ring for lower distortion and power compression
  • Two (2) 3” paper cone tweeters provide excellent high-frequency response and superb vocal reproduction
  • MDF (medium density fiberboard) enclosure with vinyl finish provides grand appearance and durability
  • Precisely designed crossover optimizes the frequency response and provides smooth and accurate music reproduction
  • Built-in high quality multi-tap 70V/100V transformer
  • 150°×120°coverage pattern for even and smooth response on and off axis
  • Ideal for installations with limited ceiling height
  • Rotatable JBL COMMERCIAL logo for easy coherence to your installation
  • White (-WH) color available upon request
  • Sound reinforcement for restaurants, conference rooms, hotels, cafes, halls, school rooms, etc.
  • High-performance satellite speaker for use with subwoofers.


  Version Language Size Uploaded
file type icon JBL CV1000 Series EU Declaration of Conformity
updated: 10月 2019
    281.0 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 10”, 2-way, bass-reflex
频率范围 (-10dB) 60 Hz – 18 kHz
Frequency Response (±3 dB) 70 Hz – 15 kHz
Sensitivity(1W@1m) 91 dB
标称阻抗 8Ω(at 8Ω tap setting)
Maximum SPL (1m) 115 dBcontinuous average (121 dB peak) (at 8Ωtap setting)
Power Rating(Continuous/Program/Peak) 250 W / 500 W / 1000 W(at 8Ω tap setting)
覆盖范围 150°×120° (H × V)
变压器抽头 8 Ohms, 70 V (12.5 W / 25 W / 50 W / 100 W), 100 V (25 W / 50 W / 100 W)
Insert Loss <1.0 dB at any tap setting
低频驱动单元 1 × 10” woofer
HF 驱动程序 2 × 3” paper cone tweeter
Enclosure Trapezoid,15 mm MDF
Suspension 2 × M10 threaded suspension points
外观颜色 Vinyl laminated, black. White (-WH) available upon request
网罩 Powder coated, 1.0 mm perforated steel
Input Connector Dual RED/BALCK connector in parallel for loop-through.
尺寸(高 x 宽 x 厚) 296 mm × 507.8 mm × 311 mm (11.7in × 20.0 in × 12.2 in)
净重量 12.0 kg (26.4 lbs)
