CSS8006BM (China only)

Full-Range Loudspeaker for Paging and Background Music Applications

CSS8006BM (China only)
较大的图像

Full-Range Loudspeaker for Paging and Background
Music Applications

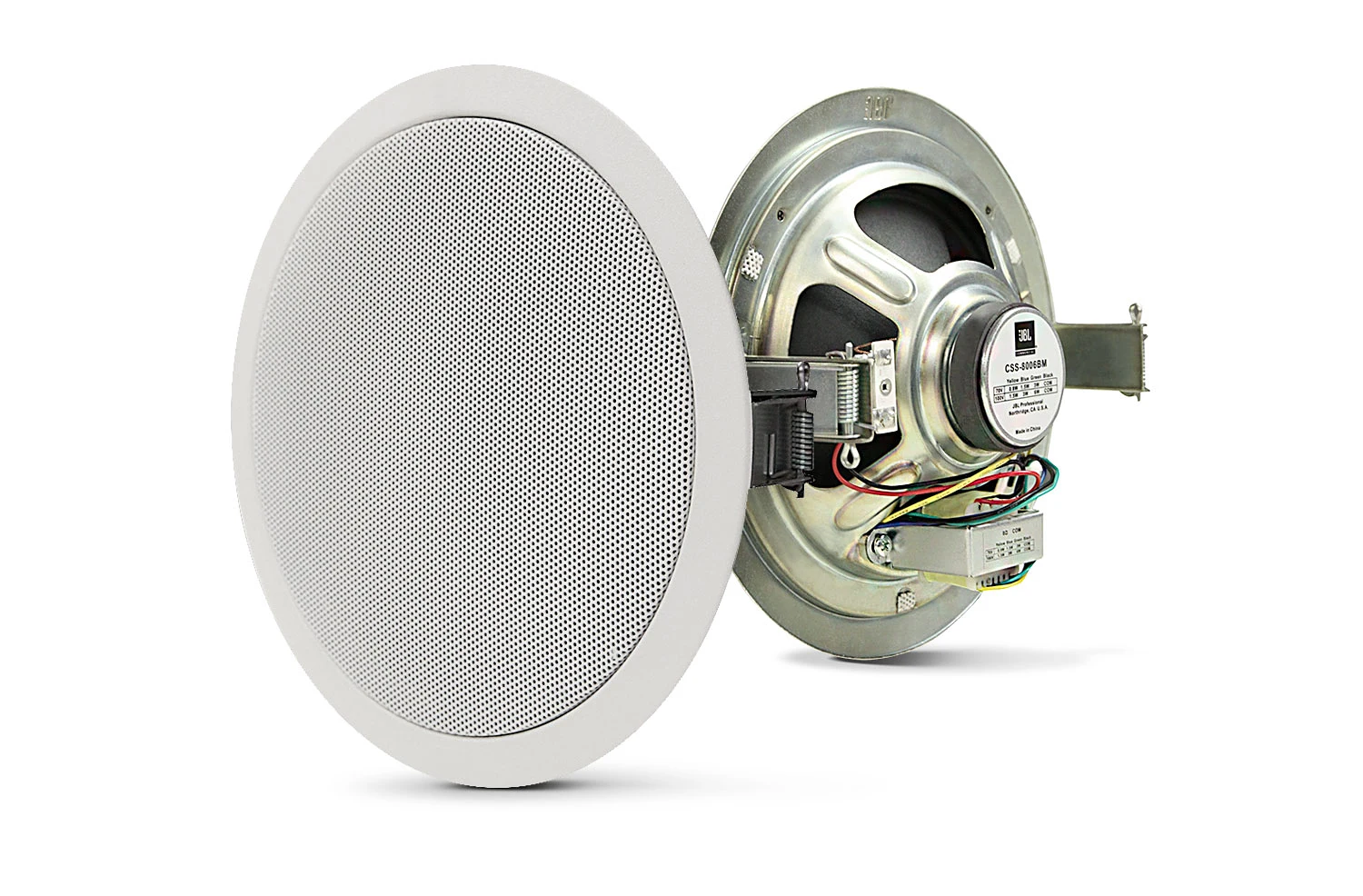

JBL Commercial CSS-8006BM ceiling speaker provides excellent performance for paging and background music applications. High sensitivity provides maximum sound level, even at low tap settings.



特点

  • Affordably priced, high-quality dual-cone ceiling speaker
  • Pre-assembled speaker / transformer grille assembly
  • Suitable for most paging or background music applications, including retail stores, restaurants, schools and other facilities
  • Very high sensitivity providing maximum sound levels using minimal amplifier power
  • Multi-tap transformer for 100V and 70V distributed speaker lines
  • Easy blind-mount installation from below the ceiling with spring clamp
  • Optional CSS-BB6BM backcan for inhibiting fire, preventing dust, and limiting sound from the back of the speaker


下载

  Version Language Size Uploaded
file type icon CSS8006BM (China only) Spec Sheet-英语
en updated: 5月 2023
  en  624.4 KB 5月 2023
file type icon CSS8006BM Hi Res image - front
updated: 5月 2023
    785.8 KB 5月 2023
file type icon CSS8006BM Hi Res image - back
updated: 5月 2023
    389.4 KB 5月 2023
Ease Data
file type icon CSS8006BM EASE File
updated: 8月 2020
    45.4 KB 8月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 70 Hz-20 kHz
功率容量 6 W (100 hrs)

灵敏度

94 dB (1 W[2.83 V]), 1 m, 300 Hz~16 KHz, driver)
Coverage (2 kHz) 120º
Nominal Driver Impedance 8 ohms
变压器插入损耗 1.5 dB Maximum
变压器抽头 100V: 6W, 3W, 1.5W 70V: 3W, 1.5W, 0.8W
Ceiling Cutout Size 175 mm (6.89 in)
Outside Dimensions (H x Dia) 66 mm x 200 mm (2.6 in x 7.87 in)
Net Weight (each) 0.63 kg( 1.4 lb)
Shipping Weight (each) 0.85 kg (1.88 lb)
Optional Accessories CSS-BB6BM backcan
