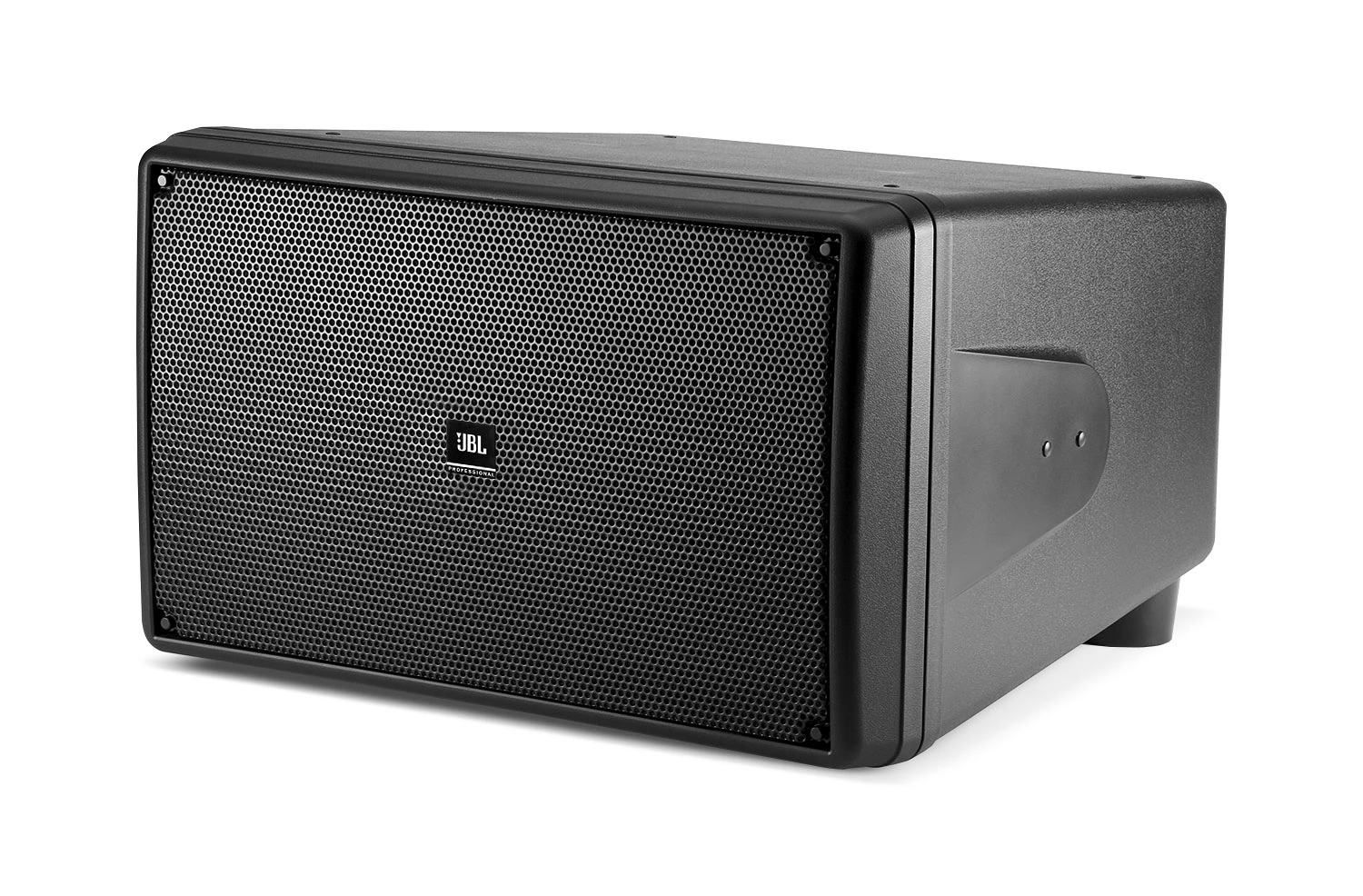

Control SB2210

Dual 10” Compact Subwoofer

Control SB2210
较大的图像

Dual 10” Compact Subwoofer

The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.



特点

  • 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
  • 500 Watts Power handling
  • Frequency Response Down to 38 Hz
  • 13 x M6 Insert Points Including Inserts for Optional U-Bracket
  • Compact, Low Profile Design


下载

  Version Language Size Uploaded
Specifications
file type icon Control SB2210 Spec Sheet
version B, updated: 3月 2020
  416.2 KB 3月 2020
Brochures
file type icon Control Contractor Brochure (2023)
en version B, updated: 6月 2023
en  8.2 MB 6月 2023
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
file type icon Control SB2210 Series Declaration of Conformity
updated: 10月 2019
    140.2 KB 10月 2019
Install Guides
file type icon MTC-SBT300 70/100V Transformer Install Guide
version B, updated: 10月 2020
  1.6 MB 10月 2020
file type icon Painting HIPS Loudspeaker Cabinets
updated: 6月 2023
    377.3 KB 6月 2023
file type icon MTC-210 U-Bracket Installation Instructions
en updated: 3月 2021
  en  187.1 KB 3月 2021
file type icon Guide to Business Music
updated: 10月 2020
    52.4 KB 10月 2020
file type icon MTC-PC2 & MTC-PC3 Installation
updated: 9月 2019
    42.5 KB 9月 2019
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: 5月 2021
  en  5.7 MB 5月 2021
file type icon Directional Bass Using 3-Element Arrays
en updated: 8月 2021
  en  570.3 KB 8月 2021
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Images
file type icon Control SB2210 Angle Hi Res
updated: 10月 2020
    1.4 MB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 38 Hz - 500 Hz
Frequency Response (-3 dB) 48 Hz - 95 Hz
额定功率 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 60.0VRMS (2 hrs), 120V peak

灵敏度

95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)
Maximum SPL (1m) 122 dB in half-space (2π loading)
阻抗
Minimum Impedance 7.2Ω at 160 Hz
Recommended Filter 45 Hz, 24 dB/oct high-pass filter
Drivers Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
Enclosure High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
网罩 Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
Outdoor Capability IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.
输入接口 Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
Colors Black or white (-WH)
尺寸(高 x 宽 x 厚) 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight (each) 23.31 kg (51.4 lb)

运输重量

25.85 kg (57.0 lb)

随附配件

1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
Optional Accessories MTC-210UB (&-WH) U-BracketMTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs.Transformer Taps:70V: 300W, 150W, 75W, 38W100V: 300W, 150W, 75W
装配硬件 Optional U-bracket, insert points on top & bottom.
覆盖角度 Omnidirectional
