Control 928 (停产)

High Output Indoor Outdoor Background Foreground Loudspeaker

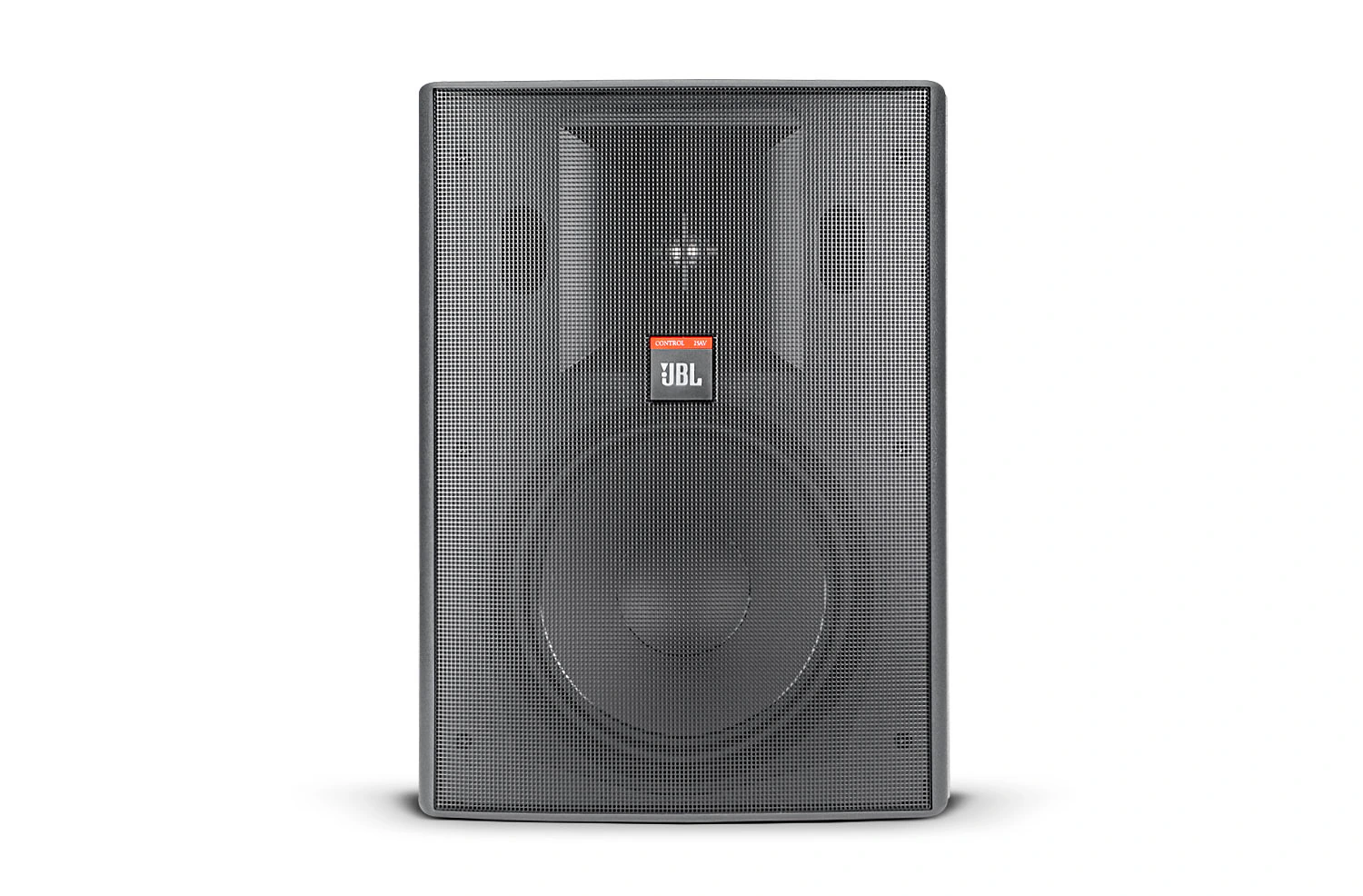

Control 928
较大的图像

High Output Indoor Outdoor Background Foreground Loudspeaker

The Control 928 is the largest of JBL Professional’s Control 900 Series indoor/outdoor loudspeakers.



特点

  • Components: 8” Polypropylene coated woofer, 1” Titanium coated horn loaded tweeter.
  • Built-in InvisiBall ® mounting hardware
  • Weather resistant enclosure and transducers
  • Available in Black (928) or White (928-WH)
  • Readily paintable
  • 90° x 90° high frequency horn
  • Overload Protection Circuitry


Parts & Service

性能

频率范围 58 Hz to 16.2 kHz
Continuous ProgramPower Capacity 180 Watts

灵敏度

92 dB SPL, 1W, 1m
Directivity Factor (Q) 7.5
Directivity Index (DI) 8.8
标称阻抗 8 ohms
分频点 2.8 kHz
低频驱动单元 200 mm (8 in) Polypropylene cone w/WeatherEdge
HF 驱动程序 25 mm (1 in) Titanium coated polycarbonate
