Control 926CT

6.5" Ceiling LoudspeakerTransducer Assembly


6.5" Ceiling Loudspeaker Transducer Assembly

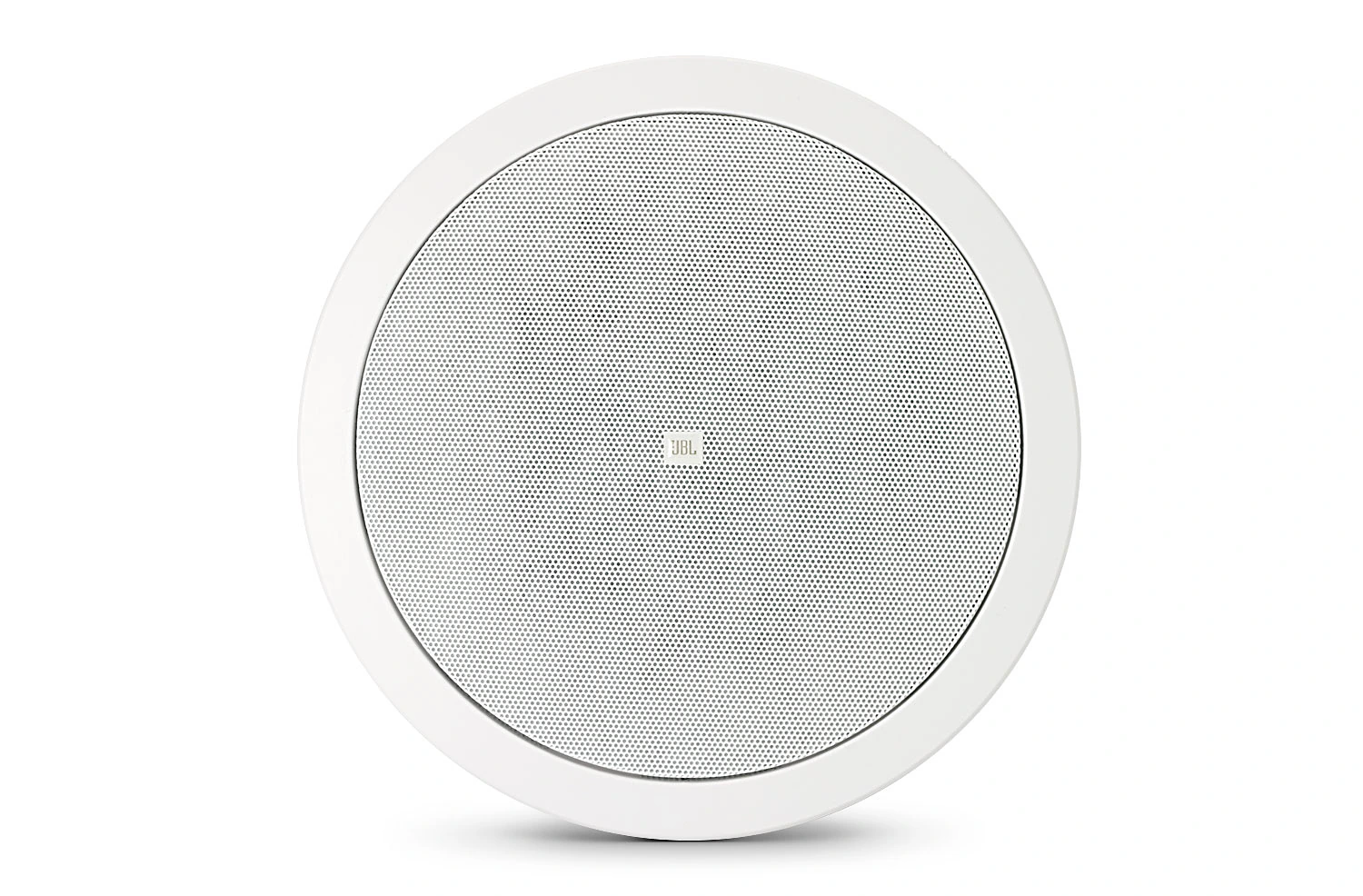

The Control 926CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 926CT includes a multitap transformer for a 70V or 100V line distribution system.


  • Coaxially mounted, high power, 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • Wide frequency response and low distortion
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
  • 100V/70V transformer for use on distributed loudspeaker lines


频率范围 73 Hz - 20.2 kHz
功率容量 154 Watts Continuous Program Power77 Watts Continuous Pink Noise
标称灵敏度 89 dB SPL, 1W @ 1 m (3.3 ft)
标称覆盖角度 110° conical coverage
Directivity Factor (Q) 5.9 averaged 500 Hz to 4 kHz
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
额定最大 SPL 107 dB @ 1 m (3.3 ft)
变压器抽头 70V: 30W, 15W, 7.5W & 3.7W taps100V: 30W, 15W, & 7.5W taps100V: 60W, 30W, & 15W taps
Low-Frequency 165 mm (6.5 in) Polypropelene-coated,1" coil on aluminum former
High-Frequency 19 mm (¾ in) Titanium coated polyester
