6.5" Ceiling Loudspeaker Transducer Assembly

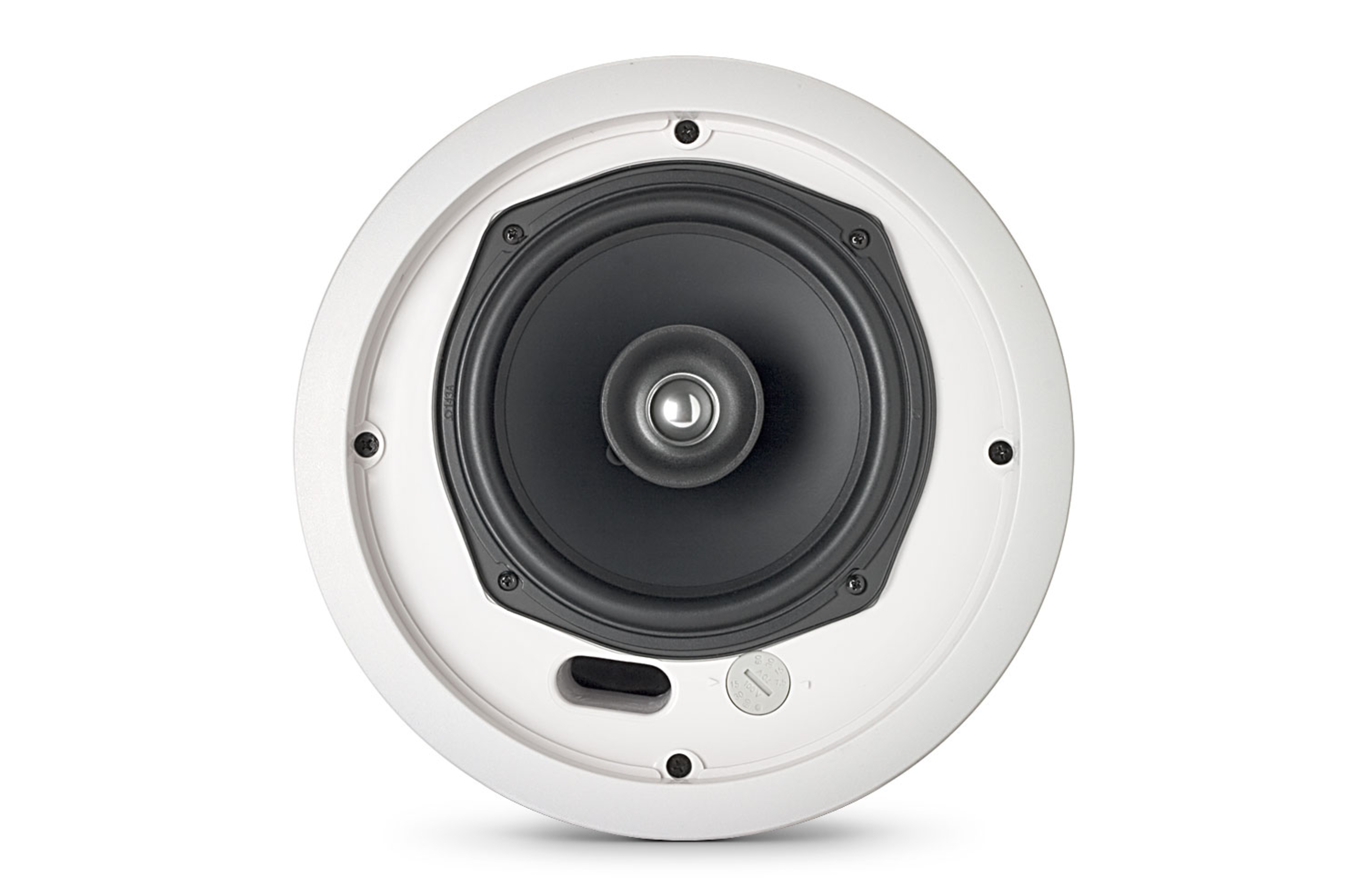

The Control 926C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.
较大的图像
特点
- Coaxially mounted, high power, 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
- Wide frequency response and low distortion
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
- JBL’s exclusive SonicGuardTM overload protection allows higher operational levels and improved system reliability (926C only)

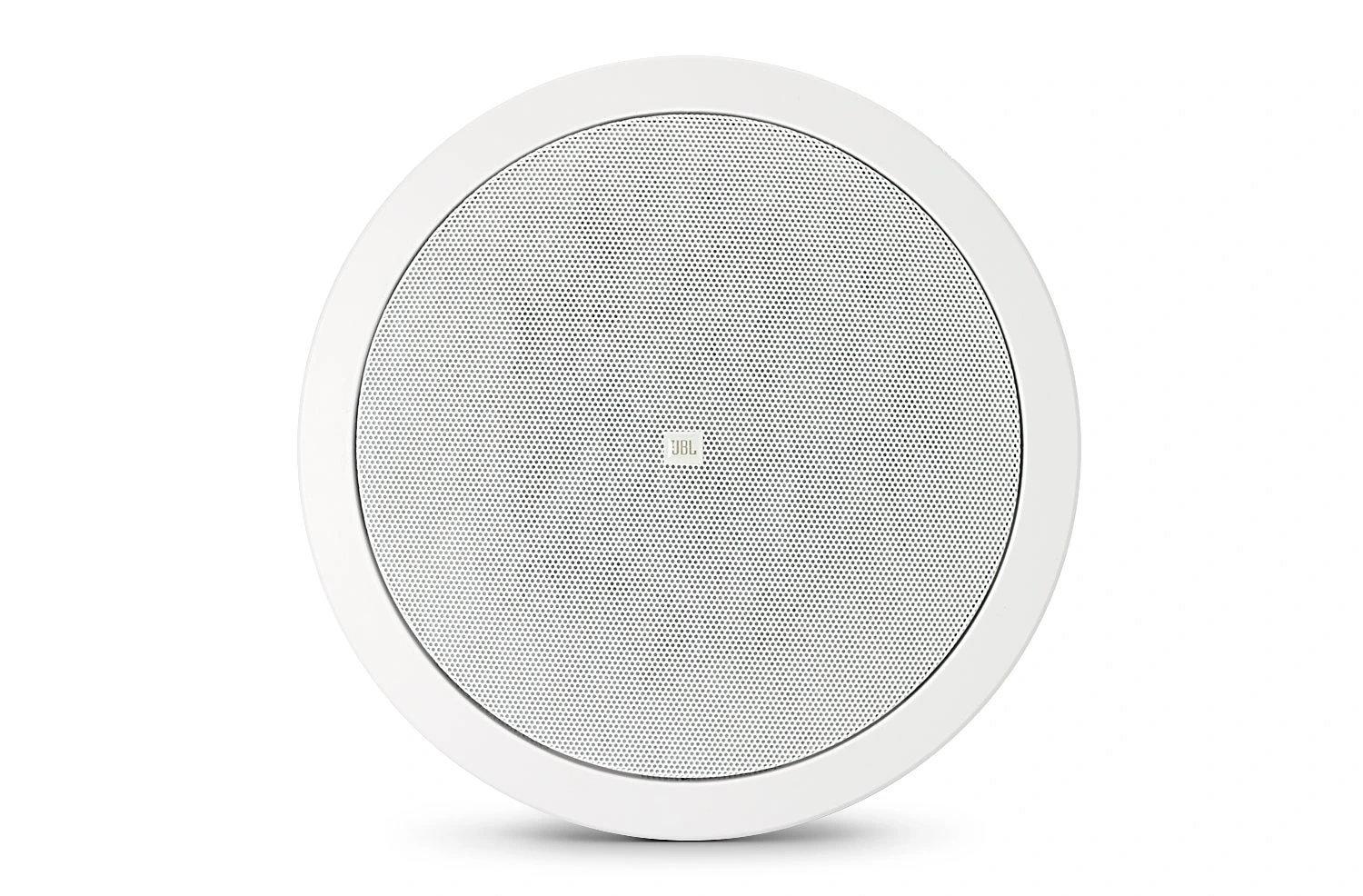

- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Parts & Service
性能
| 频率范围 | 73 Hz - 20.2 kHz |
| 功率容量 | 154 Watts Continuous Program Power77 Watts Continuous Pink Noise |
| 标称灵敏度 | 89 dB SPL, 1W @ 1 m (3.3 ft) |
| 覆盖角度 | 110° conical coverage |
| Directivity Factor (Q) | 5.9 averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 107 dB @ 1 m (3.3 ft) |
| 标称阻抗 | 16 ohms (Min Z 16.1 Ω @ 320 Hz) |
| 变压器抽头 | 70V: 60W, 30W, 15W & 7.5W taps100V: 60W, 30W, & 15W taps |
| Low-Frequency | 165 mm (6.5 in) Polypropelene-coated,1" coil on aluminum former |
| High-Frequency | 19 mm (¾ in) Titanium coated polyester |
