Control 925-WH (停产)

Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

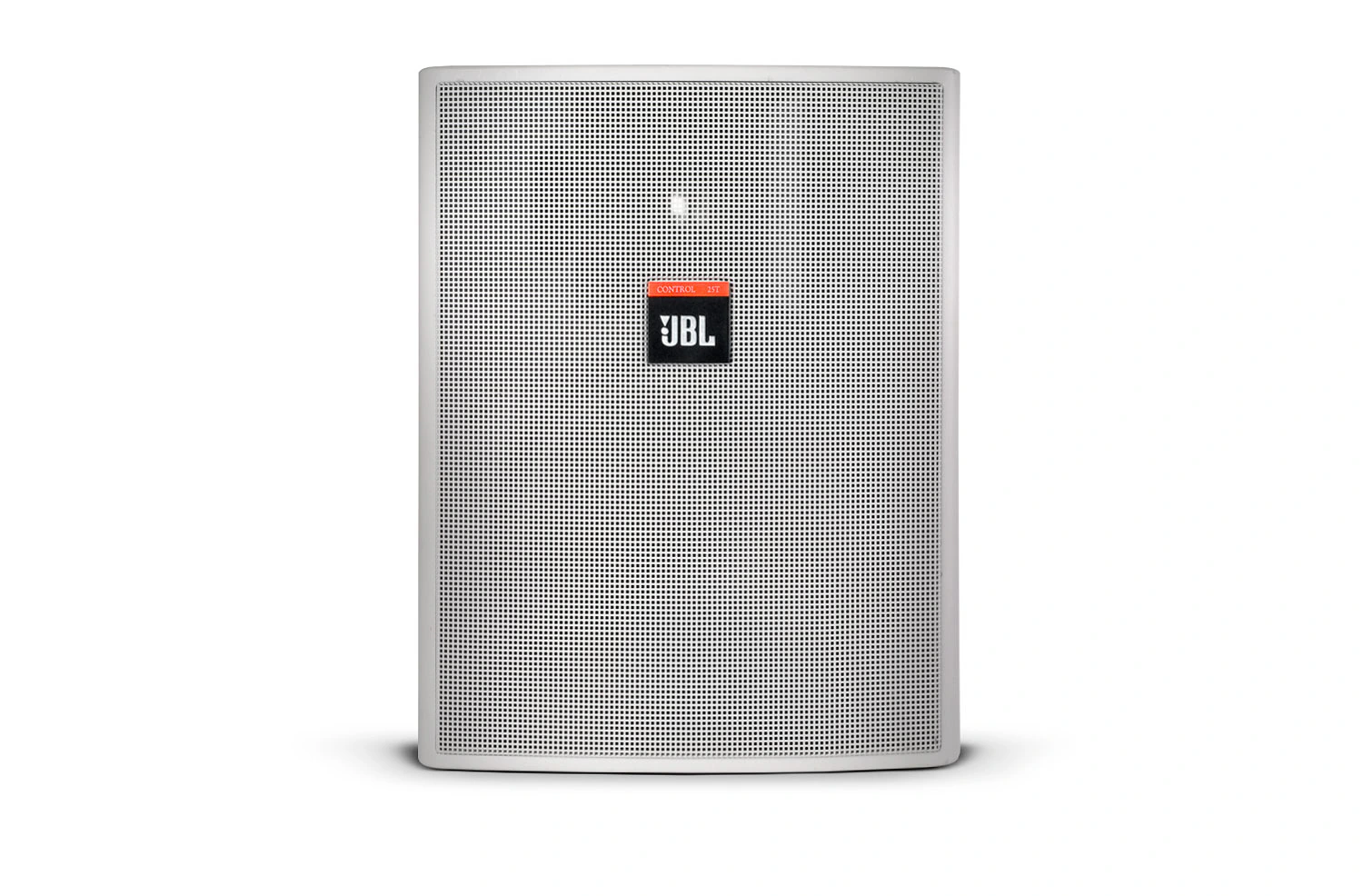

Control 925-WH
较大的图像

Compact Indoor Outdoor Background Foreground Loudspeaker

The Control 925-WH is perhaps the most versatile of JBL Professional’s Control 900 Series indoor/outdoor loudspeakers.



特点

  • Components: 5¼” Polypropylene coated woofer, ¾” Titanium coated horn loaded tweeter.
  • Built-in InvisiBall ® mounting hardware
  • Weather resistant enclosure and transducers
  • Available in Black (925) or White (925-WH)
  • Readily paintable
  • 90° x 90° high frequency horn
  • Overload Protection Circuitry


Parts & Service

性能

频率范围 78 Hz to 16.2 kHz
Continuous ProgramPower Capacity 155 Watts

灵敏度

88 dB SPL, 1W, 1m
Directivity Factor (Q) 5.3
Directivity Index (DI) 7.2
标称阻抗 8 ohms
分频点 3.0 kHz
覆盖范围 90° x 90°
低频驱动单元 135 mm (5.25 in) Polypropylene coated paper with WeatherEdge
HF 驱动程序 19 mm (.75 in) Titanium coated polycarbonate
