Control 925 (停产)

Compact Indoor Outdoor Background Foreground Loudspeaker for Life Safety Applications

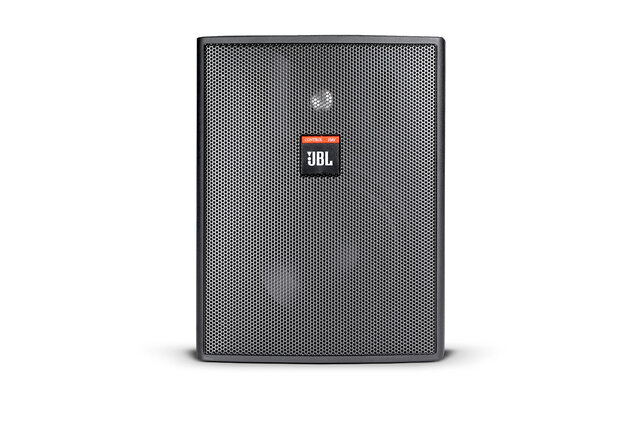

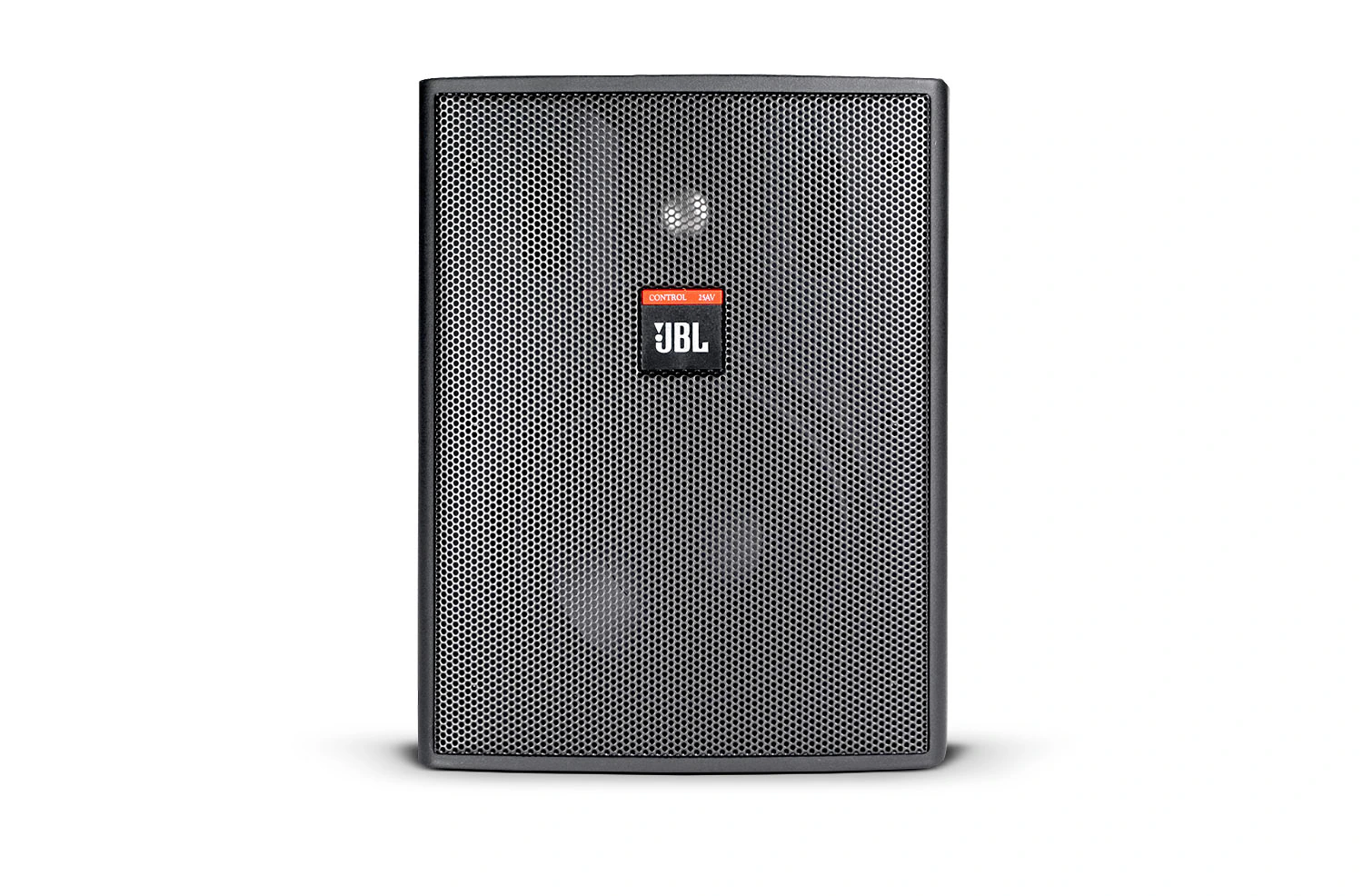

Control 925
较大的图像

Compact Indoor Outdoor Background Foreground Loudspeaker

The Control 925 is perhaps the most versatile of JBL Professional’s Control 900 Series indoor/outdoor loudspeakers.



特点

  • Components: 5¼” Polypropylene coated woofer, ¾” Titanium coated horn loaded tweeter.
  • Built-in InvisiBall ® mounting hardware
  • Weather resistant enclosure and transducers
  • Dynamic SonicGuard™ overload protection
  • Available in Black (925) or White (925-WH)
  • Readily paintable
  • 90° x 90° high frequency horn
  • Overload Protection Circuitry


Parts & Service

性能

频率范围 78 Hz to 16.2 kHz
Continuous ProgramPower Capacity 155 Watts

灵敏度

88 dB SPL, 1W, 1m
Directivity Factor (Q) 5.3
Directivity Index (DI) 7.2
标称阻抗 8 ohms
分频点 3.0 kHz
覆盖范围 90° x 90°
低频驱动单元 135 mm (5.25 in) Polypropylene coated paper with WeatherEdge
HF 驱动程序 19 mm (.75 in) Titanium coated polycarbonate
