Background/ Foreground Ceiling Loudspeakers

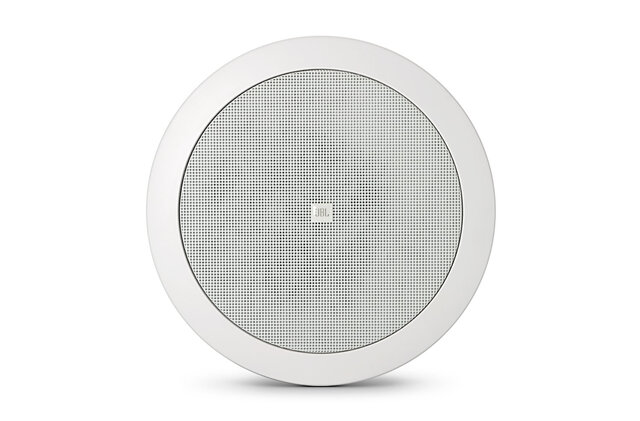

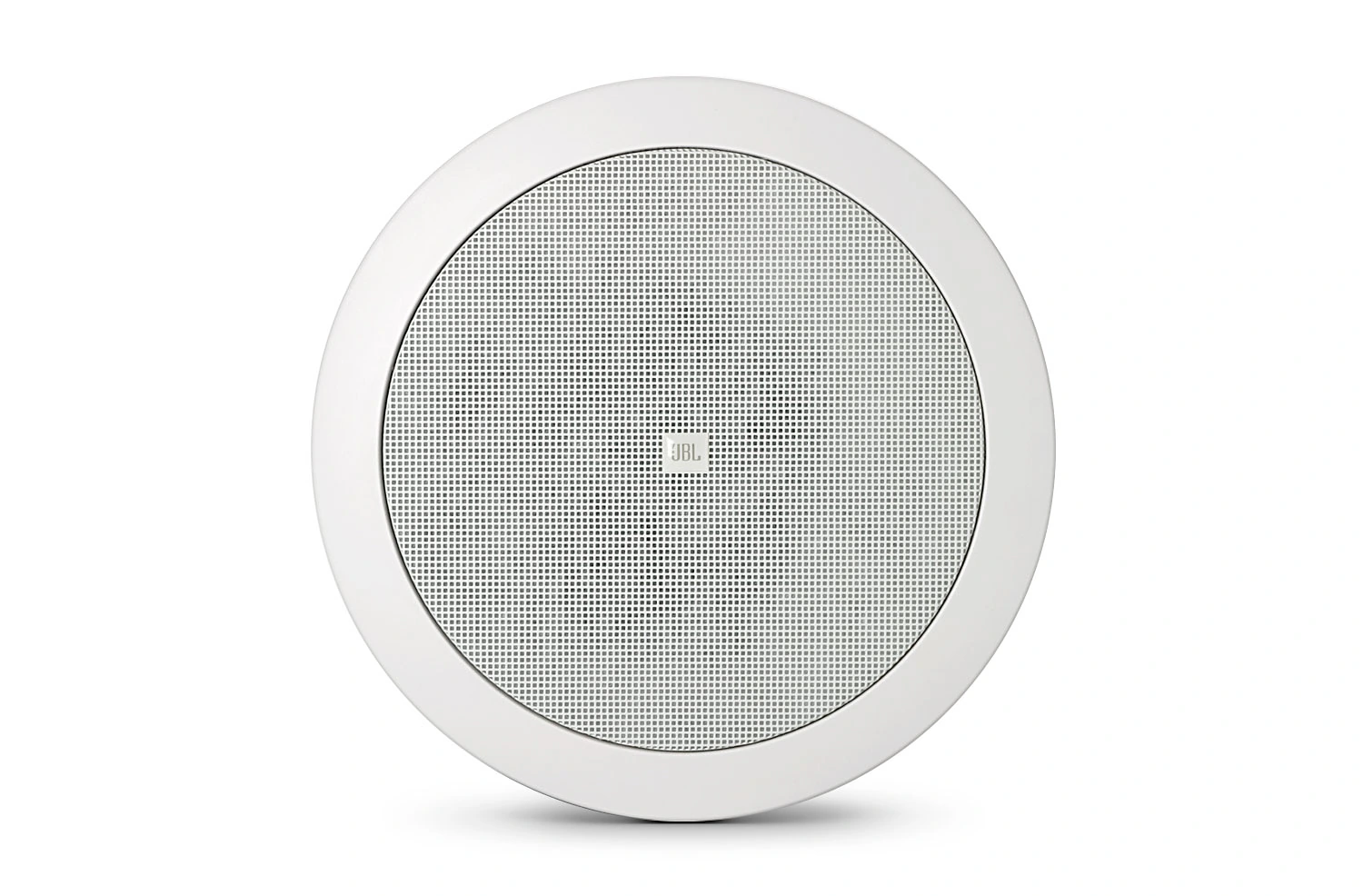

The Control 924CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
较大的图像
特点
- Coaxially mounted, high power, 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
- Wide frequency response and low distortion
- Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
- 100V/70V transformer for use on distributed loudspeaker lines
Parts & Service
性能
| 频率范围 | 78 Hz - 20.2 kHz |
| 功率容量 | 84 Watts Continuous Program Power42 Watts Continuous Pink Noise |
| 标称灵敏度 | 86 dB SPL @ 1 m (3.3 ft) |
| 覆盖角度 | 130° conical coverage |
| Directivity Factor (Q) | 2.4 averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB @ 1 m (3.3 ft) |
| 变压器抽头 | 70V: 30W, 15W, 7.5W & 3.7W taps100V: 30W, 15W, & 7.5W taps |
| Low-Frequency | 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former |
| High-Frequency | 19 mm (0.75 in) Titanium coated polyester |
