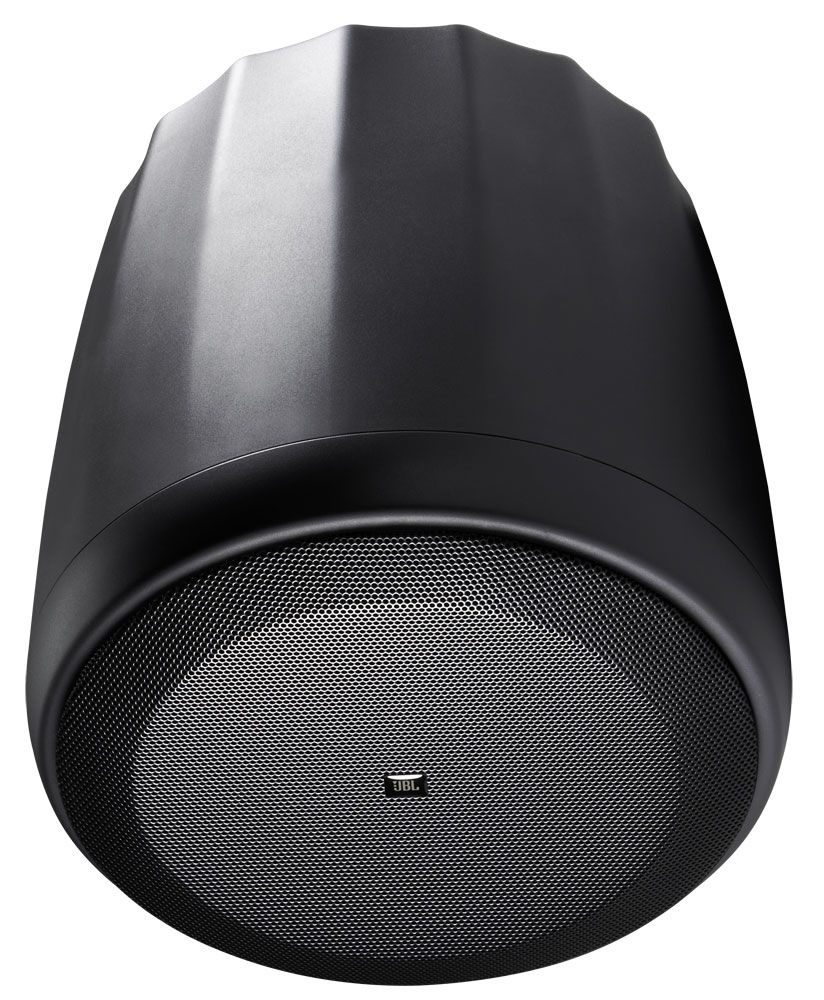

Control 60PS/T

Pendant Subwoofer with Crossover

较大的图像

Pendant Subwoofer with Crossover

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.

特点

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
  • 200 mm (8 in) long-excursion driver.
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).

下载

  Version Language Size Uploaded
Data Sheets
Control60PS/T Spec Sheet
updated: 10月31日
    652.8 KB 10月31日
Specifications
Control 60PS/T Spec Sheet
updated: 4月29日
    652.8 KB 4月29日
Manuals
Control 60 Series Installation Guide
updated: 10月18日
    146.4 KB 10月18日
Brochures
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Commercial Sound Full Line 2015 Catalog
updated: 10月21日
    2.0 MB 10月21日
C60 Introductory Sheet
updated: 10月18日
    266.9 KB 10月18日
CAD Drawings
C60 DXF Drawings
updated: 4月29日
    704.6 KB 4月29日
Bim Objects
BIM (Revit) Files
updated: 10月03日
    12.4 MB 10月03日
Compliances
Control 60 Series Declaration of Conformity
updated: 10月18日
    987.4 KB 10月18日
Images
C60 Hi-Res Family Image
updated: 10月18日
    77.2 KB 10月18日
Control 60PS/T Hi Res
updated: 4月29日
    395.1 KB 4月29日
Faqs
C60 Frequently Asked Questions
updated: 4月29日
    337.2 KB 4月29日
Install Guides
C60 Install Instructions
updated: 4月29日
    886.2 KB 4月29日
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: 2月24日
    557.0 KB 2月24日
Accessories
C60 Panel Cover Instructions
updated: 4月29日
    709.6 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 42 Hz – 350 Hz
Frequency Response (±3 dB) 55 Hz – 125 Hz
额定功率 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs
Nominal Sensitivity (2.83V/1m) 88 dB
Maximum SPL (1m) 107 dB @ 1 m (3.3 ft) average, 113 dB peak
阻抗 8 ohms
变压器抽头 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
变压器插入损耗 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
Standalone Hookup Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
Subwoofer-Satellite Hookup For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16
Drivers 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
音箱材料 High impact polystyrene
网罩 Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
环境 Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating
输入连接器 Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
尺寸(高 x 宽 x 厚) 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
Net Weight (each) 7.6 kg (16.7 lb)

运输重量

17.6 kg (38.7 lbs) per pair-packed carton

随附配件

Two suspension cable systems (see “suspension”, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.
Optional Accessories MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
Colors Available in black or white (-WH). Paintable.
