Control 52

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

Control 52
较大的图像

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

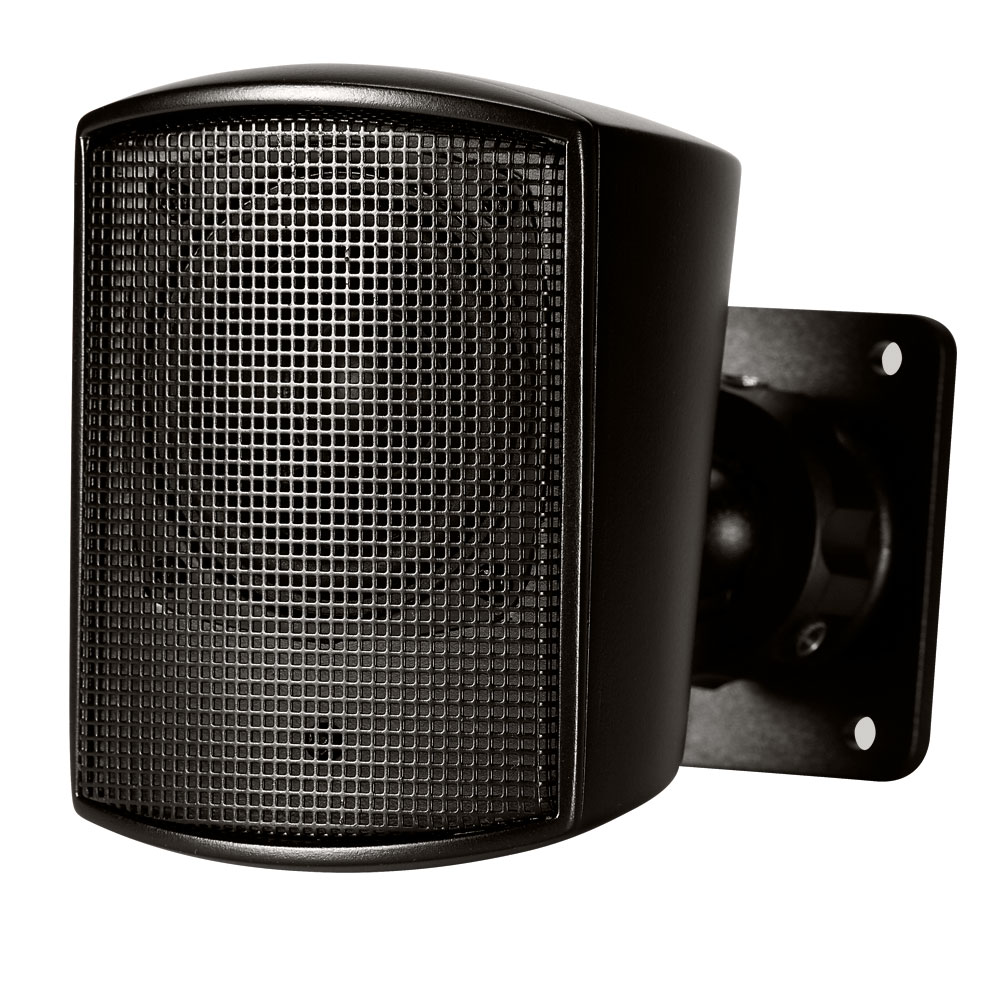

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

特点

  • Stylish, unobtrusive design fits into a wide variety of decors
  • Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
  • 16 ohms impedance
  • Wall-mount brackets included
  • Available in black or white


下载

  Version Language Size Uploaded
Specifications
file type icon Control 50 Spec Sheet
updated: 4月 2019
    377.0 KB 4月 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version D, updated: 2月 2024
en  14.0 MB 2月 2024
BIM Objects
file type icon CONTROL 52 BIM Object
updated: 8月 2019
    8月 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: 12月 2019
    179.3 KB 12月 2019
file type icon Control 50 Series Declaration of Conformity
updated: 10月 2019
    90.6 KB 10月 2019
Install Guides
file type icon Painting HIPS Loudspeaker Cabinets
updated: 6月 2023
    377.3 KB 6月 2023
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
Images
file type icon Control 52 Hi Res Image
updated: 4月 2019
    192.1 KB 4月 2019
Drawings 2D/3Ds
file type icon C52 Line File
updated: 4月 2019
    736.7 KB 4月 2019
FAQs
file type icon Control 50 FAQ
updated: 4月 2019
    158.7 KB 4月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 140 Hz – 20 kHz
Frequency Response (±3 dB) 180 Hz – 17 kHz
额定功率 50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)

灵敏度

85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)
覆盖角度 Omnidirectional
Maximum SPL (1m) 94 dB average, 100 dB peak
阻抗 16 ohms
Drivers 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
输入接口 Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Enclosure High impact polystyrene, painted zinc-plated metal grille.
尺寸(高 x 宽 x 厚) Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
Net Weight (each) 0.7 kg (1.5 lbs)

运输重量

0.8 kg (1.8 lbs)

随附配件

Wall bracket (both speaker and wall parts), 2-pin locking connector.
网罩 Zinc-plated steel
装配硬件 Included wall swivel ball bracket
Optional Accessories Wall-mount ball-type bracket
