CMX6903

Column Speaker

Coming Soon

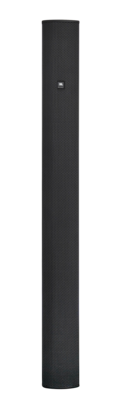

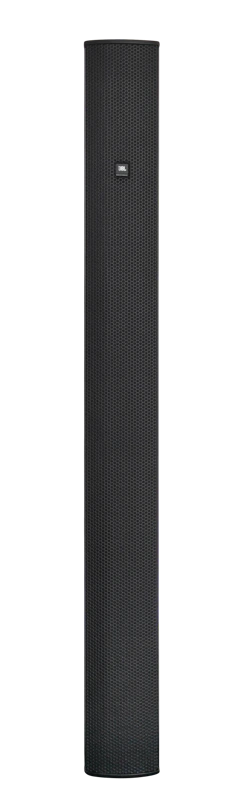

CMX6903

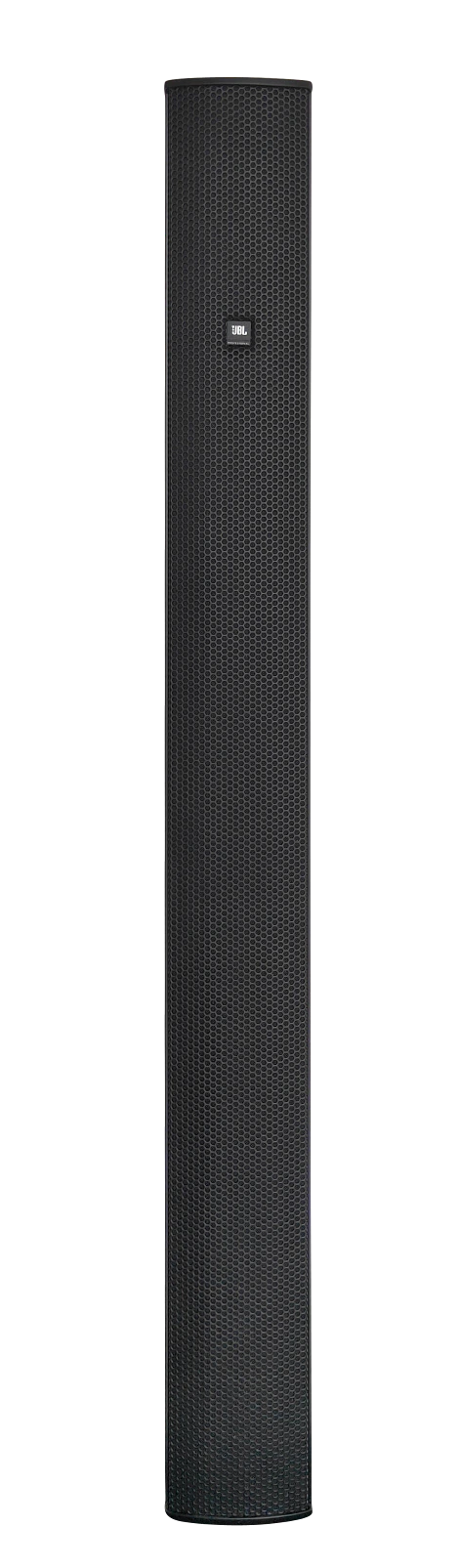

较大的图像

Column speaker and component of the JBL CMX6000 Series Column Speaker System for presentation applications. Easily connected to the CMX6000 Series Subwoofer.

The CMX6903 is a key component in the JBL CMX6000 Series Column Speaker System. Ideal for for PA applications in a variety of meeting and presentation spaces, the CMX6903 can be configured to suit a myriad of presenter needs. It features ultra-sleek styling and crystal-clear speech reproduction and music playback from 11 JBL drivers. The CMX6903 can be mounted directly on top of the CMX6208SP Subwoofer making it a standalone portable PA system that’s easy to move and setup when needed. The CMX6903 can also be remotely cable-connected, powered by the subwoofer, and wall-mounted.

特点

  • 2 x 1.3” compression driver with fiberglass horn for 110° wide horizontal coverage and 40° vertical coverage
  • 9 x 3.3” carbon fiber cone woofer driver integrates three layers into one to project highly focused sound
  • 300 W RMS power handling
  • Lightweight aluminum cabinet
  • Can be installed on top of CMX6208SP Subwoofer or wall-mounted for fixed installations (M22-2P provided)
  • When installed on the top of CMX6208SP Subwoofer, no additional cable is needed
  • At 1242 mm tall, this speaker is the ideal height to be used for large screen presentations with a pair of CMX6903 speakers installed on either side of the screen as stereo speakers

下载

  Version Language Size Uploaded
Data Sheets
file type icon JBL CMX6903 Spec Sheet _ CN
zh updated: 10月09日
  zh  1.4 MB 10月09日
file type icon JBL CMX6903 Spec Sheet _ EN
en updated: 10月22日
  en  1.0 MB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Drivers 2 x 1.3” voice coil driver for 110° x 40º coverage and 9 x 3.3” carbon fiber cone woofer driver
频率响应(±3 dB) 110 Hz – 17 kHz
覆盖角度 110° x 40° nominal
Crossover Mode Passive

灵敏度

92 dB SPL
阻抗 8 ohms
Power Rating *1
(Continuous/Program/Peak)
300 W / 600 W / 1200 W
*1 IEC standard, pink noise with 6 dB crest factor for 2 hours
Maximum SPL (2π)

127 dB SPL peak

Enclosure Aluminum
网罩 Black dust paint and water-resistant speaker cloth
Outdoor Capability IP65-rated for outdoor or humid applications, featuring aluminum cabinet, M22-2P speaker connections, anti-rust screws, and water-resistant speaker cloth.
颜色 Black
装配 Support for vertical installations. Metallic steel plate accessories are provided for fixed wall-mounted installations.
输入接口 M22-2P
尺寸(高 x 宽 x 厚) 1242 x 126.6 x 160 mm (48.9 x 4.98 x 6.29 in)
净重量 15 kg (33 lbs.)

随附配件

Special mounting for vertical installations.
