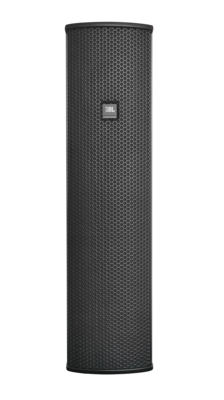

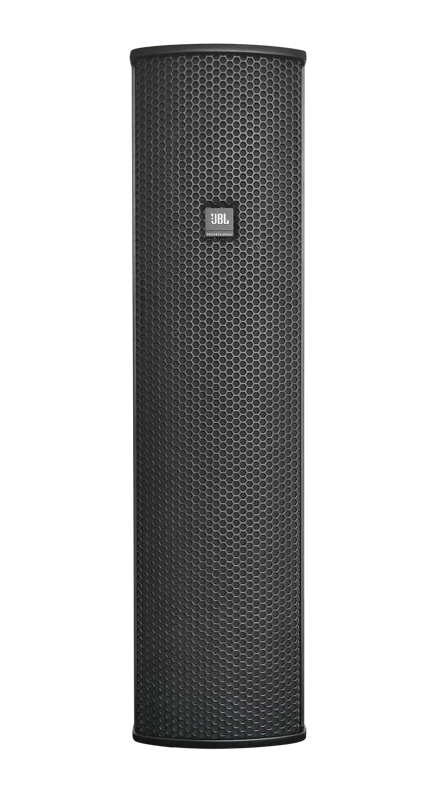

Column speaker and component of the JBL CMX6000 Series Column Speaker System for presentation applications. Can be wall-mounted vertically or horizontally.
As a satellite speaker component of the JBL CMX6000 Series Column Speaker System, the CMX6403 can configured multiple ways to provide presenters a variety of delivery options in meeting and presentation spaces. Crystal-clear speech reproduction and music playback comes from five JBL drivers. It features ultra-sleek styling as well as an aluminum cabinet, M22-2P speaker connections, anti-rust screws and water-resistant speaker grill, making it ideal for indoor, outdoor or humid environments.
较大的图像
特点
- 1 x 1.3” voice coil driver for 90° x 90º coverage and 4 x 3.3” carbon fiber cone woofer driver
- 180 W RMS power handling
- IP65-rated for outdoor or humid environments, featuring aluminum cabinet, M22-2P water-resistant connections, anti-rust screws and water-resistant speaker cloth
- Lightweight aluminum cabinet
- Metallic steel plate accessories are provided for fixed wall-mounted installations
- Support for both vertical and horizontal installations
下载
| Size | ||||
Data Sheets | ||||
JBL CMX6403 Spec Sheet _ CN
updated: 10月 2021
|
1.4 MB | |||
JBL CMX6403 Spec Sheet _ EN
updated: 10月 2021
|
1.7 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| Drivers | 1 x 1.3” voice coil driver and 4 x 3.3” carbon fiber cone woofer driver |
| 频率响应(±3 dB) | 110 Hz – 18 kHz |
| 覆盖角度 | 90° x 90° nominal |
| Crossover Mode | Passive |
灵敏度 |
87 dB SPL |
| 阻抗 | 8 ohms |
| Power Rating *1 (Continuous/Program/Peak) |
180 W / 360 W / 720 W *1 IEC standard, pink noise with 6 dB crest factor for 2 hours |
| Maximum SPL (2π) | 120 dB SPL peak |
| Enclosure | Aluminum |
| 网罩 | Black dust paint and water-resistant speaker cloth |
| Outdoor Capability | IP65-rated for outdoor or humid applications, featuring aluminum cabinet, M22-2P speaker connections, anti-rust screws, and water-resistant speaker cloth. |
| 颜色 | Black |
| 装配 | Support for both vertical and horizontal installations. Metallic steel plate accessories are provided for fixed wall-mounted installations. |
| 输入接口 | M22-2P |
| 尺寸（高 x 宽 x 厚） | 500 x 126.6 x 160 mm (19.6 x 4.98 x 6.29 in) |
| 净重量 | 6.3 kg (13.8 lbs.) |
随附配件 |
Special mounting for vertical and horizontal installations. |
