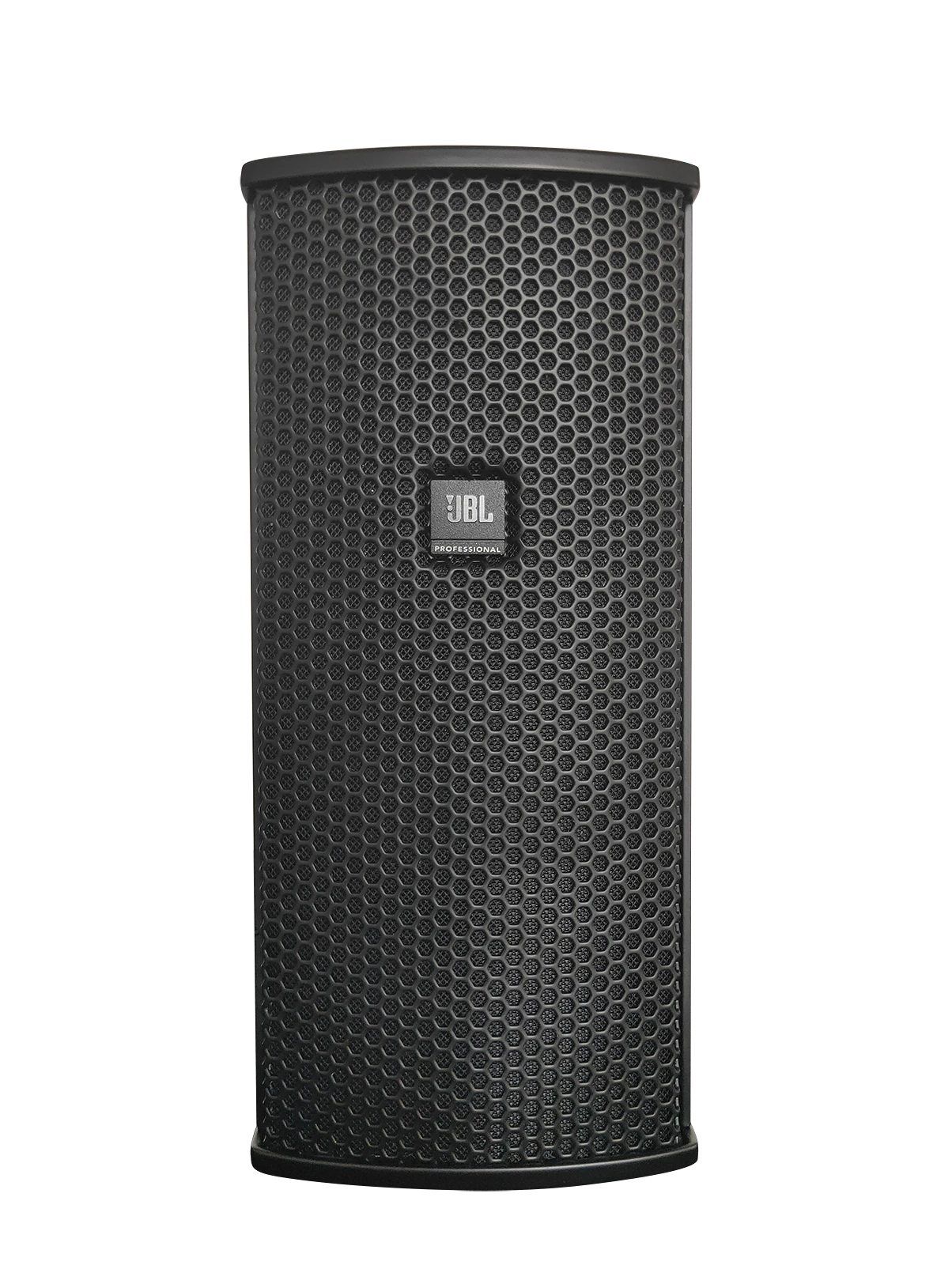

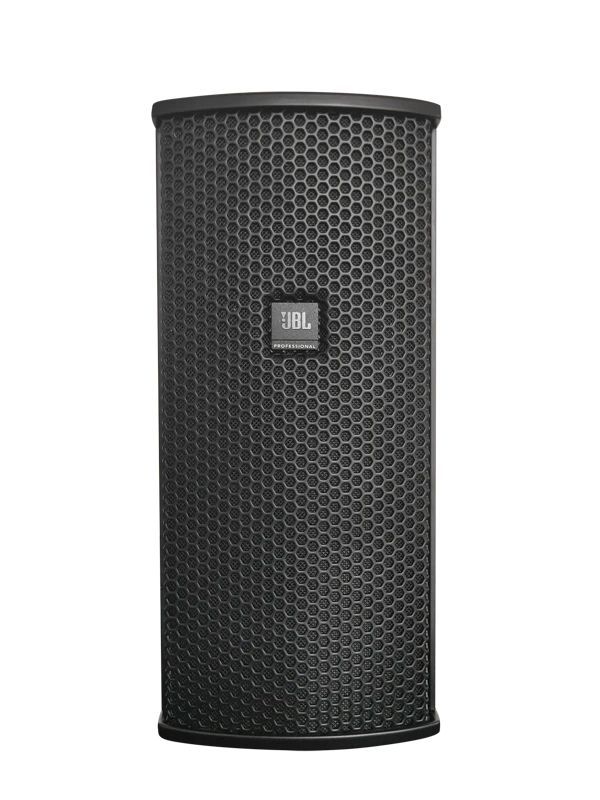

Column speaker and component of the JBL CMX6000 Series Column Speaker System for presentation applications. Can be wall-mounted vertically or horizontally.
As a satellite speaker component of the JBL CMX6000 Series Column Speaker System, the CMX6203 can be used in a variety of configurations to support PA applications in a range of meeting and presentation spaces. It features ultra-sleek styling and crystal-clear speech reproduction and music playback from three JBL drivers. Additionally, an aluminum cabinet, M22-2P speaker connections, anti-rust screws and water-resistant speaker grill make it ideal for indoor, outdoor or humid environments.
较大的图像
特点
- 1 x 3” paper basin driver and 2 x 3.3” carbon fiber cone woofer driver
- 60 W RMS power handling
- IP65-rated for outdoor or humid environments, featuring aluminum cabinet, M22-2P water-resistant connections, anti-rust screws and water-resistant speaker cloth
- Lightweight aluminum cabinet
- Metallic steel plate accessories are provided for fixed wall-mounted installations
- Support for both vertical and horizontal installations
下载
| Size | ||||
Data Sheets | ||||
JBL CMX6203 Spec Sheet _ CN
updated: 10月12日
|
1.4 MB | |||
JBL CMX6203 Spec Sheet _ EN
updated: 10月20日
|
1.6 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| Drivers | 1 x 3” paper basin driver and 2 x 3.3” carbon fiber cone woofer driver |
| 频率响应(±3 dB) | 110 Hz – 17 kHz |
| 覆盖角度 | 100° x 100° nominal |
| Crossover Mode | Passive |
灵敏度 |
83 dB SPL |
| 阻抗 | 4 ohms |
| Power Rating *1 (Continuous/Program/Peak) |
90 W / 180 W / 360 W *1 IEC standard, pink noise with 6 dB crest factor for 2 hours |
| Maximum SPL (2π) | 113 dB SPL peak |
| Enclosure | Aluminum |
| 网罩 | Black dust paint and water-resistant speaker cloth |
| Outdoor Capability | IP65-rated for outdoor or humid applications, featuring aluminum cabinet, M22-2P speaker connections, anti-rust screws, and water-resistant speaker cloth. |
| 颜色 | Black |
| 装配 | Support for both vertical and horizontal installations. Metallic steel plate accessories are provided for fixed wall-mounted installations. |
| 输入接口 | M22-2P |
| 尺寸（高 x 宽 x 厚） | 290 x 127 x 161 mm (11.4 x 5 x 6.3 in) |
| 净重量 | 3.6 kg (7.9 lbs.) |
随附配件 |
Special mounting for vertical and horizontal installations. |
