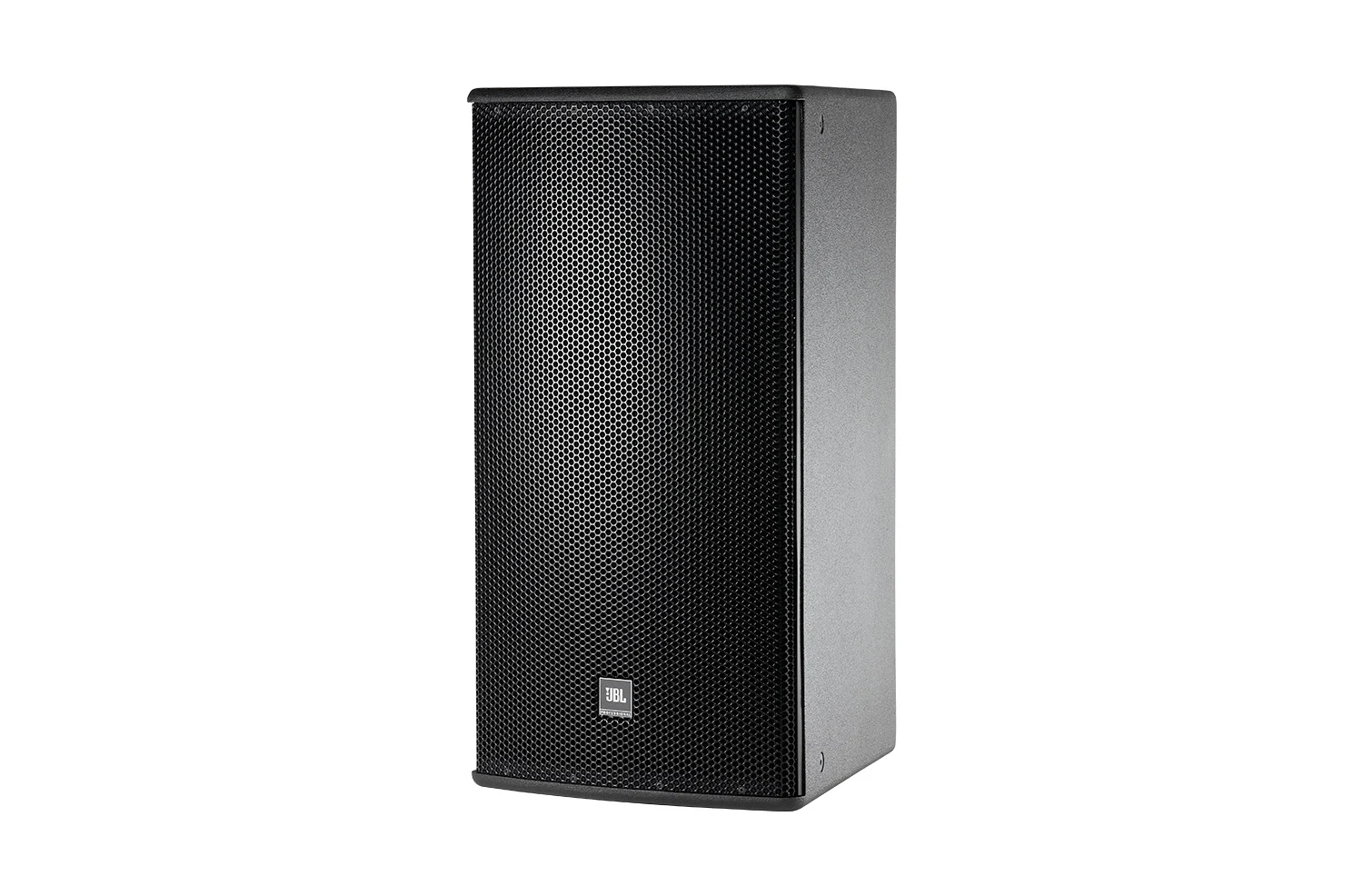

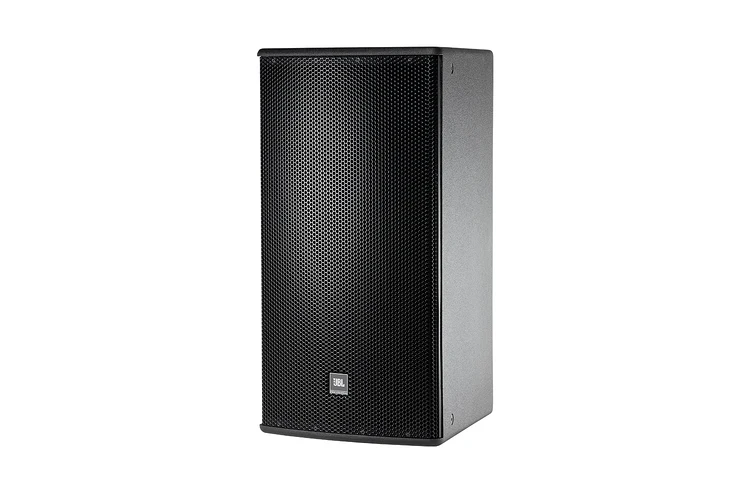

JBL Professional AM5215/95

较大的图像

15-inch 2-Way Loudspeaker with 90° x 50° Rotatable Horn

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

特点

90° x 50° 覆盖角度
265H-1 Differential Drive® 低频驱动器
2408H-1 高频压缩驱动器
大型 PT™ 渐进式过渡波导，提供卓越的指向性控制和低失真
可旋转波导，支持竖直或水平安装
双功放/无源可切换模式
提供黑色、白色和 WRC/WRX 防水耐候涂装

应用

表演艺术场馆
戏剧音响设计
礼堂
礼拜场所
现场演出俱乐部
舞厅
体育设施
主题娱乐场所

为提高恶劣气候条件下的可靠性并减少水分渗入，WRC & WRX 型号的箱体尺寸可能与标准型号不同。如需 WRC & WRX 型号的图纸和/或尺寸信息，请联系 CustomAudio@harman.com。

下载

Specifications

	大小	上传日期
AM5215/95 Spec Sheet 更新: 10月 2020	540.0 KB	10月 2020

Manuals

	版本	语言	大小	上传日期
AE Series Array Guide 更新: 7月 2024			1.1 MB	7月 2024
AE Series U-Bracket Handbook 更新: 7月 2024			597.2 KB	7月 2024
Weather Resistant Configurations 版本 A, 更新: 5月 2023	A		86.1 KB	5月 2023
AE/PD Connector Pinout Guide 更新: 10月 2019			8.2 KB	10月 2019
Painting AE Loudspeaker Cabinets 更新: 3月 2025			114.8 KB	3月 2025

Brochures

	语言	大小	上传日期
AE Series Brochure 更新: 10月 2020		4.0 MB	10月 2020
AM Brochure 更新: 10月 2020		1.5 MB	10月 2020
Loudspeakers for Sports Facilities 更新: 7月 2024		5.7 MB	7月 2024

CAD Drawings

	版本	大小	上传日期
AE Series - Customer Drawings 版本 2.0, 更新: 5月 2024	2.0	2.7 MB	5月 2024
AE Series - WR Models Customer Drawings 版本 3.0, 更新: 4月 2026	3.0	3.8 MB	4月 2026
AE Series - Revit/BIM Files 版本 11.0, 更新: 7月 2024	11.0	730.3 KB	7月 2024

Simulation Data

	版本	大小	上传日期
Ease SPK/DLL Files - Full JBL Pro Line 更新: 5月 2024		21.0 MB	5月 2024
JBL Pro ALL CLF Files 版本 12-10-21, 更新: 5月 2023	12-10-21	24.0 MB	5月 2023

Preset Libraries

	大小	上传日期
AE Series DCi Series Preset Library 更新: 5月 2024	471.0 KB	5月 2024

Compliances

	大小	上传日期
AE Series - AM5000 Declaration of Conformity 更新: 10月 2020	91.6 KB	10月 2020

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

频率范围 (-10dB)	35 Hz - 20 kHz
频率响应(±3 dB)	41 Hz – 18 kHz
覆盖范围	/64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°
Directivity Factor (Q)	14.5
Directivity Index (DI)	11.6 dB
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	2 kHz
Transducer Power Rating (AES)	LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
系统额定功率	Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp Mode: LF: 125 dB-SPL cont avg (131 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive Mode: 124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1w @ 1m)	Passive mode: 98 dB SPL
低频驱动单元	1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
标称阻抗	8 ohms
Sensitivity (1W @ 1m, within operational band)	99 dB SPL
HF 驱动程序	JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
灵敏度	115 dB SPL
Waveguide	PT-H66HF-1
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
外观颜色	Black DuraFlex™ finish. White available upon request.
网罩	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
环境	Mil-Std 810; IP-x3 per IEC529.
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
系统额定功率	Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated)
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
Dimensions (H x W x D in vertical orientation)	783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)
Net Weight (each)	25.0 kg (55 lb)
