Compact 2-Way Loudspeaker with 1 x 12" LF

AC2212/95
较大的图像

Compact 2-Way Loudspeaker with 1 x 12" LF

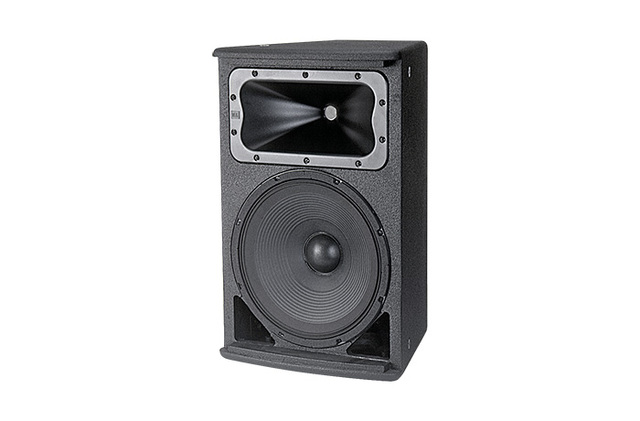

AC2212 speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver.



特点

  • PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
  • Bi-Amp / Passive Switchable.
  • Optional U-Bracket Model MTU-4.
  • For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed
    entertainment venues.


下载

  Version Language Size Uploaded
Specifications
file type icon AC2212/95 Spec Sheet
updated: 10月 2020
    591.3 KB 10月 2020
Manuals
file type icon AE Application Data Sheets
updated: 10月 2020
    13.7 MB 10月 2020
file type icon AE Series U-Bracket Handbook
updated: 10月 2020
    597.2 KB 10月 2020
file type icon AE/PD Connector Pinout Guide
updated: 10月 2019
    8.2 KB 10月 2019
file type icon JBL Installed Sound Configuration Guide
updated: 10月 2020
    160.0 KB 10月 2020
Brochures
file type icon AE Series Brochure
updated: 10月 2020
    4.0 MB 10月 2020
CAD Drawings
file type icon AE Series 2D PDF
updated: 4月 2019
    1015.1 KB 4月 2019
file type icon AE Series 2D DXF
updated: 4月 2019
    1.2 MB 4月 2019
file type icon AE Series 3D DXF
updated: 10月 2020
    380.5 KB 10月 2020
file type icon AE Series 3D DXF file
updated: 10月 2019
    380.5 KB 10月 2019
file type icon AE Series WRC WRX Customer Drawings
updated: 12月 2023
    2.2 MB 12月 2023
Compliances
file type icon AE Series - AC2000 Series Declaration of Conformity
updated: 10月 2020
    91.7 KB 10月 2020
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: 5月 2021
  en  5.7 MB 5月 2021
Images
file type icon AC2212-95 Hi Res Image
updated: 10月 2020
    2.0 MB 10月 2020
Speaker Tunings
file type icon AE DSP Tunings For All Models
updated: 10月 2020
    18.9 MB 10月 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 5月 2023
12-10-21    24.0 MB 5月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 50 Hz - 19 kHz (-10 dB)

频率响应

55 Hz - 17 kHz ( ± 3 dB)
覆盖范围 /64: 60°x 40°/95: 90°x 50°/00: 100°x 100°
Directivity Factor (Q) 7.1
Directivity Index (DI) 8.5 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Slopes 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
Transducer Power Rating (AES) LF: 300 W (1200 W peak), 2 hrs250 W (1000 W peak), 100 hrsHF: 50 W (200 W peak), 2hrs
系统额定功率 Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 120 dB-SPL cont avg (126 dB peak)
系统灵敏度 Passive mode: 95 dB SPL (1W @ 1m)
