High Power Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)


High Power Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)

The 9410 Cinema Surround offers high 350 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9410 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries. Combining JBL’s Image Control Technology and new asymmetric wave-shaping techniques, the 9410 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability. The 9410 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended bass response. The high frequency section utilizes a 25mm (1 inch) composite diaphragm compression driver with high output capability. Distribution of the drivers and construction of the cabinet is carefully calculated and rigorously tested in order to realize optimized resonance and accurate coverage. Two venting ports are designed at the bottom which further improves the low frequency response. The unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor. Built to traditional JBL quality standards, the 9410 will stand up to long term use, even under adverse conditions while delivering excellent performance.


  • 350 Watt Power handling capability
  • High Frequency Horn features JBL Image Control Technology and Wave Shaping Vane for precise pattern control
  • Three uniquely-designed mounting planes provides a 15° angle toward the screen for optimized coverage
  • Input terminals on top of cabinet for easy access
  • Lightweight, Rigid molded enclosure
  • Two venting ports at the bottom for improved low frequency response
  • Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
  • Acoustic Theory blends with Low Frequency Gain Technology for improved low frequency response


  Version Language Size Uploaded
file type icon Cinema Sound 9400 Series - EU Declaration of Conformity
updated: 10月 2019
    277.1 KB 10月 2019
Spec Sheets
file type icon 9410 Spec Sheet EN
updated: 10月 2020
    729.0 KB 10月 2020
file type icon 9410 Spec Sheet CN
updated: 10月 2020
    828.9 KB 10月 2020
file type icon 9410 Right-Facing
updated: 10月 2020
    126.1 KB 10月 2020
file type icon 9410 Front
updated: 10月 2020
    183.7 KB 10月 2020
file type icon 9410 Left-Facing
updated: 10月 2020
    135.8 KB 10月 2020

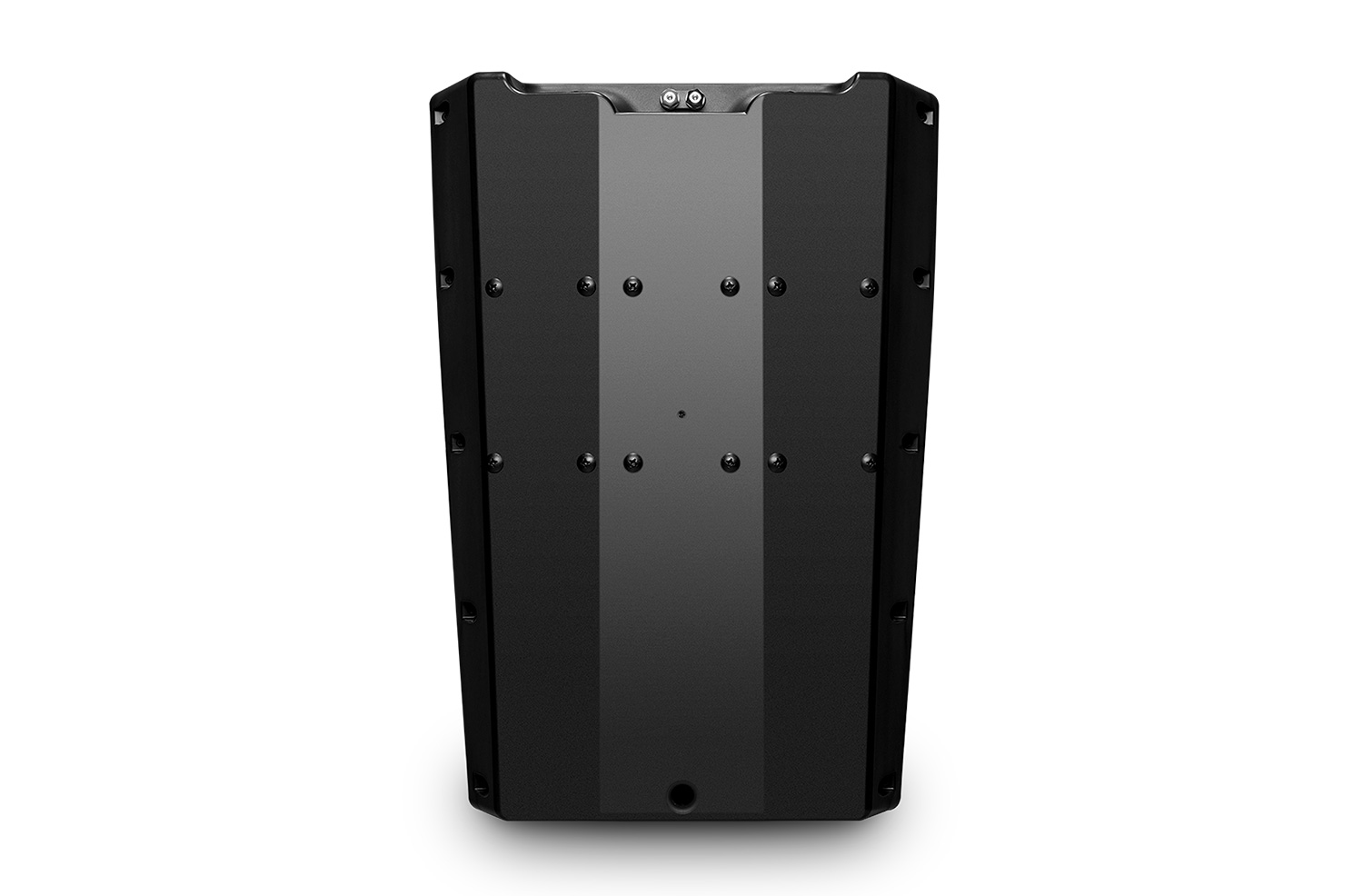

file type icon 9410 Back
updated: 10月 2020
    120.4 KB 10月 2020
file type icon 9410 Float
updated: 10月 2020
    112.9 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 10", 2-way, bass-reflex
频率范围 (-10dB) 60Hz – 20kHz (4π)
频率响应(±3 dB) 75Hz – 18kHz (4π)
覆盖范围 110º × 60º (H×V)
Power Rating:(continuous / program / peak ) 350W / 700W / 1400 W(IEC Pink Noise, 6dB CF, 2hrs)


99 dB (1W@1m)
Maximum dB SPL(@1m) 125 dB continuous (131 dB peak)
额定阻抗 8 Ohms
极性 EIA
Low Frequency 1× M110-8
High Frequency 1× 2408H-2
Enclosure Textured black HIPS
网罩 HIPS, covered with black cloth
Input Connector Binding posts
尺寸(高 x 宽 x 厚) 22.0” x 16.1” x 11.0”(559 x 410 x 279 mm)
重量 23.8 lbs (10.8 kg)
