8550

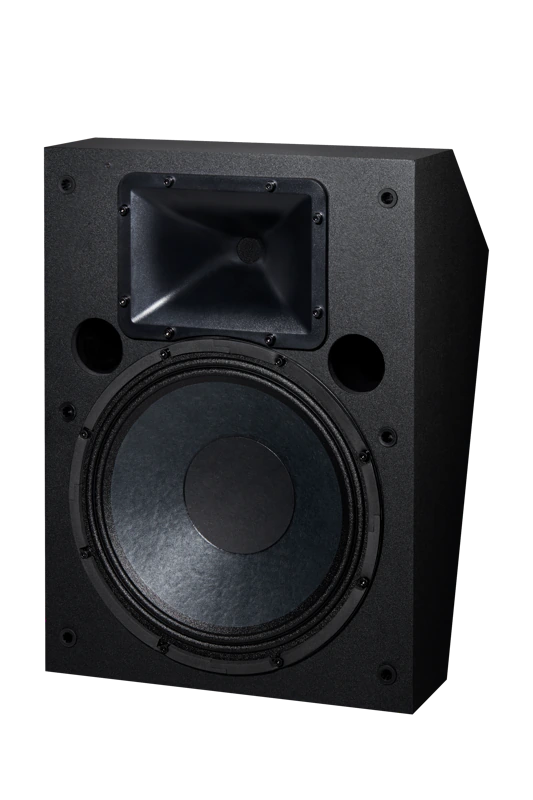

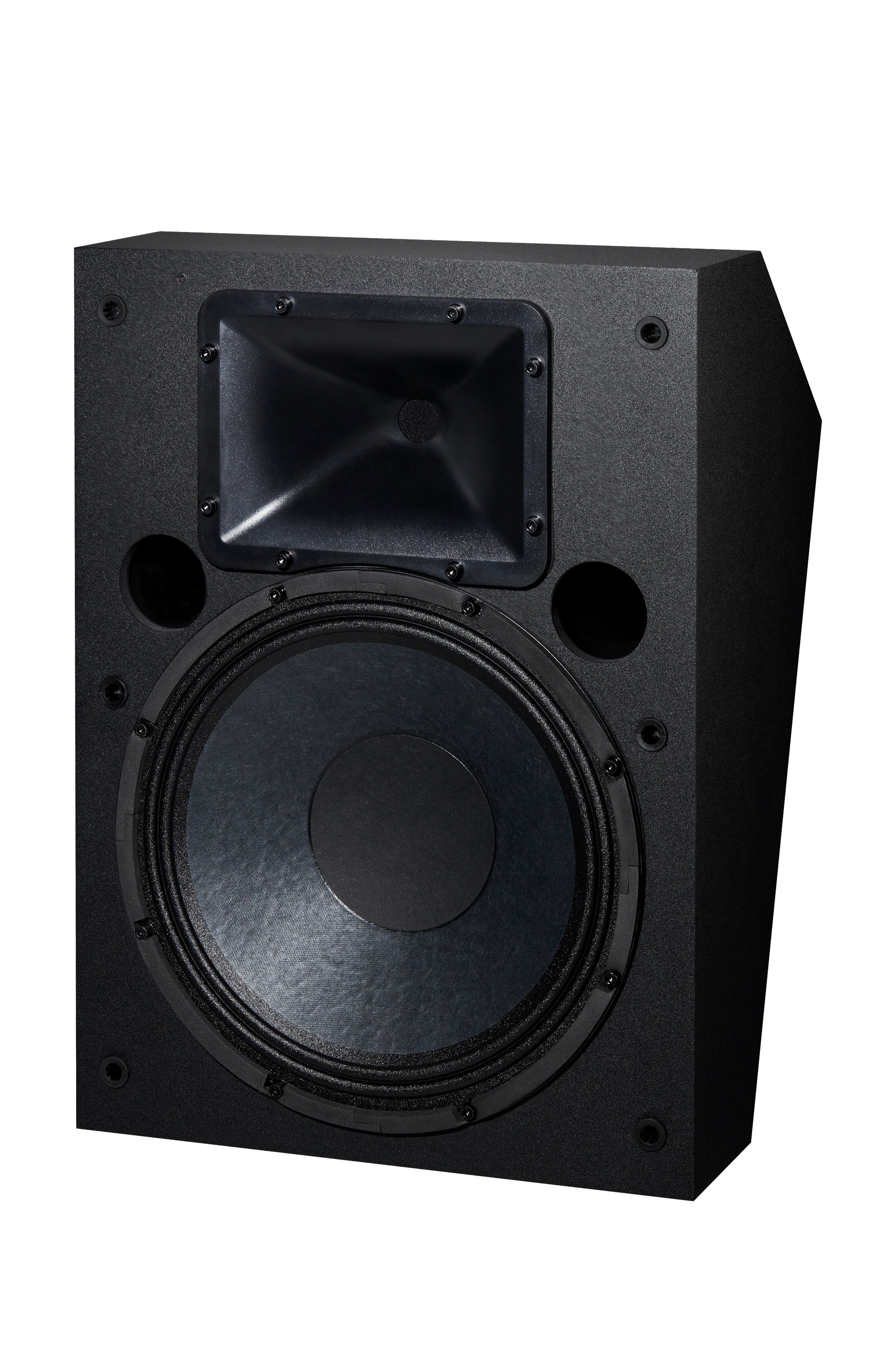

Twelve-Inch Two-Way Cinema Surround Speaker

8550
较大的图像

Twelve-Inch Two-Way Cinema Surround Speaker
The JBL 8550 Cinema Surround Speaker provides premium sound and high power handling in a compact enclosure, for a versatile, affordable surround solution for medium to large-size cinema applications.

With its high sensitivity and extended bandwidth, this updated 12-inch, two-way, bass-reflex speaker reproduces the wide dynamic range and nuanced details in today’s digital immersive soundtracks. And, its broad horizontal and vertical coverage mean you’ll need fewer speakers to deliver incredible sound in every seat.

Angled cabinets have top-oriented input terminals for easy installation and maintenance; speakers are compatible with a range of JBL mounting brackets.

Combine the 8550 with JBL screen array speakers and subwoofers to build high-impact, streamlined cinema sound systems. It’s the perfect high-power surround speaker for cost-conscious theater owners seeking to give customers a superior sound experience that keeps them coming back.

特点

  • Power, Precision and Dynamics - The 8550 packs 350 watts of peak power handling in a compact package, making it ideal for medium and large size theatres. With 101 dB sensitivity, it’ll effortlessly reproduce the extended dynamic range in immersive digital soundtracks—loud and clear, exactly as intended.
  • More Coverage with Fewer Speakers - With an ultra-wide 100-degree horizontal dispersion and 80-degree vertical dispersion, the 8550 provides seamless coverage with fewer speakers than narrower models. It’s a cost-conscious way to bring premium JBL surround sound to your cinema.
  • Fast, Easy Installation and Maintenance - 8550s install quickly and easily, thanks to a convenient mounting design that uses JBL QuickMount™, Omnimount® or APC Multimount brackets. Cabinets feature 20° angled front baffles, and input terminals are located on top of cabinet for quick and easy access to wiring.

下载

  Version Language Size Uploaded
Specifications
file type icon 8550 Spec Sheet
updated: 7月22日
    1.3 MB 7月22日
file type icon (中文) JBL 8550 配置表
zh updated: 9月23日
  zh  1.7 MB 9月23日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 12 inch, 2-way, bass-reflex

频率响应

74 Hz –16 kHz (±3 dB)

灵敏度

101 dB (1W @ 1m)
阻抗 8 Ohms
Max SPL 126 dB
Power Rating (Continuous/Program/Peak) 350W / 700W / 1,400W
尺寸(高 x 宽 x 厚) 500 x 365 x 279 mm(19.7 x 14.4 x 11 in)
重量 12.2 kg (26.9 lb)
Input Connector Binding Posts
