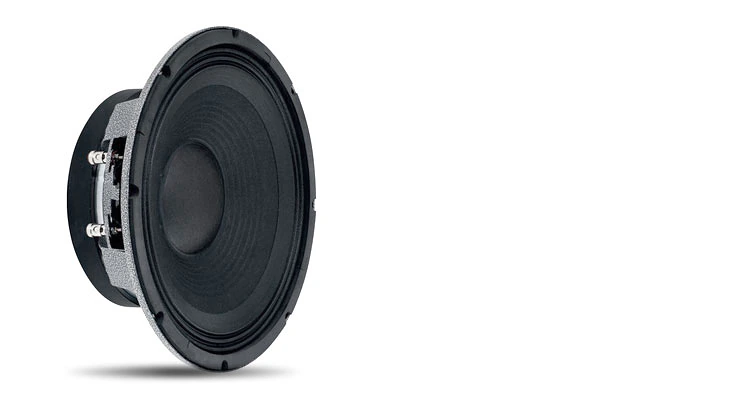

15WS600

15" Woofer

较大的图像

15WS600

15” Woofer for low and mid bass professional sound reinforcement, offering high power capacity, outstanding low end response and exceptionally smooth transition into the vocal range.

下载

  Version Language Size Uploaded
Data Sheets
15WS600 Spec Sheet
updated: 10月03日
    354.8 KB 10月03日
Brochures
Components Full Line 2015 Catalog
updated: 10月21日
    1.3 MB 10月21日
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Nominal diameter mm (in) 380 (15)
标称阻抗 8ohms
Frequency Response (-10dB) 40 to 3,500 Hz
Sensitivity (2.83V@1m) averaged from 100 to 500 Hz 97 dB SPL
Magnet material Barium ferrite
Magnet weight g (oz) 2,640 (92)
Frame Material Aluminum
Voice coil material Copper
