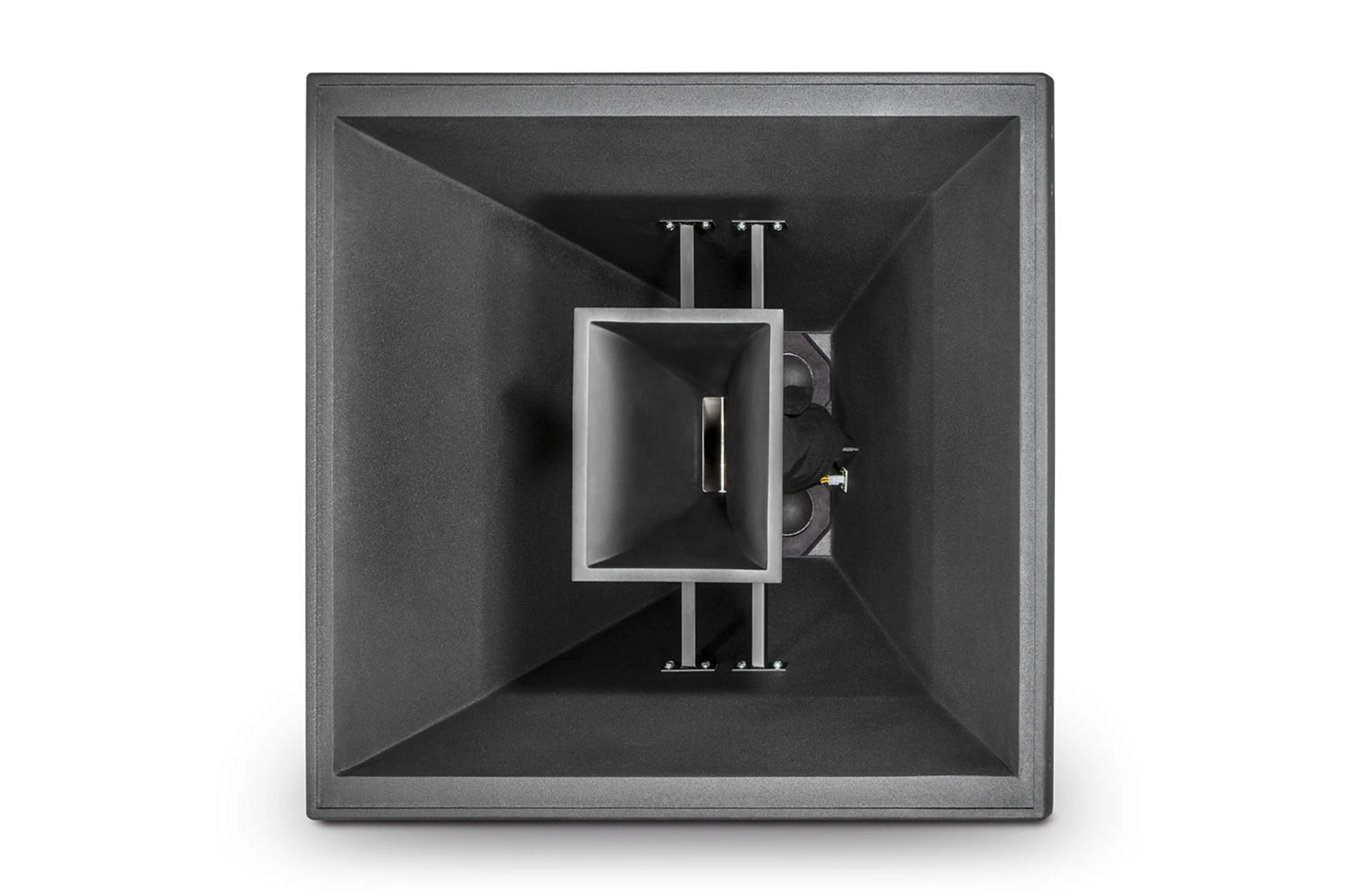

The PD743i Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i-215 may be used in clusters with other PD family modules or singly as part of a distributed system.
To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.
| Kích thước | |
|
|
200 KB |
| Kích thước | |
|
|
90 KB |
| Kích thước | |
|
|
6 MB |
| Kích thước | |
|
|
1 MB |
|
|
4 MB |
| Kích thước | |
|
|
4 MB |
|
|
4 MB |
|
|
2 MB |
Tech Note: JBL Precision Directivity™ PD700 Series Co-Axial Mid/High Speaker Systems
cập nhật: Thg 10 2019
|
400 KB |
|
|
700 KB |
| Kích thước | |
|
|
200 KB |
|
|
20 MB |
| Kích thước | |
|
|
400 KB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
| Frequency Range (-10dB) | 200 Hz to 19.5 kHz |
| Frequency Response (±3 dB) | 230 Hz - 18.5 kHz |
| Coverage Pattern | 40° x 30° |
| Directivity Index (DI) | 16 dB |
| System Sensitivity (1w @ 1m) | Passive Mid-High: 110 dB SPL |
| Maximum Peak SPL | MHF - 142 dB Peak Passive Mode |
| Transducer Power Rating (AES) | MHF - 400 W (1600 W Peak) |
| Crossover Frequencies | 1.2 kHz |
| DSP | Custom DSP for Crown ITHD and IT4x3500HD amplifiers |
| MF Driver | 2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil |
| HF Driver | 2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance | MF: 4 ohms HF: 16 ohms |
| Enclosure | Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood |
| Enclosure WRC/WRX Version | For direct exposure or extreme environments, berglassed with stainless steel hardware |
| Grille | Black powder coated zinc treated 14 gauge perforated steel with black foam backing |
| Grille WRC/WRX Version | Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh |
| Input Connector | NL4 for bi-amp operation |
| Input Connectors WRC/WRX Version | 4 conductor 16 awg direct burial cable assy 20 length (or length TBD) |
| Suspension Attachment | 32 total points (7 top and bottom, 7 each side, 4 back), M10 threaded hardware |
| Dimensions (H x W x D) | 991 mm x 991 mm x 1145.8 mm (39.0 x 39.0 x 45.1 in) |
| Net Weight (each) | 245 lbs (111.4 kg) |
| Crossover Modes | Passive |
| System Power Rating | MHF - 400 W (1600 W Peak) (IEC rated) |
| Environmental | Available WRC/WRX Version: IP55 |
