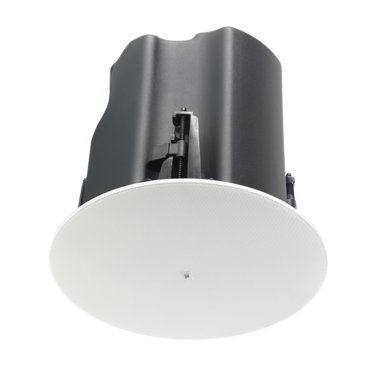

Control 445C/T

5,25" RBI™-utrustad tvåvägs koaxial taktalare

Control 445C/T
Större bilder

JBL Control 445C/T, del av den flaggskeppssserien Control 400 Premium Coverage Series, är en tvåvägs koaxial takhoyttalare med en 5,25" woofer, konisk RBI™, och ett integrerat hölje som är idealiskt för installation i de flesta takplenum-utrymmen.

Med JBL:s egen koniska Radiation Boundary Integrator® (RBI™)-teknik uppnår Control 445C/T konstant directivity-täckning, vilket säkerställer att lyssnare kan njuta av en särskilt slät ljudkaraktär som förblir extremt konsistent, tydlig och behaglig över ett brett täckningsområde.

Control 400-seriens takhögtalare har genomtänkt utformade monteringsfunktioner för att förbättra säkerhet, effektivitet och repeterbarhet. Terminalskydd möjliggör bekväm kabel-anslutning från topp eller sida och är säkrade utan ansträngning med fästa handskruvar. Den pålitliga designen med fästa dogear-fästen passar en mängd olika taktyckningar, vilket säkerställer mångsidighet för alla miljöer.

Alla modeller omfattar designelement anpassade för moderna interiörer. Det medföljade fullflät magnetgaller är målbart för sömlös integrering i vilken inredning som helst, medan tillgängliga svarta och fyrkantiga galler erbjuder ytterligare anpassning. Dessutom stöder Control 445C/T både 70V/100V och låg impedans-tillämpningar.

  • PREMIUM SONIC PERFORMANCE

    Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

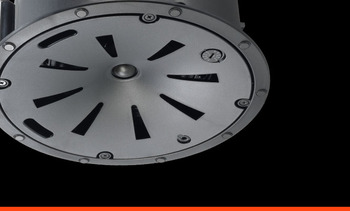

PREMIUM SONIC PERFORMANCE

Featuring JBL’s proprietary Radiation Boundary Integrator® (RBI™) technology, the Premium Coverage Series achieves constant directivity coverage, ensuring that listeners can enjoy an especially smooth sound character that remains extremely consistent, clear, and pleasant across a wide coverage area.

featured content

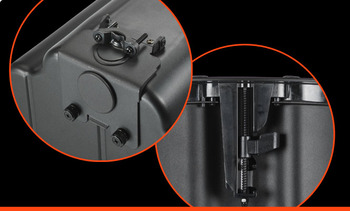

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

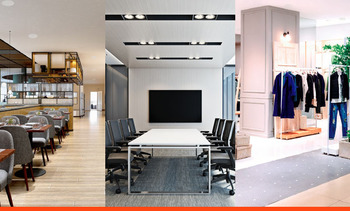

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Funktioner

  • 130 mm (5.25 in) woofer and 20 mm (0.75 in) soft-dome tweeter
  • JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

Nedladdningar

Specifications
  Språk Storlek Uppladdat
file type icon Control 445C/T Spec Sheet
en uppdaterad: aug 2025
en  699 KB aug 2025
Manuals
  Storlek Uppladdat
19 MB aug 2025
Brochures
  Storlek Uppladdat
file type icon 2025 Control 400 Family Brochure
uppdaterad: aug 2025
3,9 MB aug 2025
CAD Drawings
  Storlek Uppladdat
file type icon Control 445C/T - Customer Drawings
uppdaterad: aug 2025
12,7 MB aug 2025
Compliances
  Storlek Uppladdat
466 KB jan 2026
538 KB jan 2026
Software
  Version Storlek Uppladdat
Windows download icon Distributed System Design (DSD)
version 3.9, uppdaterad: nov 2025
3.9   612 KB nov 2025
Technical Papers
  Storlek Uppladdat
768 KB nov 2025
Ease Data
  Storlek Uppladdat
file type icon Control 445C/T – CLF File
uppdaterad: okt 2025
326 KB okt 2025
file type icon Control 445C/T - EASE GLL
uppdaterad: aug 2025
690 KB aug 2025
Speaker Tunings
  Storlek Uppladdat
441 KB aug 2025

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range (-10 dB) 55Hz - 20kHz
Power Capacity 112 W (448 W Peak), Cont. Pink Noise (2 hrs.)
75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W) 88dB
Coverage Angle 120° conical
Maximum SPL (1m) 108.5 dB Cont. pink noise (114.5 dB peak)
Nominal Impedance
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W
Drivers LF: 130 mm (5.25 in) with treated paper cone and high-performance magnet
HF: 20 mm (0.75 in) soft-dome with Neodymium magnet
Ceiling Cutout Size 223 mm (8.8 in)
Dimensions 255 mm (10.4 in) H x 260 mm (10.2 in) dia.
240 mm (9.6 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories JBL-MTC-445BG black (RAL9004) round grille
JBL-MTC-445SG white (RAL9003) square grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 4.3 kg (9.48 lbs)
Shipping Weight (pair) 13.83 kg (30.49 lbs)
SKU Numbers JBL-C445C/T

Tillbehör

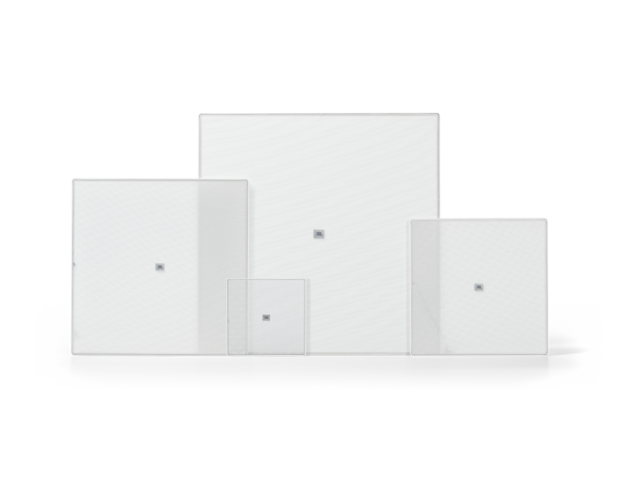

MTC-445SG | Square Grille for Control 445
MTC-445SG  Main photo
Större bilder
MTC-445SG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require

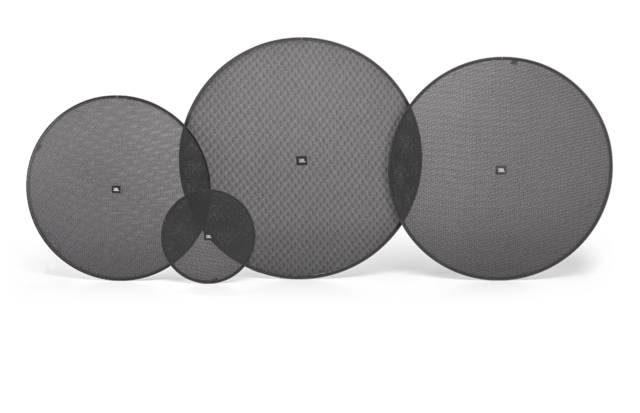

MTC-445BG | Round Black Grille for Control 445
MTC-445BG  Main photo
Större bilder
MTC-445BG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
