JBL Professional VT4887ADP-DA, VT4887ADP

Imagens Grandes

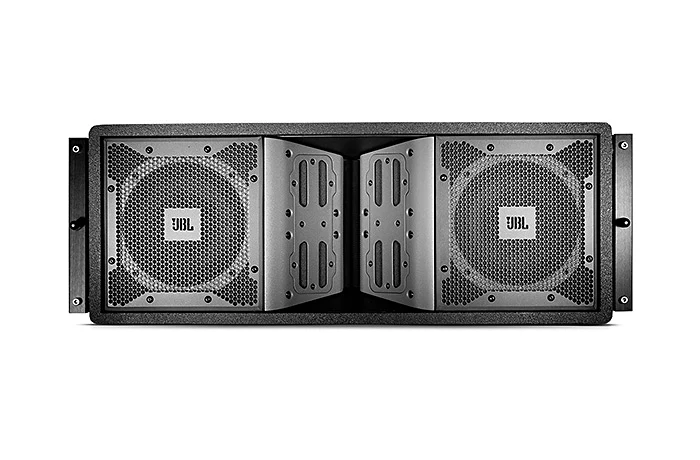

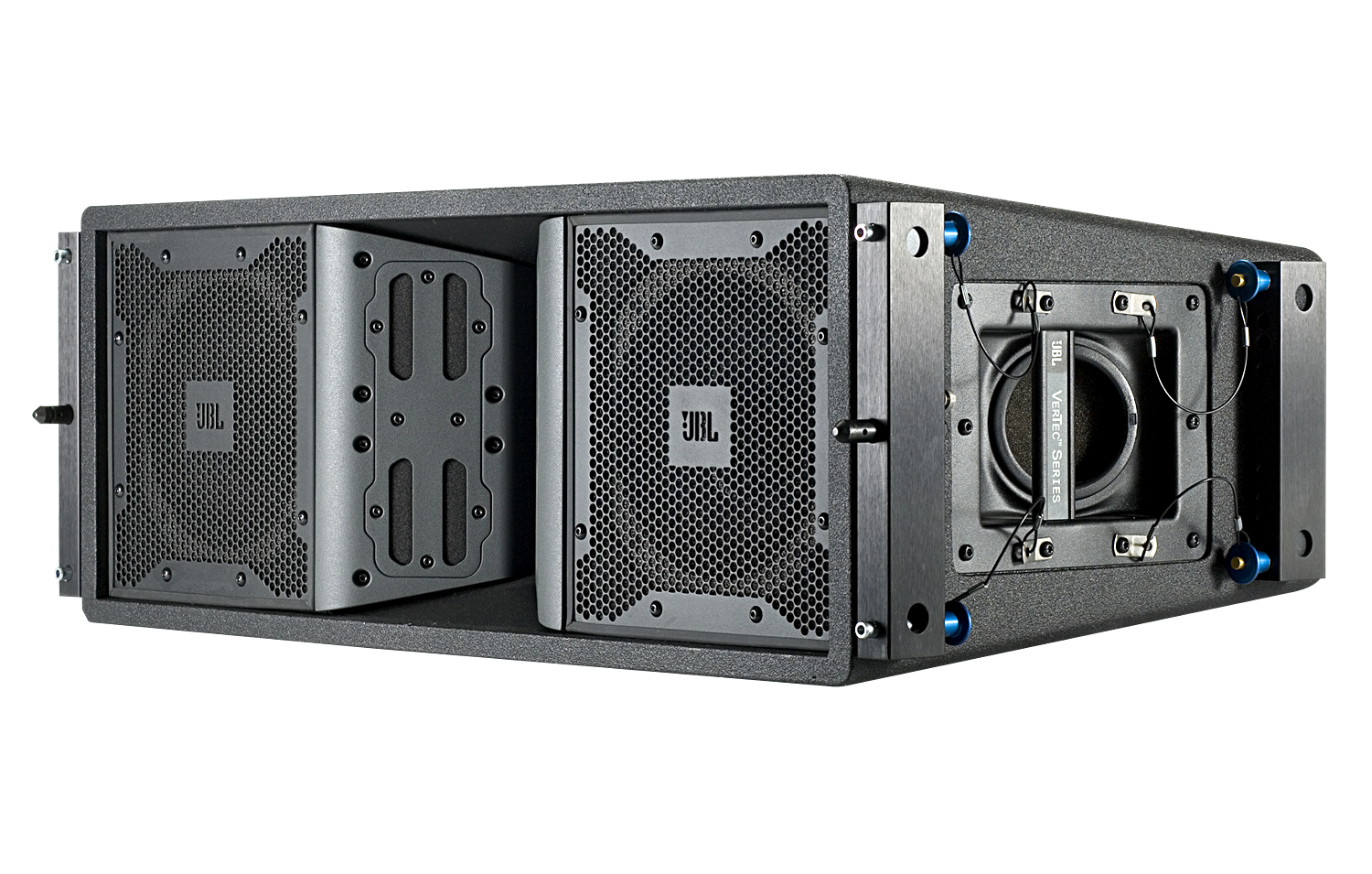

Powered Compact Bi-amplified 3-Way High Directivity
Line Array Element

The VT4887ADP Compact Powered Three- Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio, corporate A/V and theatrical presentations of all types for both portable users and performance venues.

Recursos

New 2168J-1 8" low frequency drivers offer improved performance and extended low frequency response.
Advanced technology components: Differential Drive^®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
JBL DrivePack^® technology delivers superb audio quality and robust high efficiency “Class-I” power, perfectly matched to the enclosure, with comprehensive onboard digital signal processing
Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
World-wide AC line voltages are automatically selected for 50 or 60 Hz.
Advanced construction techniques using PlyMax^® provide exceptionally rigid, lightweight enclosure construction.
Rugged DuraFlex™ exterior finish; weatherized components
Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable
hanging arrays
For use in stand-alone arrays or in combination with other VERTEC system models

Downloads

Documentos

	Idioma	Tamanho	Enviado
DPDA Input Module Spec Sheet atualizado: abr 2026		475 KB	abr 2026
VT4887ADP-DA & VT4887ADP Spec Sheet atualizado: abr 2026		1,31 MB	abr 2026
VT4887ADP Spec Sheet atualizado: abr 2026		1,12 MB	abr 2026

Specifications

	Tamanho	Enviado
VT4887ADPDA Spec Sheet atualizado: jul 2019	1,31 MB	jul 2019
DPDA Input Module Spec Sheet atualizado: jul 2019	475 KB	jul 2019
VT4887ADP Spec Sheet atualizado: jul 2019	1,12 MB	jul 2019

Brochures

	Tamanho	Enviado
VerTec Line Brochure atualizado: out 2020	2,09 MB	out 2020

CAD Drawings

	Tamanho	Enviado
VT4887ADP 3D DXF atualizado: jul 2019	198 KB	jul 2019
VT4887ADP 2D DXF atualizado: jul 2019	2,08 MB	jul 2019
VT4887ADP 2D PDF atualizado: jul 2019	157 KB	jul 2019

Compliances

	Tamanho	Enviado
VerTec Series (Powered) Declaration of Conformity atualizado: out 2019	89,4 KB	out 2019

Software

	Versão	Tamanho	Enviado
Vertec Line Array Calculator versão 1.3.1, lançado: ago 2023	1.3.1	18 MB	ago 2023
PerformanceManager versão 3.2.0, atualizado: set 2025	3.2.0	134 MB	set 2025

Speaker Tunings

	Tamanho	Enviado
VT4887ADPDA V4Preset atualizado: out 2019	34,6 KB	out 2019
V4 DSP_DPCN_VT4887ADP atualizado: out 2019	111 KB	out 2019
V4 DSP DPAN_VT4887ADP atualizado: out 2019	54 KB	out 2019
VTDP ALL LIBRARIES V4 Preset atualizado: out 2020	680 KB	out 2020

Accessories

	Tamanho	Enviado
VT Compact Array Frame and Adapter CAD atualizado: out 2020	7,3 MB	out 2020

User Guides

	Tamanho	Enviado
Compact Powered Line Array Systems User’s Guide atualizado: out 2020	906 KB	out 2020
VerTec DP Compact User’s Guide atualizado: out 2020	1,91 MB	out 2020

Images

	Tamanho	Enviado
VT4887ADP Photo atualizado: jul 2019	764 KB	jul 2019

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Frequency Range	55 Hz - 22 kHz (-10 dB)
Resposta de Frequência	67 Hz - 20 kHz (±3 dB)
Power Rating	2200W Peak 1100W Continuous
Maximum Peak Output	136 dB SPL, 1m
Bandpass Nominal Impedance	4 ohm LF, 8 ohm MF/HF
Horizontal Coverage	100 degrees nominal 500 Hz - 16 kHz (-6 dB)
Dimensions (w x h x d)	787 mm X 279 mm X 563 mm (31 in X 11 in X 22.1 in)
PESO LÍQUIDO	39.7 kg (87.5 lb)
