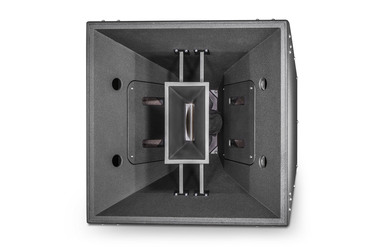

| Frequency Range (-10dB) |
36.5 Hz to 19.5 kHz |
| Frequency Response (±3 dB) |
41.5 Hz - 18.5 kHz |
| Coverage Pattern |
60° x 40° |
| Directivity Index (DI) |
16 dB |
| System Sensitivity (1w @ 1m) |
LF: 103 dB SPL; Passive Mid-High: 111 dB SPL |
| Maximum SPL (1m) |
LF - 141 dB Peak; MHF - 143 dB Peak |
| Transducer Power Rating (AES) |
LF - 1000 W (4000 W Peak); MHF - 400 W (1600 W Peak) |
| Crossover |
Bi-Amp with passive mid/high crossover (Tri-Amp optional) |
| Crossover Frequencies |
220 Hz, 1.2 kHz |
| DSP |
Custom DSP for Crown ITHD and IT4x3500HD amplifiers |

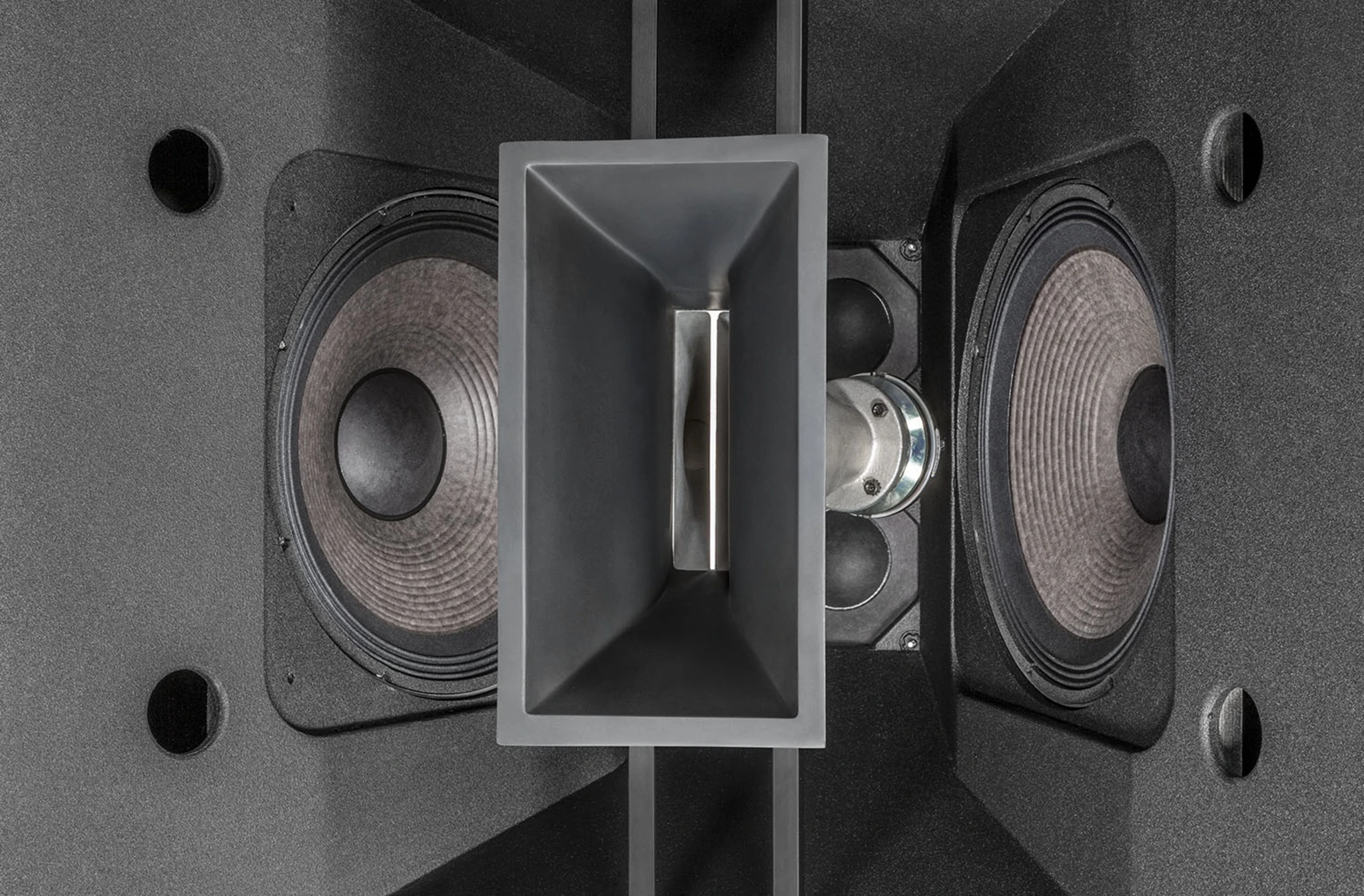

| LF Driver |
2 x JBL 2265H 380 mm (15 in) Diferential Drive driver with 75 mm (3 in) dual voice coil |
| MF Driver |
2 x JBL CMCD-82H midrange driver with 200 mm (8 in) diameterDifferential Drive® dual 75 mm (3 in) voice coil |
| HF Driver |
2 x JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Nominal Impedance |
LF: 4 ohms MF: 4 ohms HF: 16 ohms |
| Enclosure |
Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood |
| Enclosure WRC/WRX Version |
For direct exposure or extreme environments, berglassed with stainless steel hardware |
| Grille |
Black powder coated zinc treated 14 gauge perforated steel with black foam backing |
| Grille WRC/WRX Version |
Three layer grille assy consisting of 16-gauge powder coated S.S., backed with O.C. foam and S.S. mesh |
| Input Connector |
NL4 for bi-amp operation or NL8 for tri-amp operation (optional) |
| Input Connectors WRC/WRX Version |
4 conductor 16 awg direct burial cable assy 20 length (or length TBD) |
| Environmental |
Available WRC/WRX Version: IP55 |
| Suspension Attachment |
52 total points (12 top and bottom, 11 each side, 6 back), M10 threaded hardwar |
| Dimensions (H x W x D) |
991 mm x 991 mm x 889 mm (39.0 x 39.0 x 35 in) |
| Net Weight (each) |
295 lbs (134 kg) |
| Crossover Modes |
Passive |
| System Power Rating |
LF - 1000 W (4000 W Peak);
MHF - 400 W (1600 W Peak) (AES rated) |
| Nominal LF Driver Impedance |
4 ohms |
| Nominal MF Driver Impedance |
4 ohms |
| Nominal HF Driver Impedance |
4 Ohms Passive Mid/High Crossover |
