JBL Professional VRX932LAP

រូបភាពធំជាង

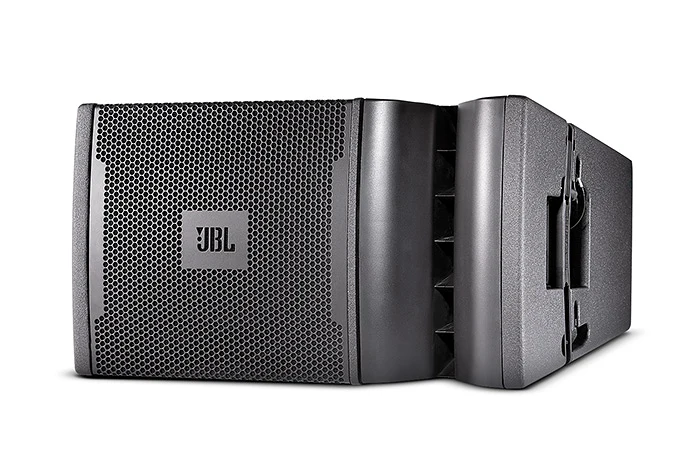

12 in. Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

លក្ខណៈពិសេស

Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
Array Configuration Selector permits "array shading".

ការទាញយក

Specifications

	ទំហំ	បានផ្ទុកឡើង
VRX932LAP Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	704 KB	តុលា 2020

Manuals

	ទំហំ	បានផ្ទុកឡើង
VRX900P User Manual បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2023	3.58 MB	កក្កដា 2023

Brochures

	កំណែ	ភាសា	ទំហំ	បានផ្ទុកឡើង
JBL 2025 PPA Brochure កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: សីហា 2025	B		8.45 MB	សីហា 2025
VRX900P Brochure បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2020			630 KB	ធ្នូ 2020
VRX900 Series Brochure បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2020			2 MB	ធ្នូ 2020

CAD Drawings

	ទំហំ	បានផ្ទុកឡើង
VRX900 Series Customer Drawings បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2020	6.73 MB	ធ្នូ 2020
VRX932LAP BIM Object បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2023		កក្កដា 2023

Compliances

	ទំហំ	បានផ្ទុកឡើង
VRX900 Series (Powered) Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	93.2 KB	តុលា 2019

Software

	កំណែ	ទំហំ	បានផ្ទុកឡើង
Venue Synthesis ចេញផ្សាយ: មករា 2025			មករា 2025
VRX Array Calculator កំណែ 1.0, ចេញផ្សាយ: កក្កដា 2024	1.0	11.2 MB	កក្កដា 2024

Simulation Data

	កំណែ	ទំហំ	បានផ្ទុកឡើង
VRX900 Series EASE DLL កំណែ 1.5.3, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2023	1.5.3	968 KB	កក្កដា 2023

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Power Rating	1750 Watts Peak875 Watts Continuous
Frequency Range (-10dB)	57 Hz - 20 kHz
Dimensions (H x W x D)	349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
Frequency Response	75 Hz - 20 kHz (+/-3db)
Maximum SPL (1m)	136 dB SPL
Coverage Pattern	100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)	LF: 750 Watts, HF: 125 Watts
DPC-2 Output Section	LF: Dual-Bridged Technology™, Class D
Inputs	XLR with loop through
LF Driver	1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver	3 x JBL 2408J, 38 mm (1.5 in)
User Controls	Input Attenuator (0-16 dB)
Signal Processings	DSP based, resident in Input Module
AC Power Operating Range	90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector	Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector	Neutrik PowerCon (NAC 3MPB)
AC Current Requirements	6A per system at 120V, 3A per system at 240V
Enclosure	25/15 mm, 11-ply birch plywood
Suspension / Mounting	Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish	Black DuraFlex™ finish
Grille	Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight (each)	24 kg (52 lb)
Optional Accessories	VRX-AF: Suspension array frame
Outputs	1 x XLR
System Type	Constant Curvature 12" Two-Way Powered Line Array System
Nominal Impedance	NA - amplification is integrated
