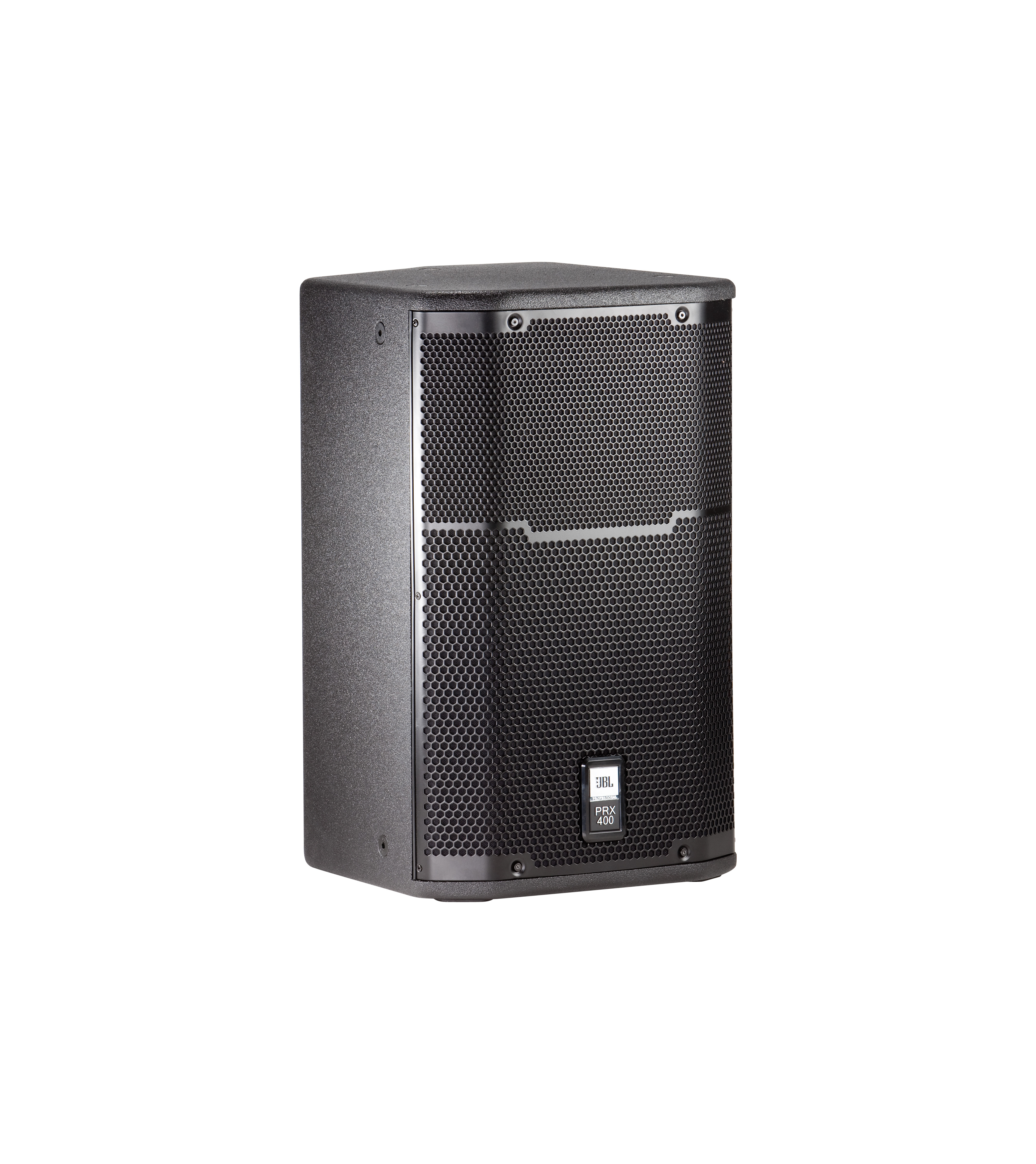

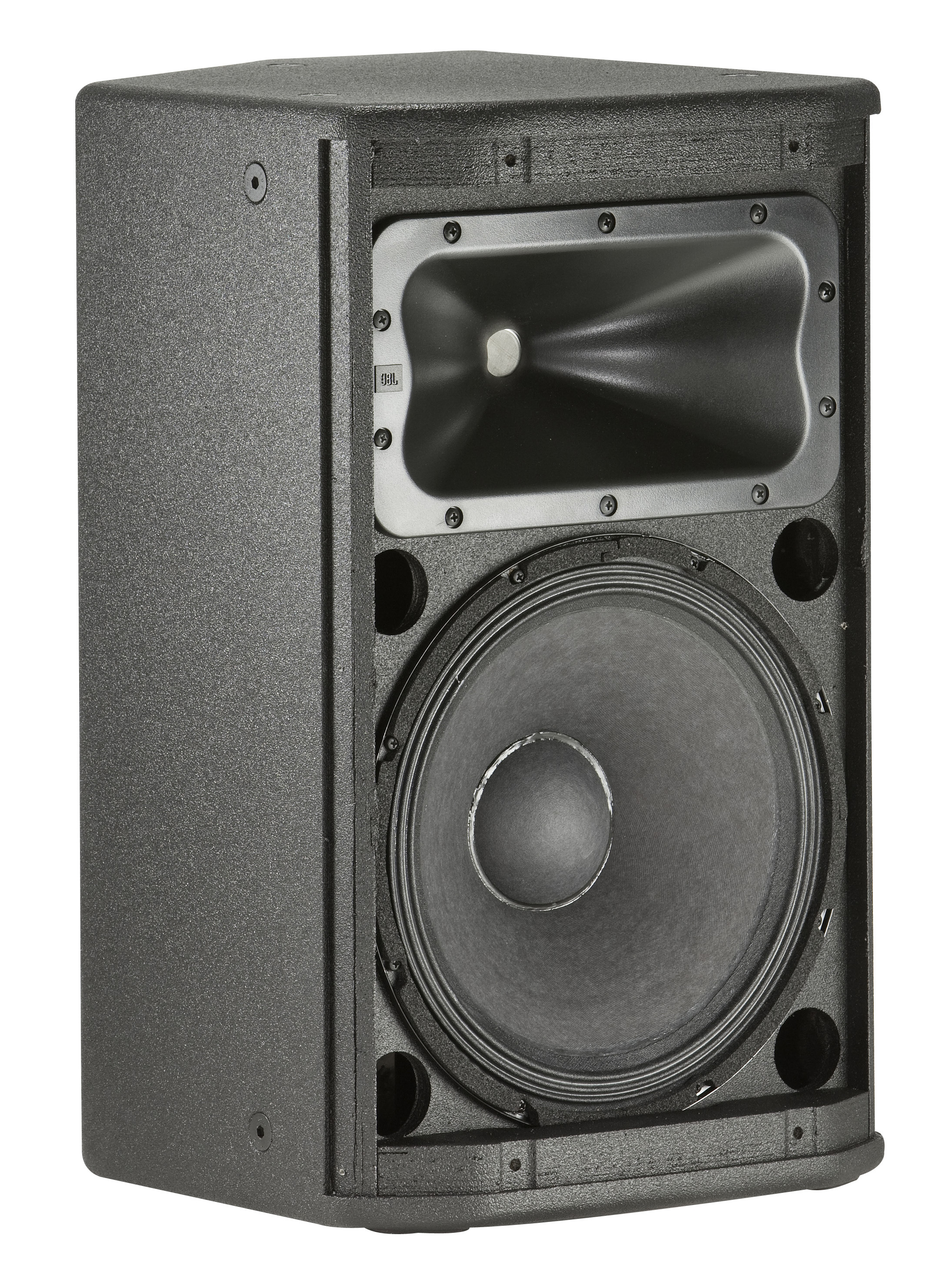

12" Two-Way Stage Monitor and Loudspeaker System
PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
រូបភាពធំជាង
លក្ខណៈពិសេស
- 90° x 50° coverage for even and smooth response on and off axis
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- Utilizes twelve M10 suspension points for safe deployment in light duty installations.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
- Speech reinforcement
- Live performance stage monitoring
- Reinforcement of vocal and acoustic music
- High-performance satellite speaker for use with subwoofers
ការទាញយក
Specifications
| ទំហំ | |
|
|
991 KB |
Brochures
| ទំហំ | |
|
|
991 KB |
|
|
2.54 MB |
|
|
8.45 MB |
កំណែ B,
បានធ្វើបច្ចុប្បន្នភាព: សីហា 2025
Compliances
| ទំហំ | |
|
|
144 KB |
Images
| ទំហំ | |
|
|
2.37 MB |
|
|
2.14 MB |
Speaker Tunings
| ទំហំ | |
|
|
41.2 KB |
ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។
ផ្នែក និងសេវាកម្ម
លក្ខណៈពិសេស
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 62 Hz – 19 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 95 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 126 dB SPL peak |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in) |
| Net Weight | 16 kg (35 lbs.) |
| Inputs | Parallel Neutrik® Speakon® NL-2 / ¼" phone combo jacks |
| Enclosure | Duraflex coated plywood |
គ្រឿងបន្លាស់
PRX412M-CVR | Padded Cover for PRX412M
រូបភាពធំជាង
Padded Cover for PRX412M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
JBLPOLE-GA | JBL Gas Assist Speaker Pole
រូបភាពធំជាង
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
ឯកសារ
-
JBL pole Gas Assist
[41.6 KB]
-
JBL pole Gas Assist detail
[70.2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
រូបភាពធំជាង
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
ឯកសារ
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36.2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30.5 KB]
-
JBL Tripod Gas Assist Open
[41.7 KB]
-
JBL Tripod Manual Adjust Open
[39.5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
រូបភាពធំជាង
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
ឯកសារ
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
រូបភាពធំជាង
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
ឯកសារ
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40.7 KB]
-
JBL pole Manual Adjust Detail
[87.7 KB]
