JBL Professional 8350

រូបភាពធំជាង

Very High Power Cinema Surround Speaker for Digital Applications

The 8350 Cinema Surround Speaker offers very high power handling, high sensitivity, and extended bass response in a very compact enclosure. The twoway 8350’s reliability and performance features position it as the ideal high power surround for the extended dynamic range required by digital sound formats.

លក្ខណៈពិសេស

60 Hz to 19 kHz Frequency Range
High Sensitivity, 97 dB SPL, 1 W, 1 m (3.3 ft)
High Power Handling Capability: 350 watts continuous pink noise
Convenient mounting design uses JBL QuickMount™, Omnimount® or APC Multimount brackets
Special cabinet shape incorporates 20° angled front baffle
SMPTE/ISO2969 Curve X high frequency de-emphasis
Lightweight, rigid molded enclosure
Input terminals located on top of cabinet for quick access
Uniform horizontal and vertical coverage
THX® Approved

ការទាញយក

Data Sheets

	ទំហំ	បានផ្ទុកឡើង
2516 Quick-Mount Fixed-Angle Bracket for JBL 8320, 8340A and 8350 Loudspeakers បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	697 KB	តុលា 2019

Compliances

	ទំហំ	បានផ្ទុកឡើង
Cinema Sound - Surround Systems Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	86.1 KB	តុលា 2019

Simulation Data

	ទំហំ	បានផ្ទុកឡើង
Ease SPK/DLL Files - Full JBL Pro Line បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2024	21 MB	ឧសភា 2024

Owner's Manuals

	ទំហំ	បានផ្ទុកឡើង
8350 Information បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	336 KB	តុលា 2020

Information documents

	ទំហំ	បានផ្ទុកឡើង
JBL Digital Surround Series Cinema Loudspeakers បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	128 KB	តុលា 2019

Spec Sheets

	ទំហំ	បានផ្ទុកឡើង
8350 Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	336 KB	តុលា 2020

HI-RES IMAGEs

	ទំហំ	បានផ្ទុកឡើង

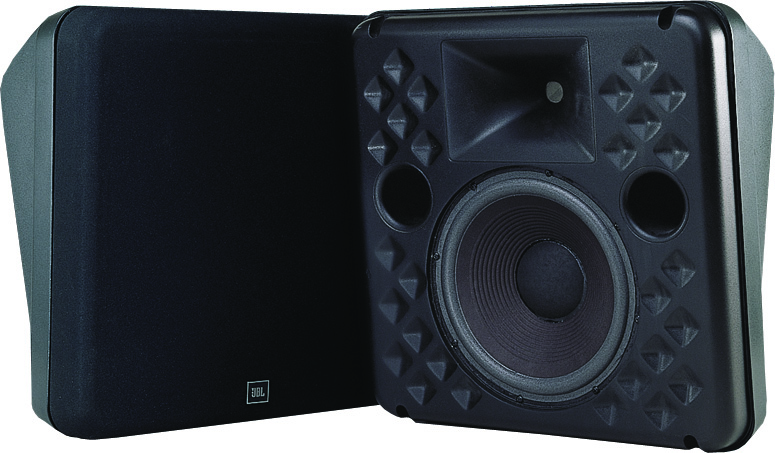

8350 Front Angle បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	767 KB	តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB)	60 Hz - 19 kHz
Frequency Response (±3 dB)	75 Hz - 17 kHz
Power Rating	350 watts continuouspink noise1400 watts peak
Sensitivity	99 dB-SPL half-space / wall-mounted97 dB-SPL free-field
Maximum Peak SPL	130 dB/1m
Nominal Impedance	8 ohms
Horizontal Coverage Angle (-6dB)	100° averaged 400 Hz to 12 kHz
Vertical Coverage Angle (-6dB)	80° averaged 400 Hz to 12 kHz
Directivity Factor (Q)	7 averaged 400 Hz to 12 kHz
Directivity Index (DI)	8.4 dB averaged 400 Hz to 12 kHz
Crossover Frequency	1.4 kHz
High Frequency Contour	ISO2969 Curve X surround contour
Polarity	EIA (Positive voltage to RED terminal gives forward cone motion)
Low Freq Transducer Nominal Diameter	250 mm (10 in)64 mm (2.5 in) voice coil
High Freq Transducer Nominal Diameter	25 mm (1 in) exit38 mm (1.5 in) voice coil
Downward Firing Angle	Nominal 20° when mounted flush on back panel
Enclosure Material	Textured Black H.I.P.S. Plastic
Grille Color	Black
Input Connectors	5-way binding posts
Dimensions (H x W x D)	457 mm x 457 mm x 260 mm(18 in x 18 in x 10.25 in)
Net Weight	9.5 kg (21 lb)
