While the approach to control room monitoring has remained consistent over the years, the audio signal path and production workflow have evolved tremendously. Now more than ever, the industry is breaking out of its pre-dated hardware—surround rooms are gearing up for immersive audio and stereo rooms are stepping up to surround. Smaller rooms are taking on final mixes. And today’s listening environments have changed as well, with work carried out in a broad range of spaces not purpose-built for production. Since hardware and workspace limitations are the norm, the industry needs an innovative approach that can improve the state of monitoring in music, post and broadcast production rooms.

JBL set out to develop a complete next-generation system that takes control room monitoring to the next level, empowering content creators to produce consistently superior output regardless of the spaces where they find themselves, or the formats they are asked to deliver. Answering the call for greater dynamic range, neutral-in-room response and detailed imaging, JBL has introduced the new 7 Series Master Reference Monitors, in both powered and installed models. And the JBL Intonato 24 was developed as the heart of this next-generation monitoring system, designed for seamless integration with JBL 7 series or the myriad of other professional monitors available today.

A Complete System

Intonato 24 pairs with JBL 7 Series studio monitors to create the first complete monitoring system designed for immersive audio production in control rooms of any size. While Intonato was designed as the hub of the new JBL 7 Series installed reference monitor system, the unit can be used with any passive or powered speakers. In addition, the HARMAN BLU link network protocol allows Intonato 24 to be digitally networked with Crown power amplifiers and a wide assortment of system components.

Automated Speaker Calibration for Monitoring Accuracy

Room acoustics can play a dramatic part in what you hear at the mix position. Regardless of the make and model of the speakers, geometry and construction of the room can create acoustic anomalies that lead even the most talented mixers astray. Let’s face it, in troublesome low-frequency areas, the room is in control.

Intonato 24 includes an innovative Automated Speaker Calibration process that “tunes” each speaker to compensate for speaker placement and room acoustics, delivering neutral response to the mix position–even in less-than-ideal work spaces. With an included calibration microphone, Intonato 24 measures and automatically adjusts each speaker in the system, tackling room-related low-frequency issues and precisely matching the level and “time-of-flight” from each speaker to the mix position. The result is a finely-tuned system that takes the guesswork out of mixing. This sophisticated tuning capability alone makes Intonato 24 a compelling upgrade to any mix facility.

Immersive Ready: The Most I/O in Its Class

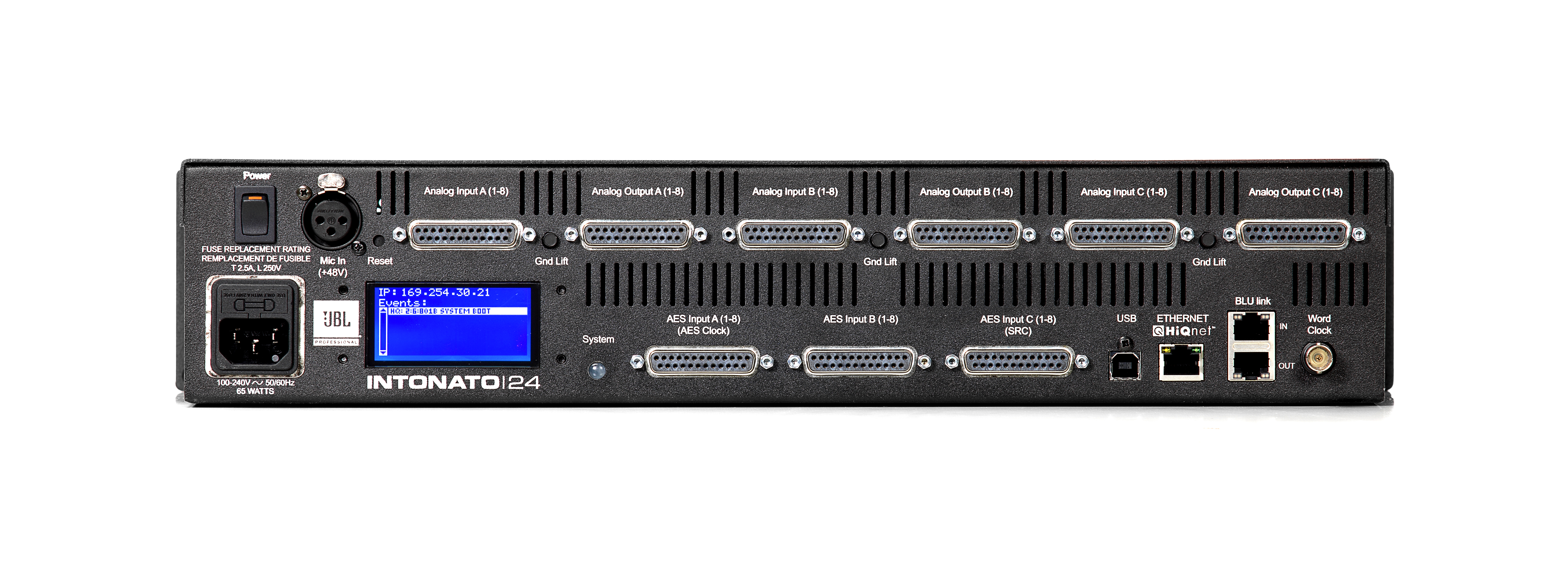

Intonato 24 comes standard with the most I/O in its class and is compatible with nearly every monitoring format, including stereo, 5.1, 7.1 and new immersive formats. With the power to manage monitoring systems of up to 24 speakers, Intonato 24 makes immersive monitoring possible in existing control rooms. Intonato 24 features internal routing and a mixer to provide unprecedented monitoring flexibility. Any combination of up to 24 analog and digital sources can be patched, routed and selectively monitored via any of the connected speaker or headphone systems. You can also create and store customized down-mix configurations.

Sophisticated Subwoofer Integration

With Intonato 24, multiple subwoofers can be connected, tuned, balanced and integrated into your monitoring systems. Up to 4 subwoofers can be assigned as “Bass Management” subs with selectable crossover settings, and the same or different subwoofers can be used to reproduce the LFE (low frequency effects) channel of a soundtrack.

Configuration by Project, Client Workflow

Complete configurations, including speaker setup parameters, EQ, subwoofer settings, input source patching, and down-mix preferences can be stored as “profiles” and “scenes” and instantly recalled (even mid-session) to meet the requirements of specific projects and clients.

Intuitive GUI Control

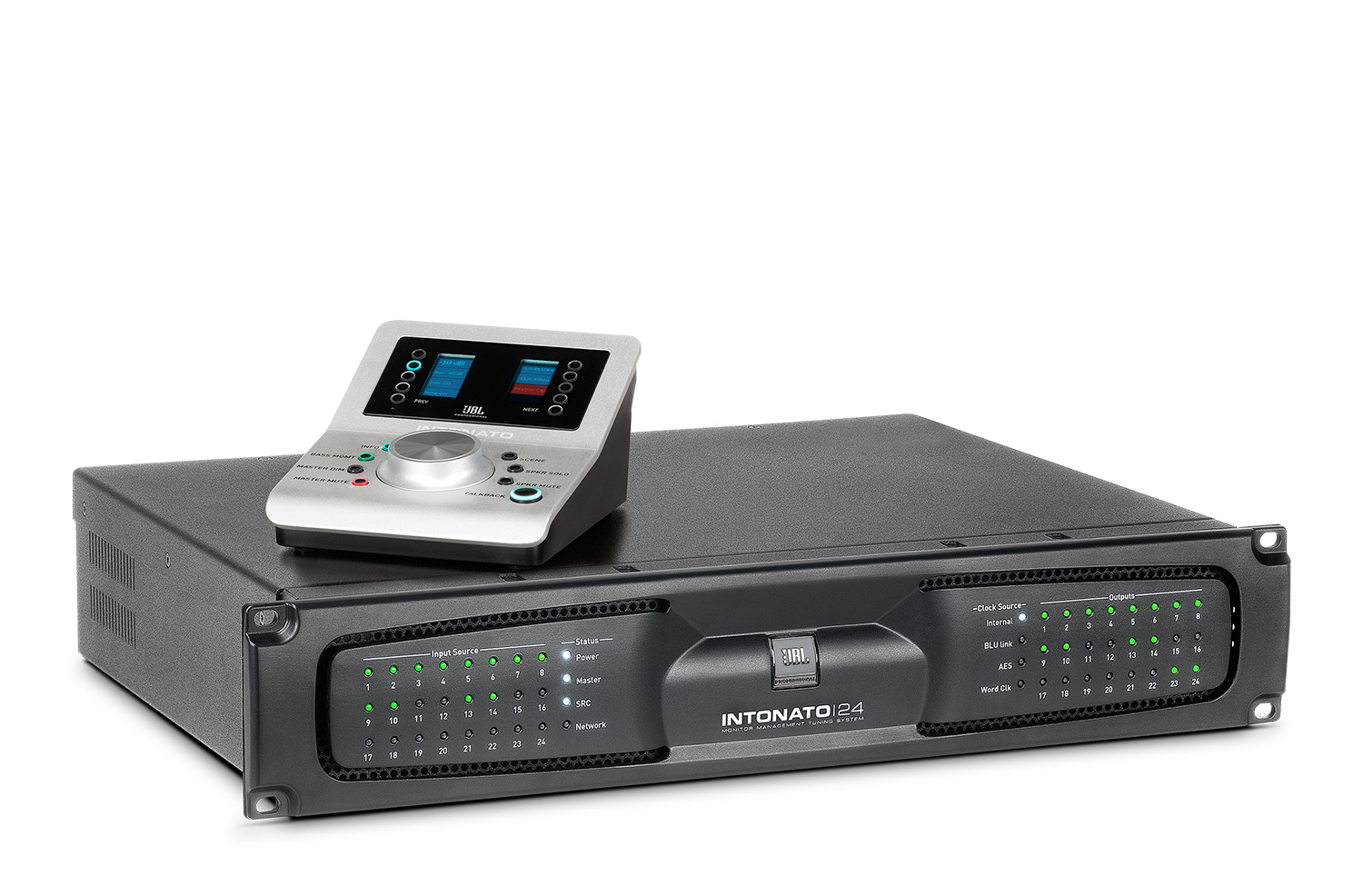

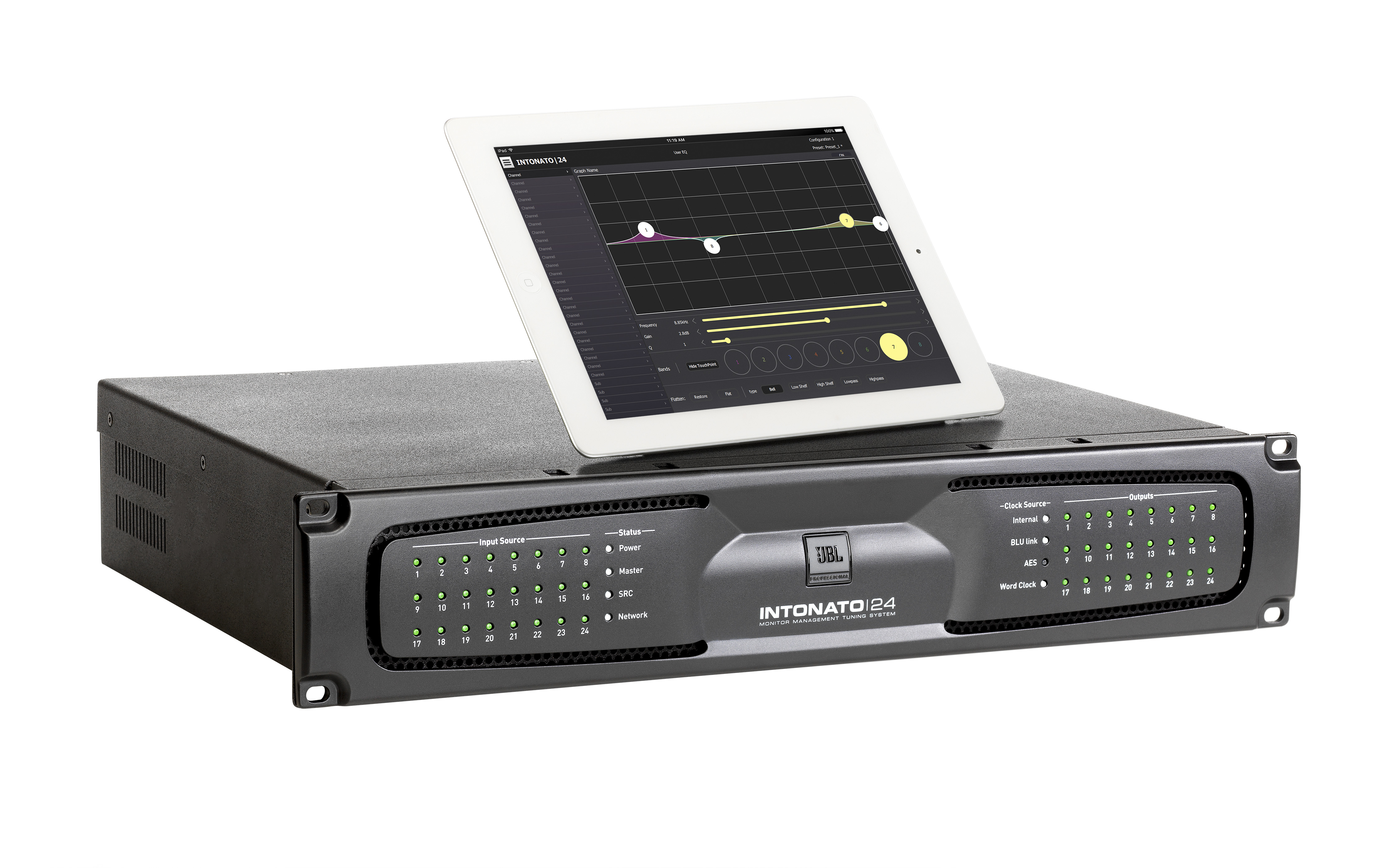

An intuitive graphical user interface (GUI) allows you to control Intonato 24 from Mac, Windows, iOS and Android tablets. The optional Intonato Desktop Controller puts monitor system control at your fingertips, providing elegant control of system volume, recall of user-configured scenes, activation of speaker mutes and solos, and other frequently used features.
