JBL Professional CSS-H30

Gambar Lebih Besar

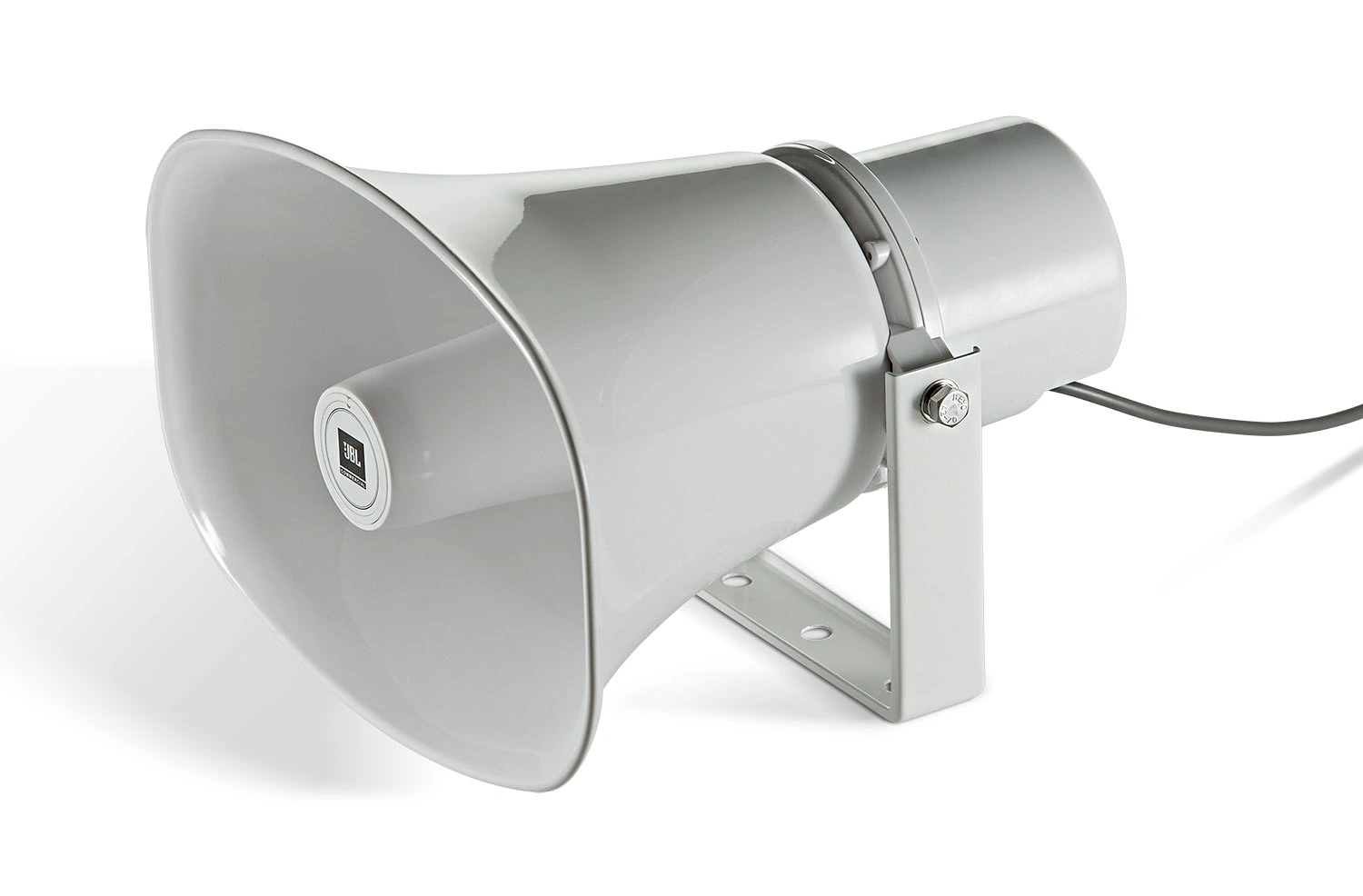

30 Watt Paging Horn

The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protectivesignaling systems.

Fitur

Excellent voice range clarity for announcement and paging.
High sensitivity delivers high sound levels with minimal power amplification.
Focused 50° horizontal by 70° vertical coverage for long throw capability.
Phenolic diaphragm driver for outdoor durability and high reliability.
UL-registered 30-watt multi-tap transformer, with 8 ohm direct bypass.
Built-in high-pass filter enhances reliability by protecting against low frequency damage.
Highly weather-resistant, with stainless steel bracket and hardware.

Applications

Public Access Areas
Warehouses
Factories
Schools
Recreational Facilities
Commercial Buildings
Distribution Centers
Civic Centers
Other Commercial Sound and Protective Signaling Systems

Unduhan

Specifications

	Versi	Ukuran	Diunggah
CSS-H30 Spec Sheet versi 6, diperbarui: Okt 2022	6	464 KB	Okt 2022

Compliances

	Ukuran	Diunggah
CSS Series diperbarui: Okt 2019	141 KB	Okt 2019

Simulation Data

	Versi	Ukuran	Diunggah
Ease SPK/DLL Files - Full JBL Pro Line diperbarui: Mei 2024		21 MB	Mei 2024
JBL Pro ALL CLF Files versi 12-10-21, diperbarui: Mei 2023	12-10-21	24 MB	Mei 2023

Ease Data

	Ukuran	Diunggah
CSS-H30 EASE Data diperbarui: Okt 2020	361 KB	Okt 2020

CLF Files

	Ukuran	Diunggah
CSS-H CLF Files diperbarui: Okt 2020	61,5 KB	Okt 2020

Speaker Tunings

	Versi	Ukuran	Diunggah
Commercial, CBT, and AWC Tunings 220616 versi A, diperbarui: Mei 2023	A	557 KB	Mei 2023

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB)	380 Hz – 6 kHz
Coverage Angle	50°H x 70°V
Included High-Pass Filter	Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q)	15.8 (2 kHz)
Directivity Index (DI)	12 (2 kHz)
Power Rating	30 W (120 W peak), 100 hrs.
Sensitivity (1W, 2.83V@ 1m)	108 dB, ave. 1 kHz – 6 kHz112 dB at 1.4 kHz
Maximum SPL (1m)	123 dB cont ave. (129 dB peak), 1 kHz – 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting
Impedance	30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting
Transformer Taps	70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W
Drivers	38 mm (1.5 in) diameter with phenolic diaphragm
Horn Material	ABS
Mounting Hardware	Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware.
Color	RAL9016 (horn and bracket)
Input Connectors	300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Outdoor Capability	IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency	Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D)	206 x 285 x 287 mm (8.2 x 11.2 x 11.3 in) horn 224 x 285 x 287 mm (8.9 x 11.2 x 11.3 in) including mounting bracket. Depth excludes cable exit.
Net Weight (each)	4.5 lb/2.0 kg
Shipping Weight (ea)	6.0 lb/2.7 kg
Included Accessories	Stainless steel mounting bracket
