IRX115S

15-inch Powered Subwoofer

IRX115S
Gambar Lebih Besar

The JBL IRX115S powered subwoofer, the newest model in the IRX series of versatile, cost-conscious portable P.A.s, extends the low-frequency response of IRX systems down to a room-shaking 35 Hz.

The 15” IRX115S draws from JBL’s top professional touring technologies to deliver superior sound without the guesswork, thanks to custom driver and amplifier designs; tuned, ported enclosure; and built-in crossover and polarity settings. It all adds up to an impressive 128 dB of deep, powerful bass, in a rugged, ultralight cabinet weighing just 65.3 pounds.

The IRX Series offers legendary JBL fidelity, power and ease of use at a fraction of the price and size of comparable systems. The 8-inch IRX108BT and the 12-inch IRX112BT are fully loaded with features that make it easy to dial in incredible sound in an instant—from real-world EQ presets and dbx DriveRack automatic feedback suppression to Bluetooth streaming and one-touch ducking.

Budget-conscious musicians, DJs, presenters and fitness instructors can count on versatile, full-featured JBL IRX Series portable P.A.s to deliver stunning sound, no matter their experience level.

Be Heard, Loud and Clear

The IRX115S leverages more than 70 years of JBL speaker innovation to deliver superior frequency response, sound pressure levels and sheer power. Inside, a powerful 15” woofer with 3” voicecoil delivers low-frequency coverage down to 35 Hz; a high-efficiency amp helps protect the woofer and driver while ensuring top-level acoustic performance. Selectable 80 Hz, 100 Hz and 120 Hz crossover points smooth out system response, especially when used with IRX100 Series loudspeakers; a tuned port reduces woofer noise.

Portable and Durable

The tough, lightweight IRX115S is engineered to outperform larger boxes in a compact form factor weighing just 65.3 pounds. Its durable MDF enclosure features a tight-gauge, reinforced honeycomb bevel pattern that offers rugged protection without compromising acoustic performance. Transport is easy, thanks to thoughtfully designed ergonomic handles. And it’s all verified by JBL’s legendary 100-hour stress test.

Great Sound, Made Simple

With the IRX Series, perfect sound is just a button push away. Simple settings adjust crossover and polarity to optimize system sound in any space. Pair the IRX115S with IRX Series powered loudspeakers and access Bluetooth audio streaming, dbx automatic feedback suppression, ducking and EQ presets to sound your best in any space.

Fitur

  • Powerful 15” woofer with 3” voicecoil generates smooth, detailed, deep LF response
  • Selectable 80 Hz, 100 Hz and 120 Hz crossover points are optimized for JBL IRX Series loudspeakers
  • Frequency response: 35 Hz – 147 Hz (-10 dB)
  • Max SPL: 128 dB
  • Weight: 65.3 pounds
  • Power rating: 1,300W
  • I/Os: 2 XLR Combo, 2 XLR out
  • Polarity switch optimizes system response
  • Lightweight, road-tested MDF cabinet
  • Ported enclosure enhances output and reduces woofer noise
  • Ergonomic handles make transport easy
  • Reinforced grille offers rugged protection without compromising acoustic performance
  • Built-in standard pole mount allows integration with IRX108BT, IRX112BT and other loudspeakers

Unduhan

Specifications
  Ukuran Diunggah
file type icon IRX115S Spec Sheet
diperbarui: Okt 2020
154 KB Okt 2020
Brochures
  Versi Bahasa Ukuran Diunggah
file type icon JBL 2025 PPA Brochure
en versi B, diperbarui: Agu 2025
en  8,45 MB Agu 2025
User Guides
  Bahasa Ukuran Diunggah
file type icon IRX115S User Guide
en diperbarui: Nov 2020
en  7,15 MB Nov 2020
file type icon IRX115S User Guide
de diperbarui: Okt 2020
de  4,8 MB Okt 2020
file type icon IRX115S User Guide
es diperbarui: Okt 2020
es  4,79 MB Okt 2020
file type icon IRX115S User Guide
fr diperbarui: Okt 2020
fr  4,81 MB Okt 2020
file type icon IRX115S User Guide
it diperbarui: Okt 2020
it  4,79 MB Okt 2020
file type icon IRX115S User Guide
pt diperbarui: Okt 2020
pt  4,8 MB Okt 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Aksesori

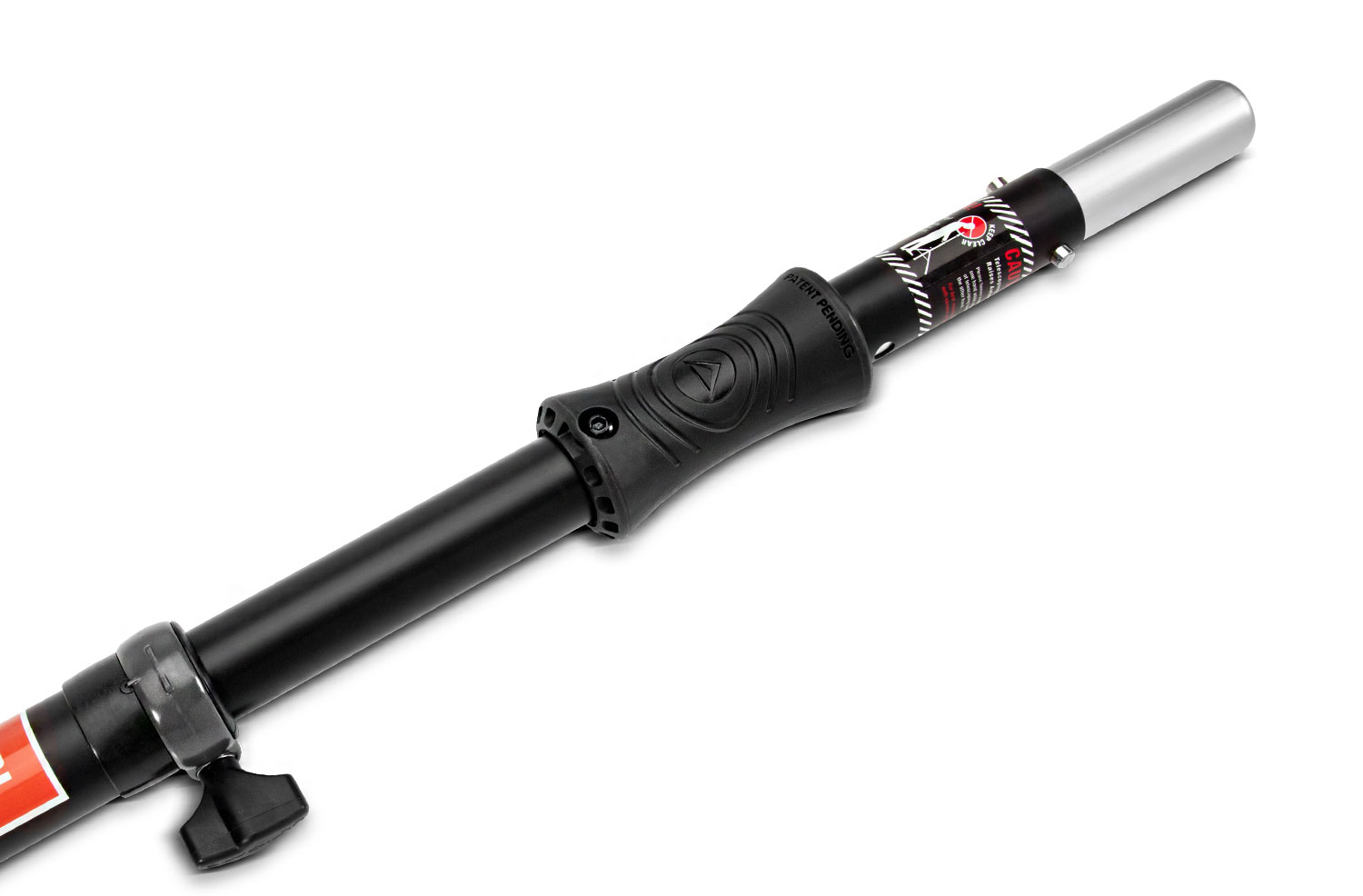

JBLPOLE-GA | Tiang Speaker Bertenaga Gas JBL
JBLPOLE-GA Main photo
Gambar Lebih Besar
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Tiang Speaker dengan Bantuan Gas dan Ujung Bawah Berulir M20, Tiang 38mm & Adaptor 35mm. JBLPOLE-GA adalah tiang speaker paling mudah digunakan berkat shock pneumatik internal yang secara harfiah mengangkat speaker untuk Anda. Shock internal tiang ini dengan mudah mengangkat speaker yang beratnya 35 lbs atau kurang tanpa memerlukan usaha dari pengguna.

  • Naikkan dan Turunkan Speaker dengan Mudah!
  • Tombol "Z" yang Kuat dan Mudah Digunakan
  • Tiang yang Sangat Kokoh
  • Penopang Tiang Berulir M20
  • Cocok dengan sebagian besar subwoofer dengan ulir tiang standar M20 (JBL PRX, VRX, STX dan SRX818)- Silakan lihat produk individual

Dokumentasi
JBLPOLE-MA | JBL Tiang Speaker Penyesuaian Manual
JBLPOLE-MA Main photo
Gambar Lebih Besar
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Tiang Speaker Manual Adjust dengan Ujung Bawah Berulir M20, Tiang 38mm & 35mm. JBLPOLE-MA dilengkapi dengan kerah penyesuaian ketinggian luar biasa yang menampilkan knob "Z" ergonomis yang memberikan penyesuaian yang nyaman. Hasil pemasangan terkuat, kerah penyesuaian ketinggian mencegah masalah pengetatan berlebihan dan kerusakan yang terkait dengan semua desain plastik.

  • Ringan
  • Kerah die-cast logam
  • Soket berulir M20
  • Cocok dengan semua subwoofer dengan ulir pole standar M20 (JBL PRX, VRX, STX dan SRX818)- Silakan merujuk ke produk individual untuk konfirmasi

Dokumentasi
