EON612
Tidak diproduksi

12" Two-Way Multipurpose Self-Powered Sound Reinforcement

EON612
Gambar Lebih Besar

12" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



Fitur

  • Purposeful Product Design
  • JBL Waveguide Technology
  • Bluetooth Integration


Ulasan

“Given the performance of the 612, if you’re in the market for a high-quality portable PA for small to medium venues at around this price point, the new JBL EON 600 series are loudspeakers that you really should be auditioning.” —Guitar Interactive Magazine/p>

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

Unduhan

Data Sheets
  Ukuran Diunggah
file type icon EON 612 Spec Sheet
diperbarui: Okt 2019
2,86 MB Okt 2019
file type icon EON612 DataSheet
diperbarui: Jul 2019
2,04 MB Jul 2019
Specifications
  Ukuran Diunggah
file type icon EON612 Spec Sheet
diperbarui: Jul 2019
2,86 MB Jul 2019
Brochures
  Ukuran Diunggah
file type icon Portable Sound Full Line 2015 Catalog
diperbarui: Okt 2020
2,54 MB Okt 2020
Compliances
  Ukuran Diunggah
file type icon EON G4 Series - EU-Declaration of Conformity (DoC)
diperbarui: Jan 2020
699 KB Jan 2020
file type icon EON G4 Series - Declaration of Conformity
diperbarui: Okt 2020
154 KB Okt 2020
Software
  Ukuran Diunggah
iOS download icon EON Connect
dirilis: Agu 2023
Agu 2023
Android download icon EON Connect
dirilis: Agu 2023
Agu 2023
Simulation Data
  Ukuran Diunggah
file type icon Ease SPK/DLL Files - Full JBL Pro Line
diperbarui: Mei 2024
21 MB Mei 2024
Images
  Ukuran Diunggah

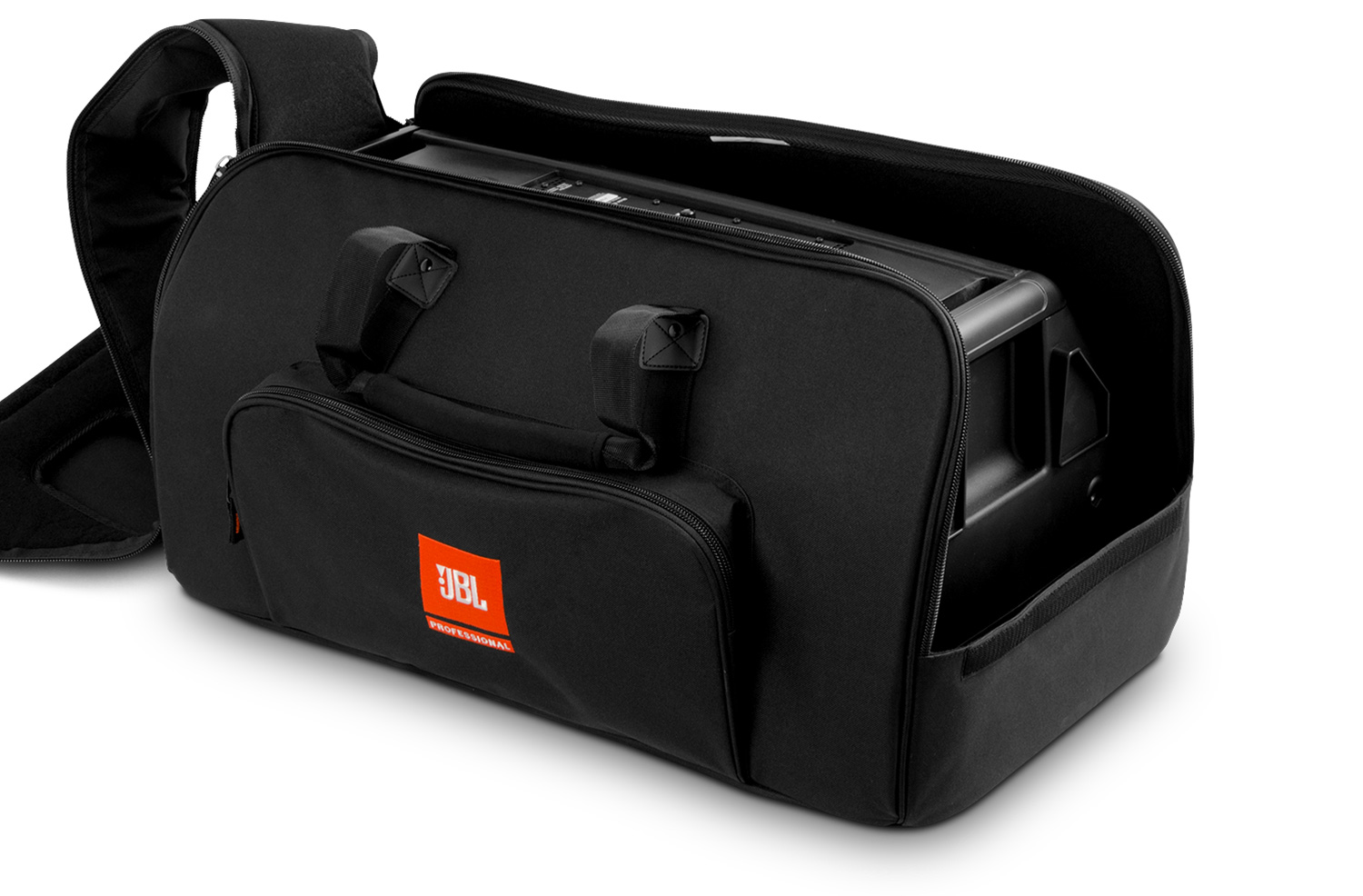

file type icon EON612 Carry Bag Open Hi Res Image
diperbarui: Okt 2020
239 KB Okt 2020

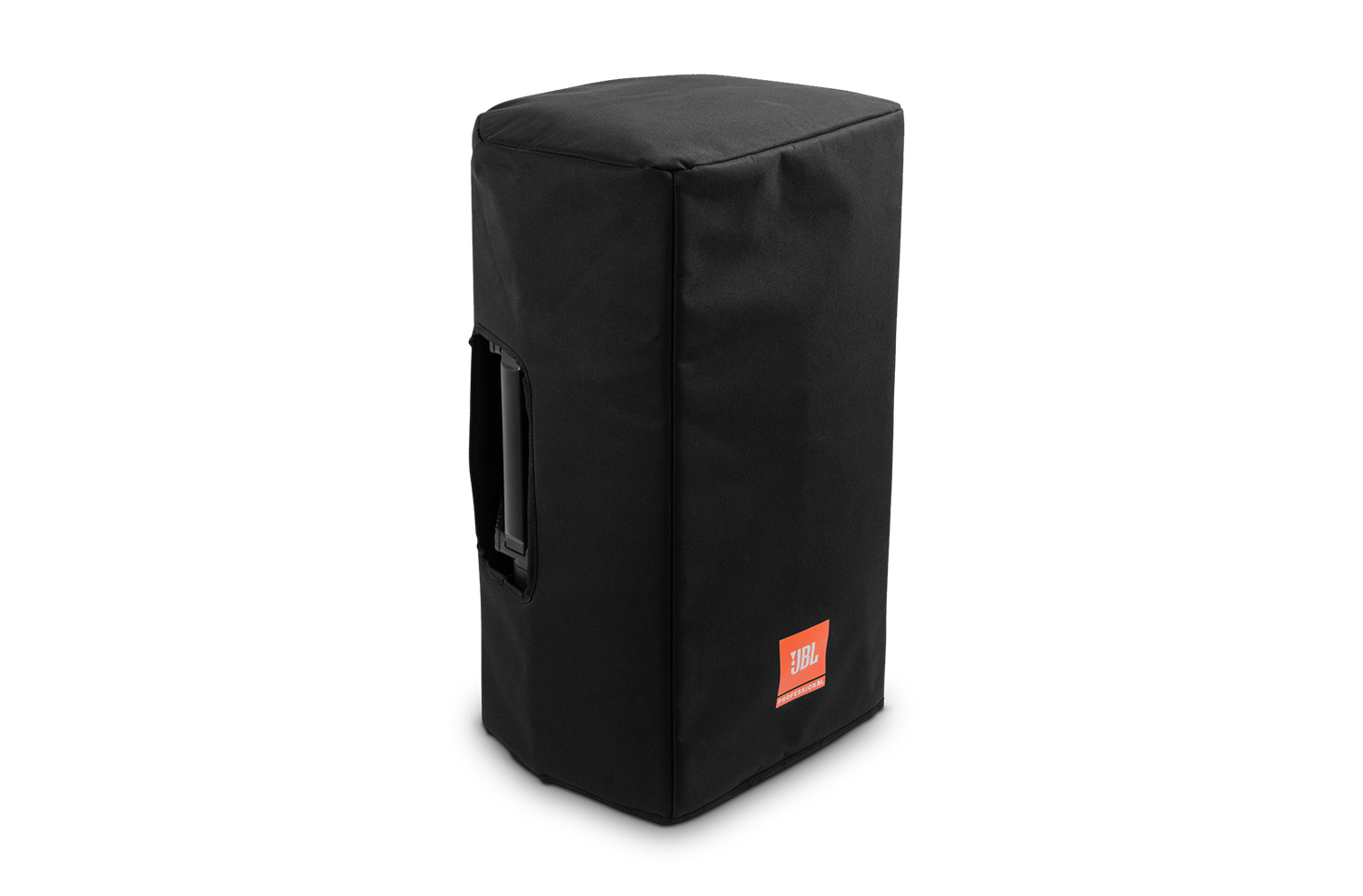

file type icon EON612 Cover Angle Hi Res Image
diperbarui: Okt 2020
102 KB Okt 2020

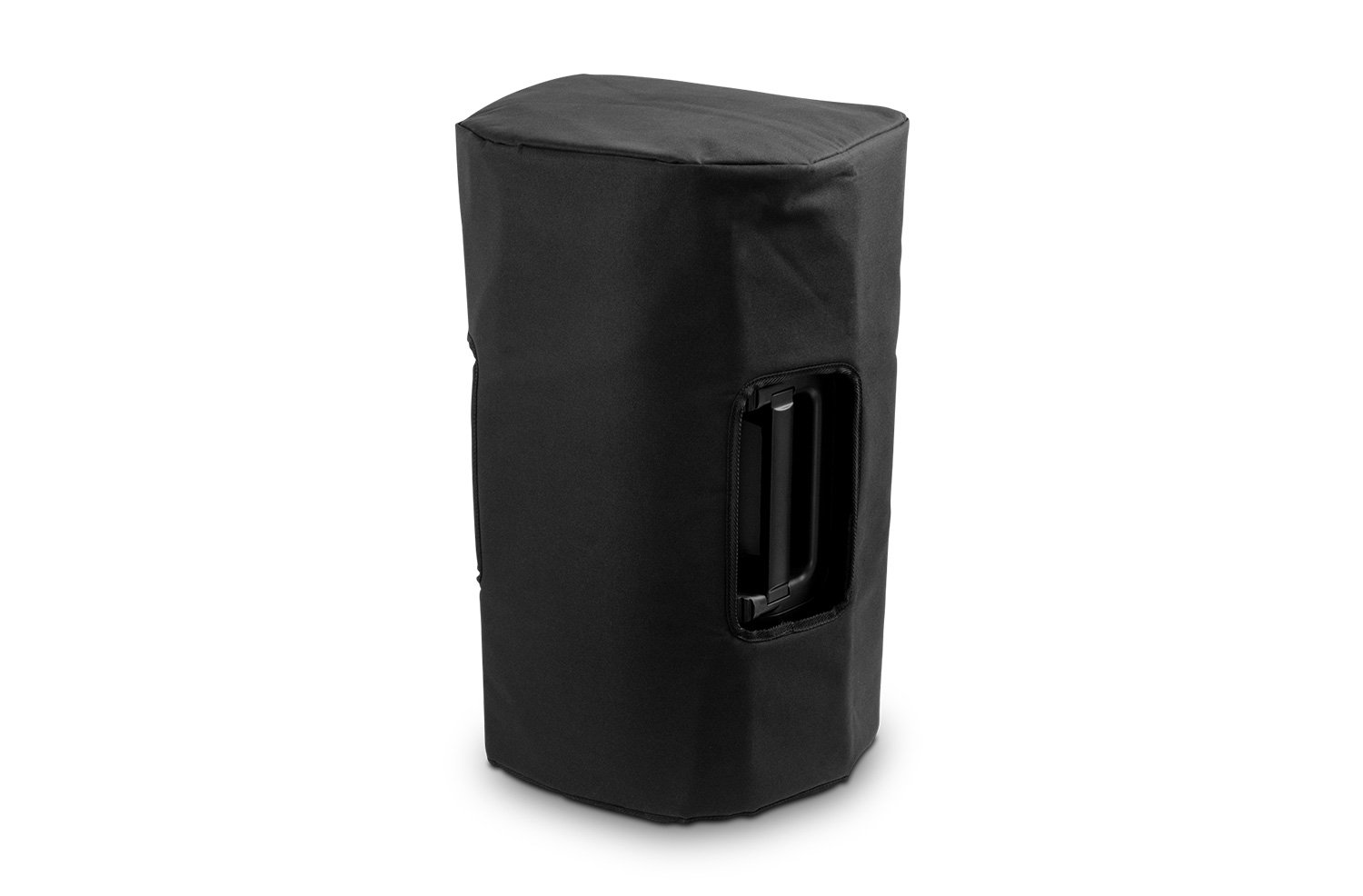

file type icon EON612 Cover Back Hi Res Image
diperbarui: Okt 2020
111 KB Okt 2020

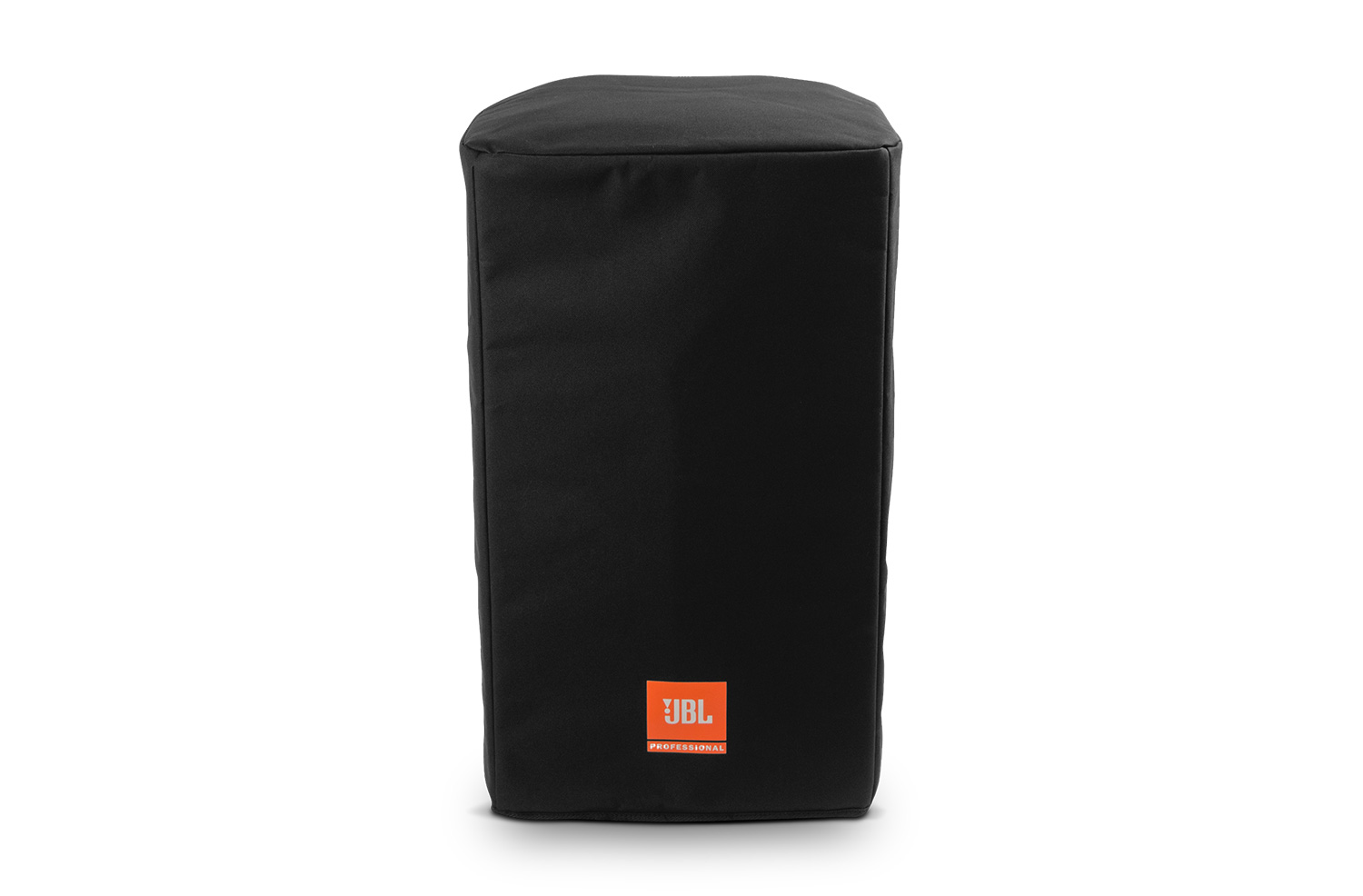

file type icon EON612 Cover Front Hi Res Image
diperbarui: Okt 2020
96,9 KB Okt 2020

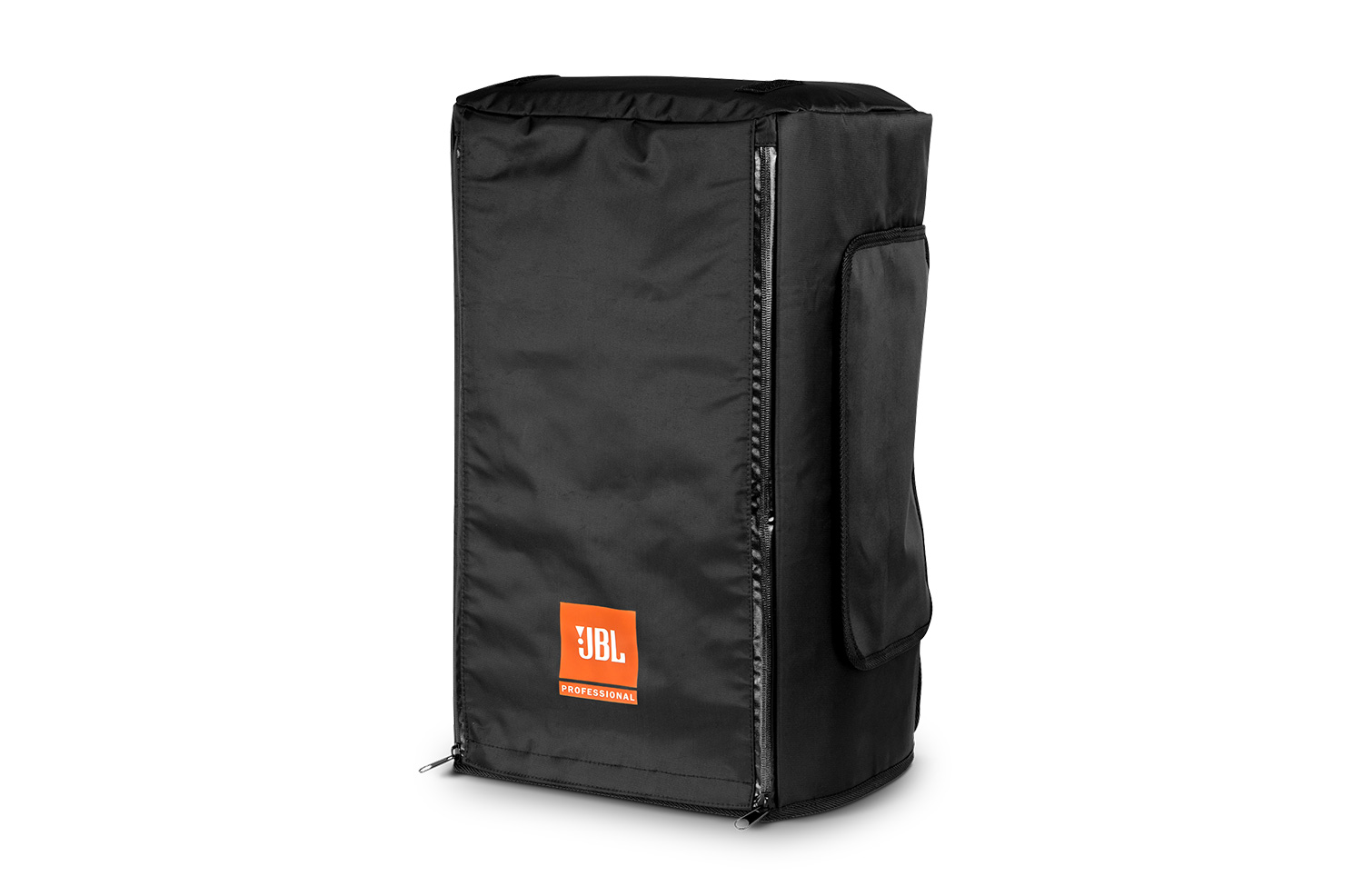

file type icon EON612 WR Cover Angle Hi Res Image
diperbarui: Okt 2020
143 KB Okt 2020

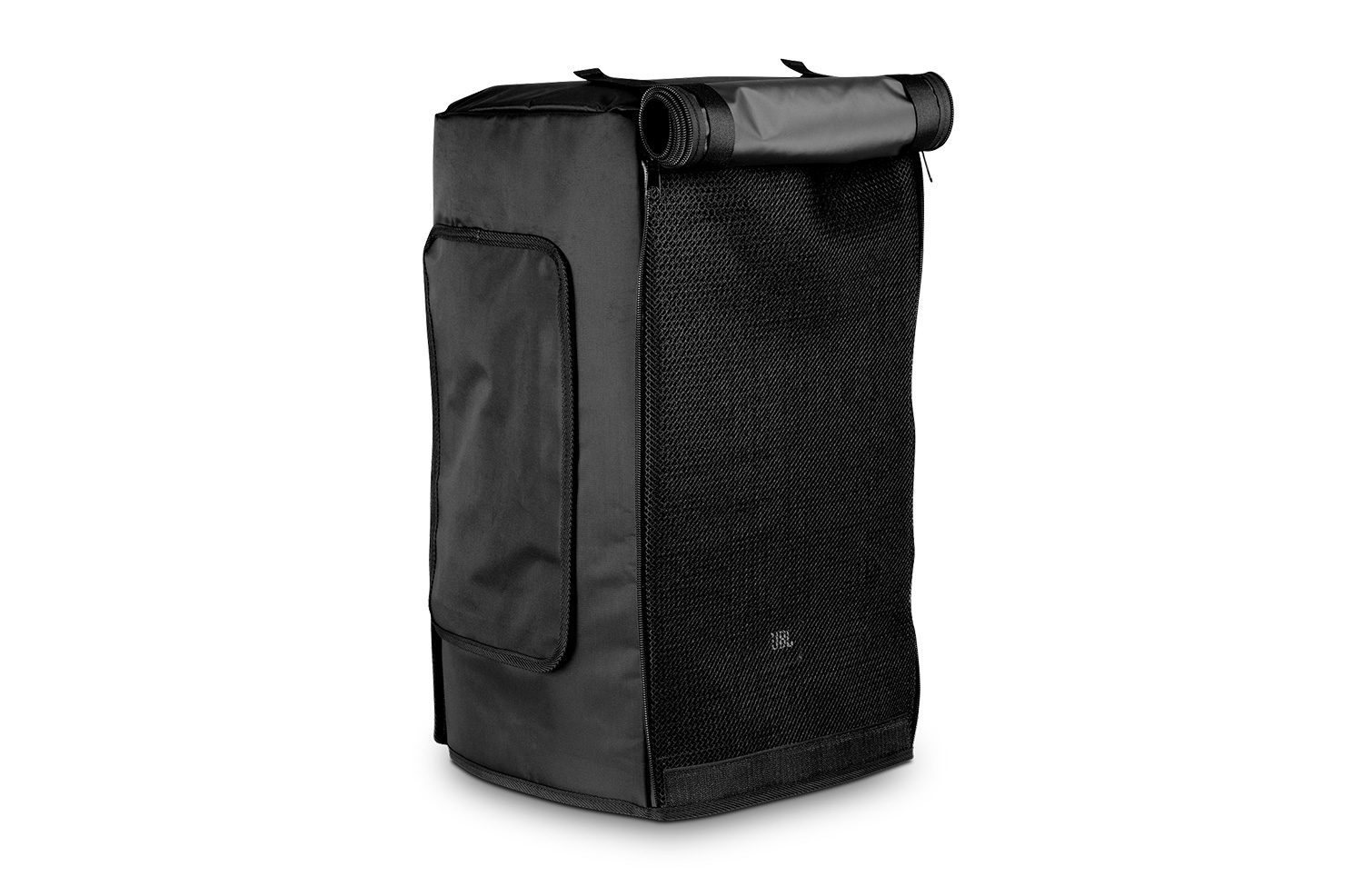

file type icon EON612 WR Cover Open Hi Res Image
diperbarui: Okt 2020
217 KB Okt 2020

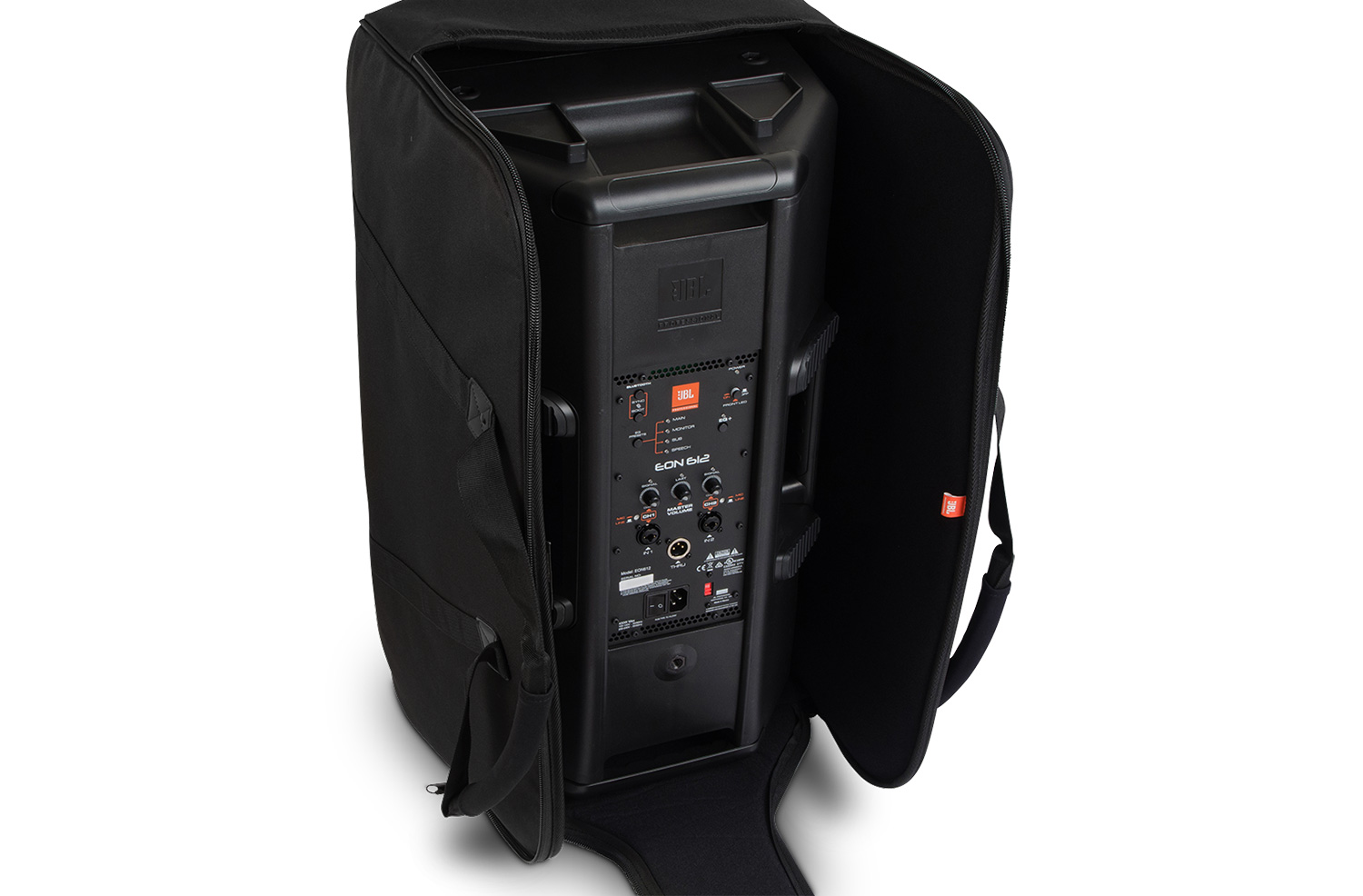

file type icon EON612 Carry Bag On End Open Hi Res Image
diperbarui: Okt 2020
170 KB Okt 2020

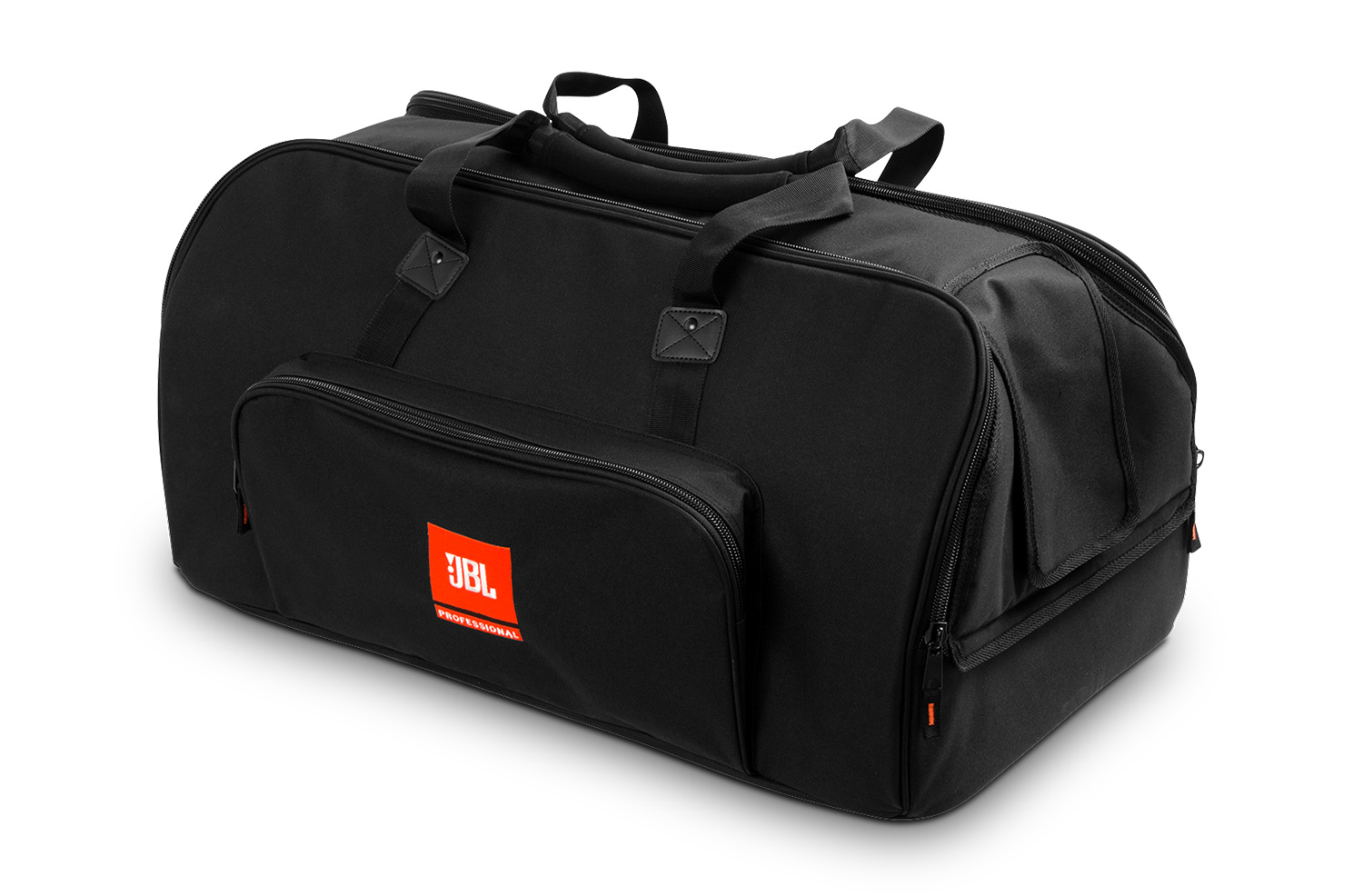

file type icon EON612 Carry Bag Angle Hi Res Image
diperbarui: Okt 2020
237 KB Okt 2020

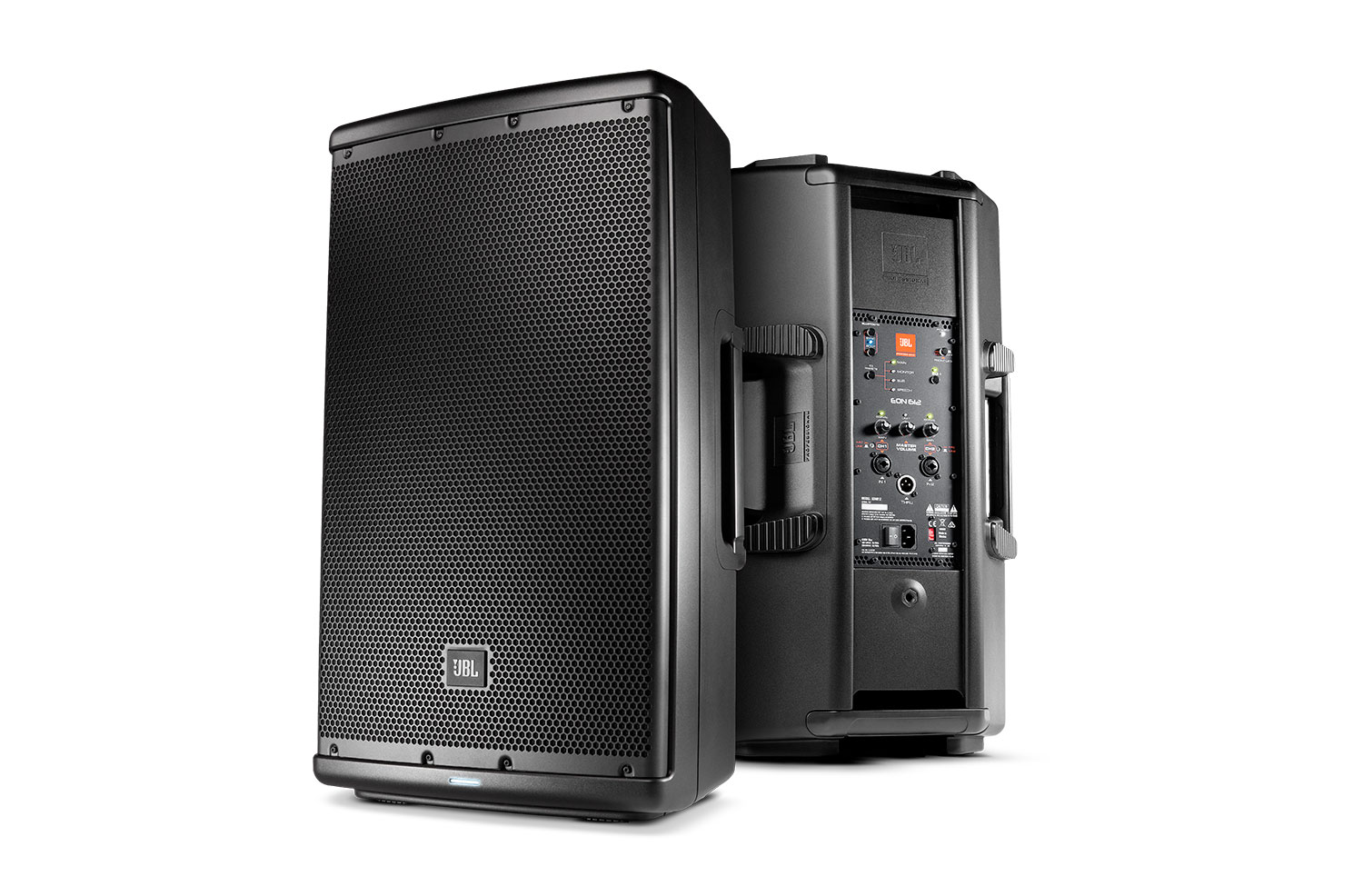

file type icon EON612 Hero Back Front
diperbarui: Jul 2019
209 KB Jul 2019

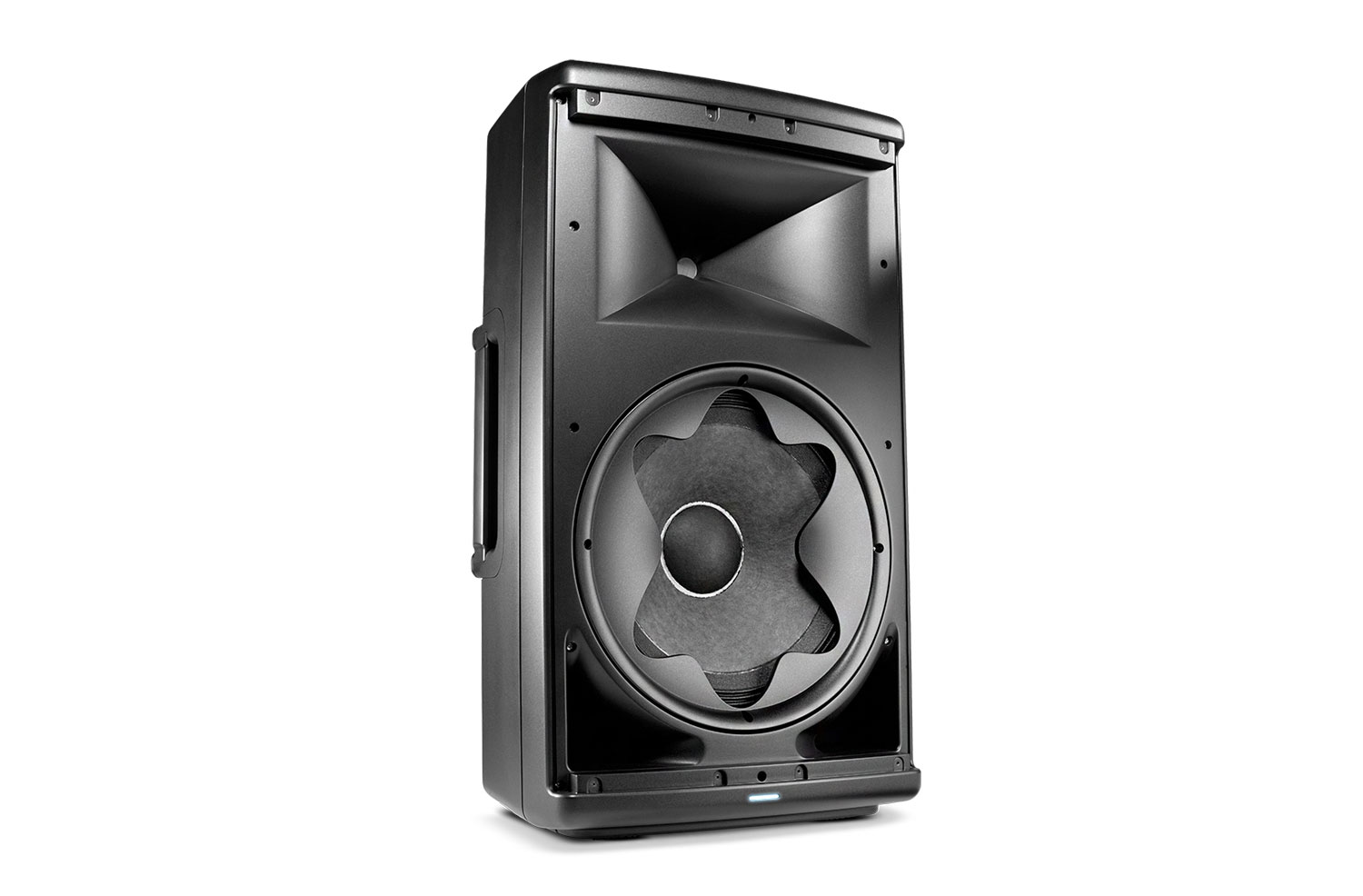

file type icon EON612 Hero No Grill
diperbarui: Jul 2019
95,6 KB Jul 2019

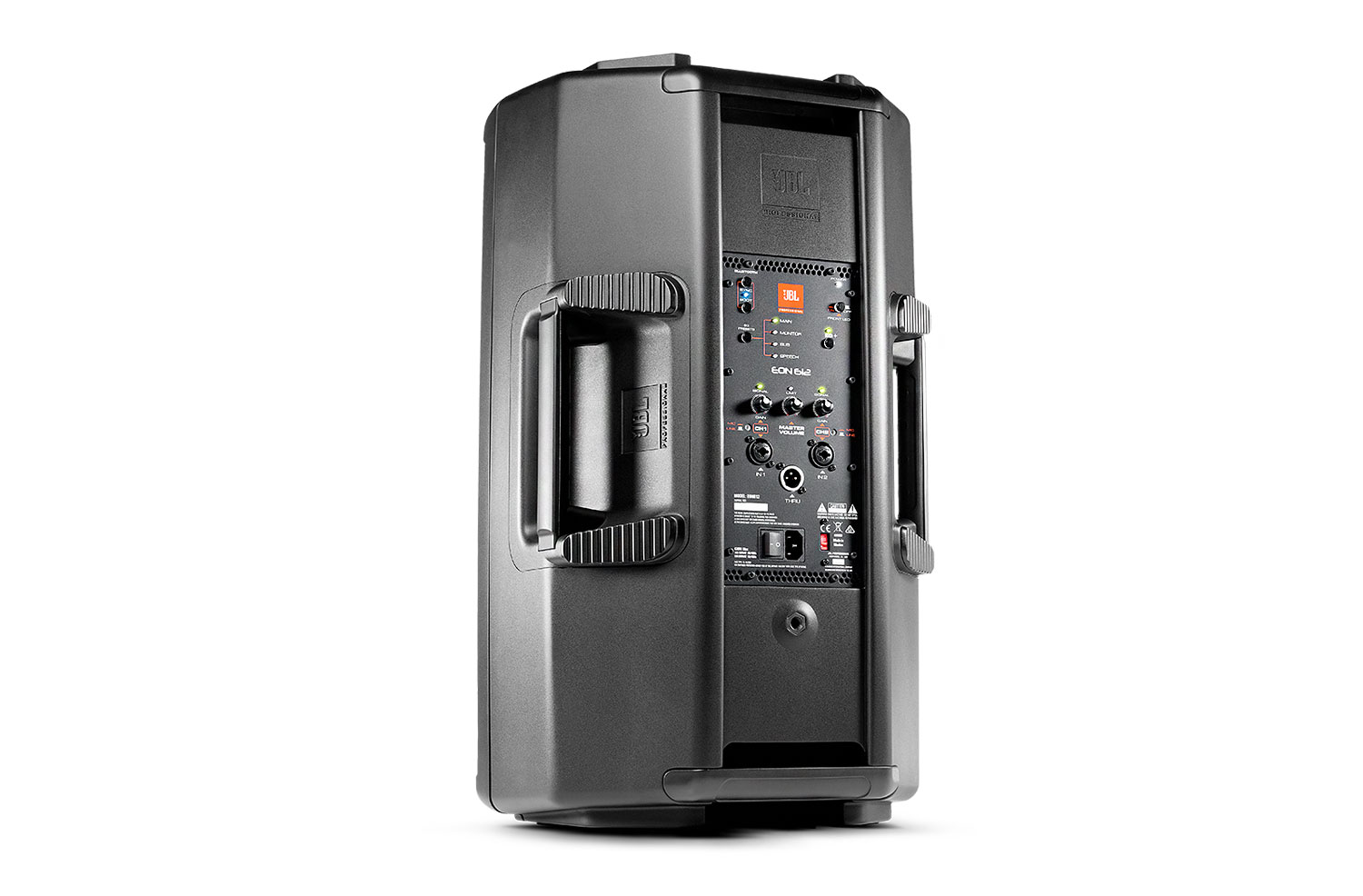

file type icon EON612 Back
diperbarui: Jul 2019
125 KB Jul 2019

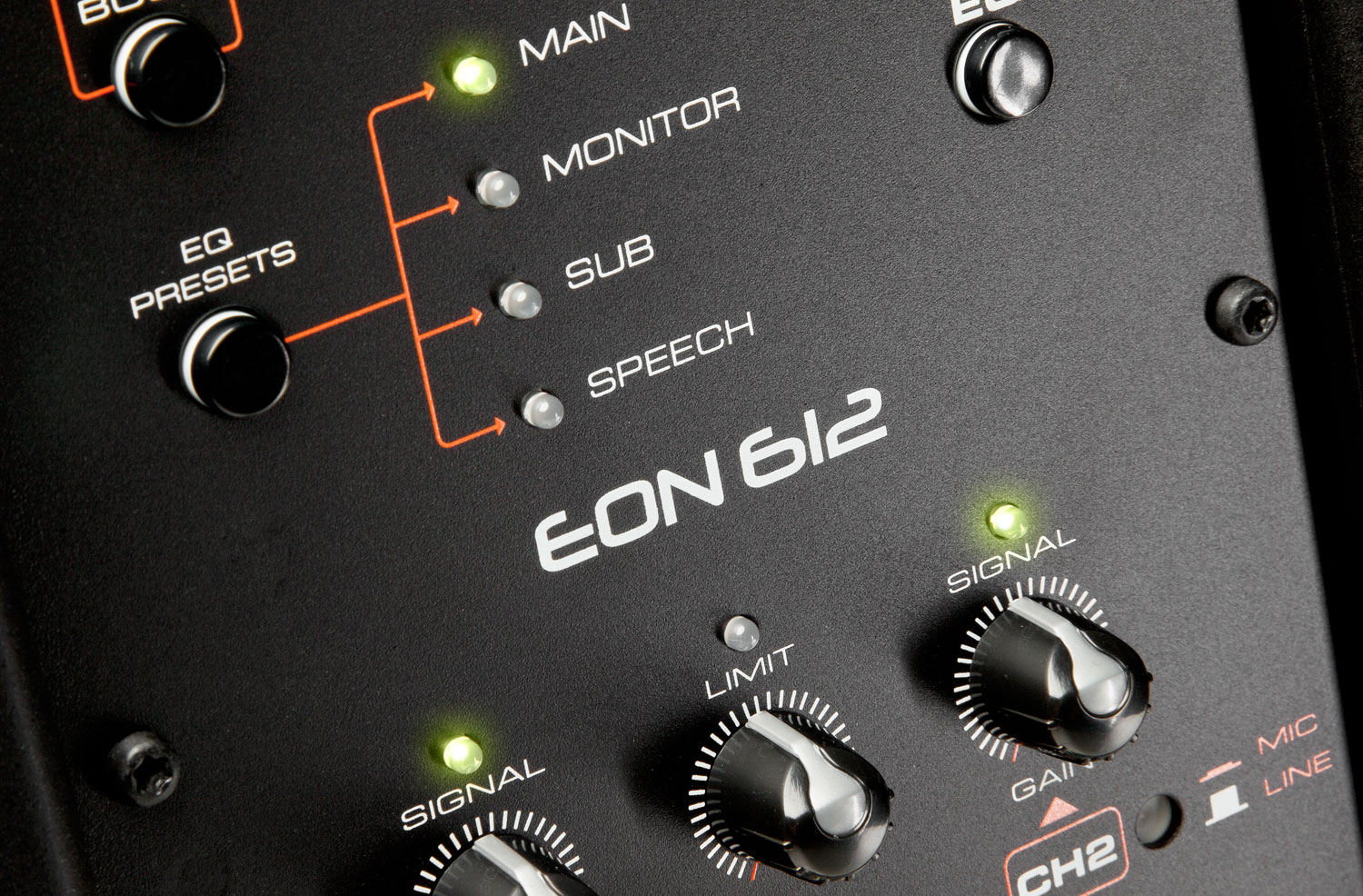

file type icon EON612 Back Panel
diperbarui: Jul 2019
377 KB Jul 2019

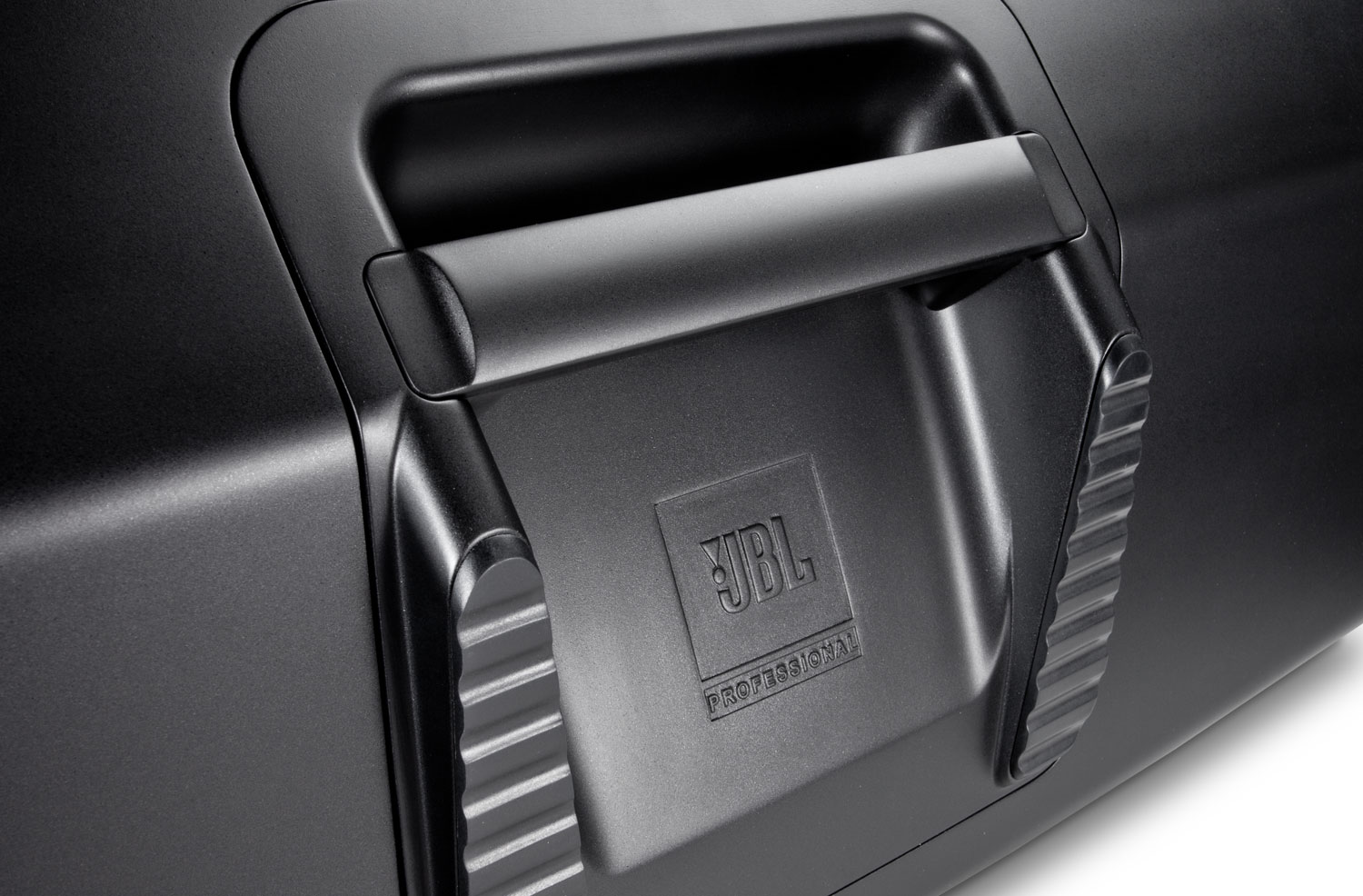

file type icon EON612 Handle
diperbarui: Jul 2019
214 KB Jul 2019
User Guides
  Versi Bahasa Ukuran Diunggah
file type icon EON600 Connect User Guide
diperbarui: Okt 2020
    829 KB Okt 2020
file type icon EON600 Connect User Guide - Spanish
es diperbarui: Okt 2020
  es  3,52 MB Okt 2020
file type icon EON600 Connect User Guide - German
de diperbarui: Okt 2020
  de  3,52 MB Okt 2020
file type icon EON600 Connect User Guide - French
fr diperbarui: Okt 2020
  fr  3,52 MB Okt 2020
file type icon EON600 Users Guide
versi B, diperbarui: Nov 2020
B    3,85 MB Nov 2020

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

System Type Self powered 12", two-way, bass-reflex
Max SPL Output 126 dB
Frequency Range (-10dB) 48 Hz - 20 kHz
Frequency Response (±3 dB) 57 Hz - 20 kHz
Coverage Pattern 100° x 60°
Amplifier Design Class D
Power Rating 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D) 664mm x 380mm x 316mm (26.14in x 14.96in x 12.44in)
Net Weight 14.96 kg (33 lbs)
Mic Inputs 3 Parametric EQs + Hi & Lo Shelf
Phantom Power No
EQ 3 Parametric EQs + Hi & Lo Shelf
Effects DSP Presets
Inputs 2 x Balanced XLR-1/4” combination inputs
Outputs 1 x male XLR loop thru out
Enclosure Polypropylene

Aksesori

EON612-BAG | Deluxe Padded Cover for the EON612
EON612-BAG Main photo
Gambar Lebih Besar
EON612-BAG detail thumbnail #1 EON612-BAG detail thumbnail #2 EON612-BAG detail thumbnail #3 EON612-BAG detail thumbnail #4

Tas Jinjing Deluxe dengan Bantalan 10mm & Ritsleting Akses Ganda. Dilengkapi Dua Gagang Jinjing Tugas Berat, Penutup Akses Gagang EON612, dan Saku Aksesori. Cocok untuk EON612.

EON612-CVR-WX | Convertible EON612 Cover
EON612-CVR-WX Main photo
Gambar Lebih Besar
EON612-CVR-WX detail thumbnail #1 EON612-CVR-WX detail thumbnail #2 EON612-CVR-WX detail thumbnail #3 EON612-CVR-WX detail thumbnail #4

Penutup Konvertibel untuk EON612. Memungkinkan Fungsionalitas Penuh Speaker saat Berada di dalam Penutup Pelindung. Penutup Depan Terbuka untuk Menampilkan Loudspeaker, Akses Penuh ke Input Belakang & Pegangan Angkat.

EON612-CVR | Sarung Pelindung Berlapis Busa Deluxe untuk EON612
EON612-CVR Main photo
Gambar Lebih Besar
EON612-CVR detail thumbnail #1 EON612-CVR detail thumbnail #2 EON612-CVR detail thumbnail #3

Deluxe padded cover for EON612. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Gambar Lebih Besar
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Penopang Speaker Tripod Aluminium dengan Bantuan Angkat dan Adaptor Speaker Terintegrasi. JBLTRIPOD-GA adalah penopang speaker yang sangat mudah digunakan berkat shock pneumatik internal yang secara harfiah mengangkat speaker untuk Anda. Shock internal penopang dengan mudah mengangkat speaker yang beratnya 35 lbs atau kurang tanpa usaha dari pengguna.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentasi
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Gambar Lebih Besar
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Dudukan Speaker Tripod Aluminium dengan Pin Pengunci Aman dan Kapasitas Beban 150 lbs. Untuk membantu Anda mengangkat speaker, kami telah menambahkan Lift Ring yang tahan lama pada tabung teleskop sebagai tumpuan dorong bagi tangan atas Anda saat menaikkan speaker ke ketinggian yang diinginkan.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentasi
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Gambar Lebih Besar
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentasi
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Gambar Lebih Besar
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Tiang Speaker Manual Adjust dengan Ujung Bawah Berulir M20, Tiang 38mm & 35mm. JBLPOLE-MA dilengkapi dengan kerah penyesuaian ketinggian luar biasa yang menampilkan knob "Z" ergonomis yang memberikan penyesuaian yang nyaman. Hasil pemasangan terkuat, kerah penyesuaian ketinggian mencegah masalah pengetatan berlebihan dan kerusakan yang terkait dengan semua desain plastik.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentasi
