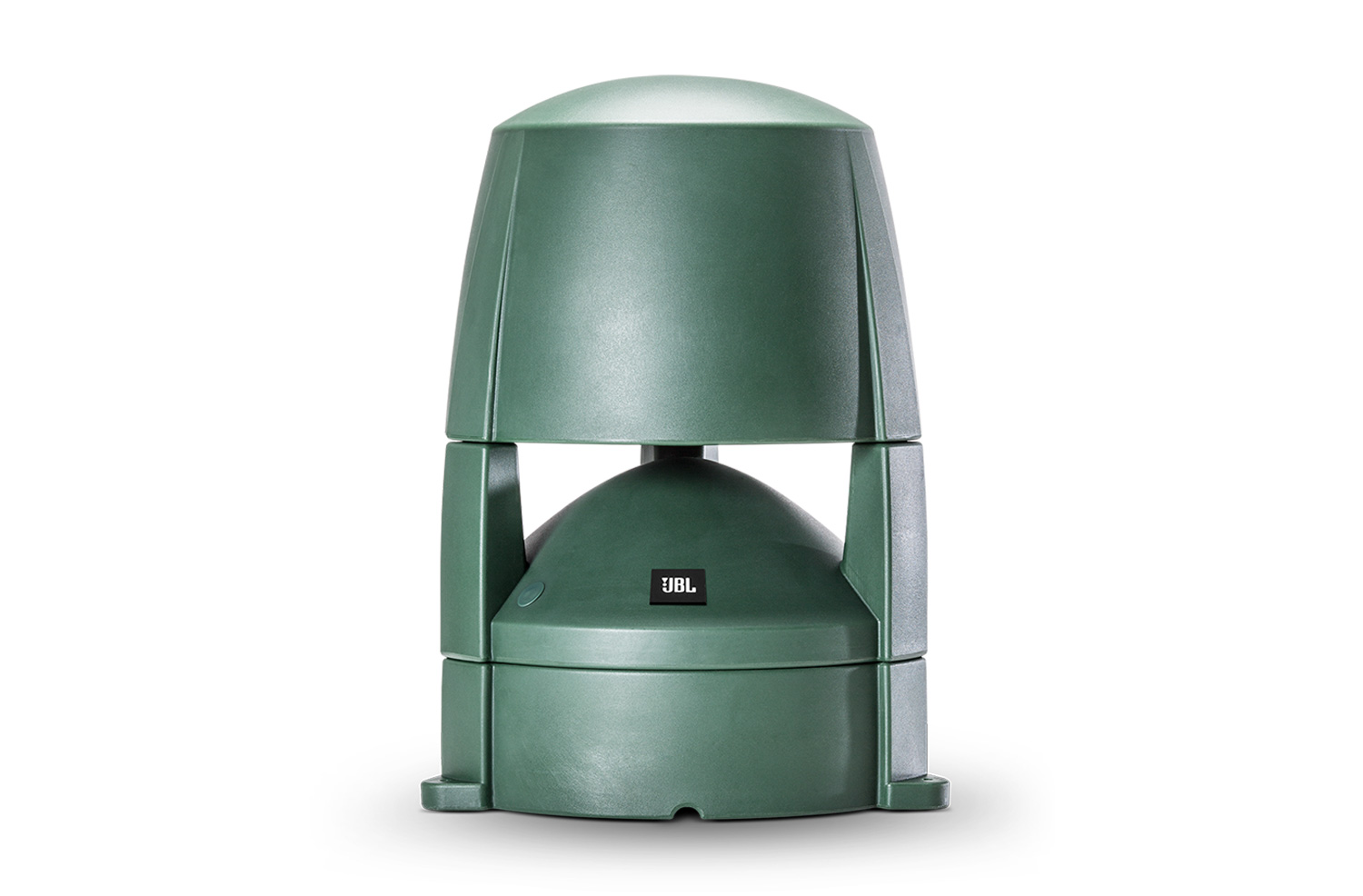

JBL Professional Control 88M

Gambar Lebih Besar

Speaker Landscape Coaxial Jamur 8 Inci (200mm) Dua Arah

Dirancang untuk aplikasi luar ruangan, speaker Landscape seri Control 80 yang sangat tahan cuaca memberikan kualitas suara full-range yang luar biasa dan jangkauan 360 derajat. Dirancang untuk dipasang di atas atau di dalam tanah, speaker Landscape seri Control 80 dapat digunakan dalam berbagai aplikasi termasuk mal perbelanjaan, taman hiburan, venue olahraga, hotel, kasino, resor, restoran, tempat perhotelan dan rekreasi, pintu masuk, dan di mana pun speaker landscape musik berkualitas tinggi dan/atau paging diperlukan. Desainnya yang kompak membuat speaker tidak mencolok dan mudah menyatu dengan lingkungannya. Enclosure polietilen yang kuat tahan terhadap kerusakan dari peralatan perawatan rumput dan elemen, serta warna enclosure menyebar di seluruh material sehingga speaker akan mempertahankan warna bahkan ketika tergores atau terseret.

Fitur

Komponen:
• Driver 8" tahan cuaca tinggi
• Tweeter soft-dome 1" tahan cuaca tinggi
Penanganan Daya Pink Noise 120W (program 240W) dalam pengaturan 8Ώ langsung, ditambah transformer multi-tap 70V/100V 60W bawaan
Enklosur polietilen tahan cuaca tinggi yang kokoh
Ruang tengah yang sepenuhnya terisolasi untuk perlindungan kabel
Karakter suara fidelitas tinggi dengan rentang frekuensi luas 47Hz - 16kHz

Unduhan

Specifications

	Ukuran	Diunggah
Control 88M Spec Sheet diperbarui: Apr 2019	2,36 MB	Apr 2019

Brochures

	Versi	Bahasa	Ukuran	Diunggah
Control Contractor Brochure (2025) versi A, diperbarui: Mar 2026	A		23 MB	Mar 2026
Control Contractor Brochure (2024) versi D, diperbarui: Feb 2024	D		14 MB	Feb 2024
Control Contractor Brochure (2026) diperbarui: Mar 2026			21 MB	Mar 2026

CAD Drawings

	Versi	Ukuran	Diunggah
Control 88M Drawing versi 3, diperbarui: Mar 2024	3	2,28 MB	Mar 2024

Compliances

	Ukuran	Diunggah
JBL Control Series Passive Speakers DoC diperbarui: Des 2019	179 KB	Des 2019
Control 80 Series - Declaration of Conformity diperbarui: Okt 2019	139 KB	Okt 2019

Install Guides

	Versi	Ukuran	Diunggah
Control 80 Series Landscape Speakers Install Guide versi B, diperbarui: Jul 2022	B	8,95 MB	Jul 2022

CLF Files

	Ukuran	Diunggah
Control 85M & 88M CLF Files diperbarui: Okt 2020	239 KB	Okt 2020

Speaker Tunings

	Versi	Ukuran	Diunggah
Commercial, CBT, and AWC Tunings 220616 versi A, diperbarui: Mei 2023	A	557 KB	Mei 2023

Images

	Ukuran	Diunggah
Control 88M Open diperbarui: Apr 2019	220 KB	Apr 2019
Control 88M Bottom diperbarui: Apr 2019	288 KB	Apr 2019
control 88M Angle diperbarui: Apr 2019	136 KB	Apr 2019
control 88M Front diperbarui: Apr 2019	150 KB	Apr 2019

Ease Data

	Ukuran	Diunggah
Control 88M EASE/GLL File diperbarui: Apr 2019	431 KB	Apr 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB)	47 Hz – 16 kHz
Power Rating	240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs)
Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
Frequency Response (±3 dB)	60Hz - 15 kHz
Maximum Input Voltage	28.0 V
Sensitivity	87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Coverage Pattern	360° H, 160° V (primary listening 10° to 50° up from ground)
Directivity Factor (Q)	2.1
Directivity Index (DI)	3.2 dB
Maximum SPL (1m)	108 dB
Impedance	8Ω (at 8Ω setting)
Minimum Impedance	6.6Ω at 9.5kHz
Insertion Loss	<0.5 dB at any tap setting
Thru Setting	8Ω nominal
Crossover Type	2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass	45 Hz for 8Ω operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Drivers	LF: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround. HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure	LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille	Powder coated stainless steel.
Outdoor Capability	IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency	UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Input Connectors	Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
Wiring	Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS).
Colors	Hunter Green, RAL6018
Dimensions (H x W x D)	524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight (each)	7.8 kg (17 lb)
Shipping Weight	10.5 kg (23 lb)
Included Accessories	(2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
Optional Accessories	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
