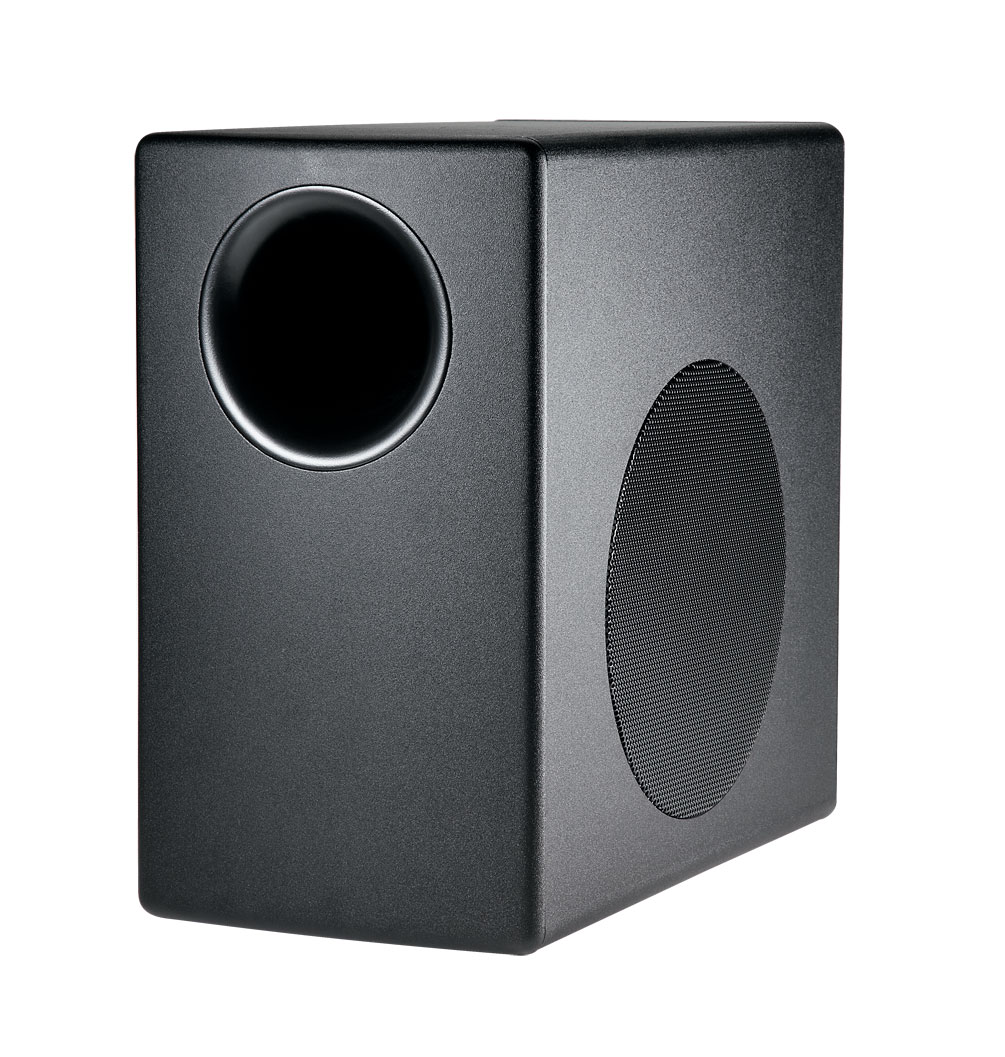

JBL Professional Control 50S/T

Gambar Lebih Besar

Subwoofer Pasang-Permukaan untuk Sistem Loudspeaker Subwoofer-Satelit

Subwoofer Control 50S/T bertenaga 150 Watt (puncak 600 Watt) mengandung driver bertenaga tinggi dengan eksekusi panjang berdiameter 200 mm (8 inci) yang dilengkapi dengan konus bermassa tinggi yang sangat kokoh untuk respons frekuensi rendah yang diperpanjang, kumparan suara tembaga berlapis 4 sebesar 38 mm (1,5 in) untuk kekuatan motor tinggi, mantan aluminium untuk respons transien yang baik, dan surround setengah rol karet untuk performa bass yang ditingkatkan.

Fitur

Bandwidth penuh 32 Hz – 20 kHz suara high fidelity
Dapat dipilih 70V/100V untuk saluran terdistribusi, atau impedansi rendah
Keserbagunaan untuk dua atau empat speaker satelit per sistem
Tersedia dalam warna hitam atau putih

Unduhan

Specifications

	Ukuran	Diunggah
Control 50S/T Spec Sheet diperbarui: Apr 2019	1,28 MB	Apr 2019

Brochures

	Versi	Bahasa	Ukuran	Diunggah
Control Contractor Brochure (2025) versi A, diperbarui: Mar 2026	A		23 MB	Mar 2026
Control Contractor Brochure (2024) versi D, diperbarui: Feb 2024	D		14 MB	Feb 2024
Control Contractor Brochure (2026) diperbarui: Mar 2026			21 MB	Mar 2026

BIM Objects

	Ukuran	Diunggah
CONTROL 50S/T BIM Object diperbarui: Agu 2019		Agu 2019

Compliances

	Ukuran	Diunggah
JBL Control Series Passive Speakers DoC diperbarui: Des 2019	179 KB	Des 2019
Control 50 Series Declaration of Conformity diperbarui: Okt 2019	90,6 KB	Okt 2019

Speaker Tunings

	Versi	Ukuran	Diunggah
Commercial, CBT, and AWC Tunings 220616 versi A, diperbarui: Mei 2023	A	557 KB	Mei 2023

Images

	Ukuran	Diunggah
Control 50ST Hi Res Photo diperbarui: Apr 2019	179 KB	Apr 2019

FAQs

	Ukuran	Diunggah
Control 50 FAQ diperbarui: Apr 2019	159 KB	Apr 2019

Install Guides

	Ukuran	Diunggah
Control 50S/T Install Sheet diperbarui: Apr 2019	382 KB	Apr 2019

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB)	32 Hz – 200 Hz
Frequency Response (±3 dB)	50 Hz – 150 Hz
Power Capacity	300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
Sensitivity	95 dB (near corner), 89 dB (center of wall)
Maximum SPL (1m)	115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
Impedance	8 ohms (in bypass/thru mode)
Transformer Taps	80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
Drivers	200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
Input Connectors	Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Enclosure	Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
Dimensions (H x W x D)	Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
Mounting Hardware	2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
Net Weight (each)	9.0 kg (20 lbs)
Shipping Weight	10.2 kg (23 lbs)
Included Accessories	Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
Grille	Zinc-plated steel
Coverage Angle	Omnidirectional
